Alarms, Buzzers, and Sirens
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Driver Circuitry | Input Type | Voltage - Rated | Voltage Range | Frequency | Technology | Operating Mode | Duration | Sound Pressure Level (SPL) | Current - Supply | Port Location | Operating Temperature | Approval Agency | Ratings | Ingress Protection | Mounting Type | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PL-27A35ERQBUZZER PIEZO 12V 36.5MM PNL MNT |
0 |
|
Datasheet |
PL | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 3 ~ 24V | 3.5kHz | Piezo | Pulse, Slow | 1.2 PPS | 95dB @ 12V, 30cm | 15mA | Top | -20°C ~ 70°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.189" (4.80mm) | 1.437" Dia (36.50mm) |
|
|
PL-27A35EPQBUZZER PIEZO 12V 36.5MM PNL MNT |
0 |
|
Datasheet |
PL | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 3 ~ 24V | 3.5kHz | Piezo | Pulse, Slow | 1.2 PPS | 95dB @ 12V, 30cm | 15mA | Top | -20°C ~ 70°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.189" (4.80mm) | 1.437" Dia (36.50mm) |
|

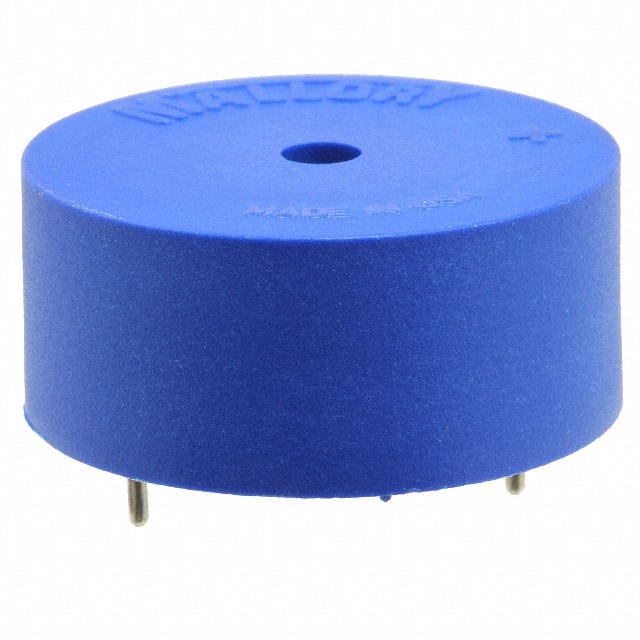

MSR205NPSRBUZZER PIEZO 23MM TH |
0 |
|
Datasheet |
MSR | Bulk | Active | Indicator, Internally Driven | DC | - | 2 ~ 5V | 3.9kHz | Piezo | Pulse, Fast | 2 ~ 10 PPS | 85dB @ 2V, 30cm | 10mA | Top | -40°C ~ 85°C | - | Washable | - | Through Hole | PC Pins | 0.906" Dia (23.00mm) |
|
PK-27A35EPDGQBUZZER PIEZO 12V 36.5MM PNL MNT |
1 |
|
Datasheet |
PK | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 3 ~ 15V | 3.5kHz | Piezo, LED, Green | Single Tone, Visual Indicator | - | 95dB @ 12V, 30cm | 18mA | Top | -20°C ~ 70°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.189" (4.80mm) | 1.437" Dia (36.50mm) |
|
|
PK-27A35EPDBQBUZZER PIEZO 12V 36.5MM PNL MNT |
1 |
|
Datasheet |
PK | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 3 ~ 15V | 3.5kHz | Piezo, LED, Blue | Single Tone, Visual Indicator | - | 95dB @ 12V, 30cm | 18mA | Top | -20°C ~ 70°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.189" (4.80mm) | 1.437" Dia (36.50mm) |
|
|
PF-27N25WQBUZZER PIEZO 12V 30MM FLANGE |
0 |
|
Datasheet |
PF | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 3 ~ 28V | 2.5kHz | Piezo | Pulse, Fast | 3 PPS | 90dB @ 12V, 30cm | 15mA | Top | -20°C ~ 70°C | - | - | - | Panel Mount, Flange | Wire Leads | 1.181" Dia (30.00mm) |
|
PK-16N04WA-01QBUZZER MAGN 1.5V 31X17MM FLANGE |
0 |
|
Datasheet |
PK | Bulk | Active | Indicator, Internally Driven | DC | 1.5 V | 1.5 ~ 2V | 400Hz | Magnetic | Single Tone | - | 75dB @ 1.5V, 30cm | 30mA | Top | -20°C ~ 70°C | - | - | - | Panel Mount, Flange | Wire Leads | 1.220" L x 0.669" W (31.00mm x 17.00mm) |
|
|
PF-27N35PSQBUZZER PIEZO 12V 30MM TH |
0 |
|
Datasheet |
PF | Bulk | Active | Transducer, Externally Driven | DC | 12 V | 3 ~ 28V | 3.5kHz | Piezo (with Feedback) | Pulse, Fast | 3 PPS | 90dB @ 12V, 30cm | 8mA | Top | -20°C ~ 70°C | - | - | - | Through Hole | PC Pins | 1.181" Dia (30.00mm) |
|
|
PFD-21N30PQBUZZER PIEZO 12V 24MM TH |
0 |
|
Datasheet |
PFD | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 3 ~ 30V | 3kHz | Piezo | Pin Selectable | 3 PPS | 80dB @ 12V, 30cm | 12mA | Top | -20°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.945" Dia (24.00mm) |
|
|
PL-21N30WQBUZZER PIEZO 12V 24MM FLANGE |
0 |
|
Datasheet |
PL | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 3 ~ 30V | 3kHz | Piezo | Pulse, Slow | 1.2 PPS | 80dB @ 12V, 30cm | 12mA | Top | -20°C ~ 70°C | - | - | - | Panel Mount, Flange | Wire Leads | 0.945" Dia (24.00mm) |
|
|
PS-523AQBUZZER PIEZO 12V 57.5X44.5 BRKT |
0 |
|
Datasheet |
PS | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 5 ~ 15V | 2.75kHz | Piezo | Siren | - | 105dB @ 12V, 100cm | 200mA | User Defined | -20°C ~ 70°C | - | - | - | Bracket Mount | Wire Leads | 2.263" L x 1.752" W (57.50mm x 44.50mm) |
|
|
PLD-27A35WQBUZZER PIEZO 12V 30MM FLANGE |
0 |
|
Datasheet |
PLD | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 3 ~ 24V | 3.5kHz | Piezo | Pin Selectable | Variable | 95dB @ 12V, 30cm | 15mA | Top | -20°C ~ 70°C | - | - | - | Panel Mount, Flange | Wire Leads | 1.181" Dia (30.00mm) |
|
|
PFD-27A35ERQBUZZER PIEZO 12V 36.5MM PNL MNT |
0 |
|
Datasheet |
PFD | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 3 ~ 24V | 3.5kHz | Piezo | Pin Selectable | 3 PPS | 95dB @ 12V, 30cm | 15mA | Top | -20°C ~ 70°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.189" (4.80mm) | 1.437" Dia (36.50mm) |
|
|
PF-21A29PQBUZZER PIEZO 12V 24MM TH |
0 |
|
Datasheet |
PF | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 3 ~ 24V | 3kHz | Piezo | Single Tone | - | 85dB @ 12V, 30cm | 18mA | Top | -20°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.945" Dia (24.00mm) |
|
|
SNP428FBUZZER PIEZO 41.66MM PNL MNT |
0 |
|
Datasheet |
SNP | Bulk | Active | Indicator, Internally Driven | DC | - | 4 ~ 28V | 2.9kHz | Piezo | Single Tone | - | 52dB @ 4V, 61cm | 0.5 ~ 3mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | - | 1.640" Dia (41.66mm) |
|
|
PS-531QBUZZER PIEZO 12V 85MM BASE |
0 |
|
Datasheet |
PS | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 5 ~ 15V | 2.8kHz | Piezo | Pulse, Slow | - | 105dB @ 12V, 100cm | 200mA | Top | -20°C ~ 70°C | - | - | - | Base Mount | Wire Leads | 3.346" Dia (85.00mm) |
|
|
AI-4219-P-C48-RBUZZER PIEZO 24V 42.5MM PNL MNT |
0 |
|
- |
AI | Bulk | Obsolete | Indicator, Internally Driven | DC | 24 V | 10 ~ 48V | 1.9kHz | Piezo | Single Tone | - | 81dB @ 24V, 10cm | 8mA | Top | -30°C ~ 85°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.256" (6.50mm) | 1.673" Dia (42.50mm) |
|
PS-593SCQBUZZER PIEZO 12V 54MM BRACKET |
0 |
|
Datasheet |
PS | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 5 ~ 15V | 2.5kHz | Piezo | Siren, Fast | - | 105dB @ 12V, 100cm | 250mA | Top | -20°C ~ 70°C | - | - | - | Bracket Mount | Wire Leads | 2.126" Dia (54.00mm) |
|
|
PS-723BQBUZZER PIEZO 12V47X39MM BASE |
0 |
|
Datasheet |
PS | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 5 ~ 15V | 3.5kHz | Piezo | Siren, Fast | - | 105dB @ 12V, 100cm | 150mA | Top | -20°C ~ 70°C | - | - | - | Base Mount | Wire Leads | 1.850" L x 1.535" W (47.00mm x 39.00mm) |
|
|
970-.000-00BUZZER - 0.945" L X 0.945" W TH |
0 |
|
- |
- | Bulk | Obsolete | Indicator, Internally Driven | - | - | - | - | - | - | - | - | - | Top | - | - | - | IP40 | Through Hole | Solder Tabs | 0.945" L x 0.945" W (24.00mm x 24.00mm) |
Alarms, Buzzers, and Sirens Electronic Components
Explore Alarms, Buzzers, and Sirens electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
