Alarms, Buzzers, and Sirens
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Driver Circuitry | Input Type | Voltage - Rated | Voltage Range | Frequency | Technology | Operating Mode | Duration | Sound Pressure Level (SPL) | Current - Supply | Port Location | Operating Temperature | Approval Agency | Ratings | Ingress Protection | Mounting Type | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PB-4314BUZZER PIEZO 12V 42.5MM TH |
0 |
|
Datasheet |
PB | Tray | Active | Transducer, Externally Driven | DC | 12 V | 3 ~ 28V | 2.8kHz | Piezo | Single Tone | - | 90dB @ 12V, 10cm | 8mA | Top | -20°C ~ 60°C | - | - | - | Through Hole | PC Pins | 1.673" Dia (42.50mm) |
|
IP432912-3BUZZER PIEZO 12V 43MM CUSTOM |
0 |
|
Datasheet |
- | Tray | Active | Indicator, Internally Driven | DC | 12 V | 6 ~ 28V | 2.9kHz | Piezo | - | - | 115dB @ 12V, 10cm | 25mA | Top | -20°C ~ 70°C | - | - | - | Custom | Wire Leads | 1.693" Dia (43.00mm) |
|
AI-433BUZZER PIEZO 12V 41.8MM FLANGE |
0 |
|
- |
AI | Bulk | Obsolete | Indicator, Internally Driven | DC | 12 V | - | - | Piezo | - | - | - | - | - | - | - | - | - | Panel Mount, Flange | Wire Leads | 1.646" Dia (41.80mm) |
|
|
IP293512-1BUZZER PIEZO 12V 29.5MM FLANGE |
0 |
|
Datasheet |
- | Tray | Active | Indicator, Internally Driven | DC | 12 V | 3 ~ 28V | 3.5kHz | Piezo | Single Tone | - | 105dB @ 12V, 10cm | 15mA | Top | -20°C ~ 60°C | - | - | - | Panel Mount, Flange | Wire Leads | 1.161" Dia (29.50mm) |
|
|
AST0927ME-05QBUZZER MAGN 5V8.7X8.7MMSMD |
0 |
|
Datasheet |
AS | Bulk | Active | Transducer, Externally Driven | Peak-Peak Signal | 5 V | 4 ~ 7V | 2.731kHz | Magnetic | - | - | 85dB @ 5V, 10cm | 80mA | Top | -20°C ~ 70°C | - | Medical | - | Surface Mount | Solder Pads | 0.343" L x 0.343" W (8.70mm x 8.70mm) |
|
|
AST0925ME-05QBUZZER MAGN 5V8.7X8.7MMSMD |
0 |
|
Datasheet |
AS | Bulk | Active | Transducer, Externally Driven | Peak-Peak Signal | 5 V | 4 ~ 7V | 2.5kHz | Magnetic | - | - | 85dB @ 5V, 10cm | 80mA | Top | -20°C ~ 70°C | - | Medical | - | Surface Mount | Solder Pads | 0.343" L x 0.343" W (8.70mm x 8.70mm) |
|
|
AST0932ME-05QBUZZER MAGN 5V8.7X8.7MMSMD |
0 |
|
Datasheet |
AS | Bulk | Active | Transducer, Externally Driven | Peak-Peak Signal | 5 V | 4 ~ 7V | 3.2kHz | Magnetic | - | - | 85dB @ 5V, 10cm | 80mA | Top | -20°C ~ 70°C | - | Medical | - | Surface Mount | Solder Pads | 0.343" L x 0.343" W (8.70mm x 8.70mm) |
|
|
AST1427M-05QBUZZER MAGNETIC 5V 0.5X 0.43SMD |
0 |
|
Datasheet |
AST | Bulk | Active | Transducer, Externally Driven | Peak-Peak Signal | 5 V | 3 ~ 7V | 2.731kHz | Magnetic | - | - | 89dB @ 5V, 10cm | 60mA | Side | -20°C ~ 70°C | - | - | - | Surface Mount | Solder Pads | 0.551" L x 0.433" W (14.00mm x 11.00mm) |
|
|
AST1427M-03QBUZZER MAGNETIC 3V 0.5X 0.43SMD |
0 |
|
Datasheet |
AST | Bulk | Active | Transducer, Externally Driven | Peak-Peak Signal | 3 V | 3 ~ 4.5V | 2.731kHz | Magnetic | - | - | 89dB @ 3V, 10cm | 70mA | Side | -20°C ~ 70°C | - | - | - | Surface Mount | Solder Pads | 0.551" L x 0.433" W (14.00mm x 11.00mm) |
|
|
PB-12N23MP-09QBUZZER MAGNETIC 9V 12MM TH |
0 |
|
Datasheet |
PB | Bulk | Active | Indicator, Internally Driven | DC | 9 V | 7 ~ 11V | 2.3kHz | Magnetic | Single Tone | - | 85dB @ 9V, 10cm | 50mA | Top | -20°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) |
|
SMT-0927-S-4-RBUZZER MAGN 3.6V 9X9MM SMD |
0 |
|
- |
SMT-09 | Tape & Reel (TR) | Obsolete | Transducer, Externally Driven | Zero-Peak Signal | 3.6 V | 2 ~ 4V | 2.73kHz | Electromechanical/Magnetic | Single Tone | - | 85dB @ 3.6V, 10cm | 100mA | Side | -30°C ~ 70°C | - | - | - | Surface Mount | Solder Pads | 0.354" L x 0.354" W (9.00mm x 9.00mm) |
|
SMT-0927-S-5-RBUZZER MAGN 5V 9X9MM SMD |
0 |
|
- |
SMT-09 | Tape & Reel (TR) | Obsolete | Transducer, Externally Driven | Zero-Peak Signal | 5 V | 3 ~ 7V | 2.73kHz | Electromechanical/Magnetic | Single Tone | - | 85dB @ 5V, 10cm | 80mA | Side | -30°C ~ 70°C | - | - | - | Surface Mount | Solder Pads | 0.354" L x 0.354" W (9.00mm x 9.00mm) |
|

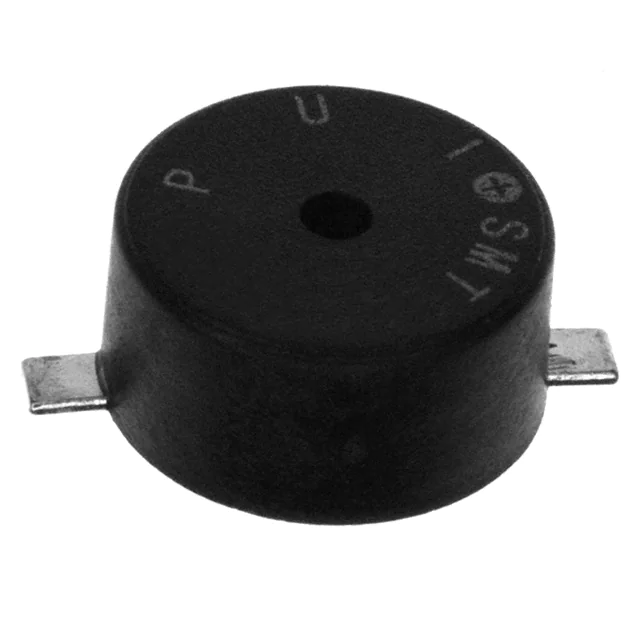

SMT-0927-T-RBUZZER MAGNETIC 3V 9MM SMD |
0 |
|
- |
SMT-09 | Tape & Reel (TR) | Obsolete | Transducer, Externally Driven | Zero-Peak Signal | 3 V | 2 ~ 4V | 2.73kHz | Electromechanical/Magnetic | Single Tone | - | 85dB @ 3V, 10cm | 80mA | Top | -40°C ~ 85°C | - | - | - | Surface Mount | Solder Pads | 0.354" Dia (9.00mm) |
|
CPI-3533-97STBUZZER PIEZO 12V 43MM PNL MNT |
0 |
|
Datasheet |
CPI | Tray | Active | Indicator, Internally Driven | DC | 12 V | 4 ~ 28V | 2.8kHz | Piezo | Single Tone | - | 97dB @ 12V, 10cm | 8mA | Top | -20°C ~ 60°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.256" (6.5mm) | 1.693" Dia (43.00mm) |
|
|
ASI09N27MFD-05QBUZZER MAGN 5V 0.38 X 0.38 W TH |
0 |
|
Datasheet |
ASI | Bulk | Active | Indicator, Internally Driven | DC | 5 V | 4 ~ 7V | 2.7kHz | Magnetic | Single Tone | - | 80dB @ 5V, 10cm | 30mA | Top | -20°C ~ 70°C | - | - | - | Through Hole | Solder Pads | 0.378" L x 0.378" W (9.60mm x 9.60mm) |
|
|
ASI09N40MQBUZZER PIEZO 5V 0.413X 0.413 TH |
0 |
|
Datasheet |
ASI | Bulk | Active | Indicator, Internally Driven | DC | 5 V | 2.5 ~ 5.5V | 4kHz | Piezo | Single Tone | - | 80dB @ 5V, 10cm | 2mA | Top | -20°C ~ 100°C | - | - | - | Through Hole | Solder Pads | 0.413" L x 0.413" W (10.50mm x 10.50mm) |
|
|
PB-12N23P-09QBUZZER MAGNETIC 9V 12MM TH |
0 |
|
Datasheet |
PB | Bulk | Active | Indicator, Internally Driven | DC | 9 V | 7 ~ 11V | 2.3kHz | Magnetic | Single Tone | - | 85dB @ 9V, 10cm | 50mA | Top | -20°C ~ 70°C | - | Washable | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) |
|
IE260406-2BUZZER ELECTRO 6V 26X26MM FLANGE |
0 |
|
Datasheet |
- | Tray | Active | Indicator, Internally Driven | DC | 6 V | 4 ~ 8V | 400Hz | Electromechanical | Single Tone | - | 95dB @ 6V, 10cm | 65mA | Top | -20°C ~ 60°C | - | - | - | Panel Mount, Flange | PC Pins | 1.024" L x 1.024" W (26.00mm x 26.00mm) |
|
IE260412-2BUZZER ELECTRO 12V 26X26MM FLANG |
0 |
|
Datasheet |
- | Tray | Active | Indicator, Internally Driven | DC | 12 V | 8 ~ 16V | 400Hz | Electromechanical | Single Tone | - | 95dB @ 12V, 10cm | 55mA | Top | -20°C ~ 60°C | - | - | - | Panel Mount, Flange | PC Pins | 1.024" L x 1.024" W (26.00mm x 26.00mm) |
|
IE260424-2BUZZER ELECTRO 24V 26X26MM FLANG |
0 |
|
Datasheet |
- | Tray | Active | Indicator, Internally Driven | DC | 24 V | 20 ~ 28V | 400Hz | Electromechanical | Single Tone | - | 95dB @ 24V, 10cm | 55mA | Top | -20°C ~ 60°C | - | - | - | Panel Mount, Flange | PC Pins | 1.024" L x 1.024" W (26.00mm x 26.00mm) |
