Alarms, Buzzers, and Sirens
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Driver Circuitry | Input Type | Voltage - Rated | Voltage Range | Frequency | Technology | Operating Mode | Duration | Sound Pressure Level (SPL) | Current - Supply | Port Location | Operating Temperature | Approval Agency | Ratings | Ingress Protection | Mounting Type | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PT-2725FPLQBUZZER PIEZO 12V 30MM TH |
0 |
|
Datasheet |
PT | Bulk | Active | Transducer, Externally Driven | DC | 12 V | 3 ~ 28V | 2.5kHz | Piezo (with Feedback) | Single Tone | - | 85dB @ 12V, 30cm | 10mA | Top | -20°C ~ 90°C | - | - | - | Through Hole | PC Pins | 1.181" Dia (30.00mm) |
|
AI-2604-TF-LW120-12VBUZZER MAGNETIC 12V 26MM FLANGE |
0 |
|
Datasheet |
- | Tray | Active | Indicator, Internally Driven | DC | 12 V | 8 ~ 15V | 400Hz | Magnetic | Single Tone | - | 79dB @ 12V, 30cm | 50mA | Top | -20°C ~ 60°C | - | - | - | Panel Mount, Flange | Wire Leads | 1.024" Dia (26.00mm) |
|
|
AI-2604-TF-LW120-24VBUZZER MAGNETIC 24V 26MM FLANGE |
0 |
|
Datasheet |
- | Tray | Active | Indicator, Internally Driven | DC | 24 V | 20 ~ 28V | 400Hz | Magnetic | Single Tone | - | 82dB @ 24V, 30cm | 35mA | Top | -20°C ~ 60°C | - | - | - | Panel Mount, Flange | Wire Leads | 1.024" Dia (26.00mm) |
|
|
ASI401TRQBUZZER MAGN 12V 12.6X12.6 W SMD |
0 |
|
Datasheet |
ASI | Tape & Reel (TR) | Active | Indicator, Internally Driven | DC | 12 V | 9 ~ 15V | 2.4kHz | Magnetic | Single Tone | - | 90dB @ 12V, 10cm | 50mA | Top | -20°C ~ 70°C | - | Washable | - | Surface Mount | Solder Pads | 0.496" L x 0.496" W (12.60mm x 12.60mm) |
|
EFM-260BUZZER 12V 23MM TH |
24 |
|
Datasheet |
- | Tray | Active | - | - | 12 V | 3 ~ 24V | 3.5kHz | - | Continuous | - | 85dB @ 12V, 30cm | 10mA | - | -20°C ~ 80°C | - | - | - | Through Hole | PC Pins | 0.906" Dia (23.00mm) |
|
IE282806-1BUZZER ELECTRO 6V 28MM FLANGE |
0 |
|
Datasheet |
- | Tray | Active | Indicator, Internally Driven | DC | 6 V | 4 ~ 9V | 2.8kHz | Electromechanical | Single Tone | - | 95dB @ 6V, 10cm | 35mA | Top | -20°C ~ 60°C | - | - | - | Panel Mount, Flange | Wire Leads | 1.102" Dia (28.00mm) |
|

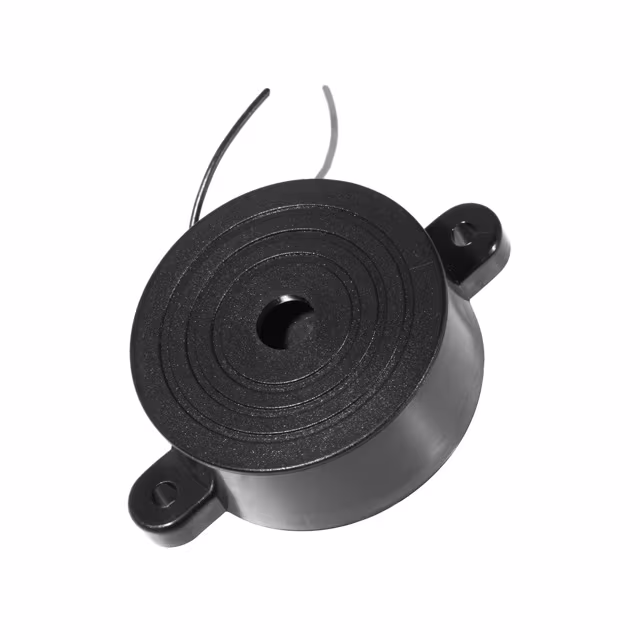

IP412812-1BUZZER PIEZO 12V 41.8MM FLANGE |
0 |
|
Datasheet |
- | Tray | Active | Indicator, Internally Driven | DC | 12 V | 1.5 ~ 20V | 2.8kHz | Piezo | Single Tone | - | 106dB @ 12V, 10cm | 10mA | Top | -20°C ~ 60°C | - | - | - | Panel Mount, Flange | Wire Leads | 1.646" Dia (41.80mm) |
|

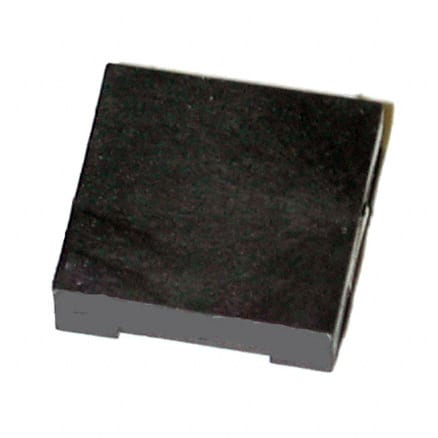

AST1240MLQBUZZER PIEZO 3V 12X12MM SMD |
0 |
|
Datasheet |
AST | Strip | Active | Transducer, Externally Driven | Peak-Peak Signal | 3 V | 3 ~ 25V | 4kHz | Piezo | Single Tone | - | 75dB @ 3V, 10cm | 5mA | Side | -20°C ~ 70°C | - | - | - | Surface Mount | Solder Pads | 0.472" L x 0.472" W (12.00mm x 12.00mm) |
|
|
AI-4228-TF-LW300-RBUZZER PIEZO 12V 41.8MM FLANGE |
0 |
|
- |
- | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 3 ~ 28V | 2.8kHz | Piezo | Pulse | 3 PPS | 95dB @ 12V, 10cm | 7mA | Top | -30°C ~ 85°C | - | - | - | Panel Mount, Flange | Wire Leads | 1.646" Dia (41.80mm) |
|
EFM-290EDQBUZZER PIEZO 9V 40MM TH |
18 |
|
Datasheet |
EFM | Box | Active | Transducer, Externally Driven | DC | 9 V | 7 ~ 12V | 3.4kHz | Piezo | Single Tone | - | 90dB @ 9V, 30cm | 10mA | Top | -20°C ~ 70°C | - | - | - | Through Hole | PC Pins | 1.575" Dia (40.00mm) |
|
|
PB-1420PL-03AQBUZZER MAGNETIC 3V 14MM TH |
0 |
|
- |
PB | Bulk | Obsolete | Transducer, Externally Driven | Peak-Peak Signal | 3 V | 1 ~ 4V | 2kHz | Magnetic | Single Tone | - | 85dB @ 3V, 10cm | 35mA | Top | -30°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.551" Dia (14.00mm) |
|
PT-2035FPLQBUZZER PIEZO 12V 23.4MM TH |
0 |
|
Datasheet |
PT | Bulk | Active | Transducer, Externally Driven | DC | 12 V | 3 ~ 28V | 3kHz | Piezo (with Feedback) | Single Tone | - | 86dB @ 12V, 30cm | 10mA | Top | -20°C ~ 90°C | - | - | - | Through Hole | PC Pins | 0.921" Dia (23.40mm) |
|

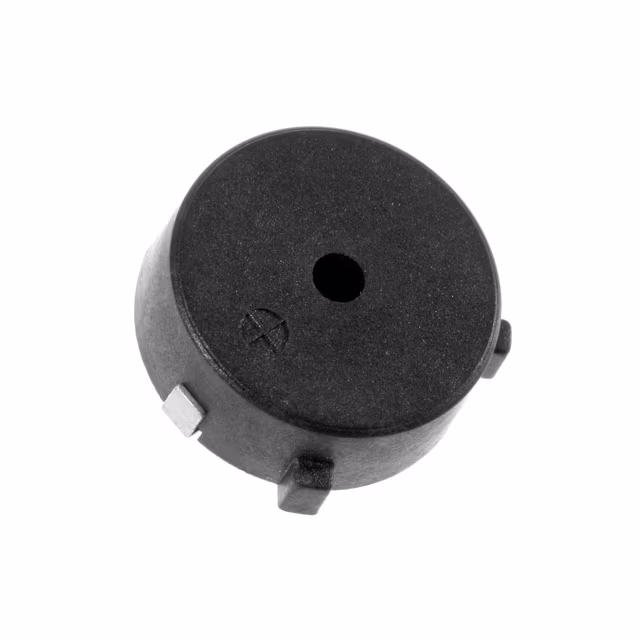

TP174012-1BUZZER PIEZO 12V 17MM SMD |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Transducer, Externally Driven | Peak-Peak Signal | 12 V | 1 ~ 25V | 4kHz | Piezo | - | - | 90dB @ 12V, 10cm | 7mA | Top | -20°C ~ 75°C | - | - | - | Surface Mount | Solder Pads | 0.669" Dia (17.00mm) |
|
|
PT-2035FPQBUZZER PIEZO 12V 23.4MM TH |
0 |
|
Datasheet |
PT | Bulk | Active | Transducer, Externally Driven | DC | 12 V | 3 ~ 28V | 3kHz | Piezo (with Feedback) | Single Tone | - | 86dB @ 12V, 30cm | 10mA | Top | -20°C ~ 90°C | - | - | - | Through Hole | PC Pins | 0.921" Dia (23.40mm) |
.JPG)
|
AST1440MAQBUZZER PIEZO 5V14.1X14.1MM SMD |
0 |
|
Datasheet |
AST | Strip | Active | Transducer, Externally Driven | Peak-Peak Signal | 5 V | 1 ~ 20V | 4kHz | Piezo | Single Tone | - | 75dB @ 5V, 10cm | 2mA | Top | -30°C ~ 70°C | - | - | - | Surface Mount | Solder Pads | 0.555" L x 0.555" W (14.10mm x 14.10mm) |
|
PB-0927PD1AQBUZZER MAGNETIC 5V 9MM TH |
0 |
|
Datasheet |
PB | Bulk | Active | Transducer, Externally Driven | Peak-Peak Signal | 5 V | 3 ~ 7V | 2.7kHz | Magnetic | Single Tone | - | 80dB @ 5V, 10cm | 80mA | Top | -30°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.354" Dia (9.00mm) |
|
|
ST-04BLABUZZER MAGNETIC 3.6V 0.3X0.3 SMD |
0 |
|
Datasheet |
- | Bulk | Active | Transducer, Externally Driven | Zero-Peak Signal | 3.6 V | 2 ~ 4V | 2.5kHz | Magnetic | - | - | 85dB @ 3.6V, 10cm | 85mA | Top | -30°C ~ 70°C | - | - | - | Surface Mount | Solder Pads | 0.335" L x 0.335" W (8.50mm x 8.50mm) |
|
|
AI-2304-TF-LW147-12VBUZZER MAGN 12V 32X17 FLANG |
0 |
|
Datasheet |
- | Tray | Active | Indicator, Internally Driven | DC | 12 V | 8 ~ 16V | 400Hz | Magnetic | Single Tone | - | 82dB @ 12V, 30cm | 35mA | Top | -30°C ~ 70°C | - | - | - | Panel Mount, Flange | Wire Leads | 1.319" L x 0.669" W (33.50mm x 17.00mm) |
|
|
PB-09N23P-05QBUZZER MAGNETIC 5V 9MM TH |
0 |
|
Datasheet |
PB | Bulk | Active | Indicator, Internally Driven | DC | 5 V | 4 ~ 7V | 2.3kHz | Magnetic | Single Tone | - | 82dB @ 5V, 10cm | 30mA | Top | -20°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.354" Dia (9.00mm) |
|
PB-3214NLBUZZER PIEZO 12V 32MM FLANGE |
0 |
|
Datasheet |
PB | Bulk | Active | Transducer, Externally Driven | DC | 12 V | 3 ~ 24V | 3.7kHz | Piezo | Single Tone | - | 90dB @ 12V, 30cm | 15mA | Top | -20°C ~ 60°C | - | - | - | Panel Mount, Flange | Wire Leads | 1.260" Dia (32.00mm) |
