BOM Upload
Alarms, Buzzers, and Sirens
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Driver Circuitry | Input Type | Voltage - Rated | Voltage Range | Frequency | Technology | Operating Mode | Duration | Sound Pressure Level (SPL) | Current - Supply | Port Location | Operating Temperature | Approval Agency | Ratings | Ingress Protection | Mounting Type | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.JPG)
|
AST0727MW-3.6ATRQBUZZER MAGN 3.6V 7.5X7.5 SMD |
22 |
|
Datasheet |
AST | Tape & Reel (TR) | Active | Transducer, Externally Driven | Peak-Peak Signal | 3.6 V | 2.5 ~ 4.5V | 2.7kHz | Magnetic | Single Tone | - | 85dB @ 3.6V, 10cm | 100mA | Side | -40°C ~ 85°C | - | - | - | Surface Mount | Solder Pads | 0.295" L x 0.295" W (7.50mm x 7.50mm) |
|
IP233112-1BUZZER PIEZO 12V 23.4MM TH |
0 |
|
Datasheet |
- | Tray | Active | Indicator, Internally Driven | DC | 12 V | 3 ~ 20V | 3.1kHz | Piezo | Single Tone | - | 85dB @ 12V, 10cm | 15mA | Top | -30°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.921" Dia (23.40mm) |
|
SMT-916BUZZER MAGN 3.6V 9X9MM SMD |
0 |
|
- |
SMT | Tape & Reel (TR) | Obsolete | Transducer, Externally Driven | Zero-Peak Signal | 3.6 V | - | - | Electromechanical/Magnetic | - | - | - | - | - | - | - | - | - | Surface Mount | Solder Pads | 0.354" L x 0.354" W (9.00mm x 9.00mm) |
|

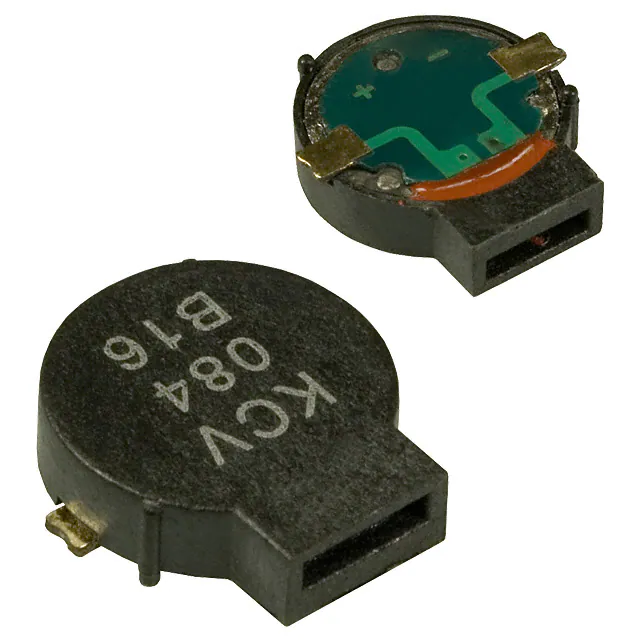

CCV-084B16-SMTBUZZER MAGNETIC 3.6V 9.00MM SMD |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | Transducer, Externally Driven | Zero-Peak Signal | 3.6 V | 2.5 ~ 4.5V | 2.73kHz | Magnetic | Single Tone | - | 85dB @ 3.6V, 10cm | 110mA | Side | -30°C ~ 70°C | - | - | - | Surface Mount | Solder Pads | 0.354" Dia (9.00mm) |
|
TE102803-2BUZZER ELECTRO 3.6V 10X10MMW SMD |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Transducer, Externally Driven | Zero-Peak Signal | 3.6 V | - | 2.83kHz | Electromechanical | - | - | 90dB @ 3.6V, 10cm | 100mA | Top | -20°C ~ 70°C | - | - | - | Surface Mount | Solder Pads | 0.394" L x 0.394" W (10.00mm x 10.00mm) |
|
|
PT-2065FWQBUZZER PIEZO 12V 24MM FLANGE |
0 |
|
Datasheet |
PT | Bulk | Active | Transducer, Externally Driven | DC | 12 V | 3 ~ 28V | 6kHz | Piezo (with Feedback) | Single Tone | - | 85dB @ 12V, 30cm | 8mA | Top | -20°C ~ 90°C | - | - | - | Panel Mount, Flange | Wire Leads | 0.945" Dia (24.00mm) |
|
IP243409-1BUZZER PIEZO 9V 24MM FLANGE |
0 |
|
Datasheet |
- | Tray | Active | Indicator, Internally Driven | DC | 9 V | 3 ~ 20V | 3.4kHz | Piezo | Single Tone | - | 92dB @ 9V, 10cm | 10mA | Top | -20°C ~ 65°C | - | - | - | Panel Mount, Flange | Wire Leads | 0.945" Dia (24.00mm) |
|
|
SMT-915BUZZER ELECTRO/ MAGN 1.5V SMD |
0 |
|
- |
SMT | Tape & Reel (TR) | Obsolete | Transducer, Externally Driven | Zero-Peak Signal | 1.5 V | - | - | Electromechanical/Magnetic | - | - | - | - | - | - | - | - | - | Surface Mount | - | - |
|
AT-4032-TT-RBUZZER PIEZO 12V 40MM TH |
0 |
|
- |
AT | Box | Active | Transducer, Externally Driven | Peak-Peak Signal | 12 V | 1 ~ 60V | 3.25kHz | Piezo | Single Tone | - | 100dB @ 12V, 10cm | 40mA | Top | -30°C ~ 80°C | - | - | - | Through Hole | PC Pins | 1.575" Dia (40.00mm) |
|
CMT-1270S-SMT-TRBUZZER MAGN 1.5V 12.8X12.8 SMD |
0 |
|
Datasheet |
CMT | Tape & Reel (TR) | Active | Transducer, Externally Driven | Zero-Peak Signal | 1.5 V | 1 ~ 2V | 2.4kHz | Magnetic | Single Tone | - | 83dB @ 1.5V, 10cm | 60mA | Top | -20°C ~ 70°C | - | Washable | - | Surface Mount | Solder Pads | 0.504" L x 0.504" W (12.80mm x 12.80mm) |
|
IE122412-1BUZZER ELECTRO 12V 12.8X12.8 SMD |
0 |
|
Datasheet |
- | Tube | Active | Indicator, Internally Driven | DC | 12 V | 8 ~ 15V | 2.4kHz | Electromechanical | Single Tone | - | 85dB @ 12V, 10cm | 30mA | Top | -20°C ~ 70°C | - | Washable | - | Surface Mount | Solder Pads | 0.504" L x 0.504" W (12.80mm x 12.80mm) |
|
TP233412-1BUZZER PIEZO 12V 23.5MM TH |
0 |
|
Datasheet |
- | Tray | Active | Transducer, Externally Driven | Peak-Peak Signal | 12 V | 3 ~ 20V | 3.4kHz | Piezo | - | - | 95dB @ 12V, 10cm | 10mA | Top | -20°C ~ 70°C | - | Washable | - | Through Hole | PC Pins | 0.925" Dia (23.50mm) |
|
TE082603-1BUZZER ELECTRO 3.6V 8X8MMSMD |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Transducer, Externally Driven | Zero-Peak Signal | 3.6 V | 2 ~ 5V | 2.67kHz | Electromechanical | - | - | 88dB @ 3.6V, 10cm | 90mA | Side | -20°C ~ 70°C | - | - | - | Surface Mount | Solder Pads | 0.315" L x 0.315" W (8.00mm x 8.00mm) |
|
TE084003-1BUZZER ELECTRO 3.6V 0.3X0.3 SMD |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Transducer, Externally Driven | Zero-Peak Signal | 3.6 V | 2.5 ~ 4.5V | 4kHz | Electromechanical | - | - | 88dB @ 3.6V, 10cm | 100mA | Side | -30°C ~ 80°C | - | - | - | Surface Mount | Solder Pads | 0.335" L x 0.335" W (8.50mm x 8.50mm) |
.JPG)
|
AST612TRQBUZZER MAGN 12V 12.6X12.6 W SMD |
0 |
|
Datasheet |
AST | Tape & Reel (TR) | Active | Transducer, Externally Driven | Peak-Peak Signal | 12 V | 8 ~ 16V | 2.4kHz | Magnetic | Single Tone | - | 87dB @ 12V, 10cm | 50mA | Top | -30°C ~ 85°C | - | Washable | - | Surface Mount | Solder Pads | 0.496" L x 0.496" W (12.60mm x 12.60mm) |
|
|
AST0927MW-05TRQBUZZER 800PCS |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
PB-3020-2BUZZER PIEZO 3V - TH |
0 |
|
Datasheet |
PB | Tray | Active | Transducer, Externally Driven | DC | 3 V | 2 ~ 5V | 3.5kHz | Piezo | Single Tone | - | 90dB @ 3V, 30cm | 9mA | Top | -20°C ~ 80°C | - | - | - | Through Hole | PC Pins | - |
|
SMT-1640-S-RBUZZER PIEZO 5V16X16MM SMD |
0 |
|
- |
SMT | Tape & Reel (TR) | Obsolete | Transducer, Externally Driven | Peak-Peak Signal | 5 V | 1 ~ 25V | 4kHz | Piezo | Single Tone | - | 70dB @ 5V, 10cm | 3mA | Side | -40°C ~ 120°C | - | - | - | Surface Mount | Solder Pads | 0.630" L x 0.630" W (16.00mm x 16.00mm) |
|
IP243712-1BUZZER PIEZO 12V 24MM TH |
0 |
|
Datasheet |
- | Tray | Active | Indicator, Internally Driven | DC | 12 V | 3 ~ 16V | 3.7kHz | Piezo | Single Tone | - | 100dB @ 12V, 10cm | 8mA | Top | -30°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.945" Dia (24.00mm) |
|
IE123105-1BUZZER ELECTRO 5V 12MM TH |
0 |
|
Datasheet |
- | Tray | Active | Indicator, Internally Driven | DC | 5 V | 3 ~ 7V | 3.1kHz | Electromechanical | Single Tone | - | 85dB @ 5V, 10cm | 30mA | Top | -30°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) |
Alarms, Buzzers, and Sirens Electronic Components
Explore Alarms, Buzzers, and Sirens electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
