Alarms, Buzzers, and Sirens
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Driver Circuitry | Input Type | Voltage - Rated | Voltage Range | Frequency | Technology | Operating Mode | Duration | Sound Pressure Level (SPL) | Current - Supply | Port Location | Operating Temperature | Approval Agency | Ratings | Ingress Protection | Mounting Type | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMT-0640-T-RBUZZER MAGN 3.6V5.5X5.5MMSMD |
0 |
|
Datasheet |
SMT | Tape & Reel (TR) | Active | Transducer, Externally Driven | Zero-Peak Signal | 3.6 V | 2 ~ 4V | 4kHz | Magnetic | - | - | 75dB @ 3.6V, 10cm | 130mA | Top | -20°C ~ 70°C | - | - | - | Surface Mount | Solder Pads | 0.217" L x 0.217" W (5.50mm x 5.50mm) |
|
SD1614TT-B3MEBUZZER MAGNETIC 5V 16MM FLANGE |
0 |
|
Datasheet |
SD | Bulk | Last Time Buy | - | Zero-Peak Signal | 5 V | 3 ~ 6V | - | Magnetic | - | - | - | - | Top | -40°C ~ 85°C | - | - | - | Panel Mount, Flange | PC Pins | 0.630" Dia (16.00mm) |
|
SD1614TT-A1BUZZER MAGNETIC 12V 16MM TH |
0 |
|
Datasheet |
SD | Tray | Last Time Buy | Transducer, Externally Driven | Zero-Peak Signal | 12 V | 6 ~ 15V | 2.048kHz | Magnetic | - | - | 85dB @ 12V, 10cm | 100mA | Top | -10°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.630" Dia (16.00mm) |
|
IE122305-1BUZZER ELECTRO 5V 12MM TH |
0 |
|
Datasheet |
- | Tray | Active | Indicator, Internally Driven | DC | 5 V | 4 ~ 7V | 2.3kHz | Electromechanical | Single Tone | - | 85dB @ 5V, 10cm | 30mA | Top | -20°C ~ 70°C | - | Washable | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) |
|
|
TP304003-3BUZZER PIEZO |
0 |
|
- |
- | Tray | Active | Transducer, Externally Driven | Peak-Peak Signal | - | - | - | Piezo | - | - | - | - | - | - | - | - | - | - | - | - |
|
TP143305-2BUZZER PIEZO |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Transducer, Externally Driven | Peak-Peak Signal | - | - | - | Piezo | - | - | - | - | - | - | - | - | - | - | - | - |
|
IE122305-2BUZZER ELECTRO 5V 12MM TH |
0 |
|
Datasheet |
- | Tray | Active | Indicator, Internally Driven | DC | 5 V | 3 ~ 7V | 2.3kHz | Electromechanical | Single Tone | - | 83dB @ 5V, 10cm | 30mA | Top | -20°C ~ 70°C | - | Washable | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) |
.JPG)
|
AST0760MCQBUZZER PIEZO 3V 7.5X7.5 SMD |
0 |
|
Datasheet |
AST | Strip | Active | Transducer, Externally Driven | Peak-Peak Signal | 3 V | 1 ~ 25V | 6kHz | Piezo | Single Tone | - | 74dB @ 12V, 10cm | 6mA | Side | -40°C ~ 85°C | - | - | - | Surface Mount | Solder Pads | 0.295" L x 0.295" W (7.50mm x 7.50mm) |
|
|
3590MB 12 |
0 |
|
- |
- | Retail Package | Active | Indicator, Internally Driven | DC | 5 V | 3 ~ 7V | 2.3kHz | Magnetic | - | - | 88dB @ 5V, 10cm | - | Top | -40°C ~ 85°C | - | - | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) |
|
TE122401-3BUZZER ELECTR 1.5V 12.8X12.8 SMD |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Transducer, Externally Driven | Zero-Peak Signal | 1.5 V | 1 ~ 3V | 2.4kHz | Electromechanical | - | - | 80dB @ 1.5V, 10cm | 30mA | Top | -30°C ~ 70°C | - | Washable | - | Surface Mount | Solder Pads | 0.504" L x 0.504" W (12.80mm x 12.80mm) |
|
TE122405-5BUZZER ELECTRO 5V 12.8X12.8" SMD |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Transducer, Externally Driven | Zero-Peak Signal | 5 V | 3 ~ 8V | 2.4kHz | Electromechanical | - | - | 85dB @ 5V, 10cm | 40mA | Top | -30°C ~ 70°C | - | Washable | - | Surface Mount | Solder Pads | 0.504" L x 0.504" W (12.80mm x 12.80mm) |
|

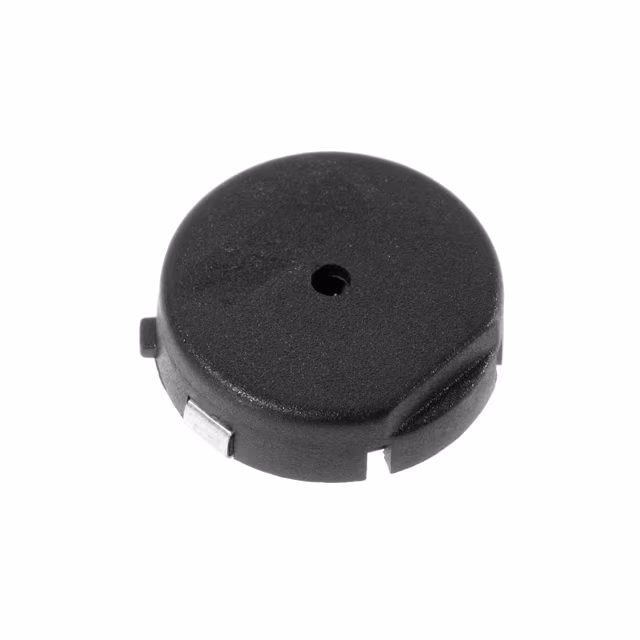

TP204003-1BUZZER PIEZO 3V SMD |
0 |
|
Datasheet |
- | Tray | Active | Transducer, Externally Driven | Peak-Peak Signal | 3 V | 1 ~ 30V | 4kHz | Piezo | - | - | 80dB @ 3V, 10cm | 5mA | Top | -20°C ~ 70°C | - | - | - | Surface Mount | Solder Pads | - |
.JPG)
|
AST0540MW-3.6QBUZZER MAGN 3.6V 5MMX5MMSMD |
0 |
|
Datasheet |
AST | Strip | Active | Transducer, Externally Driven | Peak-Peak Signal | 3.6 V | 2 ~ 4V | 4kHz | Magnetic | Single Tone | - | 80dB @ 12V, 10cm | 110mA | Top | -20°C ~ 60°C | - | - | - | Surface Mount | Solder Pads | 0.197" L x 0.197" W (5.00mm x 5.00mm) |
.JPG)
|
AST0540MW-03QBUZZER MAGN 3V 5MMX5MMSMD |
0 |
|
Datasheet |
AST | Strip | Active | Transducer, Externally Driven | Peak-Peak Signal | 3 V | 2 ~ 4V | 4kHz | Magnetic | Single Tone | - | 75dB @ 3V, 10cm | 110mA | Top | -20°C ~ 70°C | - | - | - | Surface Mount | Solder Pads | 0.197" L x 0.197" W (5.00mm x 5.00mm) |
|
WT-1601BUZZER MAGNETIC 1.5V 16MM TH |
0 |
|
Datasheet |
WT | Tray | Active | Transducer, Externally Driven | Zero-Peak Signal | 1.5 V | 1 ~ 2V | 2.048kHz | Magnetic | Single Tone | - | 80dB @ 1.5V, 10cm | 12mA | Top | -20°C ~ 60°C | - | Washable | - | Through Hole | PC Pins | 0.630" Dia (16.00mm) |
|
WT-1606BUZZER MAGNETIC 6V 16MM TH |
0 |
|
Datasheet |
WT | Tray | Active | Transducer, Externally Driven | Zero-Peak Signal | 6 V | 4 ~ 8V | 2.048kHz | Magnetic | Single Tone | - | 85dB @ 6V, 10cm | 40mA | Top | -20°C ~ 60°C | - | Washable | - | Through Hole | PC Pins | 0.630" Dia (16.00mm) |
|
WT-1612BUZZER MAGNETIC 12V 16MM TH |
0 |
|
Datasheet |
WT | Bulk | Active | Transducer, Externally Driven | Zero-Peak Signal | 12 V | 9 ~ 15V | 2.048kHz | Magnetic | Single Tone | - | 85dB @ 12V, 10cm | 40mA | Top | -20°C ~ 60°C | - | Washable | - | Through Hole | PC Pins | 0.630" Dia (16.00mm) |
|
PST1423P02BUZZER PIEZO 24V14X14MM SMD |
0 |
|
Datasheet |
PS | Tape & Reel (TR) | Not For New Designs | Transducer, Externally Driven | Peak-Peak Signal | 24 V | 30V (Max) | 2.3kHz | Piezo | - | - | 84dB @ 24V, 10cm | - | - | -10°C ~ 70°C | - | - | - | Surface Mount | Solder Pads | 0.551" L x 0.551" W (14.00mm x 14.00mm) |
|
CT03E-04S400-1BBUZZER MAGN 3V 0.12"X 0.12" SMD |
0 |
|
Datasheet |
- | Obsolete | Transducer, Externally Driven | Zero-Peak Signal | 3 V | 2 ~ 4V | 4kHz | Magnetic | Single Tone | - | 72dB @ 3V, 10cm | 120mA | Top | -20°C ~ 70°C | - | - | - | Surface Mount | Solder Pads | 0.126" L x 0.126" W (3.20mm x 3.20mm) | |
|
TP124512-1BUZZER PIEZO 12V 12MM TH |
0 |
|
Datasheet |
- | Tray | Obsolete | Transducer, Externally Driven | Peak-Peak Signal | 12 V | 1 ~ 30V | 4.5kHz | Piezo | - | - | 80dB @ 12V, 10cm | 5mA | Top | -30°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) |
Alarms, Buzzers, and Sirens Electronic Components
Explore Alarms, Buzzers, and Sirens electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
