Single Zener Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Voltage - Zener (Nom) (Vz) | Tolerance | Power - Max | Impedance (Max) (Zzt) | Current - Reverse Leakage @ Vr | Voltage - Forward (Vf) (Max) @ If | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DL5245B-TPDIODE ZENER 15V 500MW MINI MELF |
2,637 |
|
Datasheet |
- | DO-213AC, MINI-MELF, SOD-80 | Tape & Reel (TR) | Obsolete | 15 V | ±5% | 500 mW | 16 Ohms | 100 nA @ 11 V | 1.1 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | Mini MELF |
|
DL5246B-TPDIODE ZENER 16V 500MW MINI MELF |
9,660 |
|
Datasheet |
- | DO-213AC, MINI-MELF, SOD-80 | Tape & Reel (TR) | Obsolete | 16 V | ±5% | 500 mW | 17 Ohms | 100 nA @ 12 V | 1.1 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | Mini MELF |
|
DL5247B-TPDIODE ZENER 17V 500MW MINI MELF |
6,392 |
|
Datasheet |
- | DO-213AC, MINI-MELF, SOD-80 | Tape & Reel (TR) | Obsolete | 17 V | ±5% | 500 mW | 19 Ohms | 100 nA @ 13 V | 1.1 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | Mini MELF |
|
DL5249B-TPDIODE ZENER 19V 500MW MINI MELF |
8,977 |
|
Datasheet |
- | DO-213AC, MINI-MELF, SOD-80 | Tape & Reel (TR) | Obsolete | 19 V | ±5% | 500 mW | 23 Ohms | 100 nA @ 14 V | 1.1 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | Mini MELF |
|

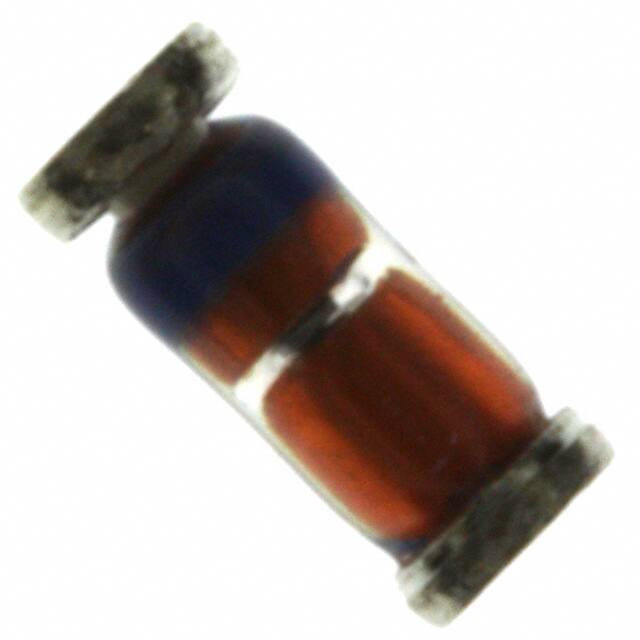

DL5252B-TPDIODE ZENER 24V 500MW MINI MELF |
7,711 |
|
Datasheet |
- | DO-213AC, MINI-MELF, SOD-80 | Tape & Reel (TR) | Obsolete | 24 V | ±5% | 500 mW | 33 Ohms | 100 nA @ 18 V | 1.1 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | Mini MELF |
|
DL5254B-TPDIODE ZENER 27V 500MW MINI MELF |
9,624 |
|
Datasheet |
- | DO-213AC, MINI-MELF, SOD-80 | Tape & Reel (TR) | Obsolete | 27 V | ±5% | 500 mW | 41 Ohms | 100 nA @ 21 V | 1.1 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | Mini MELF |
|
DL5257B-TPDIODE ZENER 33V 500MW MINI MELF |
6,988 |
|
Datasheet |
- | DO-213AC, MINI-MELF, SOD-80 | Tape & Reel (TR) | Obsolete | 33 V | ±5% | 500 mW | 58 Ohms | 100 nA @ 25 V | 1.1 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | Mini MELF |
|
MMSZ5250ET1GDIODE ZENER 20V 500MW SOD123 |
4,070 |
|
Datasheet |
MMSZ52xxxT1G | SOD-123 | Tape & Reel (TR) | Obsolete | 20 V | ±5% | 500 mW | 25 Ohms | 100 nA @ 15 V | 900 mV @ 10 mA | -55°C ~ 150°C | - | - | Surface Mount | SOD-123 |
|
|
DL4732A-TPDIODE ZENER 4.7V 1W MELF |
5,387 |
|
Datasheet |
- | DO-213AB, MELF | Tape & Reel (TR) | Obsolete | 4.7 V | ±5% | 1 W | 8 Ohms | 10 µA @ 1 V | 1.2 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | MELF |
|
|
DL4734A-TPDIODE ZENER 5.6V 1W MELF |
4,724 |
|
Datasheet |
- | DO-213AB, MELF | Tape & Reel (TR) | Obsolete | 5.6 V | ±5% | 1 W | 5 Ohms | 10 µA @ 2 V | 1.2 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | MELF |
|
|
DL4735A-TPDIODE ZENER 6.2V 1W MELF |
5,461 |
|
Datasheet |
- | DO-213AB, MELF | Tape & Reel (TR) | Obsolete | 6.2 V | ±5% | 1 W | 2 Ohms | 10 µA @ 3 V | 1.2 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | MELF |
|
|
DL4737A-TPDIODE ZENER 7.5V 1W MELF |
3,131 |
|
Datasheet |
- | DO-213AB, MELF | Tape & Reel (TR) | Obsolete | 7.5 V | ±5% | 1 W | 4 Ohms | 10 µA @ 5 V | 1.2 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | MELF |
|
|
DL4738A-TPDIODE ZENER 8.2V 1W MELF |
5,275 |
|
Datasheet |
- | DO-213AB, MELF | Tape & Reel (TR) | Obsolete | 8.2 V | ±5% | 1 W | 4.5 Ohms | 10 µA @ 6 V | 1.2 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | MELF |
|
|
DL4739A-TPDIODE ZENER 9.1V 1W MELF |
6,980 |
|
Datasheet |
- | DO-213AB, MELF | Tape & Reel (TR) | Obsolete | 9.1 V | ±5% | 1 W | 5 Ohms | 10 µA @ 7 V | 1.2 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | MELF |
|
|
DL4740A-TPDIODE ZENER 10V 1W MELF |
9,078 |
|
Datasheet |
- | DO-213AB, MELF | Tape & Reel (TR) | Obsolete | 10 V | ±5% | 1 W | 7 Ohms | 10 µA @ 7.6 V | 1.2 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | MELF |
|
|
DL4745A-TPDIODE ZENER 16V 1W MELF |
6,450 |
|
Datasheet |
- | DO-213AB, MELF | Tape & Reel (TR) | Obsolete | 16 V | ±5% | 1 W | 16 Ohms | 5 µA @ 12.2 V | 1.2 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | MELF |
|
|
DL4746A-TPDIODE ZENER 18V 1W MELF |
3,014 |
|
Datasheet |
- | DO-213AB, MELF | Tape & Reel (TR) | Obsolete | 18 V | ±5% | 1 W | 20 Ohms | 5 µA @ 13.7 V | 1.2 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | MELF |
|
|
DL4747A-TPDIODE ZENER 20V 1W MELF |
9,723 |
|
Datasheet |
- | DO-213AB, MELF | Tape & Reel (TR) | Obsolete | 20 V | ±5% | 1 W | 22 Ohms | 5 µA @ 15.2 V | 1.2 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | MELF |
|
|
DL4752A-TPDIODE ZENER 33V 1W MELF |
5,573 |
|
Datasheet |
- | DO-213AB, MELF | Tape & Reel (TR) | Obsolete | 33 V | ±5% | 1 W | 45 Ohms | 5 µA @ 25.1 V | 1.2 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | MELF |
|
MAZS033G0LDIODE ZENER 3.2V 150MW SSMINI2 |
4,696 |
|
Datasheet |
- | SC-79, SOD-523 | Tape & Reel (TR) | Obsolete | 3.2 V | ±4% | 150 mW | 130 Ohms | 20 µA @ 1 V | 1 V @ 10 mA | - | - | - | Surface Mount | SSMini2-F4 |
