Single Zener Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Voltage - Zener (Nom) (Vz) | Tolerance | Power - Max | Impedance (Max) (Zzt) | Current - Reverse Leakage @ Vr | Voltage - Forward (Vf) (Max) @ If | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BZV55C24-TPDIODE ZENER 24V 500MW MINI MELF |
5,635 |
|
Datasheet |
- | DO-213AC, MINI-MELF, SOD-80 | Tape & Reel (TR) | Obsolete | 24 V | ±6% | 500 mW | 80 Ohms | 100 nA @ 18 V | 1.5 V @ 200 mA | -55°C ~ 150°C | - | - | Surface Mount | Mini MELF |
|
BZV55C30-TPDIODE ZENER 30V 500MW MINI MELF |
5,227 |
|
Datasheet |
- | DO-213AC, MINI-MELF, SOD-80 | Tape & Reel (TR) | Obsolete | 30 V | ±7% | 500 mW | 80 Ohms | 100 nA @ 22 V | 1.5 V @ 200 mA | -55°C ~ 150°C | - | - | Surface Mount | Mini MELF |
|
BZV55C33-TPDIODE ZENER 33V 500MW MINI MELF |
7,232 |
|
Datasheet |
- | DO-213AC, MINI-MELF, SOD-80 | Tape & Reel (TR) | Obsolete | 33 V | ±6% | 500 mW | 80 Ohms | 100 nA @ 24 V | 1.5 V @ 200 mA | -55°C ~ 150°C | - | - | Surface Mount | Mini MELF |
|
BZV55C3V9-TPDIODE ZENER 3.9V 500MW MINI MELF |
2,476 |
|
Datasheet |
- | DO-213AC, MINI-MELF, SOD-80 | Tape & Reel (TR) | Obsolete | 3.9 V | ±5% | 500 mW | 85 Ohms | 2 µA @ 1 V | 1.5 V @ 200 mA | -55°C ~ 150°C | - | - | Surface Mount | Mini MELF |
|
BZV55C7V5-TPDIODE ZENER 7.5V 500MW MINI MELF |
4,685 |
|
Datasheet |
- | DO-213AC, MINI-MELF, SOD-80 | Tape & Reel (TR) | Obsolete | 7.5 V | ±6% | 500 mW | 7 Ohms | 100 nA @ 5 V | 1.5 V @ 200 mA | -55°C ~ 150°C | - | - | Surface Mount | Mini MELF |
|
DL4728A-TPDIODE ZENER 3.3V 1W MELF |
5,998 |
|
Datasheet |
- | DO-213AB, MELF | Tape & Reel (TR) | Obsolete | 3.3 V | ±5% | 1 W | 10 Ohms | 100 µA @ 1 V | 1.2 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | MELF |
|
DL4729A-TPDIODE ZENER 3.6V 1W MELF |
5,936 |
|
Datasheet |
- | DO-213AB, MELF | Tape & Reel (TR) | Obsolete | 3.6 V | ±5% | 1 W | 10 Ohms | 100 µA @ 1 V | 1.2 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | MELF |
|
DL4730A-TPDIODE ZENER 3.9V 1W MELF |
9,686 |
|
Datasheet |
- | DO-213AB, MELF | Tape & Reel (TR) | Obsolete | 3.9 V | ±5% | 1 W | 9 Ohms | 50 µA @ 1 V | 1.2 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | MELF |
|
DL4731A-TPDIODE ZENER 4.3V 1W MELF |
4,624 |
|
Datasheet |
- | DO-213AB, MELF | Tape & Reel (TR) | Obsolete | 4.3 V | ±5% | 1 W | 9 Ohms | 10 µA @ 1 V | 1.2 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | MELF |
|

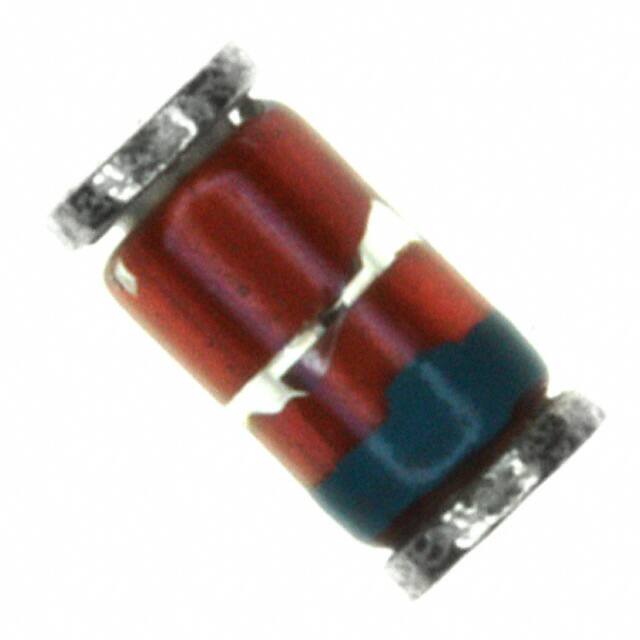

DL4741A-TPDIODE ZENER 11V 1W MELF |
8,061 |
|
Datasheet |
- | DO-213AB, MELF | Tape & Reel (TR) | Obsolete | 11 V | ±5% | 1 W | 8 Ohms | 5 µA @ 8.4 V | 1.2 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | MELF |
|
DL4743A-TPDIODE ZENER 13V 1W MELF |
8,434 |
|
Datasheet |
- | DO-213AB, MELF | Tape & Reel (TR) | Obsolete | 13 V | ±5% | 1 W | 10 Ohms | 5 µA @ 9.9 V | 1.2 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | MELF |
|
DL4750A-TPDIODE ZENER 27V 1W MELF |
7,987 |
|
Datasheet |
- | DO-213AB, MELF | Tape & Reel (TR) | Obsolete | 27 V | ±5% | 1 W | 35 Ohms | 5 µA @ 20.6 V | 1.2 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | MELF |
|
DL5227B-TPDIODE ZENER 3.6V 500MW MINI MELF |
4,633 |
|
Datasheet |
- | DO-213AC, MINI-MELF, SOD-80 | Tape & Reel (TR) | Obsolete | 3.6 V | ±5% | 500 mW | 24 Ohms | 15 µA @ 1 V | 1.1 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | Mini MELF |
|
DL5228B-TPDIODE ZENER 3.9V 500MW MINI MELF |
5,204 |
|
Datasheet |
- | DO-213AC, MINI-MELF, SOD-80 | Tape & Reel (TR) | Obsolete | 3.9 V | ±5% | 500 mW | 23 Ohms | 10 µA @ 1 V | 1.1 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | Mini MELF |
|
DL5229B-TPDIODE ZENER 4.3V 500MW MINI MELF |
2,122 |
|
Datasheet |
- | DO-213AC, MINI-MELF, SOD-80 | Tape & Reel (TR) | Obsolete | 4.3 V | ±5% | 500 mW | 22 Ohms | 5 µA @ 1 V | 1.1 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | Mini MELF |
|

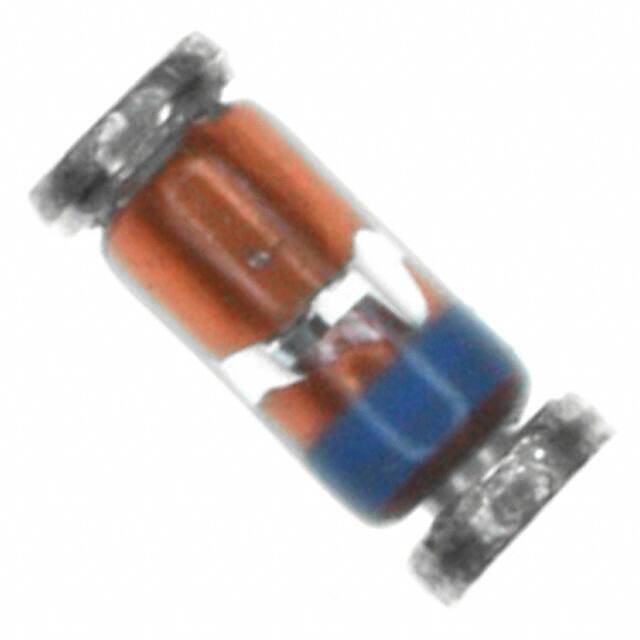

DL5236B-TPDIODE ZENER 7.5V 500MW MINI MELF |
8,999 |
|
Datasheet |
- | DO-213AC, MINI-MELF, SOD-80 | Tape & Reel (TR) | Obsolete | 7.5 V | ±5% | 500 mW | 6 Ohms | 3 µA @ 6 V | 1.1 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | Mini MELF |
|
DL5237B-TPDIODE ZENER 8.2V 500MW MINI MELF |
4,629 |
|
Datasheet |
- | DO-213AC, MINI-MELF, SOD-80 | Tape & Reel (TR) | Obsolete | 8.2 V | ±5% | 500 mW | 8 Ohms | 3 µA @ 6.5 V | 1.1 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | Mini MELF |
|
DL5240B-TPDIODE ZENER 10V 500MW MINI MELF |
2,149 |
|
Datasheet |
- | DO-213AC, MINI-MELF, SOD-80 | Tape & Reel (TR) | Obsolete | 10 V | ±5% | 500 mW | 17 Ohms | 3 µA @ 8 V | 1.1 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | Mini MELF |
|
DL5241B-TPDIODE ZENER 11V 500MW MINI MELF |
2,858 |
|
Datasheet |
- | DO-213AC, MINI-MELF, SOD-80 | Tape & Reel (TR) | Obsolete | 11 V | ±5% | 500 mW | 22 Ohms | 2 µA @ 8.4 V | 1.1 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | Mini MELF |
|
DL5244B-TPDIODE ZENER 14V 500MW MINI MELF |
5,842 |
|
Datasheet |
- | DO-213AC, MINI-MELF, SOD-80 | Tape & Reel (TR) | Obsolete | 14 V | ±5% | 500 mW | 15 Ohms | 100 nA @ 10 V | 1.1 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | Mini MELF |
