Trimmer Potentiometers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Power (Watts) | Tolerance | Temperature Coefficient | Number of Turns | Adjustment Type | Resistive Material | Mounting Type | Termination Style | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SM-43TW203TRIMMER 20K OHM 0.25W J LEAD TOP |
555 |
|
Datasheet |
SM43 | Tape & Reel (TR) | Active | 20 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 5.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) |
|
SM-43TW102TRIMMER 1K OHM 0.25W J LEAD TOP |
475 |
|
Datasheet |
SM43 | Tape & Reel (TR) | Active | 1 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 5.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) |
|
|
SM-43TW101TRIMMER 100 OHM 0.25W J LEAD TOP |
315 |
|
Datasheet |
SM43 | Tape & Reel (TR) | Active | 100 Ohms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 5.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) |
|
|
SM-43TW501TRIMMER 500 OHM 0.25W J LEAD TOP |
187 |
|
Datasheet |
SM43 | Tape & Reel (TR) | Active | 500 Ohms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 5.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) |
|
M64P202KB40TRIMMER 2K OHM 0.5W PC PIN SIDE |
168 |
|
Datasheet |
64 | Box | Active | 2 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 23.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Square - 0.382" x 0.382" Face (9.70mm x 9.70mm) |
|
3269P-1-204LFTRIMMER 200K OHM 0.25W GW SIDE |
866 |
|
Datasheet |
Trimpot® 3269 - Sealed | Tube | Active | 200 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 12.0 | Side Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm) |
|
66WR5KLFTRIMMER 5K OHM 0.5W PC PIN TOP |
514 |
|
Datasheet |
66 | Bulk | Active | 5 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 20.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.375" x 0.200" Face (9.53mm x 5.08mm) |
|
|
66WR100KLFTRIMMER 100K OHM 0.5W PC PIN TOP |
375 |
|
Datasheet |
66 | Bulk | Active | 100 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 20.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.375" x 0.200" Face (9.53mm x 5.08mm) |
|
|
66WR20KLFTRIMMER 20K OHM 0.5W PC PIN TOP |
180 |
|
Datasheet |
66 | Bulk | Active | 20 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 20.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.375" x 0.200" Face (9.53mm x 5.08mm) |
|
|
3269P-1-503LFTRIMMER 50K OHM 0.25W GW SIDE |
163 |
|
Datasheet |
Trimpot® 3269 - Sealed | Tube | Active | 50 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 12.0 | Side Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm) |
|
T7YB471MB40TRIMMER 470 OHM 0.5W PC PIN TOP |
700 |
|
Datasheet |
T7 | Bulk | Active | 470 Ohms | 0.5W, 1/2W | ±20% | ±100ppm/°C | 1.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Round - 0.276" Dia (7.00mm) |
|

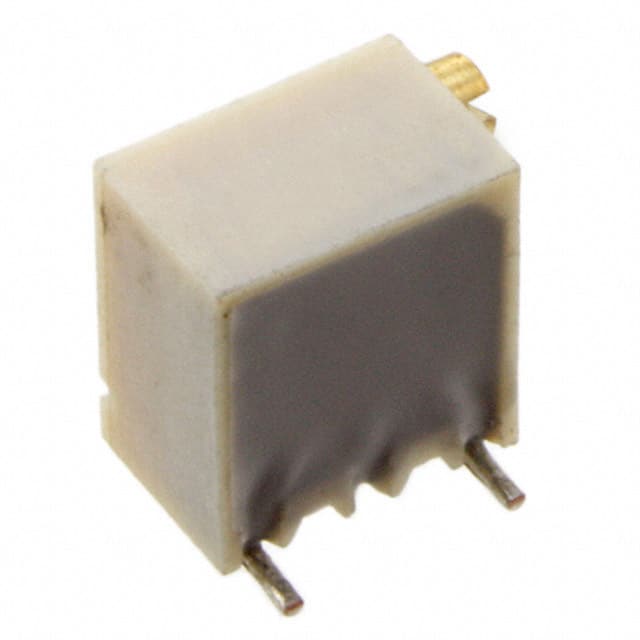

84XR10KLFTRIMMER 10K OHM 0.25W SMD SIDE |
769 |
|
Datasheet |
84 | Tube | Active | 10 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 12.0 | Side Adjustment | Cermet | Surface Mount | Surface Mount | Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm) |
|
84PR20KLFTRIMMER 20K OHM 0.25W SMD SIDE |
756 |
|
Datasheet |
84 | Tube | Active | 20 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 12.0 | Side Adjustment | Cermet | Surface Mount | Surface Mount | Square - 0.250" x 0.250" Face (6.35mm x 6.35mm) |
|
|
84PR10KLFTRIMMER 10K OHM 0.25W SMD SIDE |
533 |
|
Datasheet |
84 | Tube | Active | 10 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 12.0 | Side Adjustment | Cermet | Surface Mount | Surface Mount | Square - 0.250" x 0.250" Face (6.35mm x 6.35mm) |
|
3329X-1-103LFTRIMMER 10K OHM 0.5W PC PIN SIDE |
269 |
|
Datasheet |
Trimpot® 3329 - Sealed | Tube | Active | 10 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 1.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.260" x 0.330" Face (6.60mm x 8.38mm) |
|
3329S-1-502LFTRIMMER 5K OHM 0.5W PC PIN SIDE |
191 |
|
Datasheet |
Trimpot® 3329 - Sealed | Tube | Active | 5 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 1.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.260" x 0.330" Face (6.60mm x 8.38mm) |
|

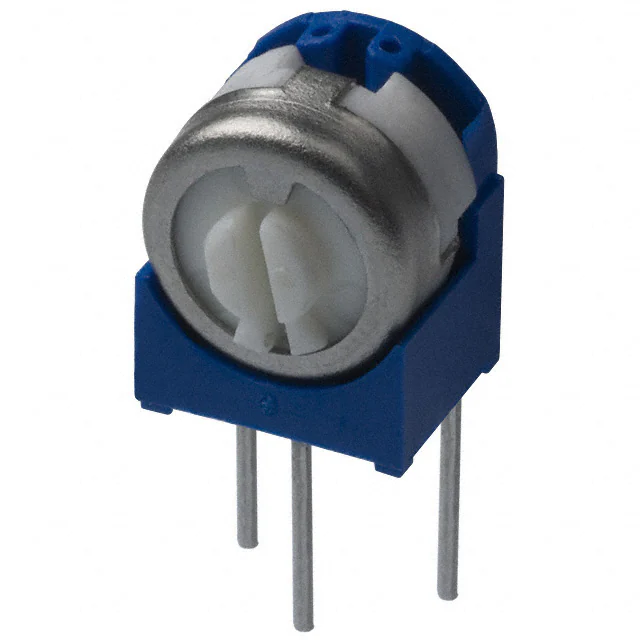

3329W-1-103LFTRIMMER 10K OHM 0.5W PC PIN SIDE |
140 |
|
Datasheet |
Trimpot® 3329 - Sealed | Tube | Active | 10 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 1.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.260" x 0.330" Face (6.60mm x 8.38mm) |
|
3266X-1-501LFTRIMMER 500OHM 0.25W PC PIN SIDE |
673 |
|
Datasheet |
Trimpot® 3266 - Sealed | Tube | Active | 500 Ohms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 12.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm) |
|
3266Z-1-103LFTRIMMER 10KOHM 0.25W PC PIN SIDE |
453 |
|
Datasheet |
Trimpot® 3266 - Sealed | Tube | Active | 10 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 12.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm) |
|
93PR2KLFTRIMMER 2K OHM 1W PC PIN TOP ADJ |
435 |
|
Datasheet |
93 | Bulk | Active | 2 kOhms | 1W | ±10% | ±100ppm/°C | 1.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Round - 0.500" Dia (12.70mm) |
Trimmer Potentiometers Electronic Components
Explore Trimmer Potentiometers electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
