Trimmer Potentiometers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Power (Watts) | Tolerance | Temperature Coefficient | Number of Turns | Adjustment Type | Resistive Material | Mounting Type | Termination Style | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TS63Y203KT20TRIMMER 20K OHM 0.25W GW TOP ADJ |
1,620 |
|
Datasheet |
TS63 | Tube | Active | 20 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 15.0 | Top Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.270" x 0.197" Face (6.85mm x 5.00mm) |
|
SM-3TW101TRIMMER 100OHM 0.125W J LEAD TOP |
4,537 |
|
Datasheet |
SM3 | Tape & Reel (TR) | Active | 100 Ohms | 0.125W, 1/8W | ±20% | ±100ppm/°C | 11.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.154" x 0.126" Face (3.90mm x 3.20mm) |
|

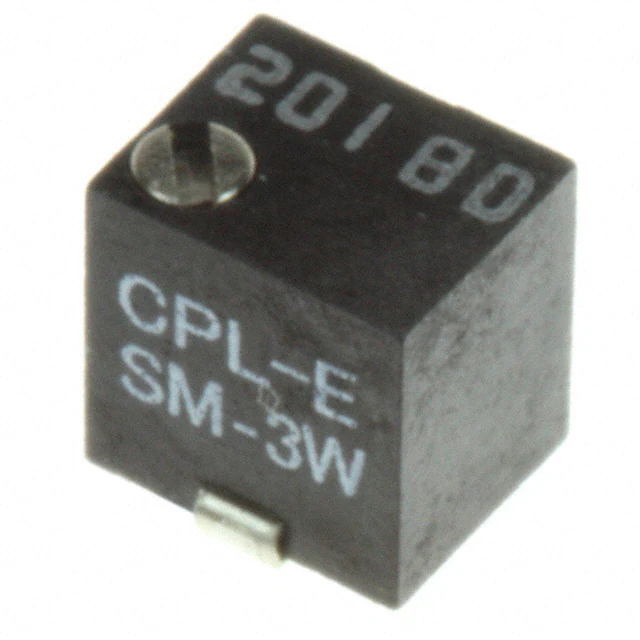

SM-3TW201TRIMMER 200OHM 0.125W J LEAD TOP |
892 |
|
Datasheet |
SM3 | Tape & Reel (TR) | Active | 200 Ohms | 0.125W, 1/8W | ±20% | ±100ppm/°C | 11.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.154" x 0.126" Face (3.90mm x 3.20mm) |
|

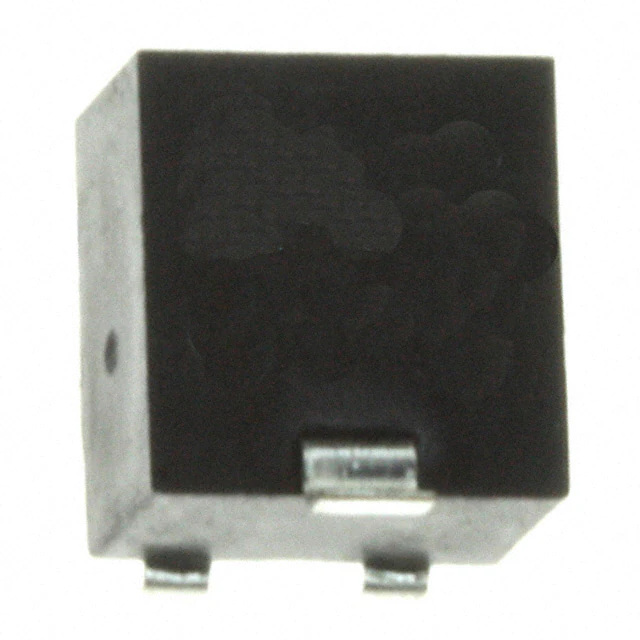

SM-42TX501TRIMMER 500 OHM 0.25W GW TOP ADJ |
24,446 |
|
Datasheet |
SM42 | Tape & Reel (TR) | Active | 500 Ohms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 11.0 | Top Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) |
|
SM-42TW500TRIMMER 50 OHM 0.25W J LEAD TOP |
4,852 |
|
Datasheet |
SM42 | Tape & Reel (TR) | Active | 50 Ohms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 11.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) |
|

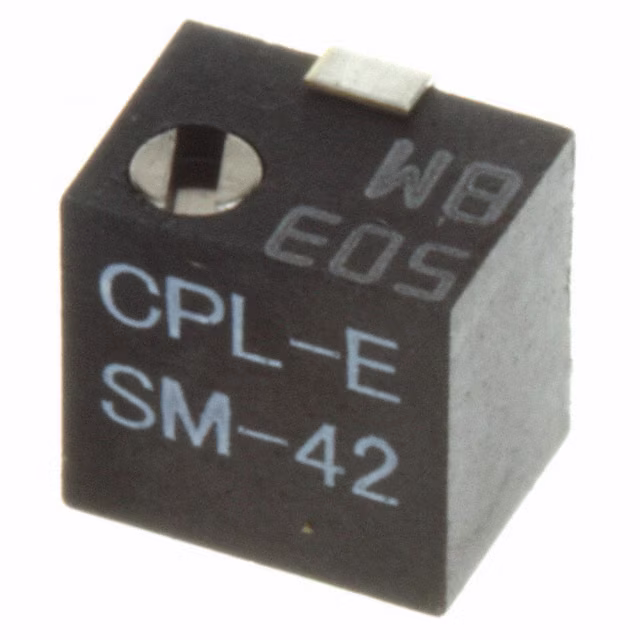

SM-42TA503TRIMMER 50KOHM 0.25W J LEAD SIDE |
3,366 |
|
Datasheet |
SM42 | Tape & Reel (TR) | Active | 50 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 11.0 | Side Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.189" x 0.181" Face (4.80mm x 4.60mm) |
|

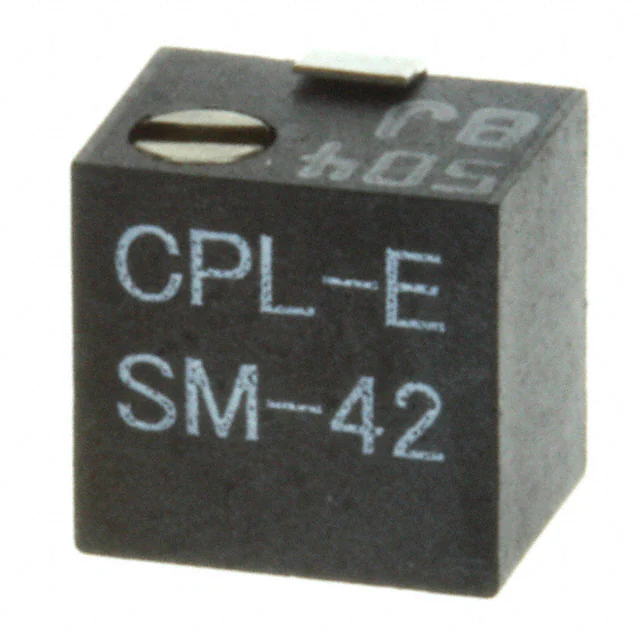

SM-42TA504TRIMMER 500K OHM 0.25W J LEAD |
1,231 |
|
Datasheet |
SM42 | Tape & Reel (TR) | Active | 500 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 11.0 | Side Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.189" x 0.181" Face (4.80mm x 4.60mm) |
|
|
SM-42TW504TRIMMER 500KOHM 0.25W J LEAD TOP |
1,093 |
|
Datasheet |
SM42 | Tape & Reel (TR) | Active | 500 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 11.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) |
|

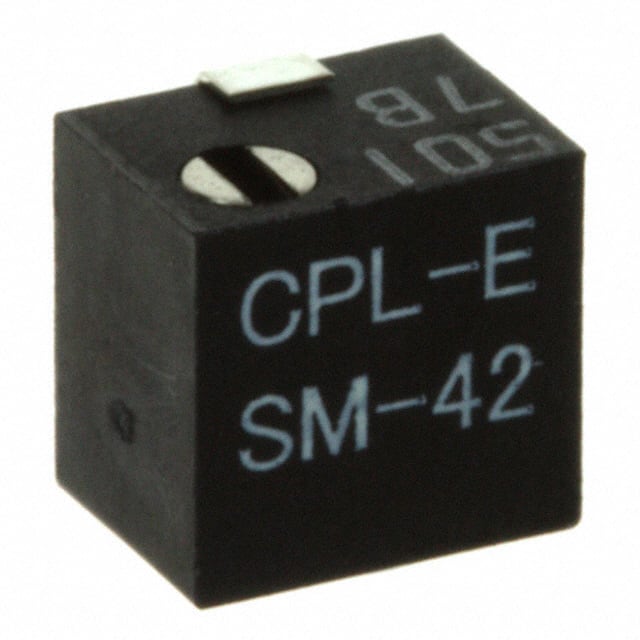

SM-42TA501TRIMMER 500OHM 0.25W J LEAD SIDE |
1,033 |
|
Datasheet |
SM42 | Tape & Reel (TR) | Active | 500 Ohms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 11.0 | Side Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.189" x 0.181" Face (4.80mm x 4.60mm) |
|

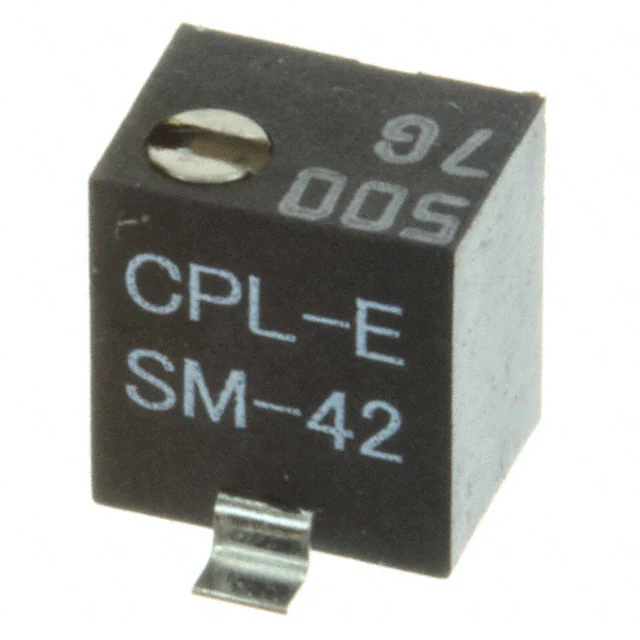

SM-42TX500TRIMMER 50 OHM 0.25W GW TOP ADJ |
695 |
|
Datasheet |
SM42 | Tape & Reel (TR) | Active | 50 Ohms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 11.0 | Top Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) |
|
3296X-1-103TRIMMER 10K OHM 0.5W PC PIN SIDE |
589 |
|
Datasheet |
Trimpot® 3296 - Sealed | Tube | Active | 10 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 25.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.395" x 0.190" Face (10.03mm x 4.83mm) |
|

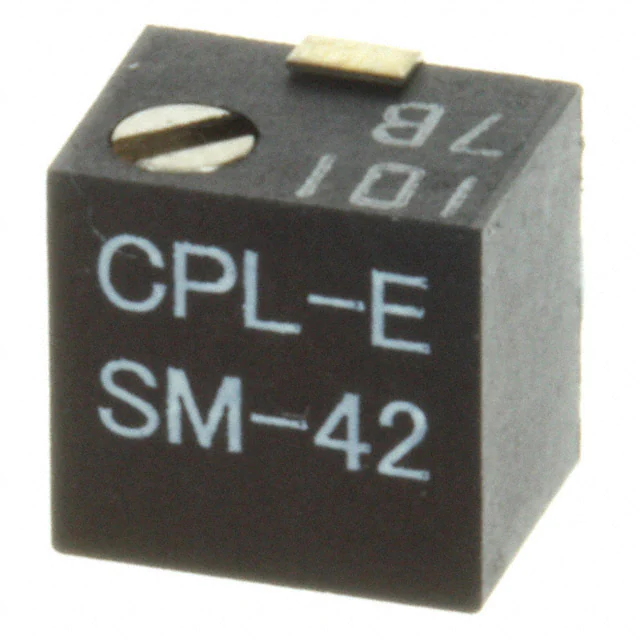

SM-42TA101TRIMMER 100OHM 0.25W J LEAD SIDE |
563 |
|
Datasheet |
SM42 | Tape & Reel (TR) | Active | 100 Ohms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 11.0 | Side Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.189" x 0.181" Face (4.80mm x 4.60mm) |
|
3296W-1-201TRIMMER 200 OHM 0.5W PC PIN TOP |
534 |
|
Datasheet |
Trimpot® 3296 - Sealed | Tube | Active | 200 Ohms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 25.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.375" x 0.190" Face (9.53mm x 4.83mm) |
|
|
SM-42TW105TRIMMER 1M OHM 0.25W J LEAD TOP |
512 |
|
Datasheet |
SM42 | Tape & Reel (TR) | Active | 1 MOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 11.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) |
|

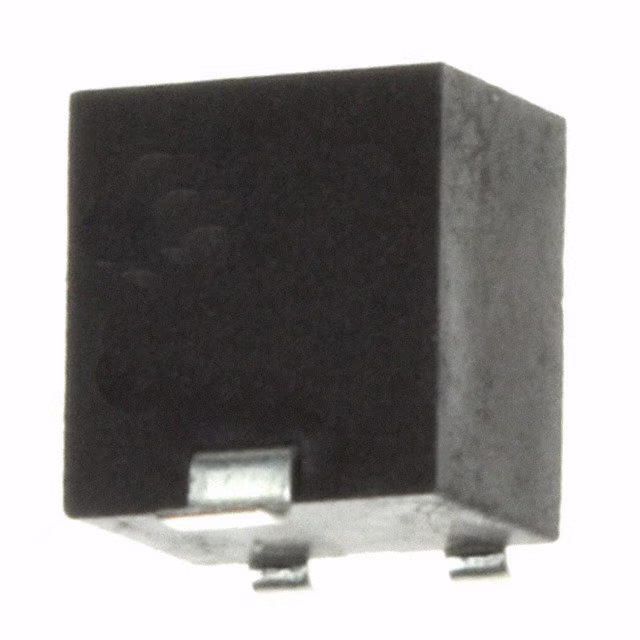

SM-42TX503TRIMMER 50K OHM 0.25W GW TOP ADJ |
428 |
|
Datasheet |
SM42 | Tape & Reel (TR) | Active | 50 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 11.0 | Top Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) |
|

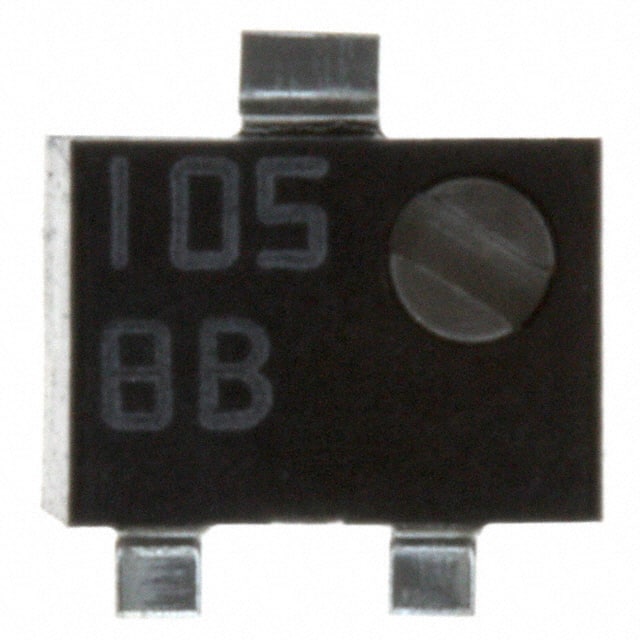

SM-42TX105TRIMMER 1M OHM 0.25W GW TOP ADJ |
252 |
|
Datasheet |
SM42 | Tape & Reel (TR) | Active | 1 MOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 11.0 | Top Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) |
|
|
3296X-1-102TRIMMER 1K OHM 0.5W PC PIN SIDE |
214 |
|
Datasheet |
Trimpot® 3296 - Sealed | Tube | Active | 1 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 25.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.395" x 0.190" Face (10.03mm x 4.83mm) |
|
|
3296W-1-504TRIMMER 500K OHM 0.5W PC PIN TOP |
195 |
|
Datasheet |
Trimpot® 3296 - Sealed | Tube | Active | 500 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 25.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.375" x 0.190" Face (9.53mm x 4.83mm) |
|
|
3296W-1-204TRIMMER 200K OHM 0.5W PC PIN TOP |
188 |
|
Datasheet |
Trimpot® 3296 - Sealed | Tube | Active | 200 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 25.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.375" x 0.190" Face (9.53mm x 4.83mm) |
|
|
3296X-1-503TRIMMER 50K OHM 0.5W PC PIN SIDE |
182 |
|
Datasheet |
Trimpot® 3296 - Sealed | Tube | Active | 50 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 25.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.395" x 0.190" Face (10.03mm x 4.83mm) |
