Trimmer Potentiometers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Power (Watts) | Tolerance | Temperature Coefficient | Number of Turns | Adjustment Type | Resistive Material | Mounting Type | Termination Style | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3309W-1-203TRIMMER 20K OHM 0.5W PC PIN SIDE |
0 |
|
Datasheet |
Trimpot® 3309 - Open Frame | Bulk | Obsolete | 20 kOhms | 0.5W, 1/2W | ±25% | ±250ppm/°C | 1.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.354" x 0.433" Face (9.00mm x 11.00mm) |
|
|
3309W-1-503TRIMMER 50K OHM 0.5W PC PIN SIDE |
0 |
|
Datasheet |
Trimpot® 3309 - Open Frame | Bulk | Obsolete | 50 kOhms | 0.5W, 1/2W | ±25% | ±250ppm/°C | 1.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.354" x 0.433" Face (9.00mm x 11.00mm) |
|
|
3309W-1-104TRIMMER 100KOHM 0.5W PC PIN SIDE |
0 |
|
Datasheet |
Trimpot® 3309 - Open Frame | Bulk | Obsolete | 100 kOhms | 0.5W, 1/2W | ±25% | ±250ppm/°C | 1.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.354" x 0.433" Face (9.00mm x 11.00mm) |
|
|
3309W-1-504TRIMMER 500KOHM 0.5W PC PIN SIDE |
0 |
|
Datasheet |
Trimpot® 3309 - Open Frame | Bulk | Obsolete | 500 kOhms | 0.5W, 1/2W | ±25% | ±250ppm/°C | 1.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.354" x 0.433" Face (9.00mm x 11.00mm) |
|
EVM-7JSX30BE2TRIMMER 220 OHM 0.05W J LEAD TOP |
0 |
|
Datasheet |
EVM | Tape & Reel (TR) | Obsolete | 220 Ohms | 0.05W, 1/20W | ±25% | ±250ppm/°C | 1.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.146" x 0.122" Face (3.70mm x 3.10mm) |
|
EVM-7JSX30BQ2TRIMMER 470 OHM 0.05W J LEAD TOP |
0 |
|
Datasheet |
EVM | Tape & Reel (TR) | Obsolete | 470 Ohms | 0.05W, 1/20W | ±25% | ±250ppm/°C | 1.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.146" x 0.122" Face (3.70mm x 3.10mm) |
|

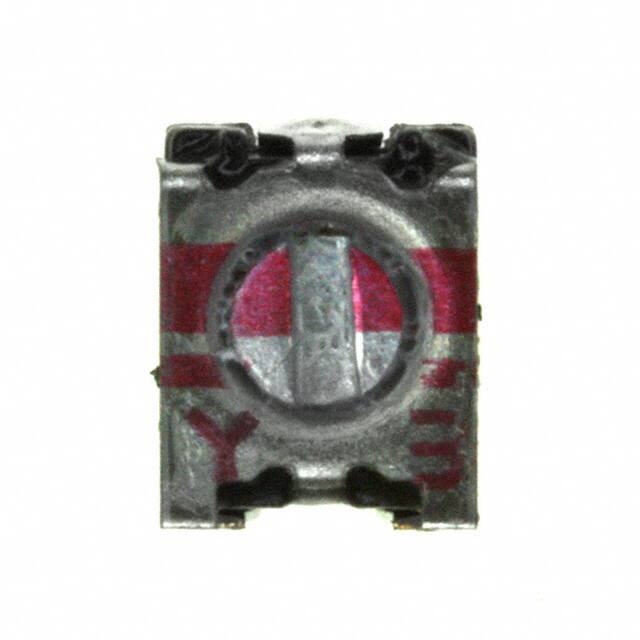

EVM-7JSX30BY3TRIMMER 3.3KOHM 0.05W J LEAD TOP |
0 |
|
Datasheet |
EVM | Tape & Reel (TR) | Obsolete | 3.3 kOhms | 0.05W, 1/20W | ±25% | ±250ppm/°C | 1.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.146" x 0.122" Face (3.70mm x 3.10mm) |
|
EVM-7JSX30BY5TRIMMER 330KOHM 0.05W J LEAD TOP |
0 |
|
Datasheet |
EVM | Tape & Reel (TR) | Obsolete | 330 kOhms | 0.05W, 1/20W | ±25% | ±250ppm/°C | 1.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.146" x 0.122" Face (3.70mm x 3.10mm) |
|

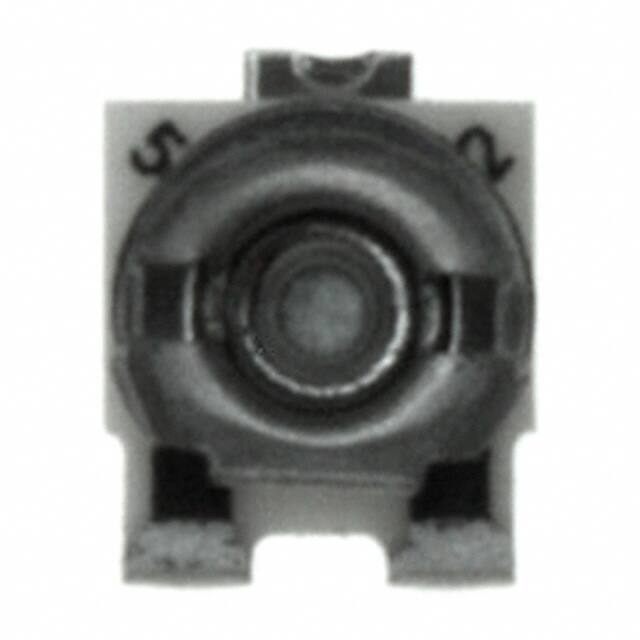

EVM-1SSX50B52TRIMMER 500 OHM 0.15W SMD |
0 |
|
- |
EVM | Cut Tape (CT) | Obsolete | 500 Ohms | 0.15W | ±25% | ±250ppm/°C | 1.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.148" x 0.118" Face (3.75mm x 3.00mm) |
|

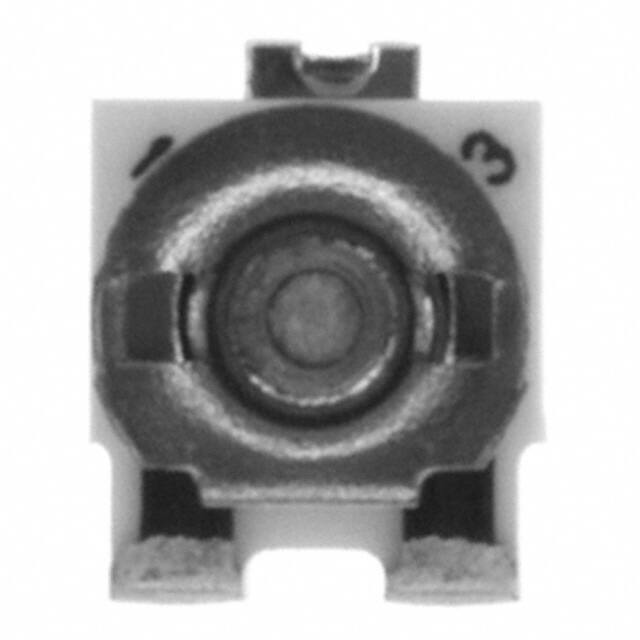

EVM-1SSX50B13TRIMMER 1K OHM 0.15W SMD |
0 |
|
- |
EVM | Cut Tape (CT) | Obsolete | 1 kOhms | 0.15W | ±25% | ±250ppm/°C | 1.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.148" x 0.118" Face (3.75mm x 3.00mm) |
|
EVM-1SSX50B15TRIMMER 100KOHM 0.15W J LEAD TOP |
0 |
|
- |
EVM | Tape & Reel (TR) | Obsolete | 100 kOhms | 0.15W | ±25% | ±250ppm/°C | 1.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.148" x 0.118" Face (3.75mm x 3.00mm) |
|
EVM-1SSX50B16TRIMMER 1M OHM 0.15W J LEAD TOP |
0 |
|
- |
EVM | Tape & Reel (TR) | Obsolete | 1 MOhms | 0.15W | ±25% | ±250ppm/°C | 1.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.148" x 0.118" Face (3.75mm x 3.00mm) |
|
EVM-1DSX30B12TRIMMER 100 OHM 0.2W J LEAD TOP |
0 |
|
Datasheet |
EVM | Tape & Reel (TR) | Obsolete | 100 Ohms | 0.2W, 1/5W | ±25% | ±250ppm/°C | 1.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.177" x 0.150" Face (4.50mm x 3.80mm) |
|
|
EVM-1DSX30B22TRIMMER 200 OHM 0.2W J LEAD TOP |
0 |
|
Datasheet |
EVM | Tape & Reel (TR) | Obsolete | 200 Ohms | 0.2W, 1/5W | ±25% | ±250ppm/°C | 1.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.177" x 0.150" Face (4.50mm x 3.80mm) |
|
|
EVM-1DSX30B52TRIMMER 500 OHM 0.2W J LEAD TOP |
0 |
|
Datasheet |
EVM | Tape & Reel (TR) | Obsolete | 500 Ohms | 0.2W, 1/5W | ±25% | ±250ppm/°C | 1.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.177" x 0.150" Face (4.50mm x 3.80mm) |
|
|
EVM-1DSX30B13TRIMMER 1K OHM 0.2W J LEAD TOP |
0 |
|
Datasheet |
EVM | Tape & Reel (TR) | Obsolete | 1 kOhms | 0.2W, 1/5W | ±25% | ±250ppm/°C | 1.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.177" x 0.150" Face (4.50mm x 3.80mm) |
|
|
EVM-1DSX30B23TRIMMER 2K OHM 0.2W J LEAD TOP |
0 |
|
Datasheet |
EVM | Tape & Reel (TR) | Obsolete | 2 kOhms | 0.2W, 1/5W | ±25% | ±250ppm/°C | 1.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.177" x 0.150" Face (4.50mm x 3.80mm) |
|
|
EVM-1DSX30B14TRIMMER 10K OHM 0.2W J LEAD TOP |
0 |
|
Datasheet |
EVM | Tape & Reel (TR) | Obsolete | 10 kOhms | 0.2W, 1/5W | ±25% | ±250ppm/°C | 1.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.177" x 0.150" Face (4.50mm x 3.80mm) |
|
|
EVM-1DSX30B24TRIMMER 20K OHM 0.2W J LEAD TOP |
0 |
|
Datasheet |
EVM | Tape & Reel (TR) | Obsolete | 20 kOhms | 0.2W, 1/5W | ±25% | ±250ppm/°C | 1.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.177" x 0.150" Face (4.50mm x 3.80mm) |
|
|
EVM-1DSX30B54TRIMMER 50K OHM 0.2W J LEAD TOP |
0 |
|
Datasheet |
EVM | Tape & Reel (TR) | Obsolete | 50 kOhms | 0.2W, 1/5W | ±25% | ±250ppm/°C | 1.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.177" x 0.150" Face (4.50mm x 3.80mm) |
