Trimmer Potentiometers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Power (Watts) | Tolerance | Temperature Coefficient | Number of Turns | Adjustment Type | Resistive Material | Mounting Type | Termination Style | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
201XR104BTRIMMER 100KOHM 0.2W PC PIN SIDE |
0 |
|
Datasheet |
201 | Bulk | Obsolete | 100 kOhms | 0.2W, 1/5W | ±20% | - | 1.0 | Side Adjustment | Carbon | Through Hole | PC Pins | Rectangular - 0.734" x 0.594" Face (18.64mm x 15.10mm) |
|

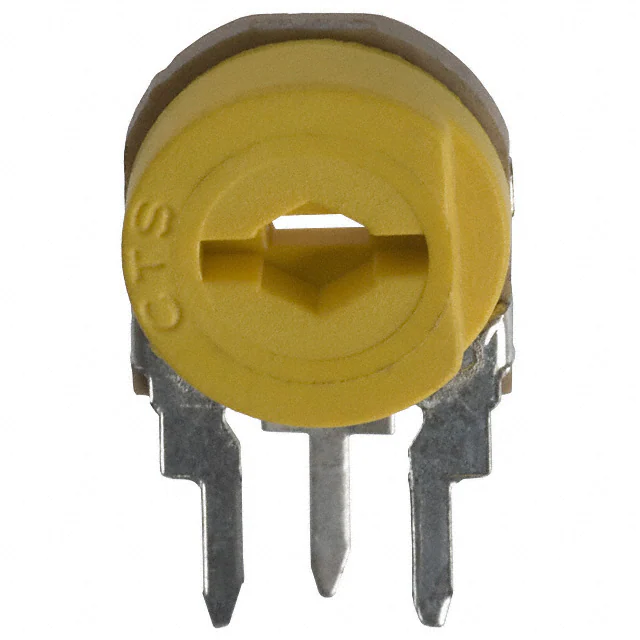

262XR102BTRIMMER 1K OHM 0.15W PC PIN SIDE |
0 |
|
Datasheet |
262 | Bulk | Obsolete | 1 kOhms | 0.15W | ±20% | - | 1.0 | Side Adjustment | Carbon | Through Hole | PC Pins | Rectangular - 0.370" x 0.394" Face (9.40mm x 10.00mm) |
|
201UR101BTRIMMER 100 OHM 0.25W PC PIN TOP |
0 |
|
Datasheet |
201 | Bulk | Obsolete | 100 Ohms | 0.25W, 1/4W | ±20% | - | 1.0 | Top Adjustment | Carbon | Through Hole | PC Pins | Rectangular - 0.734" x 0.594" Face (18.64mm x 15.10mm) |
|
|
201UR102BTRIMMER 1K OHM 0.25W PC PIN TOP |
0 |
|
Datasheet |
201 | Bulk | Obsolete | 1 kOhms | 0.25W, 1/4W | ±20% | - | 1.0 | Top Adjustment | Carbon | Through Hole | PC Pins | Rectangular - 0.734" x 0.594" Face (18.64mm x 15.10mm) |
|
|
201XR254BTRIMMER 250KOHM 0.2W PC PIN SIDE |
0 |
|
Datasheet |
201 | Bulk | Obsolete | 250 kOhms | 0.2W, 1/5W | ±20% | - | 1.0 | Side Adjustment | Carbon | Through Hole | PC Pins | Rectangular - 0.734" x 0.594" Face (18.64mm x 15.10mm) |
|

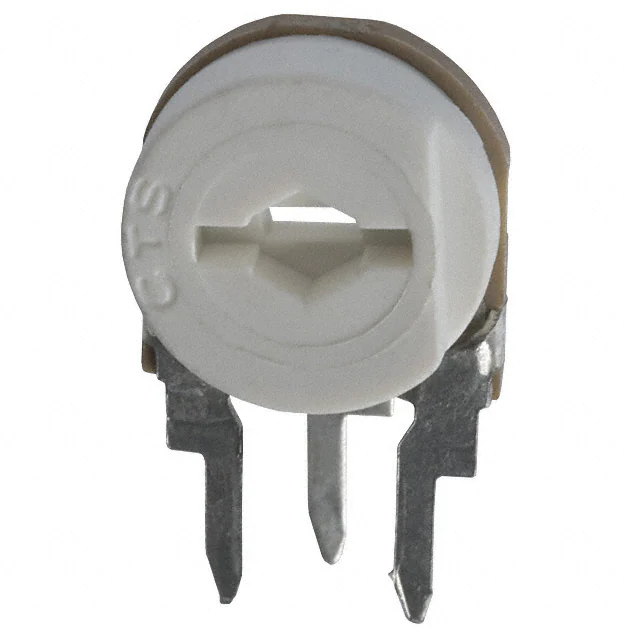

262XR103BTRIMMER 10KOHM 0.15W PC PIN SIDE |
0 |
|
Datasheet |
262 | Bulk | Obsolete | 10 kOhms | 0.15W | ±20% | - | 1.0 | Side Adjustment | Carbon | Through Hole | PC Pins | Rectangular - 0.370" x 0.394" Face (9.40mm x 10.00mm) |
|
3006W-1-501TRIMMER 500OHM 0.75W PC PIN SIDE |
0 |
|
Datasheet |
Trimpot® 3006 - Sealed | Tube | Active | 500 Ohms | 0.75W, 3/4W | ±10% | ±100ppm/°C | 15.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.250" x 0.190" Face (6.35mm x 4.83mm) |
|
|
3006W-1-503TRIMMER 50KOHM 0.75W PC PIN SIDE |
0 |
|
Datasheet |
Trimpot® 3006 - Sealed | Tube | Active | 50 kOhms | 0.75W, 3/4W | ±10% | ±100ppm/°C | 15.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.250" x 0.190" Face (6.35mm x 4.83mm) |
|
|
3006W-1-204TRIMMER 200K OHM 0.75W PC PIN |
0 |
|
Datasheet |
Trimpot® 3006 - Sealed | Tube | Active | 200 kOhms | 0.75W, 3/4W | ±10% | ±100ppm/°C | 15.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.250" x 0.190" Face (6.35mm x 4.83mm) |
|
|
3006W-1-504TRIMMER 500K OHM 0.75W PC PIN |
0 |
|
Datasheet |
Trimpot® 3006 - Sealed | Tube | Active | 500 kOhms | 0.75W, 3/4W | ±10% | ±100ppm/°C | 15.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.250" x 0.190" Face (6.35mm x 4.83mm) |
|
|
3006Y-1-103TRIMMER 10KOHM 0.75W PC PIN SIDE |
0 |
|
Datasheet |
Trimpot® 3006 - Sealed | Tube | Active | 10 kOhms | 0.75W, 3/4W | ±10% | ±100ppm/°C | 15.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.250" x 0.190" Face (6.35mm x 4.83mm) |
|
|
3006Y-1-504TRIMMER 500K OHM 0.75W PC PIN |
0 |
|
Datasheet |
Trimpot® 3006 - Sealed | Tube | Active | 500 kOhms | 0.75W, 3/4W | ±10% | ±100ppm/°C | 15.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.250" x 0.190" Face (6.35mm x 4.83mm) |
|
|
3006Y-1-105TRIMMER 1M OHM 0.75W PC PIN SIDE |
0 |
|
Datasheet |
Trimpot® 3006 - Sealed | Tube | Active | 1 MOhms | 0.75W, 3/4W | ±10% | ±100ppm/°C | 15.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.250" x 0.190" Face (6.35mm x 4.83mm) |
|
3252P-1-101TRIMMER 100OHM 0.75W PC PIN SIDE |
0 |
|
Datasheet |
Trimpot® 3252 - Sealed | Tube | Active | 100 Ohms | 0.75W, 3/4W | ±10% | ±100ppm/°C | 25.0 | Side Adjustment | Cermet | Chassis Mount | PC Pins | Rectangular - 0.500" x 0.220" Face (12.70mm x 5.59mm) |
|
|
3252P-1-501TRIMMER 500OHM 0.75W PC PIN SIDE |
0 |
|
Datasheet |
Trimpot® 3252 - Sealed | Tube | Active | 500 Ohms | 0.75W, 3/4W | ±10% | ±100ppm/°C | 25.0 | Side Adjustment | Cermet | Chassis Mount | PC Pins | Rectangular - 0.500" x 0.220" Face (12.70mm x 5.59mm) |
|
3252W-1-203TRIMMER 20K OHM 0.75W PC PIN TOP |
0 |
|
Datasheet |
Trimpot® 3252 - Sealed | Tube | Active | 20 kOhms | 0.75W, 3/4W | ±10% | ±100ppm/°C | 25.0 | Top Adjustment | Cermet | Chassis Mount | PC Pins | Rectangular - 0.500" x 0.220" Face (12.70mm x 5.59mm) |
|
3252X-1-103TRIMMER 10KOHM 0.75W PC PIN SIDE |
0 |
|
Datasheet |
Trimpot® 3252 - Sealed | Tube | Active | 10 kOhms | 0.75W, 3/4W | ±10% | ±100ppm/°C | 25.0 | Side Adjustment | Cermet | Chassis Mount | PC Pins | Rectangular - 0.500" x 0.220" Face (12.70mm x 5.59mm) |
|
3292X-1-105TRIMMER 1M OHM 0.5W PC PIN SIDE |
0 |
|
Datasheet |
Trimpot® 3292 - Sealed | Tube | Active | 1 MOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 25.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.375" x 0.150" Face (9.53mm x 3.81mm) |
|
3309P-1-101TRIMMER 100 OHM 0.5W PC PIN TOP |
0 |
|
Datasheet |
Trimpot® 3309 - Open Frame | Bulk | Obsolete | 100 Ohms | 0.5W, 1/2W | ±25% | ±250ppm/°C | 1.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.453" x 0.354" Face (11.50mm x 9.00mm) |
|
|
3309P-1-201TRIMMER 200 OHM 0.5W PC PIN TOP |
0 |
|
Datasheet |
Trimpot® 3309 - Open Frame | Bulk | Obsolete | 200 Ohms | 0.5W, 1/2W | ±25% | ±250ppm/°C | 1.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.453" x 0.354" Face (11.50mm x 9.00mm) |
