Trimmer Potentiometers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Power (Watts) | Tolerance | Temperature Coefficient | Number of Turns | Adjustment Type | Resistive Material | Mounting Type | Termination Style | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

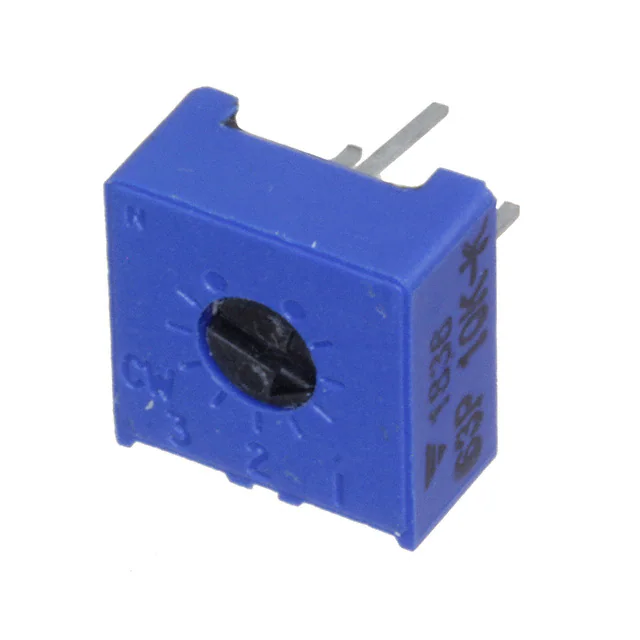

M63P103KB40TRIMMER 10K OHM 0.5W PC PIN SIDE |
232 |
|
Datasheet |
63 | Bulk | Active | 10 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 1.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Square - 0.395" x 0.395" Face (10.03mm x 10.03mm) |
|
M63M102KB40TRIMMER 1K OHM 0.5W PC PIN SIDE |
191 |
|
Datasheet |
63 | Box | Active | 1 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 1.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Square - 0.395" x 0.395" Face (10.03mm x 10.03mm) |
|
|
M63M104KB30T607TRIMMER 100KOHM 0.5W PC PIN SIDE |
290 |
|
Datasheet |
63 | Box | Active | 100 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 1.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Square - 0.395" x 0.395" Face (10.03mm x 10.03mm) |
|
3006P-1-504ZLFTRIMMER 500K OHM 0.75W PC PIN |
196 |
|
Datasheet |
Trimpot® 3006 - Sealed | Tube | Active | 500 kOhms | 0.75W, 3/4W | ±10% | ±100ppm/°C | 15.0 | Side Adjustment | Cermet | Panel Mount, Through Hole | PC Pins | Rectangular - 0.250" x 0.190" Face (6.35mm x 4.83mm) |
|
M63M103KB30T607TRIMMER 10K OHM 0.5W PC PIN SIDE |
274 |
|
Datasheet |
63 | Box | Active | 10 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 1.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Square - 0.395" x 0.395" Face (10.03mm x 10.03mm) |
|
M63M202KB30T607TRIMMER 2K OHM 0.5W PC PIN SIDE |
149 |
|
Datasheet |
63 | Box | Active | 2 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 1.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Square - 0.395" x 0.395" Face (10.03mm x 10.03mm) |
|
3339W-1-102LFTRIMMER 1K OHM 0.5W PC PIN SIDE |
124 |
|
Datasheet |
Trimpot® 3339 - Sealed | Tube | Active | 1 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 4.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.375" x 0.320" Face (9.53mm x 8.13mm) |
|
|
3339W-1-502LFTRIMMER 5K OHM 0.5W PC PIN SIDE |
113 |
|
Datasheet |
Trimpot® 3339 - Sealed | Tube | Active | 5 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 4.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.375" x 0.320" Face (9.53mm x 8.13mm) |
|
|
ST-7ETA502TRIMMER 5K OHM 0.25W J LEAD TOP |
1,465 |
|
Datasheet |
ST7 | Tape & Reel (TR) | Active | 5 kOhms | 0.25W, 1/4W | ±20% | ±100ppm/°C | 3.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.252" x 0.240" Face (6.40mm x 6.10mm) |
|
|
ST-7ETA103TRIMMER 10K OHM 0.25W J LEAD TOP |
256 |
|
Datasheet |
ST7 | Tape & Reel (TR) | Active | 10 kOhms | 0.25W, 1/4W | ±20% | ±100ppm/°C | 3.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.252" x 0.240" Face (6.40mm x 6.10mm) |
|
M43P103KB30T601TRIMMER 10KOHM 0.75W PC PIN SIDE |
214 |
|
Datasheet |
43 | Box | Active | 10 kOhms | 0.75W, 3/4W | ±10% | ±100ppm/°C | 18.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.252" x 0.189" Face (6.40mm x 4.80mm) |
|
|
TSM4YJ103KR05TRIMMER 10K OHM 0.25W J LEAD TOP |
1,405 |
|
Datasheet |
TSM4 | Tape & Reel (TR) | Active | 10 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 13.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) |
|
TSM4YL102KR05TRIMMER 1K OHM 0.25W J LEAD TOP |
785 |
|
Datasheet |
TSM4 | Tape & Reel (TR) | Active | 1 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 13.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) |
|
|
TSM4YJ501KR05TRIMMER 500 OHM 0.25W GW TOP ADJ |
782 |
|
Datasheet |
TSM4 | Tape & Reel (TR) | Active | 500 Ohms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 13.0 | Top Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) |
|
|
TSM4YL101KR05TRIMMER 100 OHM 0.25W J LEAD TOP |
680 |
|
Datasheet |
TSM4 | Tape & Reel (TR) | Active | 100 Ohms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 13.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) |
|
TSM4YJ102KR05TRIMMER 1K OHM 0.25W GW TOP ADJ |
554 |
|
Datasheet |
TSM4 | Tape & Reel (TR) | Active | 1 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 11.0 | Top Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) |
|
|
TSM4YJ203KR05TRIMMER 20K OHM 0.25W J LEAD TOP |
547 |
|
Datasheet |
TSM4 | Tape & Reel (TR) | Active | 20 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 13.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) |
|
|
TSM4YL204KR05TRIMMER 200KOHM 0.25W J LEAD TOP |
498 |
|
Datasheet |
TSM4 | Tape & Reel (TR) | Active | 200 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 11.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Square - 0.197" x 0.197" Face (5.00mm x 5.00mm) |
|
TSM4YJ101KR05TRIMMER 100 OHM 0.25W J LEAD TOP |
296 |
|
Datasheet |
TSM4 | Tape & Reel (TR) | Active | 100 Ohms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 11.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) |
|
TSM4YL103KR05TRIMMER 10K OHM 0.25W J LEAD TOP |
243 |
|
Datasheet |
TSM4 | Tape & Reel (TR) | Active | 10 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 11.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) |
