Trimmer Potentiometers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Power (Watts) | Tolerance | Temperature Coefficient | Number of Turns | Adjustment Type | Resistive Material | Mounting Type | Termination Style | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M43P501KB40TRIMMER 500OHM 0.75W PC PIN SIDE |
224 |
|
Datasheet |
43 | Box | Active | 500 Ohms | 0.75W, 3/4W | ±10% | ±100ppm/°C | 18.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.252" x 0.189" Face (6.40mm x 4.80mm) |
|
44WR100LFT7TRIMMER 100 OHM 0.25W J LEAD TOP |
1,618 |
|
Datasheet |
44 | Tape & Reel (TR) | Active | 100 Ohms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 9.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.190" x 0.138" Face (4.83mm x 3.51mm) |
|
|
44WR200LFT7TRIMMER 200 OHM 0.25W J LEAD TOP |
1,379 |
|
Datasheet |
44 | Tape & Reel (TR) | Active | 200 Ohms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 9.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.190" x 0.138" Face (4.83mm x 3.51mm) |
|
|
44WR20KLFT7TRIMMER 20K OHM 0.25W J LEAD TOP |
1,080 |
|
Datasheet |
44 | Tape & Reel (TR) | Active | 20 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 9.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.190" x 0.138" Face (4.83mm x 3.51mm) |
|
|
44WR1KLFTBTRIMMER 1K OHM 0.25W J LEAD TOP |
883 |
|
Datasheet |
44 | Tube | Active | 1 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 9.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.190" x 0.138" Face (4.83mm x 3.51mm) |
|
|
44WR200KLFT7TRIMMER 200KOHM 0.25W J LEAD TOP |
835 |
|
Datasheet |
44 | Tape & Reel (TR) | Active | 200 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 9.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.190" x 0.138" Face (4.83mm x 3.51mm) |
|
|
44WR10KLFTBTRIMMER 10K OHM 0.25W J LEAD TOP |
395 |
|
Datasheet |
44 | Tube | Active | 10 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 9.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.190" x 0.138" Face (4.83mm x 3.51mm) |
|
3006P-1-502ZLFTRIMMER 5K OHM 0.75W PC PIN SIDE |
3,469 |
|
Datasheet |
Trimpot® 3006 - Sealed | Tube | Active | 5 kOhms | 0.75W, 3/4W | ±10% | ±100ppm/°C | 15.0 | Side Adjustment | Cermet | Panel Mount, Through Hole | PC Pins | Rectangular - 0.250" x 0.190" Face (6.35mm x 4.83mm) |
|
M63M105KB30T607TRIMMER 1M OHM 0.5W PC PIN SIDE |
339 |
|
Datasheet |
63 | Box | Active | 1 MOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 1.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Square - 0.395" x 0.395" Face (10.03mm x 10.03mm) |
|
3339P-1-201LFTRIMMER 200 OHM 0.5W PC PIN TOP |
157 |
|
Datasheet |
Trimpot® 3339 - Sealed | Tube | Active | 200 Ohms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 4.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Round - 0.300" Dia (7.62mm) |
|

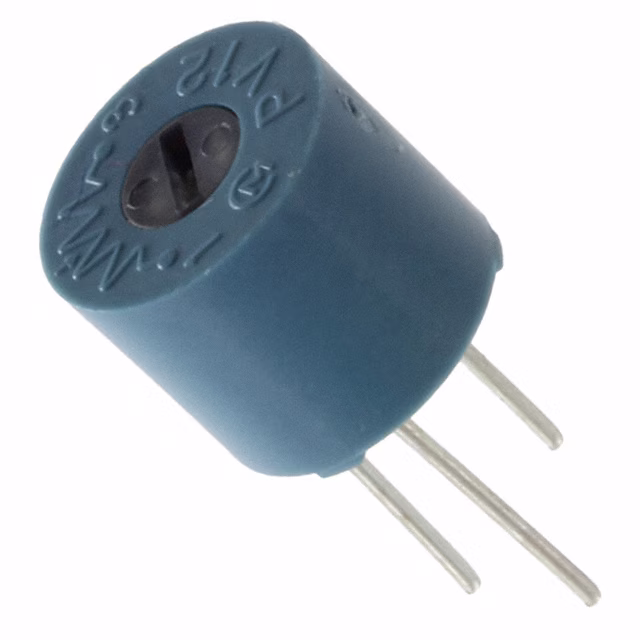

PV12P102A01B00TRIMMER 1K OHM 0.5W PC PIN TOP |
132 |
|
Datasheet |
PV12 | Bulk | Active | 1 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 4.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Round - 0.299" Dia (7.60mm) |
|
|
3339P-1-501LFTRIMMER 500 OHM 0.5W PC PIN TOP |
113 |
|
Datasheet |
Trimpot® 3339 - Sealed | Tube | Active | 500 Ohms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 4.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Round - 0.300" Dia (7.62mm) |
|
78PR5KLFTRIMMER 5K OHM 1W PC PIN SIDE |
338 |
|
Datasheet |
78 | Bulk | Active | 5 kOhms | 1W | ±10% | ±100ppm/°C | 22.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 1.250" x 0.195" Face (31.75mm x 4.95mm) |
|
|
78PR10KLFTRIMMER 10K OHM 1W PC PIN SIDE |
312 |
|
Datasheet |
78 | Bulk | Active | 10 kOhms | 1W | ±10% | ±100ppm/°C | 22.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 1.250" x 0.195" Face (31.75mm x 4.95mm) |
|
M63X502KB40TRIMMER 5K OHM 0.5W PC PIN SIDE |
149 |
|
Datasheet |
63 | Box | Active | 5 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 1.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Square - 0.395" x 0.395" Face (10.03mm x 10.03mm) |
|
3266W-1-201TRIMMER 200 OHM 0.25W PC PIN TOP |
390 |
|
Datasheet |
Trimpot® 3266 - Sealed | Tube | Active | 200 Ohms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 12.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm) |
|
|
3266W-1-501TRIMMER 500 OHM 0.25W PC PIN TOP |
200 |
|
Datasheet |
Trimpot® 3266 - Sealed | Tube | Active | 500 Ohms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 12.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm) |
|
|
3266W-1-202TRIMMER 2K OHM 0.25W PC PIN TOP |
137 |
|
Datasheet |
Trimpot® 3266 - Sealed | Tube | Active | 2 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 12.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm) |
|
|
3266W-1-504TRIMMER 500KOHM 0.25W PC PIN TOP |
134 |
|
Datasheet |
Trimpot® 3266 - Sealed | Tube | Active | 500 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 12.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm) |
|
M63M103KB40TRIMMER 10K OHM 0.5W PC PIN SIDE |
1,001 |
|
Datasheet |
63 | Box | Active | 10 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 1.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Square - 0.395" x 0.395" Face (10.03mm x 10.03mm) |
