TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D1V8L1BS2LP3-7General Protection PP X3-DFN0603 |
7,434 |
|
Datasheet |
0201 (0603 Metric) | - | Bulk | Active | Zener | - | 1 | 1.8V (Max) | 2.1V | 7V (Typ) | 25A (8/20µs) | 175W | No | General Purpose | 32pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | X3-DFN0603-2 |
|
SMAJ12CA-TPTVS DIODE 12VWM 19.9VC DO214AC |
6,108 |
|
Datasheet |
DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | - | 1 | 12V | 13.3V | 19.9V | 20.1A | 400W | No | General Purpose | - | -55°C ~ 175°C (TA) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
ESDCAN03-2BM3YTVS DIODE 24VWM 36.5VC 3QFN |
5,675 |
|
Datasheet |
3-UDFN Exposed Pad | - | Tape & Reel (TR) | Active | Zener | - | 2 | 24V (Max) | 28V | 36.5V | 3.3A (8/20µs) | - | No | - | 3.3pF @ 1MHz | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount, Wettable Flank | 3-QFN (1.1x1) |
|
DF2B18FU,H3FTVS DIODE 12VWM 33VC USC |
2,480 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 12V | 16.2V | 33V | 2.5A (8/20µs) | 80W | No | - | 9pF @ 1MHz | - | - | - | Surface Mount | USC |
|
|
ESD1LIN24DYFR3-PF 24-V 30-KV ESD PROTECTION D |
1,270 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 24V (Max) | 35.5V | 42V | 4.3A (8/20µs) | 159.1W | No | CAN, USB | 2.3pF @ 1MHz | -50°C ~ 150°C (TA) | - | - | Surface Mount | SOD-323 |
|
VESD08C1-02V-G3-08TVS DIODE 8VWM 15.3VC SOD523 |
1,255 |
|
Datasheet |
SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 8V (Max) | 9.5V | 15.3V | 6.6A (8/20µs) | 100W | No | - | 47pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-523 |
|
SMBJ20CATVS DIODE 20VWM 32.4VC DO214AA |
143,274 |
|
Datasheet |
DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | - | 1 | 20V | 22.2V | 32.4V | 18.6A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
ESDA14V2LTVS DIODE 12VWM SOT23-3 |
92,246 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | ESDA, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 2 | - | 12V | 14.2V | - | - | 300W | No | General Purpose | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-3 |
.jpg)
|
PESD5V0C2BDFZTVS DIODE 5VWM 6.5VC DFN0603-3 |
69,973 |
|
Datasheet |
0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 9.6V (Typ) | 6.5V (Typ) | 8.5A (8/20µs) | - | No | HDMI, Telecom, USB | 0.21pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | DFN0603-3 (SOT8013) |
|
DESD5V0S1BL-7BTVS DIODE 5VWM 14VC DFN1006-2 |
58,513 |
|
Datasheet |
0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 5.5V | 14V | 12A (8/20µs) | 130W | No | General Purpose | 35pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | X1-DFN1006-2 |
|

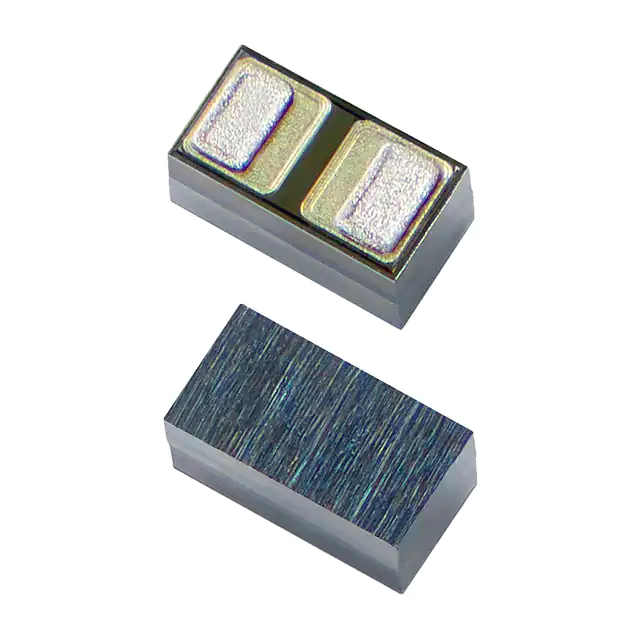

SP15-01WTG-C-HVTVS DIODE 15VWM 27VC 2FLIPCHIP |
56,788 |
|
Datasheet |
2-XFDFN, FCDFN | SPXX, SPA® | Tape & Reel (TR) | Active | Zener | - | 1 | 15V (Max) | 16.7V | 27V | 5A (8/20µs) | 100W | No | General Purpose | 21pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 2-FlipChip |
|
D1213A-01W-7TVS DIODE 3.3VWM 10VC SOT323 |
48,381 |
|
Datasheet |
SC-70, SOT-323 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 1 | - | 3.3V | 6V | 10V (Typ) | 1A (8/20µs) | - | Yes | - | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-323 |
|
SMAJ120ATVS DIODE 120VWM 193VC DO214AC |
42,457 |
|
Datasheet |
DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | 1 | - | 120V | 133V | 193V | 2.1A | 400W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
VCAN36A2-03S-E3-08TVS DIODE 36VWM 63VC SOT23-3 |
29,776 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 36V (Max) | 39V | 63V | 2.4A (8/20µs) | 150W | No | CAN | 8pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
|
D15V0H1U2LP-7BTVS DIODE 15VWM 27VC DFN1006-2 |
21,700 |
|
Datasheet |
0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | 1 | - | 15V (Max) | 16V | 27V | 12A (8/20µs) | 300W | No | General Purpose | 70pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | X1-DFN1006-2 |
|
PESD3V3Z1BCSFYLTVS DIODE 3.3VWM 4.8VC DSN0603-2 |
20,828 |
|
Datasheet |
0201 (0603 Metric) | TrEOS | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V (Max) | 6.8V (Typ) | 4.8V (Typ) | 15A (8/20µs) | - | No | General Purpose | 0.45pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | DSN0603-2 |
|
SMAJ24CA-TPTVS DIODE 24VWM 38.9VC DO214AC |
19,516 |
|
Datasheet |
DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | - | 1 | 24V | 26.7V | 38.9V | 10.3A | 400W | No | General Purpose | - | -55°C ~ 175°C (TA) | - | - | Surface Mount | DO-214AC (SMA) |
|
PESD5V0L4UW,115TVS DIODE 5VWM 13VC SOT665 |
18,337 |
|
Datasheet |
SOT-665 | - | Tape & Reel (TR) | Active | Zener | 4 | - | 5V (Max) | 6.46V | 13V | 2.5A (8/20µs) | 30W | No | General Purpose | 16pF @ 1MHz | -65°C ~ 150°C (TA) | - | - | Surface Mount | SOT-665 |
|
NUP1301U,115TVS DIODE 80VWM 20VC SOT323 |
16,068 |
|
Datasheet |
SC-70, SOT-323 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 1 | - | 80V (Max) | 100V | 20V | 11A (8/20µs) | 220W | No | - | 0.6pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOT-323 |
|
|
VESD05C1-02V-G3-08TVS DIODE 5VWM 11.5VC SOD523 |
15,980 |
|
Datasheet |
SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 6.85V | 11.5V | 8.7A (8/20µs) | 100W | No | - | 67pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-523 |
TVS Diodes Electronic Components
Explore TVS Diodes electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
