TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSMP6.0A-M3/89ATVS DIODE 6VWM 10.3VC MICROSMP |
24,488 |
|
Datasheet |
DO-219AD | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 6V | 6.67V | 10.3V | 14.6A | 150W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-219AD (MicroSMP) |
|
PESD5V0U1BL,315TVS DIODE 5VWM DFN1006-2 |
22,012 |
|
Datasheet |
SOD-882 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 5.5V | - | - | - | No | General Purpose | 2.9pF @ 1MHz | -65°C ~ 150°C (TA) | Automotive | AEC-Q100 | Surface Mount | DFN1006-2 |
|
PESD3V3S2UAT,215TVS DIODE 3.3VWM 20VC TO236AB |
18,771 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 3.3V (Max) | 5.2V | 20V | 18A (8/20µs) | 330W | No | General Purpose | 207pF @ 1MHz | -65°C ~ 150°C (TA) | Automotive | AEC-Q100 | Surface Mount | TO-236AB |
|
ESD7351XV2T1GTVS DIODE 3.3VWM SOD523 |
16,685 |
|
Datasheet |
SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 3.3V (Max) | 5V | - | - | - | No | RF Antenna | 0.43pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-523 |
|
P6SMB36ATVS DIODE 30.8VWM 49.9VC DO214AA |
14,344 |
|
Datasheet |
DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Active | Zener | 1 | - | 30.8V | 34.2V | 49.9V | 12.2A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
DF2B6M4SL,L3FTVS DIODE 5.5VWM 25VC SL2 |
11,154 |
|
Datasheet |
2-SMD, No Lead | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5.5V (Max) | 5.6V | 25V | 2A (8/20µs) | 30W | No | General Purpose | 0.2pF @ 1MHz | - | - | - | Surface Mount | SL2 |
|
IP4294CZ10-TBR,115TVS DIODE 5.5VWM 4.1VC 10DFN |
6,533 |
|
Datasheet |
10-XFDFN | - | Tape & Reel (TR) | Not For New Designs | Steering (Rail to Rail) | 4 | - | 5.5V | 6V | 4.1V | 4A (8/20µs) | - | Yes | General Purpose | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | DFN2510A-10 |
|
TPD1E10B06DYARQ1AUTOMOTIVE 12-PF, 5.5V 30-KV ESD |
3,424 |
|
Datasheet |
SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5.5V (Max) | 6V | 14V (Typ) | 6A (8/20µs) | 90W | No | - | 12pF @ 1MHz | -40°C ~ 125°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOT-5X3 |
|

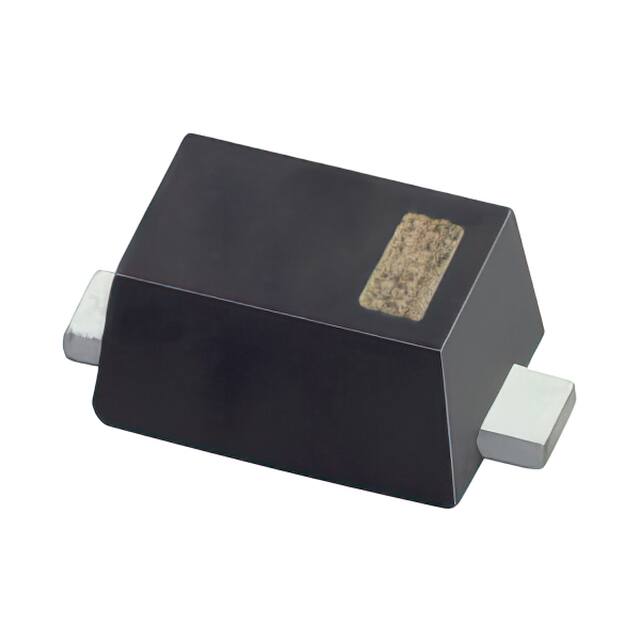

VBUS05M1-02V-G3-08ESD PROTECTION DIODE SOD523 |
2,311 |
|
Datasheet |
SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5.5V (Max) | 6.5V | 15V | 4.5A (8/20µs) | 70W | No | HDMI, USB | 0.7pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-523 |
|
ESD5Z5V0ESD SOD-523 11.6V 150DEG 0.05UA |
1,991 |
|
Datasheet |
SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V | 6.2V | 11.6V | 5A (8/20µs) | 148W | No | - | 80pF @ 1MHz | -50°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-523 |
|
D5V0F2U6LP-7TVS DIODE 5.5VWM 12V U-DFN1610-6 |
212,650 |
|
Datasheet |
6-UFDFN | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 2 | - | 5.5V (Max) | 6V | 12V | 1.5A (8/20µs) | - | Yes | General Purpose | 0.5pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | U-DFN1610-6 |
|
|
MSP5.0A-M3/89ATVS DIODE 5VWM 9.2VC MICROSMP |
205,332 |
|
Datasheet |
DO-219AD | TransZorb®, eSMP® | Tape & Reel (TR) | Active | Zener | 1 | - | 5V | 6.4V | 9.2V | 10.9A | 100W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-219AD (MicroSMP) |
|
ESD3V3D5-TPTVS DIODE 3.3VWM 14.1VC SOD523 |
203,359 |
|
Datasheet |
SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 3.3V (Max) | 5V | 14.1V | 11.2A (8/20µs) | 158W | No | General Purpose | 105pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-523 |
|
SMBJ33A-13-FTVS DIODE 33VWM 53.3VC SMB |
192,484 |
|
Datasheet |
DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | 1 | - | 33V | 36.7V | 53.3V | 11.3A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
D1213A-01SO-7TVS DIODE 3.3VWM 10VC SOT23 |
181,876 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 1 | - | 3.3V | 6V | 10V (Typ) | 1A (8/20µs) | - | Yes | - | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 |
|
VESD33C1-02V-G3-08TVS DIODE 33VWM 62.5VC SOD523 |
53,760 |
|
Datasheet |
SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 33V (Max) | 35.5V | 62.5V | 1.6A (8/20µs) | 100W | No | - | 15pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-523 |
|
|
DRTR5V0U1SO-7TVS DIODE 5.5VWM SOT23 |
46,933 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 1 | - | 5.5V (Max) | 6V | - | - | - | Yes | HDMI | 1pF @ 1MHz | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 |
|
|
CESD3V3D53.3V TVS,PACKAGE SOD-523, TVS AR |
38,570 |
|
Datasheet |
SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 3.3V (Max) | 5V | 13V | 16A | 210W | No | General Purpose | 120pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-523 |
|
|
VESD03C1-02V-G3-08TVS DIODE 3VWM 8.7VC SOD523 |
35,309 |
|
Datasheet |
SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 3V (Max) | 4.4V | 8.7V | 11.6A (8/20µs) | 100W | No | - | 112pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-523 |
|
SMAJ15CA-TPTVS DIODE 15VWM 24.4VC DO214AC |
27,918 |
|
Datasheet |
DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | - | 1 | 15V | 16.7V | 24.4V | 16.4A | 400W | No | General Purpose | - | -55°C ~ 175°C (TA) | - | - | Surface Mount | DO-214AC (SMA) |
TVS Diodes Electronic Components
Explore TVS Diodes electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
