Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2TL1-72ESWITCH TOGGLE DPDT 10A 125V |
0 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | DPDT | Mom-On-Mom | 10A (AC) | 125 V | - | Locking Lever | 26.67mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
12TL1-3DSWITCH TOGGLE DPDT 15A 125V |
0 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | DPDT | On-On | 15A (AC) | 125 V | - | Locking Lever | 26.67mm | Non-Illuminated | - | - | Solder Turret | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
12TL1-2DSWITCH TOGGLE DPST 15A 125V |
0 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | DPST | On-Off | 15A (AC) | 125 V | - | Locking Lever | 26.67mm | Non-Illuminated | - | - | Solder Turret | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
3539024N000TOGGLE SWITCH 3500 IP67 SEALED |
0 |
|
Datasheet |
3500 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 15A (DC) | - | 28 V | Standard Round | 40.00mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | 15/32-32 | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | -40°C ~ 85°C |
|

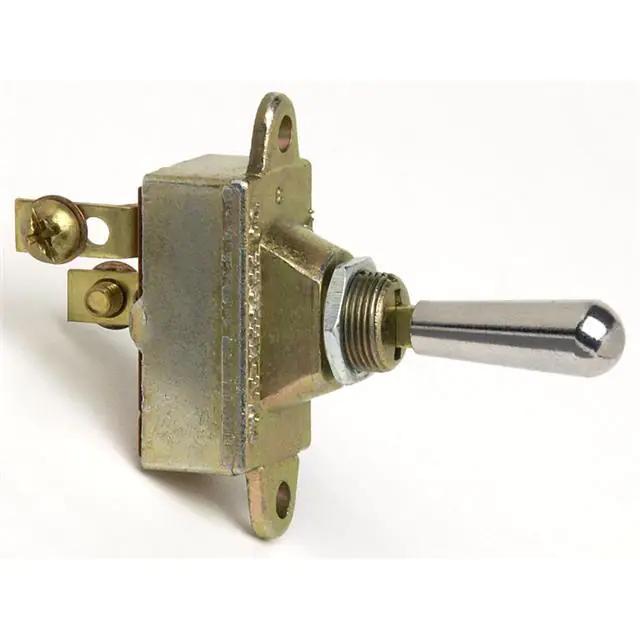

551800SWITCH TOGGLE SPST 20A 12V |
0 |
|
- |
551 | Bulk | Obsolete | Panel Mount | SPST | On-Off | 20A (DC) | - | 12 V | Standard Round | 26.92mm | Non-Illuminated | - | - | Screw Terminal | Circular - 11.90mm Dia | 15/32-32 | - | - | - |
|
|
3544501N002SWITCH TOGGLE SP3T 15A 28V |
0 |
|
Datasheet |
3500 | Bulk | Active | Panel Mount | SP3T | On-On-Mom | 15A (AC/DC) | - | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | Jumper needed to achieve triple throw | -40°C ~ 85°C |
|
2TL1-7ESWITCH TOGGLE DPDT 10A 125V |
0 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 10A (AC) | 125 V | - | Locking Lever | 26.67mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
2TL49-3GSWITCH TOGGLE DPDT 15A 125V |
0 |
|
Datasheet |
TL | Bulk | Obsolete | Panel Mount | DPDT | On-On | 15A (AC) | 125 V | - | Locking Lever | 26.67mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
5266WWCD2VX916TOGGLE SWITCH 5000 MINIATURE |
0 |
|
Datasheet |
5000 | Bulk | Active | Through Hole, Right Angle, Vertical | 4PDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 13.10mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -40°C ~ 85°C |
|
|
2NT91-50KSEALED OI SWITCH |
0 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
3537004N002TOGGLE SWITCH 3500 IP67 SEALED |
0 |
|
Datasheet |
3500 | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 15A (DC) | - | 28 V | Standard Round | 40.00mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | 15/32-32 | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | -40°C ~ 85°C |
|
|
3541003N000SWITCH TOGGLE DPST 20A 28V |
0 |
|
Datasheet |
3500 | Bulk | Active | Panel Mount | DPST | On-Off | 20A (AC), 15A (DC) | - | 28 V | Flatted | 24.00mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
12146AK2VSWITCH TOGGLE DPDT 4A 125V |
0 |
|
Datasheet |
12000 | Bulk | Active | Panel Mount | DPDT | On-On | 4A (AC/DC) | 125 V | 30 V | Locking Lever | 19.40mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.00mm Dia | 15/32-32 | - | Epoxy Sealed Terminals, Front Panel Sealing | -40°C ~ 85°C |
|
|
12146AK1VSWITCH TOGGLE DPDT 4A 125V |
0 |
|
Datasheet |
12000 | Bulk | Active | Panel Mount | DPDT | On-On | 4A (AC/DC) | 125 V | 30 V | Locking Lever | 19.40mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.00mm Dia | 15/32-32 | - | Epoxy Sealed Terminals, Front Panel Sealing | -40°C ~ 85°C |
|
|
3543031N010TOGGLE SWITCH 3500 IP67 SEALED |
0 |
|
Datasheet |
3500 | Bulk | Active | Panel Mount | DPST | Off-Mom | 15A (DC) | - | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | 15/32-32 | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | -40°C ~ 85°C |
|
|
14TL1-8SWITCH TOGGLE 4PDT 10A 125V |
0 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | 4PDT | On-Mom | 10A (AC) | 125 V | - | Standard Round | 17.27mm | Non-Illuminated | - | - | Solder Turret | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
2TL11-205SWITCH TOGGLE DPDT 11A 125V |
0 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | DPDT | On-Off-Mom | 11A (AC), 18A (DC) | 125 V | 28 V | Standard Round | 17.27mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
4TL127-3SWITCH TOGGLE 4PDT 10A 125V |
0 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | 4PDT | On-On | 10A (AC) | 125 V | - | Standard Round | 38.10mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | - | - | - |
|
|
3544133G000SWITCH TOGGLE SP3T 15A 28V |
0 |
|
Datasheet |
3500 | Bulk | Active | Panel Mount | SP3T | On-On-On | 15A (AC/DC) | - | 28 V | Flatted | 24.00mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | Jumper needed to achieve triple throw | -40°C ~ 85°C |
|
12TW1-12SWITCH TOGGLE DPDT 5A 125V |
0 |
|
Datasheet |
TW | Bulk | Active | Panel Mount | DPDT | On-On-On | 5A (AC) | 125 V | - | Standard Round | 17.27mm | Non-Illuminated | - | - | Solder Turret | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
