Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3548001N000SWITCH TOGGLE DPDT 15A 28V |
0 |
|
Datasheet |
3500 | Bulk | Active | Panel Mount | DPDT | On-Off-Mom | 15A (AC/DC) | - | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
3547001N000SWITCH TOGGLE DPDT 15A 28V |
0 |
|
Datasheet |
3500 | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 15A (AC/DC) | - | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
3545001N000SWITCH TOGGLE DPDT 15A 28V |
0 |
|
Datasheet |
3500 | Bulk | Active | Panel Mount | DPDT | On-Mom | 15A (AC/DC) | - | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
12TW1-70SWITCH TOGGLE DPDT 5A 125V |
0 |
|
Datasheet |
TW | Bulk | Active | Panel Mount | DPDT | Mom-On-Mom | 5A (AC) | 125 V | - | Standard Round | 17.27mm | Non-Illuminated | - | - | Solder Turret | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
11TW105-7SWITCH TOGGLE SPDT 5A 125V |
0 |
|
Datasheet |
TW | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 5A (AC) | 125 V | - | Standard Round | 17.27mm | Non-Illuminated | - | - | Solder Turret | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
8-6437630-2SWITCH TOGGLE 4PDT 20A 125V |
0 |
|
Datasheet |
AW | Bulk | Active | Panel Mount | 4PDT | On-Off-On | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | - | -20°C ~ 70°C |
|
|
2NT1-7-COMBSEALED OI SWITCH |
0 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
IM25S-C3SWITCH TOGGLE 4PDT 15A 125V |
0 |
|
- |
I | Bulk | Active | Panel Mount | 4PDT | Mom-Off-Mom | 15A (AC) | 125 V | - | - | - | Non-Illuminated | - | - | Screw Terminal | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
664903LMSWITCH TOGGLE DPDT 10A 125V |
0 |
|
Datasheet |
6000 | Bulk | Active | Panel Mount | DPDT | On-Off-On | 10A (AC), 6.5A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | 15/32-32 | - | Matte Black Finish | -40°C ~ 85°C |
|

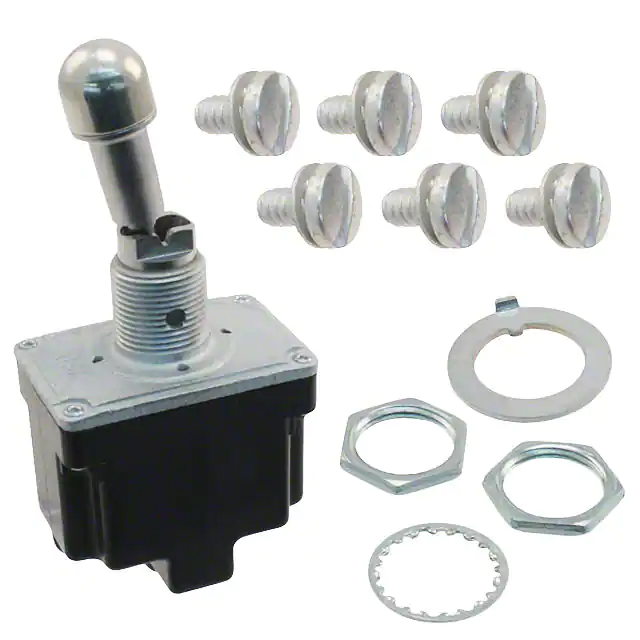

2TL1-1ESWITCH TOGGLE DPDT 15A 125V |
0 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | DPDT | On-Off-On | 15A (AC) | 125 V | - | Locking Lever | 26.67mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|

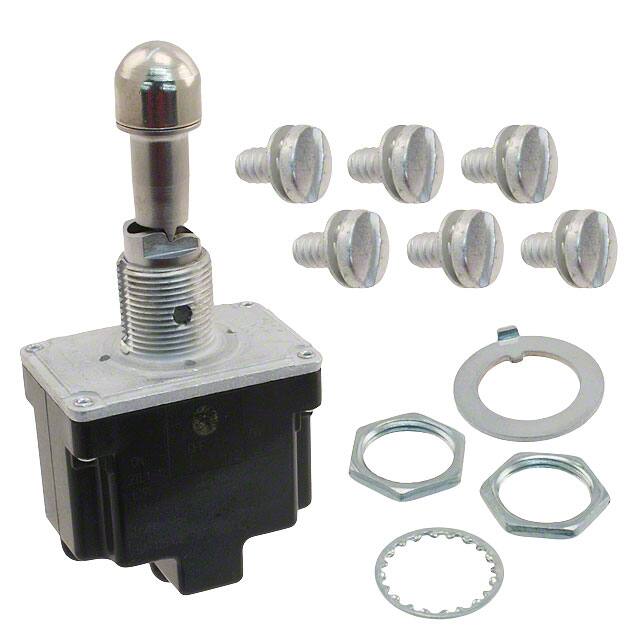

2TL1-1LSWITCH TOGGLE DPDT 15A 125V |
0 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | DPDT | On-Off-On | 15A (AC) | 125 V | - | Locking Lever | 26.67mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
2TL1-5FSWITCH TOGGLE DPDT 10A 125V |
0 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | DPDT | On-Off-Mom | 10A (AC) | 125 V | - | Locking Lever | 26.67mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
1TL1-7LSWITCH TOGGLE SPDT 10A 125V |
0 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 10A (AC) | 125 V | - | Locking Lever | 26.67mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
2TL11-7SWITCH TOGGLE DPDT 10A 125V |
0 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 10A (AC) | 125 V | - | Standard Round | 17.27mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
2TL1-1NSWITCH TOGGLE DPDT 15A 125V |
0 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | DPDT | On-Off-On | 15A (AC) | 125 V | - | Locking Lever | 26.67mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
2TL1-1PSWITCH TOGGLE DPDT 15A 125V |
0 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | DPDT | On-Off-On | 15A (AC) | 125 V | - | Locking Lever | 26.67mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
1TL11-7SWITCH TOGGLE SPDT 10A 125V |
0 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 10A (AC) | 125 V | - | Standard Round | 17.27mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
1TL1-7NSWITCH TOGGLE SPDT 10A 125V |
0 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 10A (AC) | 125 V | - | Locking Lever | 26.67mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
11TL1-3DSWITCH TOGGLE SPDT 15A 125V |
0 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | SPDT | On-On | 15A (AC) | 125 V | - | Locking Lever | 26.67mm | Non-Illuminated | - | - | Solder Turret | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|

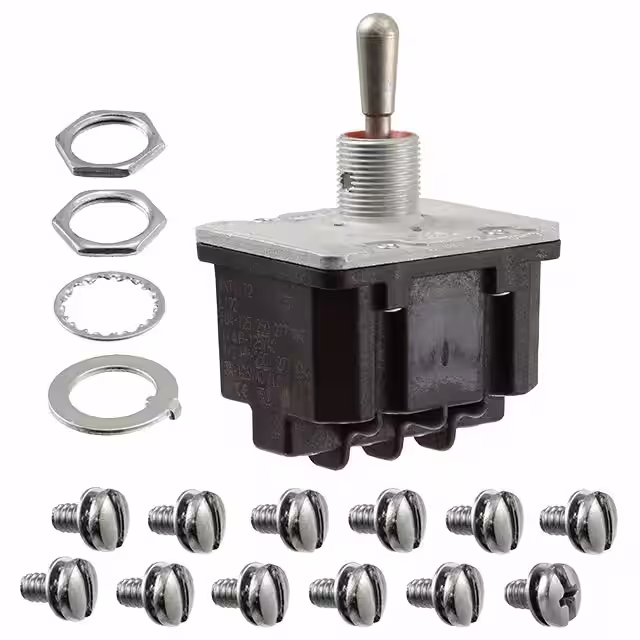

4NT1-72SWITCH TOGGLE 4PDT 10A 125V |
0 |
|
Datasheet |
NT | Bulk | Active | Panel Mount | 4PDT | Mom-On-Mom | 10A (AC) | 125 V | - | Standard Round | 17.27mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | IP67/IP68 - Dust Tight, Waterproof | Sealed | -40°C ~ 71°C |
