Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SW-T4-2B-E-TA1-01SWITCH TOGGLE SPDT 12A 125V |
194 |
|
Datasheet |
SW | Box | Active | Panel Mount | SPDT | On-On | 12A (AC) | 125 V | - | Standard Round with Cap | 16.20mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.00mm Dia | 15/32-32 | IP68 - Dust Tight, Waterproof | - | -30°C ~ 85°C |
|
C3970BASWITCH TOGGLE DPDT 16A 125V |
0 |
|
Datasheet |
3900 | Bulk | Active | Panel Mount | DPDT | On-Off-On | 16A (AC), 14A (DC) | 125 V | 36 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | - |
|
7208MD9ABESWITCH TOGGLE DPDT 0.4VA 20V |
399 |
|
Datasheet |
7000 | Tray | Active | Through Hole, Right Angle | DPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
ET23SD1CBESWITCH TOGGLE DPDT 0.4VA 20V |
176 |
|
Datasheet |
ET | Bulk | Active | Through Hole | DPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.16mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7103T1CWV3GESWITCH TOGGLE SPDT 5A 120V |
1,103 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 12.37mm | Non-Illuminated | - | - | PC Pin | Circular - 11.91mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7201P3DCQESWITCH TOGGLE DPDT 5A 120V |
101 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 13.21mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
E203MD1AV2BESWITCH TOGGLE DPDT 0.4VA 20V |
176 |
|
Datasheet |
E | Tray | Active | Through Hole, Right Angle, Vertical | DPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7201P3CWAV2SESWITCH TOGGLE DPDT 5A 120V |
103 |
|
Datasheet |
7000 | Tray | Active | Panel Mount, Right Angle, Vertical | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

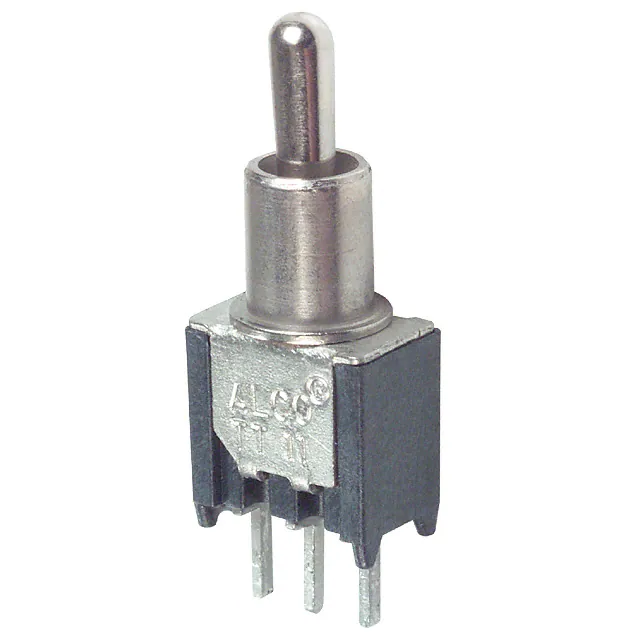

1825219-6SWITCH TOGGLE SPDT 0.4VA 20V |
210 |
|
Datasheet |
TT | Bulk | Active | Through Hole | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.61mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
TT11EGPC1SWITCH TOGGLE SPDT 0.4VA 20V |
272 |
|
Datasheet |
TT | Bulk | Active | Through Hole | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.61mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7203P4DCBE22SWITCH TOGGLE DPDT 0.4VA 20V |
329 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 8.13mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Black Actuator | -30°C ~ 85°C |
|
4TL1-6SWITCH TOGGLE 4PST-NO 10A 125V |
18 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | 4PST-NO | Off-Mom | 10A (AC) | 125 V | - | Standard Round | 17.27mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
7401P3DV8BE2SWITCH TOGGLE 4PDT 0.4VA 20V |
104 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | 4PDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 13.21mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Black Actuator | -30°C ~ 85°C |
|
7303P3Y9V7GESWITCH TOGGLE 3PDT 5A 120V |
2,149 |
|
Datasheet |
7000 | Tray | Active | Through Hole | 3PDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7-6437630-4SWITCH TOGGLE SPDT 20A 125V |
430 |
|
Datasheet |
AW | Bulk | Active | Panel Mount | SPDT | On-Mom | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | - | -20°C ~ 70°C |
|
|
7411MD9AV2BESWITCH TOGGLE DP3T 0.4VA 20V |
117 |
|
Datasheet |
7000 | Bulk | Active | Through Hole, Right Angle, Vertical | DP3T | On-On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
7405MHZBESWITCH TOGGLE 4PDT 0.4VA 20V |
189 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | 4PDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.08mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
2MT1-7SWITCH TOGGLE DPDT 5A 28V |
5 |
|
Datasheet |
MT | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 5A (DC) | - | 28 V | Standard Round | 16.87mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 12.45mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
1-6437630-1SWITCH TOGGLE DPDT 20A 125V |
480 |
|
Datasheet |
AW | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | Sealed | -20°C ~ 70°C |
|
|
11148AGSWITCH TOGGLE DPDT 4A 125V |
44 |
|
Datasheet |
11000 | Bulk | Active | Panel Mount | DPDT | On-Off-Mom | 4A (AC/DC) | 125 V | 30 V | Standard Round | 11.30mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
Toggle Switches Electronic Components
Explore Toggle Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
