Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GT11MAVBESWITCH TOGGLE SPDT 0.4VA 20V |
481 |
|
Datasheet |
GT | Tray | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 3.81mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
TL38WS84065SWITCH TOGGLE SPDT 0.4VA 20V |
699 |
|
Datasheet |
SMT TL | Tape & Reel (TR) | Active | Surface Mount, Right Angle | SPDT | On-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.50mm | Non-Illuminated | - | - | Gull Wing | - | Unthreaded | - | High Temperature Plastic Cap | -40°C ~ 85°C |
|
GT12MAVBESWITCH TOGGLE SPST 0.4VA 20V |
135 |
|
Datasheet |
GT | Bulk | Active | Through Hole, Right Angle, Vertical | SPST | On-Off | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 3.81mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7103SDZQESWITCH TOGGLE SPDT 5A 120V |
529 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 12.45mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
T101LCFAVBESWITCH TOGGLE SPDT 0.4VA 20V |
293 |
|
Datasheet |
T | Tray | Active | Panel Mount, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.08mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
A27AWSWITCH TOGGLE SP3T 0.4VA 28V |
2,000 |
|
Datasheet |
A | Tray | Active | Through Hole | SP3T | On-On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.00mm | Non-Illuminated | - | - | Wire Wrap | - | Unthreaded, Square | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|

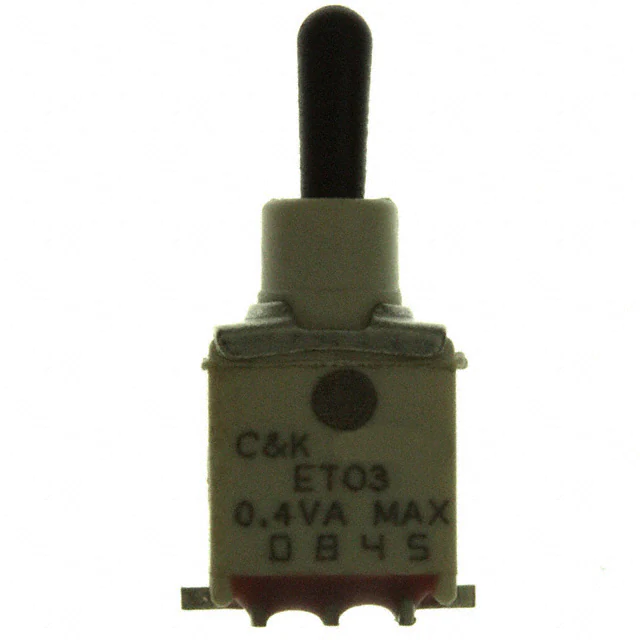

ET03M3D1SAPESWITCH TOGGLE SPDT 0.4VA 20V |
546 |
|
Datasheet |
ET | Tape & Reel (TR) | Active | Surface Mount, Right Angle | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.10mm | Non-Illuminated | - | - | Gull Wing | - | Unthreaded | IP57 - Dust Protected, Waterproof | Black Antistatic Actuator | -30°C ~ 85°C |
|
7101SY9V3BESWITCH TOGGLE SPDT 0.4VA 20V |
179 |
|
Datasheet |
7000 | Tray | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.67mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7101SYAV2QESWITCH TOGGLE SPDT 5A 120V |
137 |
|
Datasheet |
7000 | Tray | Active | Panel Mount, Right Angle, Vertical | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.67mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7101SYV3QESWITCH TOGGLE SPDT 5A 120V |
309 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.67mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7101SY9V6BESWITCH TOGGLE SPDT 0.4VA 20V |
125 |
|
Datasheet |
7000 | Bulk | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.67mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
ST4SP8AT2C2SWITCH TOGGLE SPDT 16A 125V |
498 |
|
Datasheet |
ST4 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 16A (AC) | 125 V | 30 V | Flatted | 22.20mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.00mm Dia | 15/32-32 | IP68 - Dust Tight, Waterproof | - | -10°C ~ 55°C |
|
7107MD9AV2BESWITCH TOGGLE SPDT 0.4VA 20V |
117 |
|
Datasheet |
7000 | Tray | Active | Through Hole, Right Angle, Vertical | SPDT | On-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7103L1YZQESWITCH TOGGLE SPDT 5A 120V |
1,006 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 16.26mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7103SCWZQESWITCH TOGGLE SPDT 5A 120V |
140 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.67mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

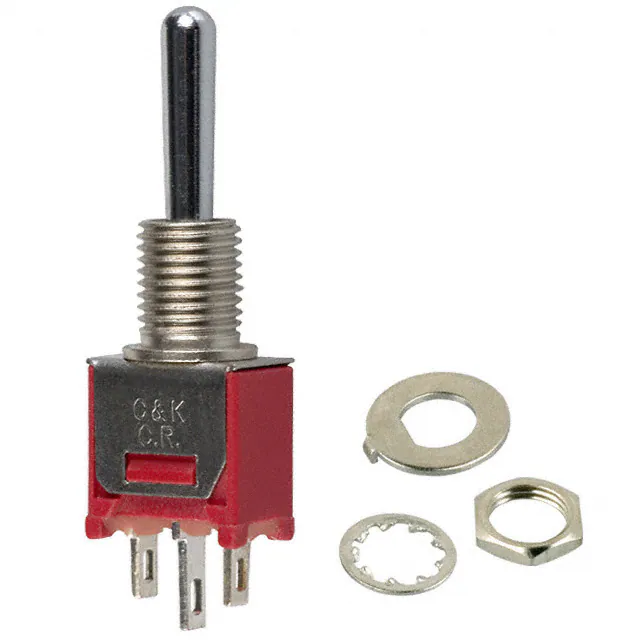

T105SHZQESWITCH TOGGLE SPDT 2A 120V |
700 |
|
Datasheet |
T | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 2A (AC/DC) | 120 V | 28 V | Standard Round | 9.40mm | Non-Illuminated | - | - | Solder Lug | Circular - 4.95mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7213P3D9V3BESWITCH TOGGLE SP3T 0.4VA 20V |
335 |
|
Datasheet |
7000 | Bulk | Active | Through Hole | SP3T | On-On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 13.21mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
T107SHZQESWITCH TOGGLE SPDT 2A 120V |
171 |
|
Datasheet |
T | Bulk | Active | Panel Mount | SPDT | On-Off-Mom | 2A (AC/DC) | 120 V | 28 V | Standard Round | 9.40mm | Non-Illuminated | - | - | Solder Lug | Circular - 4.95mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
GT23MAVBESWITCH TOGGLE DPDT 0.4VA 20V |
160 |
|
Datasheet |
GT | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 3.81mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

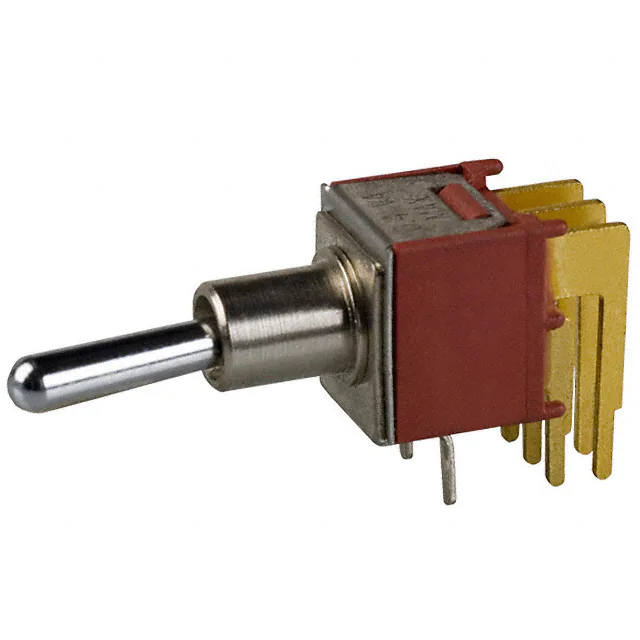

T208SH9ABESWITCH TOGGLE DPDT 0.4VA 20V |
113 |
|
Datasheet |
T | Bulk | Active | Through Hole, Right Angle | DPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 9.40mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
Toggle Switches Electronic Components
Explore Toggle Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
