Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
12144AG3VX408SWITCH TOGGLE SP3T 4A 125V |
18 |
|
Datasheet |
12000 | Bulk | Active | Panel Mount | SP3T | On-On-On | 4A (AC/DC) | 125 V | 30 V | Locking Lever | 20.60mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.00mm Dia | 15/32-32 | - | Jumper needed to achieve triple throw | -40°C ~ 85°C |
|
00227066SWITCH TOGGLE SPST 12V |
10 |
|
- |
- | Bag | Active | Panel Mount, Right Angle | SPST | On-Off | - | - | 12 V | Standard Round | - | Non-Illuminated | - | - | Connector | - | - | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | - |
|
|
07-4-2-13 933SWITCH TOGGLE 4PDT 15A 115V |
13 |
|
Datasheet |
07 | Box | Active | Panel Mount | 4PDT | On-On | 15A (AC/DC) | 115 V | 28 V | Standard Round | - | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.40mm Dia | M12 x 0.75 | IP65 - Dust Tight, Water Resistant | - | -35°C ~ 60°C |
|

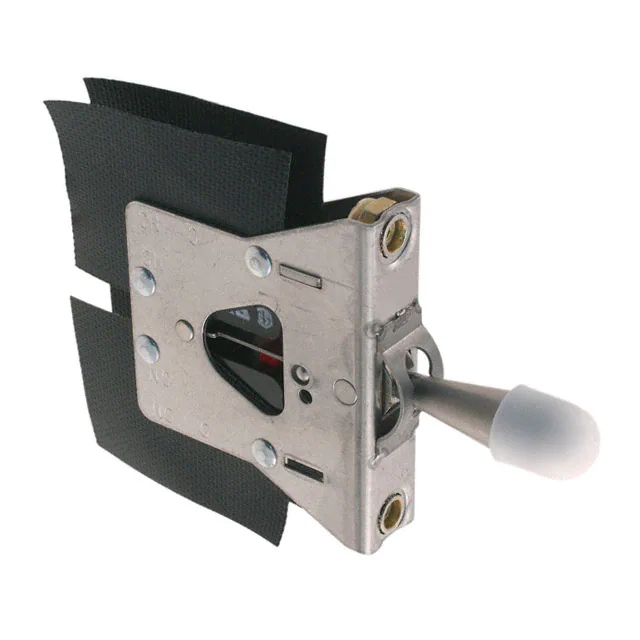

111AT25SWITCH TOGGLE DPDT 15A 125V |
20 |
|
Datasheet |
AT | Bulk | Active | Panel Mount | DPDT | On-Mom | 15A (AC) | 125 V | - | Locking Lever | 31.75mm | Non-Illuminated | - | - | Screw Terminal | - | - | - | White Cap | - |
|

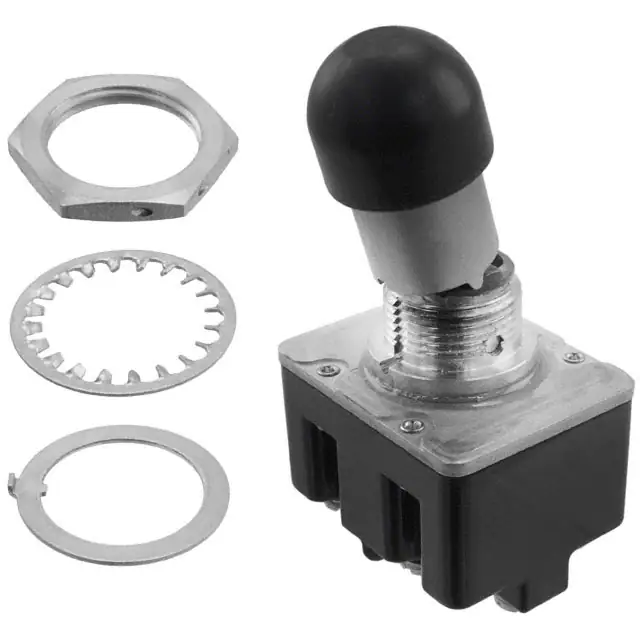

3TL32-1-3DSWITCH TOGGLE 3PDT 15A 125V |
15 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | 3PDT | On-On | 15A (AC) | 125 V | - | Locking Lever | 38.86mm | Illuminated | Incandescent, Red | 28 VAC | Wire Leads | - | 3/4-20 | Environment Sealed | - | -65°C ~ 71°C |
|
|
472131020311SWITCH TOGGLE DPDT 1A 30V |
69 |
|
Datasheet |
WS-TOTV | Tray | Active | Panel Mount | DPDT | On-On | 1A (DC) | - | 30 V | Standard Round | 7.30mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|
ATE1G-5M3-10-ZSWITCH TOGGLE SPDT 50MA 48V |
55 |
|
Datasheet |
ATE | Tray | Active | Through Hole, Right Angle | SPDT | Mom-Off-Mom | 50mA (AC/DC) | 48 V | 48 V | Standard Round | 6.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable | -20°C ~ 85°C |
|
|
A15JHSWITCH TOGGLE SPDT 0.4VA 28V |
43 |
|
Datasheet |
A | Bulk | Active | Through Hole, Right Angle | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
A15JPSWITCH TOGGLE SPDT 0.4VA 28V |
94 |
|
Datasheet |
A | Bulk | Active | Through Hole | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
B1RAHSWITCH TOGGLE SPDT 0.4VA 28V |
58 |
|
Datasheet |
B | Bulk | Active | Through Hole, Right Angle | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
472131010111SWITCH TOGGLE DPDT 1A 30V |
35 |
|
Datasheet |
WS-TOTV | Tray | Active | Panel Mount | DPDT | On-On | 1A (DC) | - | 30 V | Standard Round | 10.40mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|
8A1022C-ZSWITCH TOGGLE SPDT 25MA 20V |
39 |
|
Datasheet |
8A | Bulk | Active | Panel Mount | SPDT | On-Off-On | 25mA (DC) | - | 20 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Sealed - Flux Protection | -30°C ~ 85°C |
|
|
472123020311SWITCH TOGGLE SPDT 1A 30V |
100 |
|
Datasheet |
WS-TOTV | Tray | Active | Panel Mount | SPDT | On-Off-On | 1A (DC) | - | 30 V | Standard Round | 7.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|
B18KV-BASWITCH TOGGLE SPDT 0.4VA 28V |
27 |
|
Datasheet |
B | Tray | Active | Through Hole, Right Angle, Vertical | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Snap On Paddle | 14.20mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Black Actuator | -30°C ~ 85°C |
|
|
MN12S2S1W01SWITCH TOGGLE |
48 |
|
Datasheet |
M | Bulk | Active | Panel Mount | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 5.08mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
B13EHSWITCH TOGGLE SPDT 0.4VA 28V |
52 |
|
Datasheet |
B | Tray | Active | Through Hole, Right Angle | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Flatted | 10.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

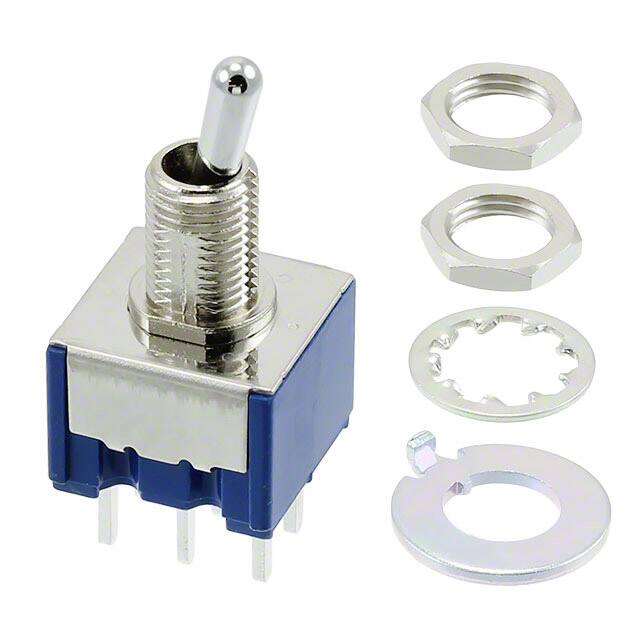

8J2012-ZSWITCH TOGGLE DPDT 6A 125V |
29 |
|
Datasheet |
8J | Bulk | Active | Through Hole | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 6.80mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
8C1012-ZSWITCH TOGGLE SPDT 6A 125V |
28 |
|
Datasheet |
8C | Bulk | Active | Panel Mount | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Flat Anti-Rotation | 11.40mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Sealed - Flux Protection | -30°C ~ 85°C |
|
G3T18AHSWITCH TOGGLE SPDT 0.4VA 28V |
75 |
|
Datasheet |
G3T | Tray | Active | Surface Mount, Right Angle | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 3.81mm | Non-Illuminated | - | - | Gull Wing | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
472131020421SWITCH TOGGLE DPDT 1A 30V |
60 |
|
Datasheet |
WS-TOTV | Tray | Active | Through Hole, Right Angle | DPDT | On-On | 1A (DC) | - | 30 V | Standard Round | 6.70mm | Non-Illuminated | - | - | PC Pin | - | - | - | - | -40°C ~ 85°C |
