Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
656NHSWITCH TOGGLE 3PDT 15A 250V |
48 |
|
Datasheet |
600NH | Bulk | Active | Panel Mount | 3PDT | On-On | 15A (AC) | 250 V | - | Flatted | 13.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | M12 x 0.75 | - | - | -20°C ~ 55°C |
|

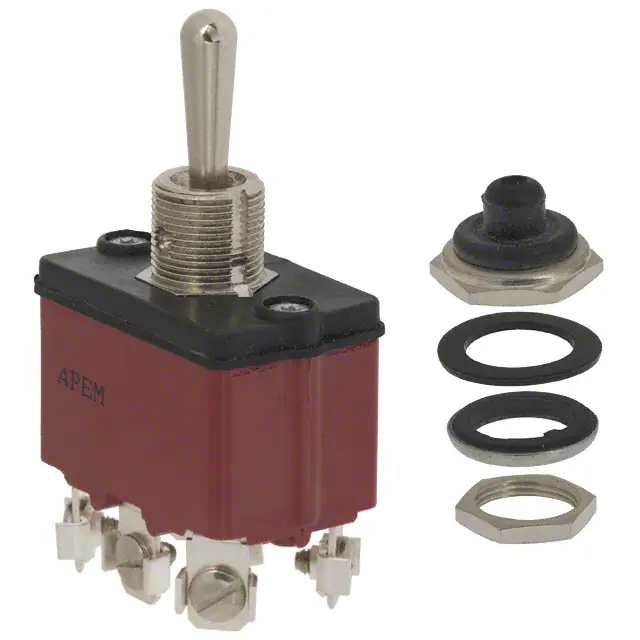

3649NFSWITCH TOGGLE DPDT 6A 125V |
20 |
|
Datasheet |
3600NF | Bulk | Active | Panel Mount | DPDT | On-Off-On | 6A (AC), 12A (DC) | 125 V | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | M12 x 0.75 | - | Sealed | -40°C ~ 85°C |
|
5242MIWRADBX449SWITCH TOGGLE DPDT 6A 125V |
24 |
|
Datasheet |
5000 | Tray | Active | Panel Mount | DPDT | On-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Wire Wrap | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
3645NFSWITCH TOGGLE DPDT 6A 125V |
47 |
|
Datasheet |
3600NF | Bulk | Active | Panel Mount | DPDT | On-Mom | 6A (AC), 12A (DC) | 125 V | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | M12 x 0.75 | - | Sealed | -40°C ~ 85°C |
|

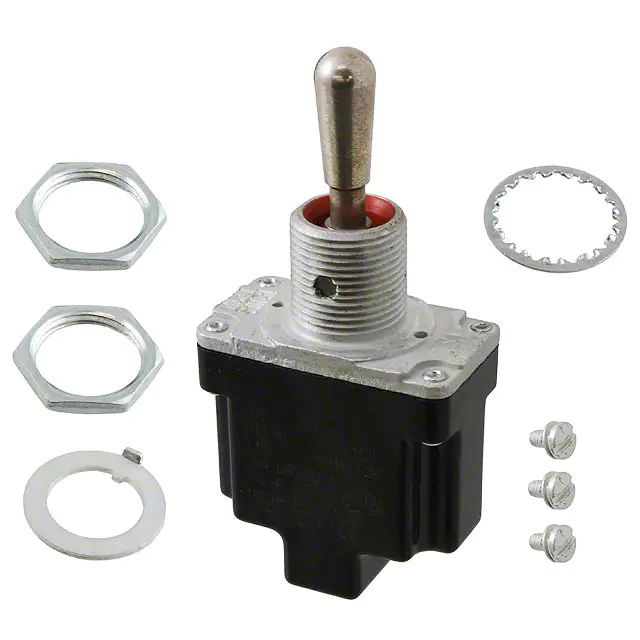

1TL1-61SWITCH TOGGLE SPST-NO 10A 125V |
0 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | SPST-NO | Off-Mom | 10A (AC) | 125 V | - | Standard Round | 17.27mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
9201TZQESWITCH TOGGLE DPDT 6A 120V |
84 |
|
Datasheet |
9000 | Bulk | Active | Panel Mount | DPDT | On-On | 6A (AC/DC) | 120 V | 28 V | Standard Round | 17.45mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.91mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
106362755SWITCH TOGGLE SPDT 3A 110V |
25 |
|
- |
10600 | Bulk | Active | Panel Mount | SPDT | On-On | 3A (AC/DC) | 110 V | 24 V | Standard Round | 11.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 10.20mm Dia | M10 x 0.75 | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
07-1-2-17SWITCH TOGGLE SPDT 15A 115V |
10 |
|
Datasheet |
07 | Box | Active | Panel Mount | SPDT | On-Off-On | 15A (AC/DC) | 115 V | 28 V | Standard Round | - | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.40mm Dia | M12 x 0.75 | IP65 - Dust Tight, Water Resistant | - | -35°C ~ 60°C |
|
101TL2-3SWITCH TOGGLE SPDT 7.5A 115V |
10 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | SPDT | On-On | 7.5A (AC/DC) | 115 V | 30 V | Standard Round | 17.27mm | Non-Illuminated | - | - | IWTS | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
12TL1-3SWITCH TOGGLE DPDT 15A 125V |
37 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | DPDT | On-On | 15A (AC) | 125 V | - | Standard Round | 17.27mm | Non-Illuminated | - | - | Solder Turret | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
MTG82AD3SWITCH TOGGLE SPDT 6A 30V |
94 |
|
Datasheet |
MT | Box | Active | Panel Mount | SPDT | On-Off-Mom | 6A (AC), 4A (DC) | - | 30 V | Winged | 15.86mm | Non-Illuminated | - | - | Solder Lug | Circular - 17.65mm Dia | 11/16-28 | IP68 - Dust Tight, Waterproof | Black Actuator | -40°C ~ 85°C |
|
|
3541001N002SWITCH TOGGLE DPST 20A 28V |
25 |
|
Datasheet |
3500 | Bulk | Active | Panel Mount | DPST | On-Off | 20A (AC), 15A (DC) | - | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|

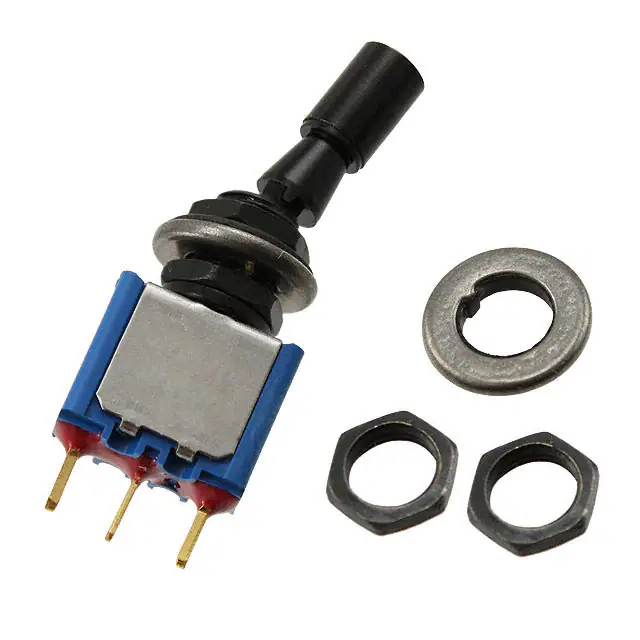

5236CDGKB2VSWITCH TOGGLE SPDT 0.4VA 20V |
6 |
|
Datasheet |
5000 | Tray | Active | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Locking Lever | 14.75mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Front Panel Sealing | -40°C ~ 85°C |
|
|
3537001N012SWITCH TOGGLE SPDT 15A 28V |
24 |
|
Datasheet |
3500 | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 15A (AC/DC) | - | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
3539001N000SWITCH TOGGLE SPDT 18A 28V |
23 |
|
Datasheet |
3500 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 18A (AC), 15A (DC) | - | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
MTG92AD5SWITCH TOGGLE SPDT 6A 30V |
2 |
|
Datasheet |
MT | Box | Active | Panel Mount | SPDT | On-Off-On | 6A (AC), 4A (DC) | - | 30 V | Winged | 15.86mm | Non-Illuminated | - | - | Solder Lug | Circular - 17.65mm Dia | 11/16-28 | IP68 - Dust Tight, Waterproof | Black Actuator | -40°C ~ 85°C |
|
|
07-2-2-17SWITCH TOGGLE DPDT 15A 115V |
15 |
|
Datasheet |
07 | Box | Active | Panel Mount | DPDT | On-Off-On | 15A (AC/DC) | 115 V | 28 V | Standard Round | - | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.40mm Dia | M12 x 0.75 | IP65 - Dust Tight, Water Resistant | - | -35°C ~ 60°C |
|
|
12249ASWITCH TOGGLE DPDT 4A 125V |
20 |
|
Datasheet |
12000 | Bulk | Active | Panel Mount | DPDT | On-Off-On | 4A (AC/DC) | 125 V | 30 V | Standard Round | 17.30mm | Non-Illuminated | - | - | PC Pin | Circular - 12.50mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
12147AGKSWITCH TOGGLE DPDT 4A 125V |
17 |
|
Datasheet |
12000 | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 4A (AC/DC) | 125 V | 30 V | Standard Round | 17.30mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.00mm Dia | 15/32-32 | - | Epoxy Sealed Terminals, Front Panel Sealing | -40°C ~ 85°C |
|
|
12147AD2GX408SWITCH TOGGLE DPDT 4A 125V |
8 |
|
Datasheet |
12000 | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 4A (AC/DC) | 125 V | 30 V | Standard Round | 17.30mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.00mm Dia | 15/32-32 | - | Front Panel Sealing | -40°C ~ 85°C |
