SCRs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Voltage - Off State | Voltage - Gate Trigger (Vgt) (Max) | Current - Gate Trigger (Igt) (Max) | Voltage - On State (Vtm) (Max) | Current - On State (It (AV)) (Max) | Current - On State (It (RMS)) (Max) | Current - Hold (Ih) (Max) | Current - Off State (Max) | Current - Non Rep. Surge 50, 60Hz (Itsm) | SCR Type | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S6055RTPSCR 600V 55A TO220AB-R |
956 |
|
Datasheet |
- | TO-220-3 | Tube | Active | 600 V | 1.5 V | 40 mA | 1.8 V | 35 A | 55 A | 60 mA | 10 µA | 550A, 650A | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-220AB-R |
|
VS-25TTS12FP-M3SCR 1.2KV 25A TO220AB FP |
602 |
|
Datasheet |
- | TO-220-3 Full Pack | Tube | Active | 1.2 kV | 2 V | 45 mA | 1.25 V | 16 A | 25 A | 150 mA | 500 µA | 270A @ 50Hz | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-220AB Full-Pak |
|

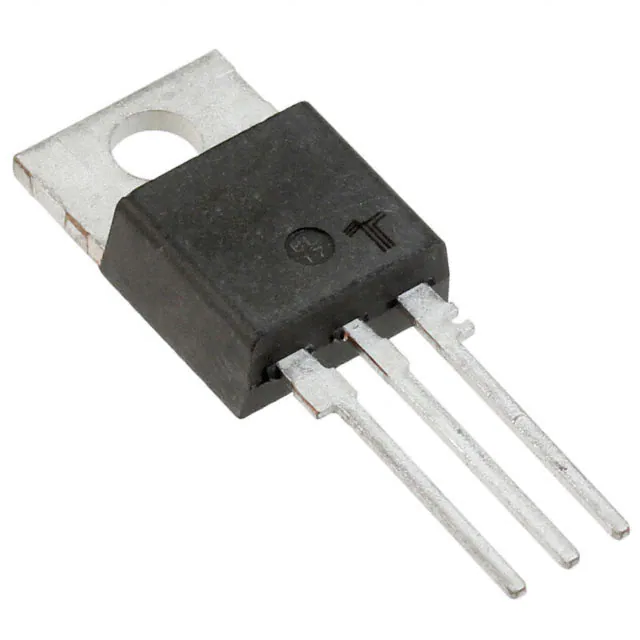

S8055RTPSCR 800V 55A TO220 |
564 |
|
Datasheet |
- | TO-220-3 | Tube | Active | 800 V | 1.5 V | 40 mA | 1.8 V | 35 A | 55 A | 60 mA | 20 µA | 550A, 650A | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-220 Non-Isolated Tab |
|
S8055NRPSCR 800V 55A TO263 |
470 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | 800 V | 1.5 V | 40 mA | 1.8 V | 35 A | 55 A | 60 mA | 20 µA | 550A, 650A | Standard Recovery | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (D2PAK) |
|
|
S4040NQRPSCR 400V 40A TO263 |
1,000 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | 400 V | 1.5 V | 40 mA | 1.8 V | 25 A | 40 A | 60 mA | 10 µA | 430A, 520A | Standard Recovery | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (D2PAK) |
|
VS-80TPS16L-M3SCR 1.6KV 126A TO247AD |
602 |
|
Datasheet |
- | TO-247-3 | Tube | Active | 1.6 kV | 1.5 V | 100 mA | 1.66 V | 80 A | 126 A | 200 mA | 200 µA | 1kA @ 50Hz | Standard Recovery | -40°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AD |
|
CS30-16IO1SCR 1.6KV 49A TO247AD |
1,836 |
|
Datasheet |
- | TO-247-3 | Tube | Active | 1.6 kV | 1 V | 55 mA | 1.63 V | 30 A | 49 A | 100 mA | 50 µA | 400A, 430A | Standard Recovery | -40°C ~ 150°C | - | - | Through Hole | TO-247AD |
, TO-218AC.jpg)
|
S8055MTPSCR 800V 55A TO218 |
919 |
|
Datasheet |
- | TO-218-3, TO-218AC | Tube | Active | 800 V | 1.5 V | 40 mA | 1.8 V | 35 A | 55 A | 60 mA | 20 µA | 550A, 650A | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-218 Non-Isolated Tab |
|
BTW69-600RGSCR 600V 50A TOP3 |
673 |
|
Datasheet |
- | TOP-3 | Tube | Active | 600 V | 1.3 V | 80 mA | 1.9 V | 32 A | 50 A | 150 mA | 10 µA | 580A, 610A | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TOP3 |
|
|
BTW69-1200RGSCR 1.2KV 50A TOP3 |
350 |
|
Datasheet |
- | TOP-3 | Tube | Active | 1.2 kV | 1.3 V | 80 mA | 1.9 V | 32 A | 50 A | 150 mA | 10 µA | 580A, 610A | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TOP3 |
|
|
CS45-16IO1SCR 1.6KV 75A TO247AD |
14,061 |
|
Datasheet |
- | TO-247-3 | Tube | Active | 1.6 kV | 1.5 V | 100 mA | 1.64 V | 48 A | 75 A | 100 mA | 5 mA | 520A, 560A | Standard Recovery | -40°C ~ 140°C | - | - | Through Hole | TO-247AD |
|
|
SK055NRPSCR 1KV 55A TO263 |
8,815 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | 1 kV | 1.5 V | 40 mA | 1.8 V | 35 A | 55 A | 60 mA | 30 µA | 550A, 650A | Standard Recovery | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (D2PAK) |
|
VS-40TPS12A-M3SCR 1.2KV 55A TO247AC |
485 |
|
Datasheet |
- | TO-247-3 | Tube | Active | 1.2 kV | 2.5 V | 150 mA | 1.85 V | 35 A | 55 A | 200 mA | 500 µA | 500A @ 50Hz | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-247AC |
|
BTW69-1200NSCR 1.2KV 50A TOP3 |
608 |
|
Datasheet |
- | TOP-3 | Tube | Active | 1.2 kV | 1.3 V | 50 mA | 1.6 V | 31 A | 50 A | 100 mA | 10 µA | 700A, 763A | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TOP3 |
|
|
VS-40TPS16-M3SCR 1.6KV 55A TO247AC |
488 |
|
Datasheet |
- | TO-247-3 | Tube | Active | 1.6 kV | 2.5 V | 150 mA | 1.85 V | 35 A | 55 A | 200 mA | 500 µA | 500A @ 50Hz | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-247AC |
|
SCT1675CSSCR 1.6KV 75A TO247S |
174 |
|
Datasheet |
- | TO-247-3 | Tube | Active | 1.6 kV | 1.5 V | 80 mA | 1.8 V | 48 A | 75 A | 120 mA | 50 µA | 750A @ 50Hz | Standard Recovery | -40°C ~ 125°C (TJ) | - | - | Through Hole | TO-247S |
|
BTW67-1000SCR 1KV 50A RD91 |
1,093 |
|
Datasheet |
- | RD-91 | Bulk | Active | 1 kV | 1.3 V | 80 mA | 1.9 V | 32 A | 50 A | 150 mA | 10 µA | 580A, 610A | Standard Recovery | -40°C ~ 125°C | - | - | Chassis Mount | RD91 |
|
S6065JTPSCR 600V 65A TO218X |
247 |
|
Datasheet |
- | TO-218X-3 Isolated Tab | Tube | Active | 600 V | 2 V | 50 mA | 1.8 V | 41 A | 65 A | 80 mA | 20 µA | 800A, 950A | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-218X Isolated |
|
VS-50RIA100SCR 1KV 80A TO208AC |
134 |
|
Datasheet |
- | TO-208AC, TO-65-3, Stud | Bulk | Active | 1 kV | 2.5 V | 100 mA | 1.6 V | 50 A | 80 A | 200 mA | 15 mA | 1430A, 1490A | Standard Recovery | -40°C ~ 125°C | - | - | Chassis, Stud Mount | TO-208AC (TO-65) |
|
|
CS20-25MO1FSCR 2.5KV I4-PAC |
182 |
|
Datasheet |
- | i4-Pac™-5 (3 Leads) | Tube | Active | 2.5 kV | - | - | - | - | - | - | - | - | Standard Recovery | - | - | - | Through Hole | ISOPLUS i4-PAC™ |
