Thumbwheel Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Output Code | Read Out | Number of Sections | Display Characters - Height | Actuator Type | Contact Rating @ Voltage | Contact Material | Contact Finish | Mounting Type | Termination Style | End Caps | Section Width | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

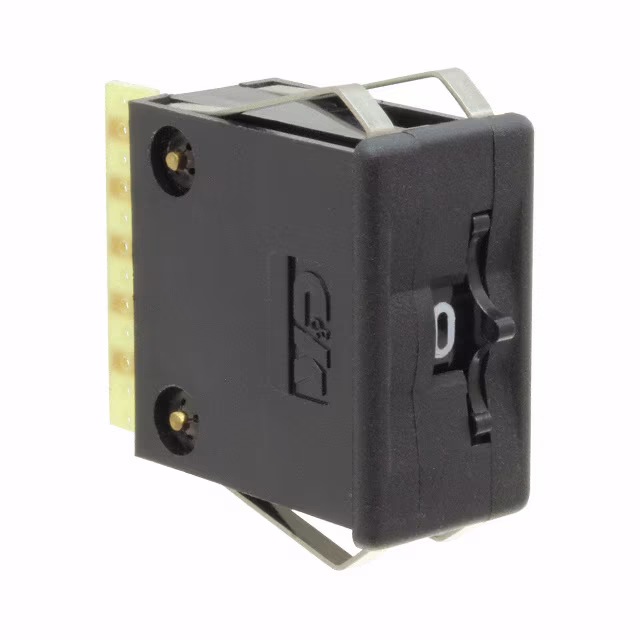

312300000SWITCH THUMB BCD COMP 0.1A 120V |
40 |
|
Datasheet |
3 | Bulk | Obsolete | BCD Complement | 0 ~ 9 | 1 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Snap-In | Card Edge/Solder Pad | Included | 0.315" (8.00mm) | Rectangular - 31.00mm x 16.28mm | - | -40°C ~ 65°C |
|
301119100SWITCH THUMB DEC 0.1A 120V/28V |
96 |
|
Datasheet |
3 | Bulk | Obsolete | Decimal | 0 ~ 9 | 1 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Screw | Card Edge/Solder Pad with Component Mounting | Sold Separately | 0.350" (8.89mm) | - | - | -40°C ~ 65°C |
|
|
302319100SWITCH THUMB BCD COMP 0.1A 120V |
0 |
|
Datasheet |
3 | Bulk | Obsolete | BCD Complement | 0 ~ 9 | 1 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Screw | Card Edge/Solder Pad with Component Mounting | Sold Separately | 0.350" (8.89mm) | - | - | -40°C ~ 65°C |
|

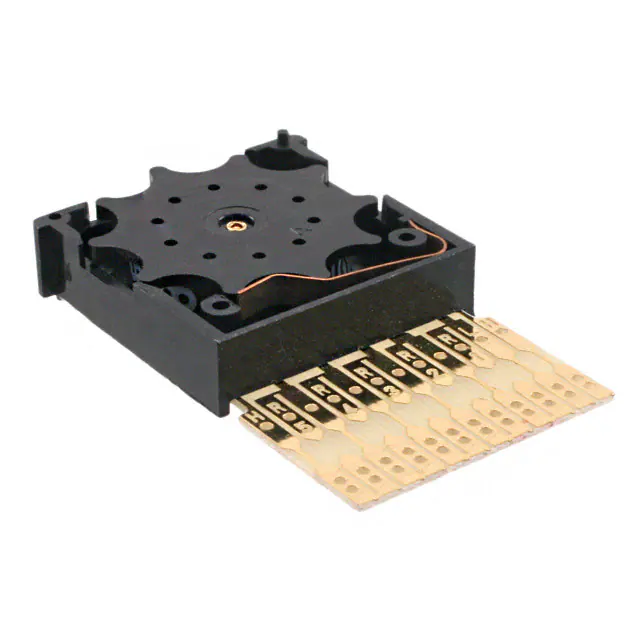

301409100SWITCH THUMB RES DEC 0.1A 120V |
62 |
|
Datasheet |
3 | Bulk | Obsolete | Resistor Decade | 0 ~ 9 | 1 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Snap-In | Card Edge/Solder Pad with Component Mounting | Sold Separately | 0.315" (8.00mm) | - | - | -40°C ~ 65°C |
|
302119100SWITCH THUMB BCD 0.1A 120V |
14 |
|
Datasheet |
3 | Tray | Obsolete | BCD | 0 ~ 9 | 1 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Screw | Card Edge/Solder Pad with Component Mounting | Sold Separately | 0.350" (8.89mm) | - | - | -40°C ~ 65°C |
|
A7PH-206-S07SWITCH THUMB BCD 0.15A 125V |
48 |
|
Datasheet |
A7PH | Tube | Active | BCD | 0 ~ 7 | 1 | 0.268" (6.80mm) | Pushwheel | 0.15A @ 125VAC/28VDC | - | - | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | 0.394" (10.00mm) | - | Internal Stoppers | -10°C ~ 65°C |
|
|
SMCD137AKSWITCH THUMB BCD 0.4VA 20V |
0 |
|
Datasheet |
SMCD | Bulk | Obsolete | BCD | 0 ~ 9 | - | 0.193" (4.90mm) | Pushwheel | 0.4VA @ 20VAC/DC | Copper Alloy | Gold | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | 0.300" (7.62mm) | - | - | -20°C ~ 80°C |
|

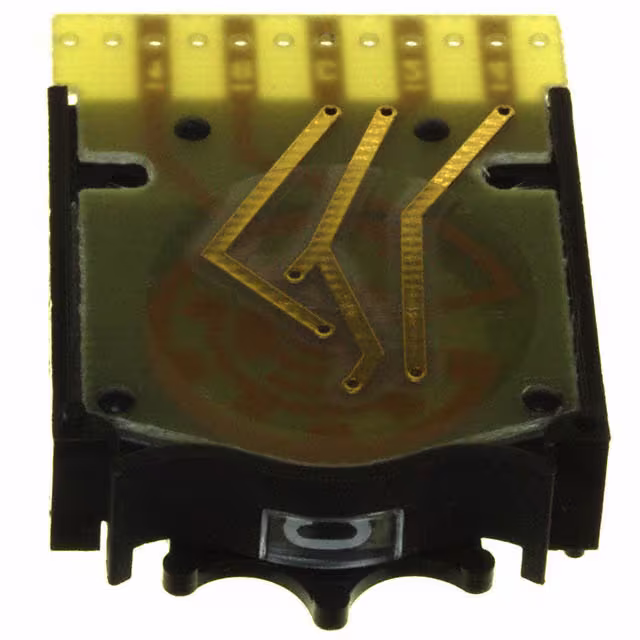

302329003SWITCH THUMB BCD COMP 0.1A 120V |
0 |
|
Datasheet |
3 | Bulk | Obsolete | BCD Complement | 0 ~ 9 | 1 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Screw | Card Edge/Solder Pad | Sold Separately | 0.350" (8.89mm) | - | Dust Lens, Sealed Contacts | -40°C ~ 65°C |
|
|
312100002SWITCH THUMB BCD 0.1A 120V/28V |
14 |
|
Datasheet |
3 | Bulk | Obsolete | BCD | 0 ~ 9 | 1 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Snap-In | Card Edge/Solder Pad | Included | 0.315" (8.00mm) | Rectangular - 31.00mm x 16.28mm | Dust Lens | -40°C ~ 65°C |
|

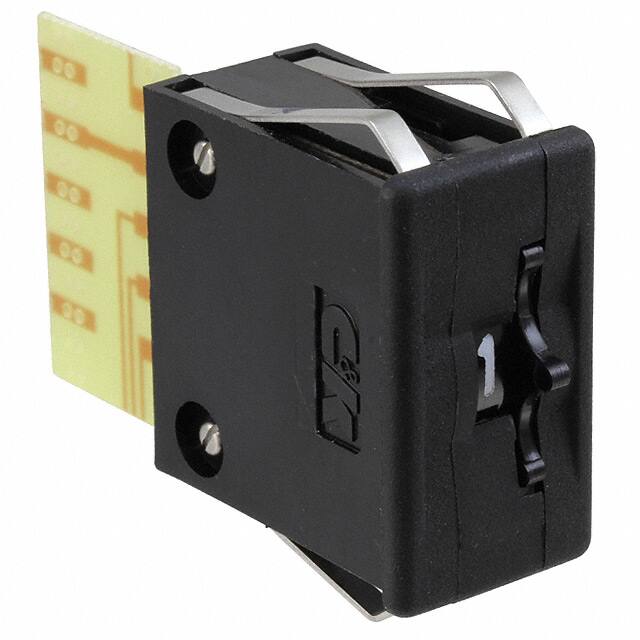

312100100SWITCH THUMB BCD 0.1A 120V |
0 |
|
Datasheet |
3 | Bulk | Obsolete | BCD | 0 ~ 9 | 1 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Snap-In | Card Edge/Solder Pad with Component Mounting | Included | 0.315" (8.00mm) | Rectangular - 31.00mm x 16.28mm | - | -40°C ~ 65°C |
|
|
303109103SWITCH THUMB BCD 0.1A 120V/28V |
22 |
|
Datasheet |
3 | Bulk | Obsolete | BCD | 0 ~ 9 | 1 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Snap-In | Card Edge/Solder Pad with Component Mounting | Sold Separately | 0.315" (8.00mm) | - | Dust Lens, Sealed Contacts | -40°C ~ 65°C |
|
|
302109103SWITCH THUMB BCD 0.1A 120V/28V |
13 |
|
Datasheet |
3 | Bulk | Obsolete | BCD | 0 ~ 9 | 1 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Snap-In | Card Edge/Solder Pad with Component Mounting | Sold Separately | 0.315" (8.00mm) | - | Dust Lens, Sealed Contacts | -40°C ~ 65°C |
|
|
311100001SWITCH THUMB DEC 0.1A 120V/28V |
3 |
|
Datasheet |
3 | Bulk | Obsolete | Decimal | 0 ~ 9 | 1 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Snap-In | Card Edge/Solder Pad | Included | 0.315" (8.00mm) | Rectangular - 31.00mm x 16.28mm | Sealed Contacts | -40°C ~ 65°C |
|
|
343100000SWITCH THUMB BCD 0.1A 120V/28V |
3 |
|
Datasheet |
3 | Bulk | Obsolete | BCD | 0 ~ 9 | 4 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Snap-In | Card Edge/Solder Pad | Included | 0.315" (8.00mm) | Rectangular - 40.28mm x 31.00mm | - | -40°C ~ 65°C |
|
|
342310000SWITCH THUMB BCD COMP 0.1A 120V |
3 |
|
Datasheet |
3 | Bulk | Obsolete | BCD Complement | 0 ~ 9 | 4 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Screw | Card Edge/Solder Pad | Included | 0.350" (8.89mm) | Rectangular - 44.20mm x 25.91mm | - | -40°C ~ 65°C |
|
|
342300000SWITCH THUMB BCD COMP 0.1A 120V |
0 |
|
Datasheet |
3 | Bulk | Obsolete | BCD Complement | 0 ~ 9 | 4 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Snap-In | Card Edge/Solder Pad | Included | 0.315" (8.00mm) | Rectangular - 40.28mm x 31.00mm | - | -40°C ~ 65°C |
|
|
341100002SWITCH THUMB DEC 0.1A 120V/28V |
3 |
|
Datasheet |
3 | Bulk | Obsolete | Decimal | 0 ~ 9 | 4 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Snap-In | Card Edge/Solder Pad | Included | 0.315" (8.00mm) | Rectangular - 40.28mm x 31.00mm | Dust Lens | -40°C ~ 65°C |
|
|
342100100SWITCH THUMB BCD 0.1A 120V/28V |
3 |
|
Datasheet |
3 | Bulk | Obsolete | BCD | 0 ~ 9 | 4 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Snap-In | Card Edge/Solder Pad with Component Mounting | Included | 0.315" (8.00mm) | Rectangular - 40.28mm x 31.00mm | - | -40°C ~ 65°C |
|
|
332120003SWITCH THUMB BCD 0.1A 120V |
0 |
|
Datasheet |
3 | Bulk | Obsolete | BCD | 0 ~ 9 | 3 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Screw | Card Edge/Solder Pad | Included | 0.350" (8.89mm) | Rectangular - 35.31mm x 25.91mm | Dust Lens, Sealed Contacts | -40°C ~ 65°C |
|
337100000SWITCH THUMB HEX 0.1A 120V |
0 |
|
Datasheet |
3 | Bulk | Obsolete | Hexadecimal | 0 ~ 9, A ~ F | 3 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Snap-In | Card Edge/Solder Pad | Included | 0.315" (8.00mm) | Rectangular - 32.28mm x 31.00mm | - | -40°C ~ 65°C |
