Thumbwheel Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Output Code | Read Out | Number of Sections | Display Characters - Height | Actuator Type | Contact Rating @ Voltage | Contact Material | Contact Finish | Mounting Type | Termination Style | End Caps | Section Width | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
313110000SWITCH THUMB BCD 0.1A 120V/28V |
47 |
|
Datasheet |
3 | Bulk | Obsolete | BCD | 0 ~ 9 | 1 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Screw | Card Edge/Solder Pad | Included | 0.350" (8.89mm) | Rectangular - 25.91mm x 17.53mm | - | -40°C ~ 65°C |
|

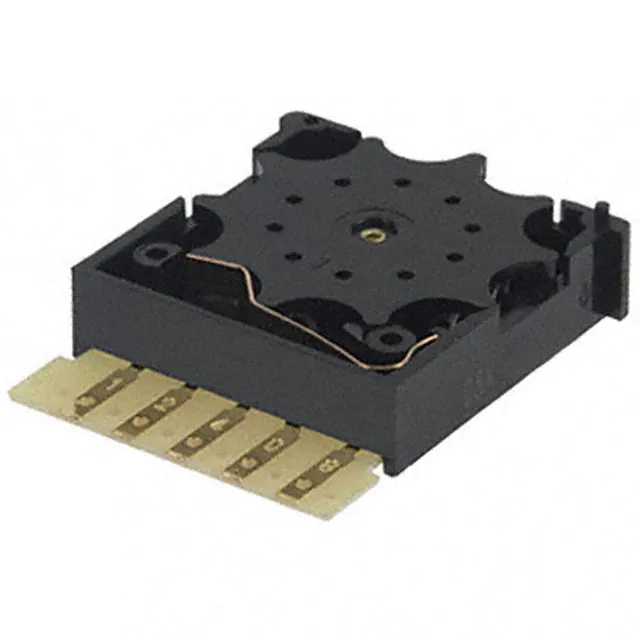

302109000SWITCH THUMB BCD 0.1A 120V |
35 |
|
Datasheet |
3 | Bulk | Active | BCD | 0 ~ 9 | 1 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | 0.315" (8.00mm) | - | - | -40°C ~ 65°C |
|

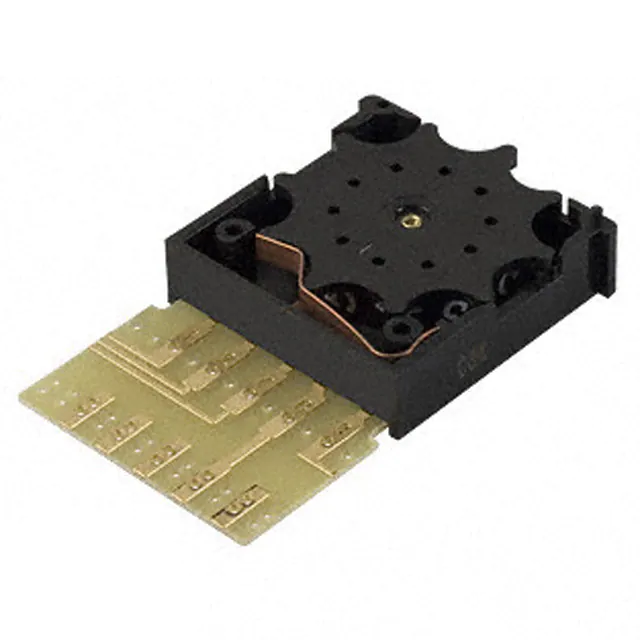

302109100SWITCH THUMB BCD 0.1A 120V |
74 |
|
Datasheet |
3 | Tray | Active | BCD | 0 ~ 9 | 1 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Snap-In | Card Edge/Solder Pad with Component Mounting | Sold Separately | 0.315" (8.00mm) | - | - | -40°C ~ 65°C |
|
313110003SWITCH THUMB BCD 0.1A 120V |
7 |
|
Datasheet |
3 | Bulk | Obsolete | BCD | 0 ~ 9 | 1 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Screw | Card Edge/Solder Pad | Included | 0.350" (8.89mm) | Rectangular - 25.91mm x 17.53mm | Dust Lens, Sealed Contacts | -40°C ~ 65°C |
|
301409103SWITCH THUMB RES DEC 0.1A 120V |
0 |
|
Datasheet |
3 | Bulk | Obsolete | Resistor Decade | 0 ~ 9 | 1 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Snap-In | Card Edge/Solder Pad with Component Mounting | Sold Separately | 0.315" (8.00mm) | - | Dust Lens, Sealed Contacts | -40°C ~ 65°C |
|
|
302109001SWITCH THUMB BCD 0.1A 120V |
525 |
|
Datasheet |
3 | Bulk | Active | BCD | 0 ~ 9 | 1 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | 0.315" (8.00mm) | - | Sealed Contacts | -40°C ~ 65°C |
|
|
322300000SWITCH THUMB BCD COMP 0.1A 120V |
0 |
|
Datasheet |
3 | Bulk | Obsolete | BCD Complement | 0 ~ 9 | 2 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Snap-In | Card Edge/Solder Pad | Included | 0.315" (8.00mm) | Rectangular - 31.00mm x 24.28mm | - | -40°C ~ 65°C |
|

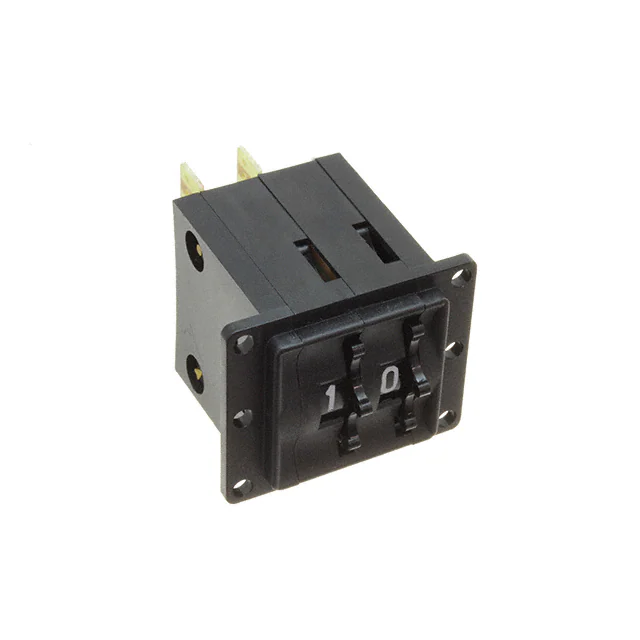

322110000SWITCH THUMB BCD 0.1A 120V |
19 |
|
Datasheet |
3 | Bulk | Obsolete | BCD | 0 ~ 9 | 2 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Screw | Card Edge/Solder Pad | Included | 0.350" (8.89mm) | Rectangular - 26.42mm x 25.91mm | - | -40°C ~ 65°C |
|

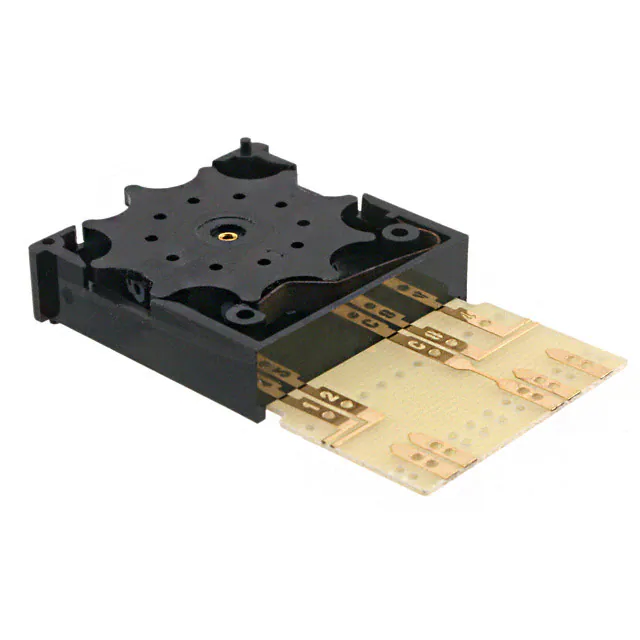

303109101SWITCH THUMB BCD 0.1A 120V |
8 |
|
Datasheet |
3 | Bulk | Obsolete | BCD | 0 ~ 9 | 1 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Snap-In | Card Edge/Solder Pad with Component Mounting | Sold Separately | 0.315" (8.00mm) | - | Sealed Contacts | -40°C ~ 65°C |
|
|
321100002SWITCH THUMB DEC 0.1A 120V/28V |
35 |
|
Datasheet |
3 | Bulk | Obsolete | Decimal | 0 ~ 9 | 2 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Snap-In | Card Edge/Solder Pad | Included | 0.315" (8.00mm) | Rectangular - 31.00mm x 24.28mm | Dust Lens | -40°C ~ 65°C |
|

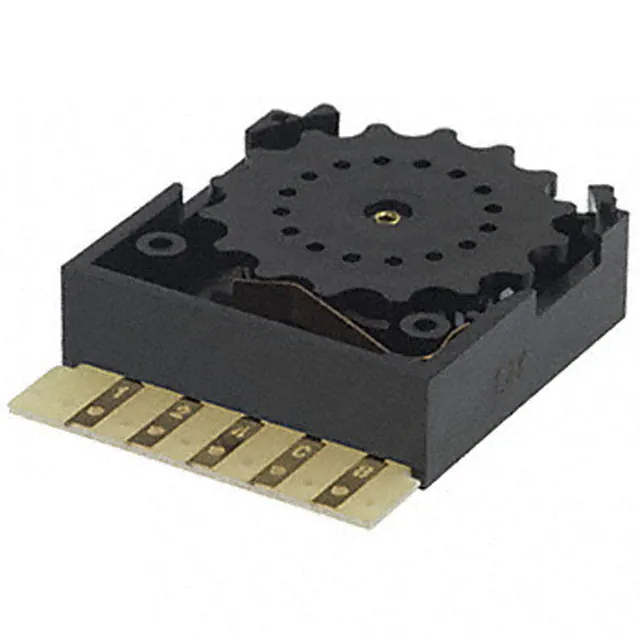

307119000SWITCH THUMB HEX 0.1A 120V |
38 |
|
Datasheet |
3 | Bulk | Active | Hexadecimal | 0 ~ 9, A ~ F | 1 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Screw | Card Edge/Solder Pad | Sold Separately | 0.350" (8.89mm) | - | - | -40°C ~ 65°C |
|
|
321400100SWITCH THUMB RES DEC 0.1A 120V |
0 |
|
Datasheet |
3 | Bulk | Active | Resistor Decade | 0 ~ 9 | 2 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Snap-In | Card Edge/Solder Pad with Component Mounting | Included | 0.315" (8.00mm) | Rectangular - 31.00mm x 24.28mm | - | -40°C ~ 65°C |
|
|
323100000SWITCH THUMB BCD 0.1A 120V |
46 |
|
Datasheet |
3 | Bulk | Obsolete | BCD | 0 ~ 9 | 2 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Snap-In | Card Edge/Solder Pad | Included | 0.315" (8.00mm) | Rectangular - 31.00mm x 24.28mm | - | -40°C ~ 65°C |
|

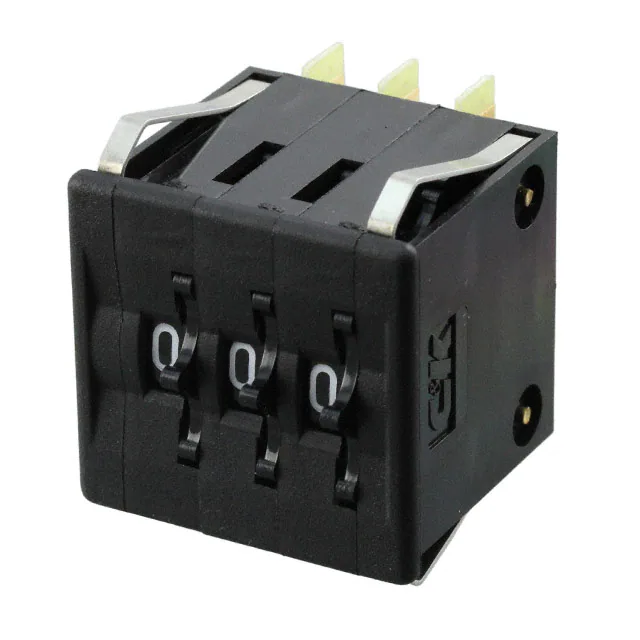

332100000SWITCH THUMB BCD 0.1A 120V |
42 |
|
Datasheet |
3 | Bulk | Obsolete | BCD | 0 ~ 9 | 3 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Snap-In | Card Edge/Solder Pad | Included | 0.315" (8.00mm) | Rectangular - 32.28mm x 31.00mm | - | -40°C ~ 65°C |
|
332110000SWITCH THUMB BCD 0.1A 120V |
0 |
|
Datasheet |
3 | Bulk | Obsolete | BCD | 0 ~ 9 | 3 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Screw | Card Edge/Solder Pad | Included | 0.350" (8.89mm) | Rectangular - 35.31mm x 25.91mm | - | -40°C ~ 65°C |
|
|
327110000SWITCH THUMB HEX 0.1A 120V |
0 |
|
Datasheet |
3 | Bulk | Obsolete | Hexadecimal | 0 ~ 9, A ~ F | 2 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Screw | Card Edge/Solder Pad | Included | 0.350" (8.89mm) | Rectangular - 26.42mm x 25.91mm | - | -40°C ~ 65°C |
|
|
342100103SWITCH THUMB BCD 0.1A 120V/28V |
42 |
|
Datasheet |
3 | Bulk | Obsolete | BCD | 0 ~ 9 | 4 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Snap-In | Card Edge/Solder Pad with Component Mounting | Included | 0.315" (8.00mm) | Rectangular - 40.28mm x 31.00mm | Dust Lens, Sealed Contacts | -40°C ~ 65°C |
|
A7BS-206-S-1SWITCH THUMB BCD 0.1A 50V |
44 |
|
Datasheet |
A7BS | Bulk | Active | BCD | 0 ~ 9 | 1 | 0.189" (4.80mm) | Pushwheel | 0.1A @ 50VAC/28VDC | - | - | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | 0.315" (8.00mm) | - | External Stoppers | -10°C ~ 65°C |
|
A7BS-206-1SWITCH THUMB BCD 0.1A 50V |
96 |
|
Datasheet |
A7BS | Bulk | Active | BCD | 0 ~ 9 | 1 | 0.189" (4.80mm) | Pushwheel | 0.1A @ 50VAC/28VDC | - | - | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | 0.315" (8.00mm) | - | - | -10°C ~ 65°C |
|
A7BS-207-1SWITCH THUMB BCD 0.1A 50V |
56 |
|
Datasheet |
A7BS | Bulk | Active | BCD | 0 ~ 9 | 1 | 0.189" (4.80mm) | Pushwheel | 0.1A @ 50VAC/28VDC | - | - | Panel Mount, Snap-In | Card Edge/Solder Pad with Component Mounting | Sold Separately | 0.315" (8.00mm) | - | - | -10°C ~ 65°C |
