Thumbwheel Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Output Code | Read Out | Number of Sections | Display Characters - Height | Actuator Type | Contact Rating @ Voltage | Contact Material | Contact Finish | Mounting Type | Termination Style | End Caps | Section Width | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
322110N01SWITCH THUMB BCD 0.1A 120V |
0 |
|
- |
3 | Bulk | Active | BCD | 0 ~ 9 | 2 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Screw | PC Pin | Included | 0.350" (8.89mm) | Rectangular - 25.91mm x 24.56mm | Sealed Contacts | -40°C ~ 65°C |
|
322110001SWITCH THUMB BCD 0.1A 120V |
0 |
|
Datasheet |
3 | Bulk | Active | BCD | 0 ~ 9 | 2 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Screw | Card Edge/Solder Pad | Included | 0.350" (8.89mm) | Rectangular - 26.42mm x 25.91mm | Sealed Contacts | -40°C ~ 65°C |
|
|
322310003SWITCH THUMB BCD COMP 0.1A 120V |
0 |
|
Datasheet |
3 | Bulk | Active | BCD Complement | 0 ~ 9 | 2 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Screw | Card Edge/Solder Pad | Included | 0.350" (8.89mm) | Rectangular - 26.42mm x 25.91mm | Dust Lens, Sealed Contacts | -40°C ~ 65°C |
|
|
322110003SWITCH THUMB BCD 0.1A 120V |
0 |
|
Datasheet |
3 | Bulk | Active | BCD | 0 ~ 9 | 2 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Screw | Card Edge/Solder Pad | Included | 0.350" (8.89mm) | Rectangular - 26.42mm x 25.91mm | Dust Lens, Sealed Contacts | -40°C ~ 65°C |
|

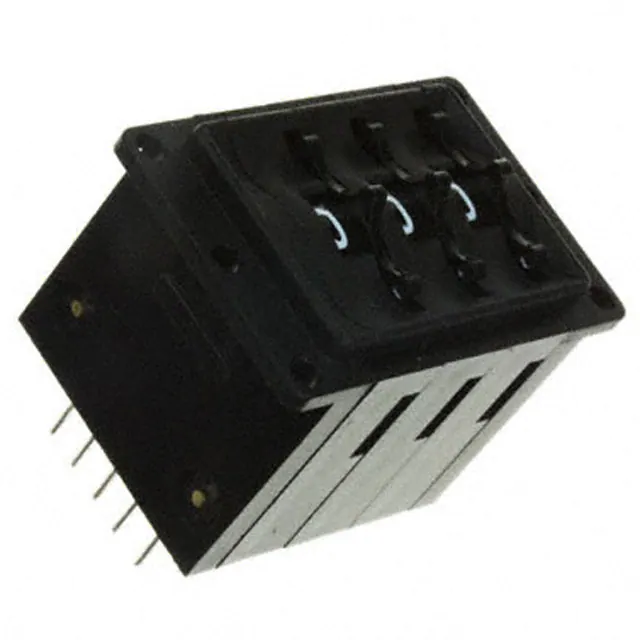

332710P00SWITCH THUMB BCD 0.1A 120V |
1 |
|
Datasheet |
3 | Bulk | Obsolete | BCD | 0 ~ 9 | 3 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Screw | PC Pin | Included | 0.350" (8.89mm) | Rectangular - 35.31mm x 25.91mm | - | -40°C ~ 65°C |
|
|
332300003SWITCH THUMB BCD COMP 0.1A 120V |
0 |
|
Datasheet |
3 | Bulk | Obsolete | BCD Complement | 0 ~ 9 | 3 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Snap-In | Card Edge/Solder Pad | Included | 0.315" (8.00mm) | Rectangular - 32.28mm x 31.00mm | Dust Lens, Sealed Contacts | -40°C ~ 65°C |
|
|
332110003SWITCH THUMB BCD 0.1A 120V |
0 |
|
Datasheet |
3 | Bulk | Active | BCD | 0 ~ 9 | 3 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Screw | Card Edge/Solder Pad | Included | 0.350" (8.89mm) | Rectangular - 35.31mm x 25.91mm | Dust Lens, Sealed Contacts | -40°C ~ 65°C |
|
|
342100003SWITCH THUMB BCD 0.1A 120V |
0 |
|
Datasheet |
3 | Bulk | Active | BCD | 0 ~ 9 | 4 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Snap-In | Card Edge/Solder Pad | Included | 0.315" (8.00mm) | Rectangular - 40.28mm x 31.00mm | Dust Lens, Sealed Contacts | -40°C ~ 65°C |
|

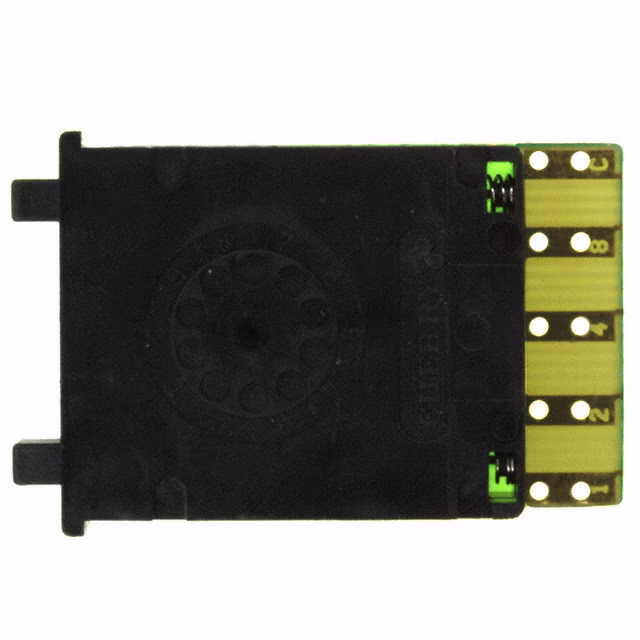

PEGA-3000SWITCH THUMB HEX 0.1A 50V |
0 |
|
Datasheet |
PE | Bulk | Obsolete | Hexadecimal | 0 ~ 15 | 1 | 0.134" (3.40mm) | Pushwheel | 0.1A @ 50VAC/DC | - | - | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | 0.300" (7.62mm) | - | - | -20°C ~ 80°C |
|

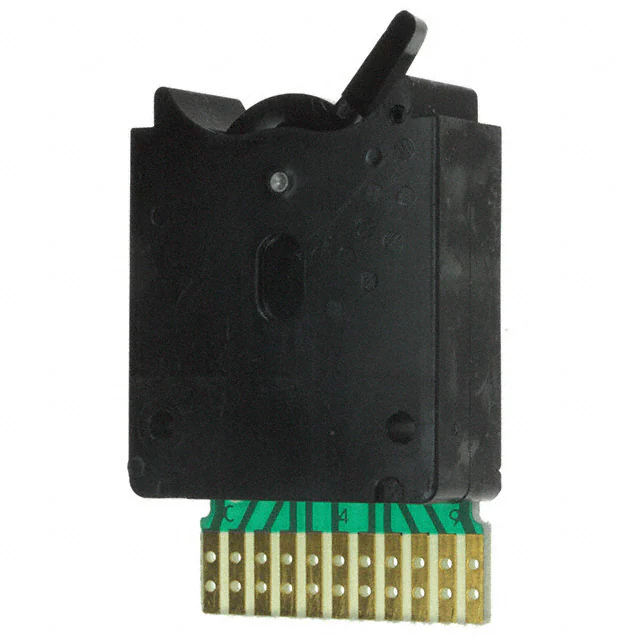

0L20-01M0SWITCH THUMB DECIMAL |
0 |
|
- |
L20 | Bulk | Obsolete | Decimal | 0 ~ 9 | 1 | - | Leverwheel | - | - | - | Panel Mount, Screw | Card Edge/Solder Pad | Sold Separately | 0.315" (8.00mm) | - | - | -20°C ~ 80°C |
|
PAEA-3000SWITCH THUMB BCD COMP 0.1A 50V |
0 |
|
Datasheet |
PA | Bulk | Obsolete | BCD Complement | 0 ~ 9 | 1 | 0.120" (3.00mm) | Pushwheel | 0.1A @ 50VAC/DC | - | Gold Alloy | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | 0.300" (7.62mm) | - | - | -20°C ~ 80°C |
|

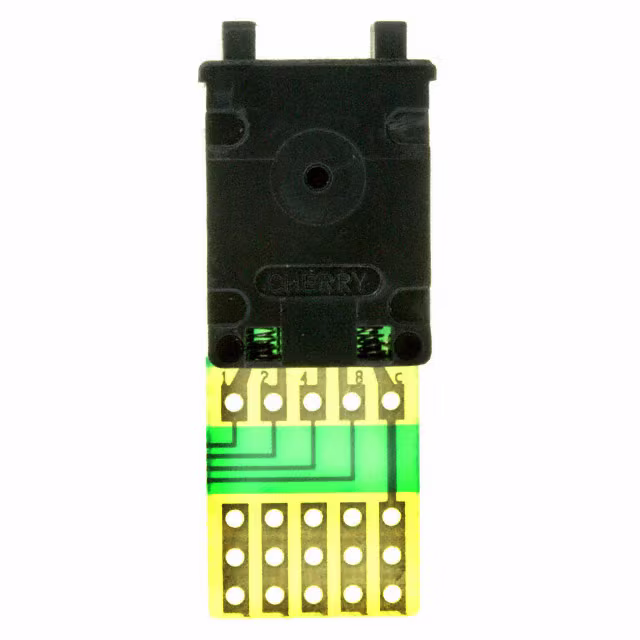

PACA-4000SWITCH THUMB BCD 0.1A 50V |
0 |
|
Datasheet |
PA | Bulk | Obsolete | BCD | 0 ~ 9 | 1 | 0.120" (3.00mm) | Pushwheel | 0.1A @ 50VAC/DC | - | Gold Alloy | Panel Mount, Snap-In | Card Edge/Solder Pad with Component Mounting | Sold Separately | 0.300" (7.62mm) | - | - | -20°C ~ 80°C |
|

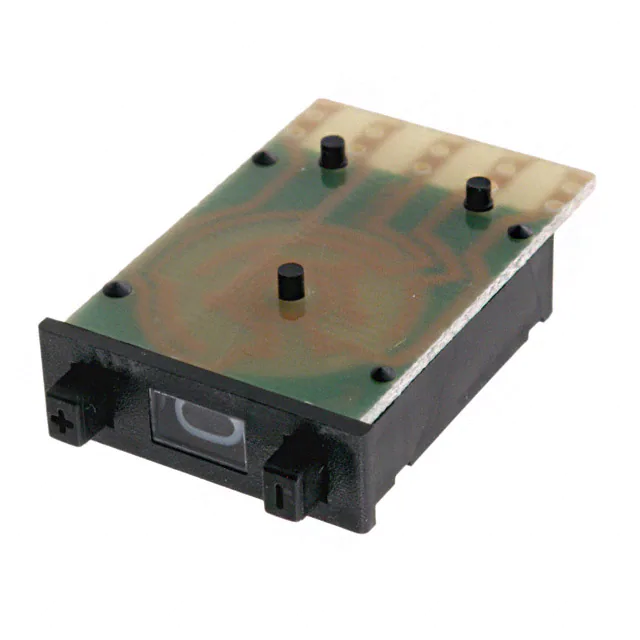

PECA-3000SWITCH THUMB BCD 0.1A 50V |
0 |
|
Datasheet |
PE | Bulk | Obsolete | BCD | 0 ~ 9 | 1 | 0.196" (5.00mm) | Pushwheel | 0.1A @ 50VAC/DC | - | - | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | 0.300" (7.62mm) | - | - | -20°C ~ 80°C |
|
|
PEEA-3000SWITCH THUMB BCD 0.1A 50V |
0 |
|
Datasheet |
PE | Bulk | Obsolete | BCD | 0 ~ 9 | 1 | 0.196" (5.00mm) | Pushwheel | 0.1A @ 50VAC/DC | - | - | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | 0.300" (7.62mm) | - | - | -20°C ~ 80°C |
|
PECA-4000SWITCH THUMB BCD 0.1A 50V |
0 |
|
Datasheet |
PE | Bulk | Obsolete | BCD | 0 ~ 9 | 1 | 0.196" (5.00mm) | Pushwheel | 0.1A @ 50VAC/DC | - | - | Panel Mount, Snap-In | Card Edge/Solder Pad with Component Mounting | Sold Separately | 0.300" (7.62mm) | - | - | -20°C ~ 80°C |
|

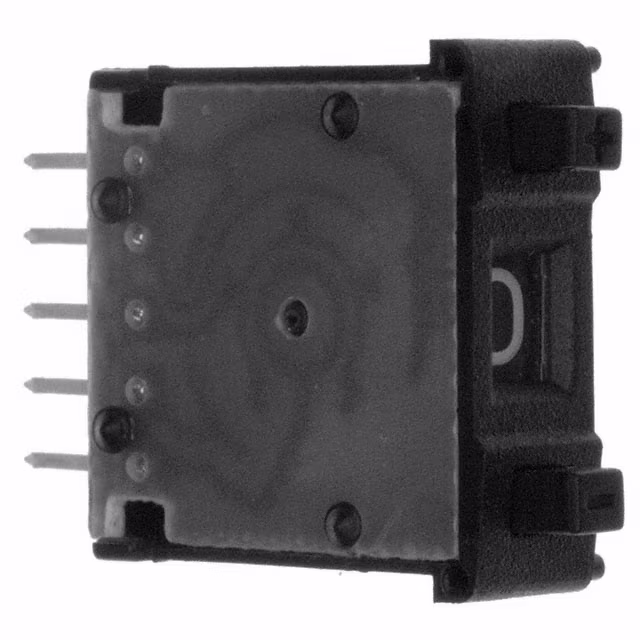

PBC1-E015SWITCH THUMB BCD 0.1A 50V |
0 |
|
Datasheet |
PB | Bulk | Obsolete | BCD | 0 ~ 9 | 1 | 0.120" (3.00mm) | Pushwheel | 0.1A @ 50VAC/DC | - | - | Panel Mount, Snap-In | PC Pin | Sold Separately | 0.236" (6.00mm) | - | - | -20°C ~ 80°C |
|

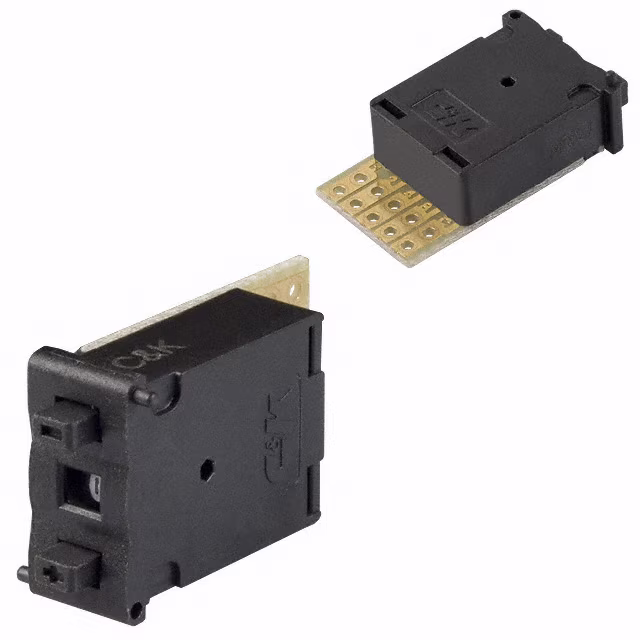

3U0210000SWITCH THUMB BCD 0.1A 28V |
0 |
|
Datasheet |
3U | Tray | Obsolete | BCD | 0 ~ 9 | 1 | - | Pushwheel | 0.1A @ 28VDC | Copper Alloy | Gold | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | 0.300" (7.62mm) | - | - | -10°C ~ 65°C |
|
|
3U0210002SWITCH THUMB BCD 0.1A 28V |
0 |
|
Datasheet |
3U | Tray | Obsolete | BCD | 0 ~ 9 | 1 | - | Pushwheel | 0.1A @ 28VDC | Copper Alloy | Gold | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | 0.300" (7.62mm) | - | Dust Lens | -10°C ~ 65°C |
|
3P0210000SWITCH THUMB BCD 0.1A 30V |
0 |
|
Datasheet |
3P | Tray | Obsolete | BCD | 0 ~ 9 | 1 | - | Pushwheel | 0.1A @ 30VDC | Copper Alloy | Gold | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | 0.300" (7.62mm) | - | - | -10°C ~ 65°C |
|
|
A7AS-203SWITCH THUMB DECIMAL 0.1A 50V |
0 |
|
Datasheet |
A7AS | Bulk | Obsolete | Decimal | 0 ~ 9 | 1 | - | Thumbwheel | 0.1A @ 50VAC/28VDC | - | - | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | 0.315" (8.00mm) | - | - | -40°C ~ 85°C |
