Thumbwheel Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Output Code | Read Out | Number of Sections | Display Characters - Height | Actuator Type | Contact Rating @ Voltage | Contact Material | Contact Finish | Mounting Type | Termination Style | End Caps | Section Width | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PICODHSGB122PUSHWHEEL PICOD |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DPS9131ALLS2PUSHWHEEL DPS9 |
0 |
|
Datasheet |
DPS9 | Bulk | Active | BCD | 0 ~ 9 | 1 | 0.268" (6.80mm) | Pushwheel | 0.1A @ 40VAC/DC | Copper Alloy | Gold | Panel Mount, Snap-In | PC Pin with Component Mounting | Sold Separately | 0.315" (8.00mm) | - | - | -20°C ~ 80°C |
|
|
PICODHSGB121PUSHWHEEL PICOD |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
A7PH-254SWITCH THUMB HEX 0.15A 125V |
0 |
|
Datasheet |
A7PH | Tray | Active | Hexadecimal | 0 ~ 9, A ~ F | 1 | 0.157" (4.00mm) | Pushwheel | 0.15A @ 125VAC/28VDC | - | - | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | 0.394" (10.00mm) | - | - | -10°C ~ 65°C |
|

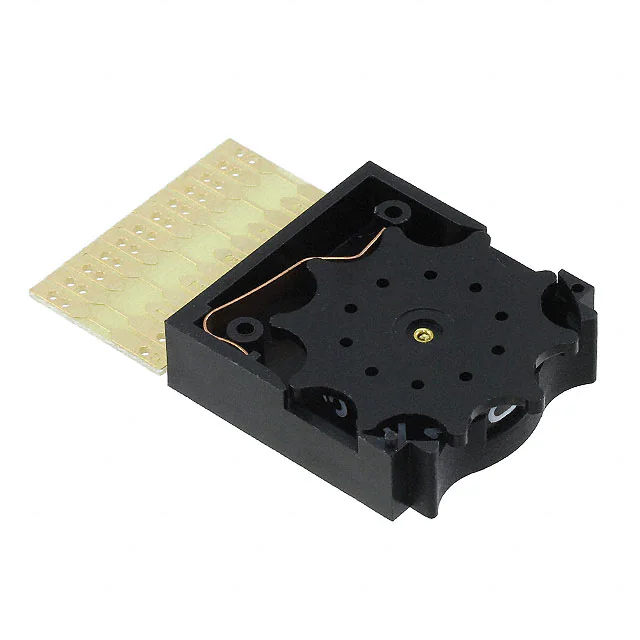

301419100SWITCH THUMB RES DEC 0.1A 120V |
0 |
|
Datasheet |
3 | Bulk | Active | Resistor Decade | 0 ~ 9 | 1 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Screw | Card Edge/Solder Pad with Component Mounting | Sold Separately | 0.350" (8.89mm) | - | - | -40°C ~ 65°C |
|
|
A7D-5106-66-1SWITCH THUMB |
0 |
|
Datasheet |
A7D | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
84212M02CGNSSWITCH THUMB BCD 0.1A 250V |
0 |
|
Datasheet |
84212 | Bulk | Active | BCD | 0 ~ 9 | 1 | 0.240" (6.00mm) | Rocker | 0.1A @ 250VAC/50VDC | Copper | Gold | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | 0.492" (12.50mm) | - | - | -25°C ~ 70°C |
|
|
84212012SWITCH THUMB DECIMAL 0.1A 250V |
0 |
|
Datasheet |
84212 | Bulk | Active | Decimal | 0 ~ 9 | 1 | 0.240" (6.00mm) | Rocker | 0.1A @ 250VAC/50VDC | Copper | Gold | Panel Mount, Snap-In | Card Edge/Solder Pad with Component Mounting | Sold Separately | 0.492" (12.50mm) | - | - | -25°C ~ 70°C |
|
|
PICODSGB117PUSHWHEEL PICOD |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
302719P00SWITCH THUMB BCD 0.1A 120V |
0 |
|
Datasheet |
3 | Bulk | Active | BCD | 0 ~ 9 | 1 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Screw | PC Pin | Sold Separately | 0.350" (8.89mm) | - | - | -40°C ~ 65°C |
|
302719P02SWITCH THUMB BCD 0.1A 120V |
0 |
|
Datasheet |
3 | Bulk | Active | BCD | 0 ~ 9 | 1 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Screw | PC Pin | Sold Separately | 0.350" (8.89mm) | - | Dust Lens | -40°C ~ 65°C |
|
307109000SWITCH THUMB HEX 0.1A 120V |
1 |
|
Datasheet |
3 | Tray | Obsolete | Hexadecimal | 0 ~ 9, A ~ F | 1 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | 0.315" (8.00mm) | - | - | -40°C ~ 65°C |
|
|
302719P03SWITCH THUMB BCD 0.1A 120V |
0 |
|
Datasheet |
3 | Bulk | Active | BCD | 0 ~ 9 | 1 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Screw | PC Pin | Sold Separately | 0.350" (8.89mm) | - | Dust Lens, Sealed Contacts | -40°C ~ 65°C |
|
|
302719P01SWITCH THUMB BCD 0.1A 120V |
0 |
|
- |
3 | Bulk | Active | BCD | 0 ~ 9 | 1 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Screw | PC Pin | Sold Separately | 0.350" (8.89mm) | - | - | -40°C ~ 65°C |
|
|
84210M03CNNSSWITCH THUMB BCD COMP 0.1A 250V |
0 |
|
Datasheet |
84210 | Bulk | Active | BCD with Complement | 0 ~ 9 | 1 | 0.180" (4.57mm) | Thumbwheel | 0.1A @ 250VAC/50VDC | Copper | Gold | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | 0.315" (8.00mm) | - | - | -25°C ~ 70°C |
|
|
312110003SWITCH THUMB BCD 0.1A 120V |
0 |
|
Datasheet |
3 | Bulk | Active | BCD | 0 ~ 9 | 1 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Screw | Card Edge/Solder Pad | Included | 0.350" (8.89mm) | Rectangular - 25.91mm x 17.53mm | Dust Lens, Sealed Contacts | -40°C ~ 65°C |
|
|
317100002SWITCH THUMB HEX 0.1A 120V |
0 |
|
Datasheet |
3 | Bulk | Active | Hexadecimal | 0 ~ 9, A ~ F | 1 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Snap-In | Card Edge/Solder Pad | Included | 0.315" (8.00mm) | Rectangular - 31.00mm x 16.28mm | Dust Lens | -40°C ~ 65°C |
|
|
317100N02SWITCH THUMB HEX 0.1A 120V |
0 |
|
Datasheet |
3 | Bulk | Active | Hexadecimal | 0 ~ 9, A ~ F | 1 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Snap-In | PC Pin | Included | 0.315" (8.00mm) | Rectangular - 31.00mm x 16.28mm | Dust Lens | -40°C ~ 65°C |
|
|
322110002SWITCH THUMB BCD 0.1A 120V |
0 |
|
Datasheet |
3 | Bulk | Active | BCD | 0 ~ 9 | 2 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Screw | Card Edge/Solder Pad | Included | 0.350" (8.89mm) | Rectangular - 26.42mm x 25.91mm | Dust Lens | -40°C ~ 65°C |
|
|
302109N03SWITCH THUMB BCD 0.1A 120V |
0 |
|
Datasheet |
3 | Box | Active | BCD | 0 ~ 9 | 1 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Snap-In | PC Pin | Sold Separately | 0.315" (8.00mm) | - | Dust Lens, Sealed Contacts | -40°C ~ 65°C |
