Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EVQ-22709KSWITCH TACTILE SPST-NO 0.02A 15V |
0 |
|
Datasheet |
EVQ2 | Cut Tape (CT) | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Through Hole | 9.50mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -20°C ~ 70°C |
|
EVQ-PC005KSWITCH TACTILE SPST-NO 0.02A 15V |
0 |
|
Datasheet |
EVQPC | Cut Tape (CT) | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Through Hole, Right Angle | - | 4.75mm | Side Actuated | PC Pin | 7.50mm x 6.95mm | Non-Illuminated | - | - | 100gf | - | - | -20°C ~ 70°C |
|
|
EVQ-PC105KSWITCH TACTILE SPST-NO 0.02A 15V |
0 |
|
Datasheet |
EVQPC | Cut Tape (CT) | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Through Hole, Right Angle | - | 4.75mm | Side Actuated | PC Pin | 7.50mm x 6.95mm | Non-Illuminated | - | - | 130gf | - | - | -20°C ~ 70°C |
|
EVQ-PJG05QSWITCH TACTILE SPST-NO 0.05A 12V |
0 |
|
Datasheet |
EVQPJ | Tape & Box (TB) | Obsolete | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 5.00mm | - | Top Actuated | PC Pin | 6.00mm x 3.50mm | Non-Illuminated | - | - | 100gf | - | Tactile Feedback | -30°C ~ 85°C |
|

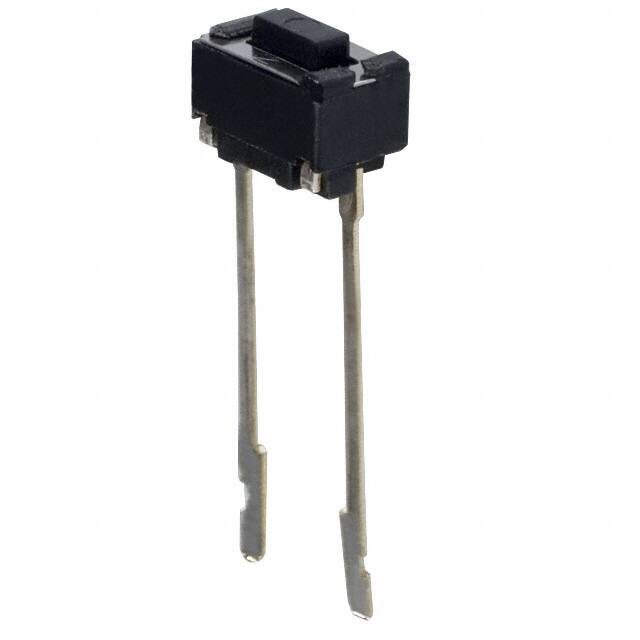

EVQ-PJH05KSWITCH TACTILE SPST-NO 0.05A 12V |
0 |
|
Datasheet |
EVQPJ | Cut Tape (CT) | Obsolete | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 5.00mm | - | Top Actuated | PC Pin | 6.00mm x 3.50mm | Non-Illuminated | - | - | 160gf | - | Tactile Feedback | -30°C ~ 85°C |
|
EVQ-PJJ05TSWITCH TACTILE SPST-NO 0.05A 12V |
0 |
|
Datasheet |
EVQPJ | Cut Tape (CT) | Obsolete | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 5.00mm | - | Top Actuated | PC Pin | 6.00mm x 3.50mm | Non-Illuminated | - | - | 240gf | - | Tactile Feedback | -30°C ~ 85°C |
|
EVQ-QJE05DSWITCH TACT SPST-NO 0.005A 12V |
0 |
|
Datasheet |
EVQQJ | Tape & Box (TB) | Obsolete | SPST-NO | Off-Mom | 0.005A @ 12VDC | Standard | Through Hole | 5.00mm | - | Top Actuated | PC Pin | 8.00mm x 8.00mm | Non-Illuminated | - | - | 130gf | - | - | -20°C ~ 70°C |
|
EVQ-QJD05BSWITCH TACT SPST-NO 0.005A 12V |
0 |
|
Datasheet |
EVQQJ | Tape & Box (TB) | Obsolete | SPST-NO | Off-Mom | 0.005A @ 12VDC | Standard | Through Hole | 5.50mm | - | Top Actuated | PC Pin | 8.00mm x 8.00mm | Non-Illuminated | - | - | 250gf | - | - | -20°C ~ 70°C |
|
EVQ-P8H03BSWITCH TACTILE SPST-NO 0.02A 15V |
0 |
|
Datasheet |
EVQP8 | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Edge Mount, Right Angle | - | 2.50mm | Side Actuated | SMD (SMT) Tab | 6.20mm x 2.55mm | Non-Illuminated | - | - | 250gf | - | - | -40°C ~ 85°C |
|

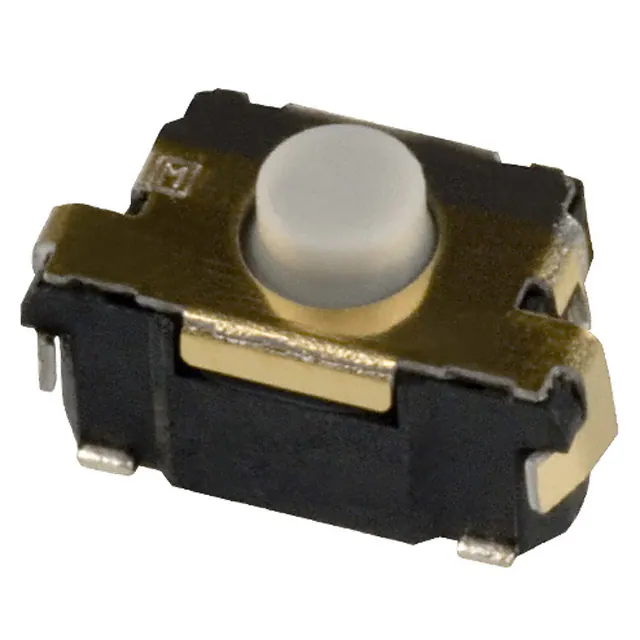

EVQ-P8K03QSWITCH TACTILE SPST-NO 0.02A 15V |
0 |
|
Datasheet |
EVQP8 | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Edge Mount, Right Angle | - | 2.50mm | Side Actuated | SMD (SMT) Tab | 6.20mm x 2.55mm | Non-Illuminated | - | - | 350gf | - | - | -40°C ~ 85°C |
|

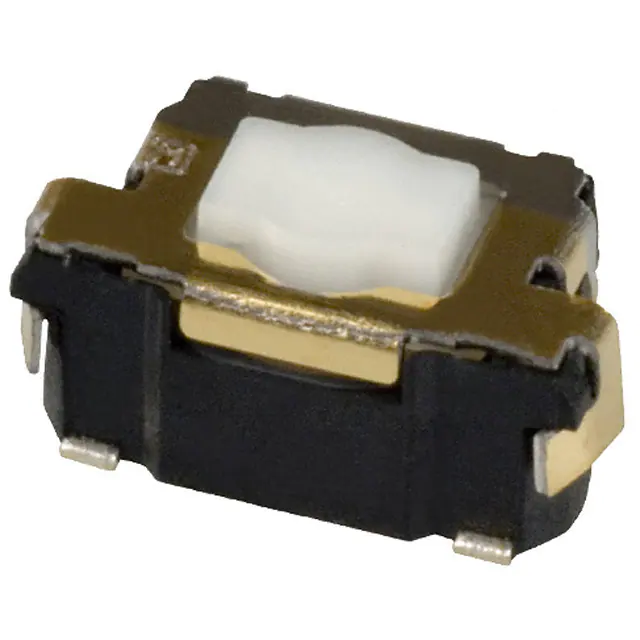

EVQ-P8003MSWITCH TACTILE SPST-NO 0.02A 15V |
0 |
|
Datasheet |
EVQP8 | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Rectangular Button | Edge Mount, Right Angle | - | 2.10mm | Side Actuated | SMD (SMT) Tab | 6.20mm x 2.55mm | Non-Illuminated | - | - | 100gf | - | - | -40°C ~ 85°C |
|
|
EVQ-P8203MSWITCH TACTILE SPST-NO 0.02A 15V |
0 |
|
Datasheet |
EVQP8 | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Rectangular Button | Edge Mount, Right Angle | - | 2.10mm | Side Actuated | SMD (SMT) Tab | 6.20mm x 2.55mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
|
EVQ-P8403MSWITCH TACTILE SPST-NO 0.02A 15V |
0 |
|
Datasheet |
EVQP8 | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Rectangular Button | Edge Mount, Right Angle | - | 2.10mm | Side Actuated | SMD (SMT) Tab | 6.20mm x 2.55mm | Non-Illuminated | - | - | 240gf | - | - | -40°C ~ 85°C |
|
|
EVQ-P8603MSWITCH TACTILE SPST-NO 0.02A 15V |
0 |
|
Datasheet |
EVQP8 | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Rectangular Button | Edge Mount, Right Angle | - | 2.10mm | Side Actuated | SMD (SMT) Tab | 6.20mm x 2.55mm | Non-Illuminated | - | - | 350gf | - | - | -40°C ~ 85°C |
|

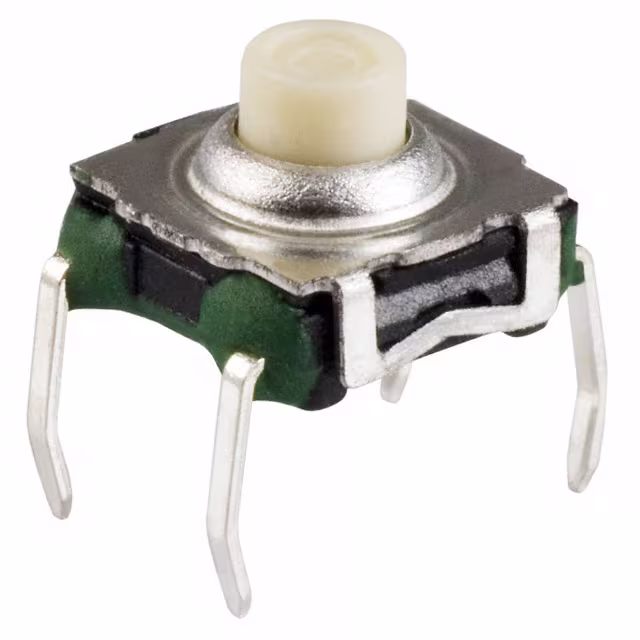

TL6100BF300QPSWITCH TACTILE SPST-NO 0.05A 12V |
0 |
|
Datasheet |
TL6100 | Bulk | Obsolete | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 5.20mm | - | Top Actuated | PC Pin | 7.20mm x 7.20mm | Non-Illuminated | - | - | 300gf | - | Process Sealed | -40°C ~ 85°C |
|
|
TL6105BF160QPSWITCH TACTILE SPST-NO 0.05A 50V |
0 |
|
Datasheet |
TL6105 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 50VDC | Standard | Through Hole | 5.20mm | - | Top Actuated | PC Pin | 7.20mm x 7.20mm | Non-Illuminated | - | - | 160gf | - | Grounding Pin, Sealed - Fully | -40°C ~ 85°C |
|
TL6105CF160QPSWITCH TACTILE SPST-NO 0.05A 50V |
0 |
|
Datasheet |
TL6105 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 50VDC | Standard | Through Hole | 6.90mm | - | Top Actuated | PC Pin | 7.20mm x 7.20mm | Non-Illuminated | - | - | 160gf | - | Grounding Pin, Sealed - Fully | -40°C ~ 85°C |
|
KSC421V30ACT3.17SWITCH TACTILE SPST-NO 0.05A 32V |
0 |
|
Datasheet |
KSC | Bulk | Obsolete | SPST-NO | Off-Mom | 0.05A @ 32VDC | Standard | Surface Mount, Right Angle | - | 3.17mm | Side Actuated | SMD (SMT) Tab | 7.40mm x 3.80mm | Non-Illuminated | - | - | 170gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|

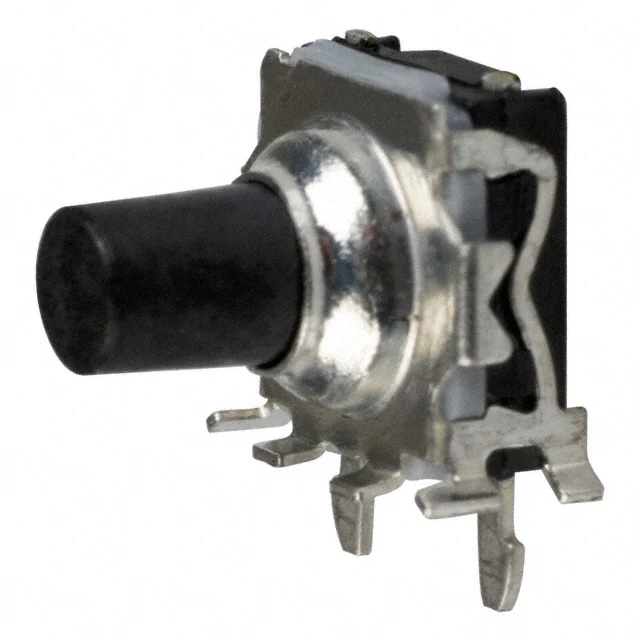

KSC621VSWITCH TACTILE SPST-NO 0.05A 32V |
0 |
|
Datasheet |
KSC | Bulk | Obsolete | SPST-NO | Off-Mom | 0.05A @ 32VDC | Standard | Surface Mount, Right Angle | - | - | Side Actuated | SMD (SMT) Tab | 7.40mm x 3.80mm | Non-Illuminated | - | - | 170gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
PTS125VM43SWITCH TACTILE SPST-NO 0.05A 12V |
0 |
|
Datasheet |
PTS125 | Tube | Obsolete | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Through Hole, Right Angle | - | 3.20mm | Side Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 60°C |
