Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

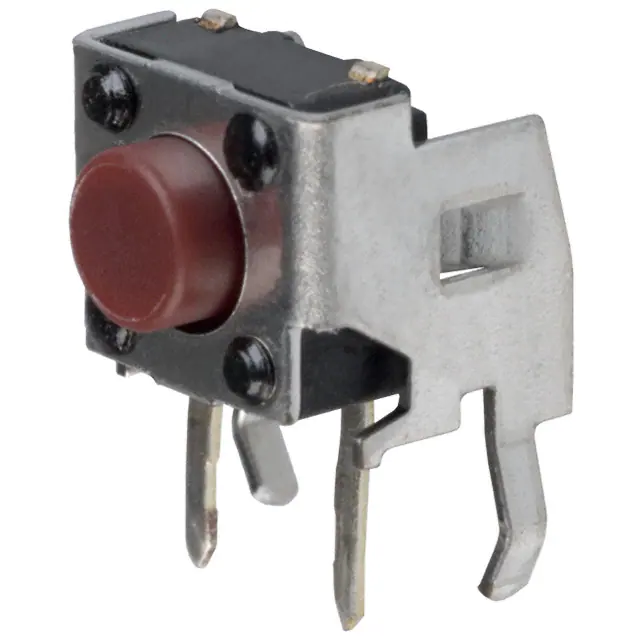

EVQ-PF204RSWITCH TACTILE SPST-NO 0.02A 15V |
0 |
|
Datasheet |
EVQPF | Bulk | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Through Hole, Right Angle | - | 3.85mm | Side Actuated | PC Pin | 7.50mm x 7.10mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
1.14001.501/0000SWITCH TACTILE SPST-NO 0.1A 42V |
0 |
|
Datasheet |
RACON 12 | Tube | Obsolete | SPST-NO | Off-Mom | 0.1A @ 42VAC/DC | Standard | Through Hole | 4.95mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 360gf | - | - | -40°C ~ 80°C |
|
1.14001.5020000SWITCH TACTILE SPST-NO 0.1A 42V |
0 |
|
Datasheet |
RACON 12 | Tube | Obsolete | SPST-NO | Off-Mom | 0.1A @ 42VAC/DC | Standard | Through Hole | 4.95mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 360gf | - | - | -40°C ~ 80°C |
|

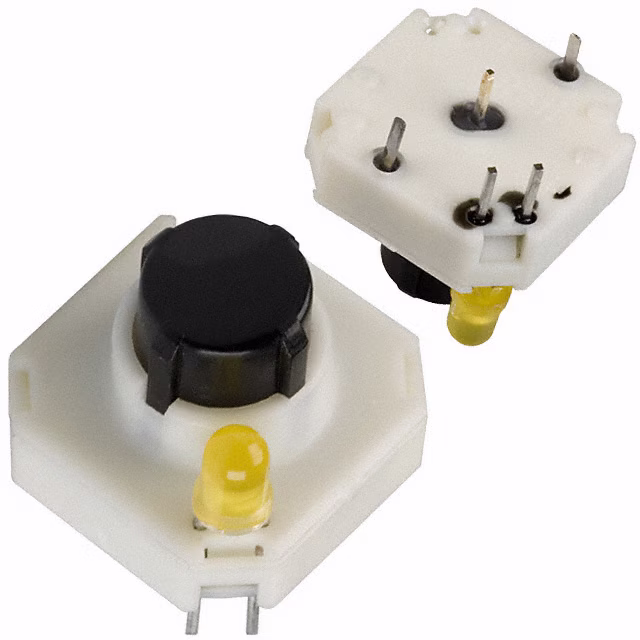

3.14100.8430000SWITCH TACTILE SPST-NO 0.25A 35V |
0 |
|
Datasheet |
RF15R | Tube | Obsolete | SPST-NO | Off-Mom | 0.25A @ 35VAC/DC | Round Button | Through Hole | 12.50mm | - | Top Actuated | PC Pin | 15.00mm x 15.00mm | Illuminated | LED, Yellow | - | 296gf | - | - | -25°C ~ 70°C |
|

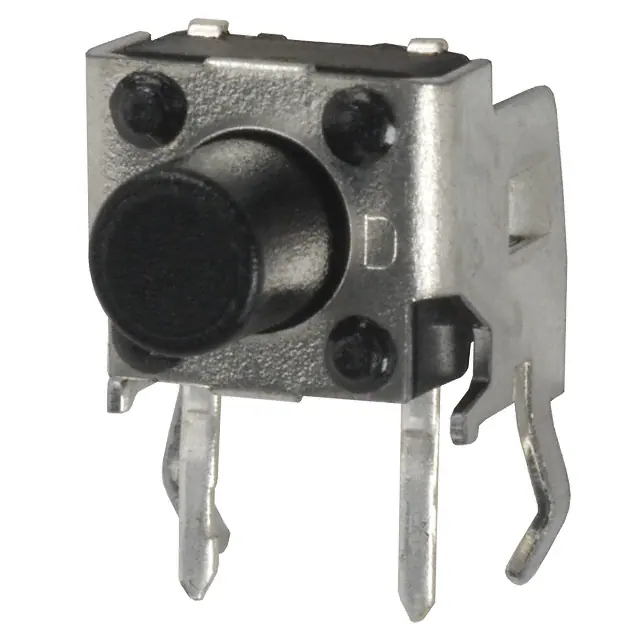

EVQ-PF206KSWITCH TACTILE SPST-NO 0.02A 15V |
0 |
|
Datasheet |
EVQPF | Bulk | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Through Hole, Right Angle | - | 5.85mm | Side Actuated | PC Pin | 7.50mm x 7.10mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|

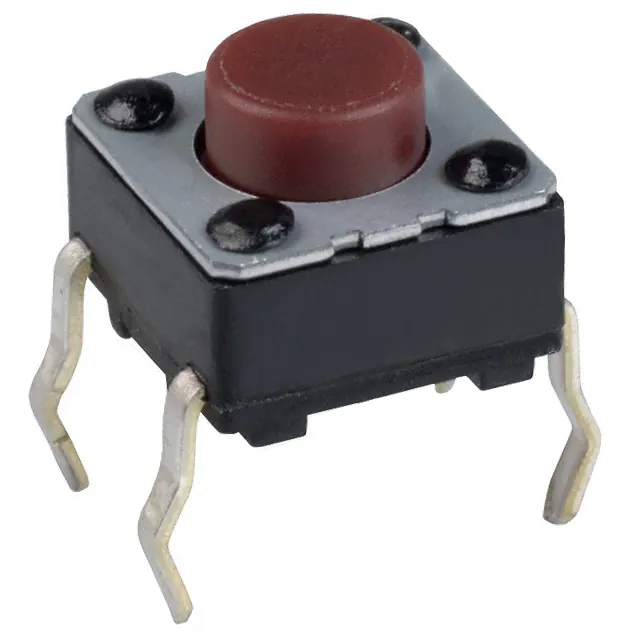

EVQ-PAG05RSWITCH TACTILE SPST-NO 0.02A 15V |
0 |
|
Datasheet |
EVQPA | Bulk | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Through Hole | 5.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -20°C ~ 70°C |
|

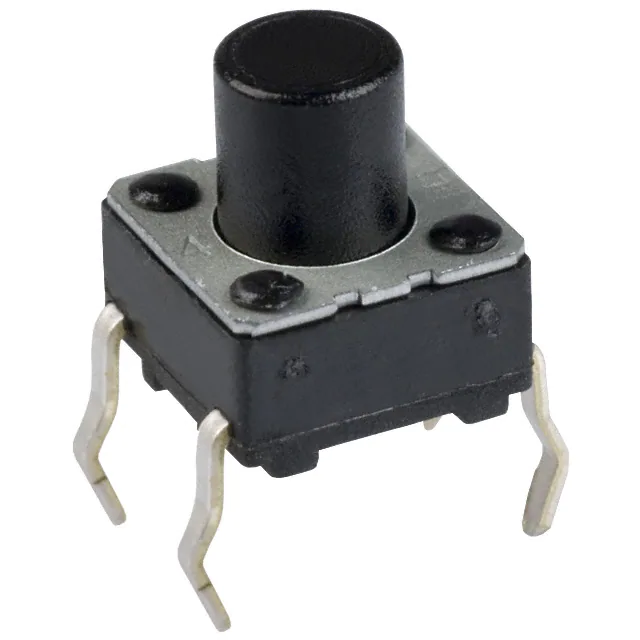

EVQ-PAG07KSWITCH TACTILE SPST-NO 0.02A 15V |
0 |
|
Datasheet |
EVQPA | Bulk | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Through Hole | 7.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -20°C ~ 70°C |
|
EVQ-PAG09KSWITCH TACTILE SPST-NO 0.02A 15V |
0 |
|
Datasheet |
EVQPA | Bulk | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Through Hole | 9.50mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -20°C ~ 70°C |
|

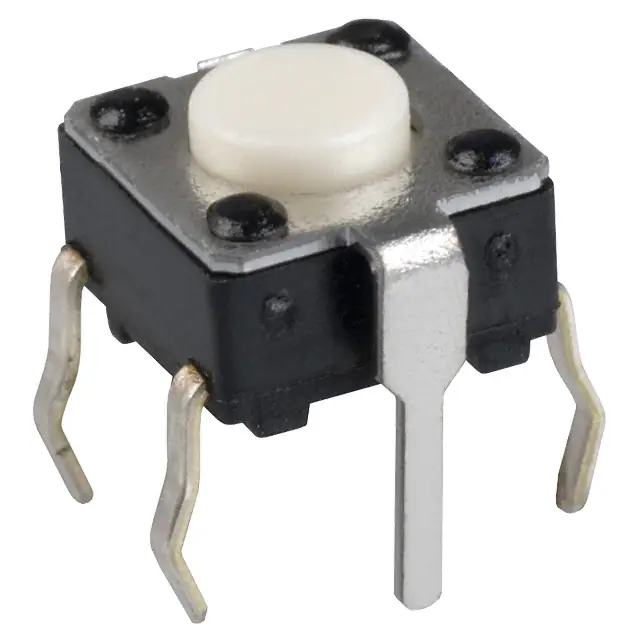

EVQ-PBD04MSWITCH TACTILE SPST-NO 0.02A 15V |
0 |
|
Datasheet |
EVQPB | Bulk | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 130gf | - | Grounding Pin | -20°C ~ 70°C |
|
|
EVQ-PBG04MSWITCH TACTILE SPST-NO 0.02A 15V |
0 |
|
Datasheet |
EVQPB | Bulk | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | Grounding Pin | -20°C ~ 70°C |
|
EVQ-PBG09KSWITCH TACTILE SPST-NO 0.02A 15V |
0 |
|
Datasheet |
EVQPB | Bulk | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Through Hole | 9.50mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | Grounding Pin | -20°C ~ 70°C |
|
EVQ-PF203MSWITCH TACTILE SPST-NO 0.02A 15V |
0 |
|
Datasheet |
EVQPF | Bulk | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Through Hole, Right Angle | - | 3.15mm | Side Actuated | PC Pin | 7.50mm x 7.10mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|

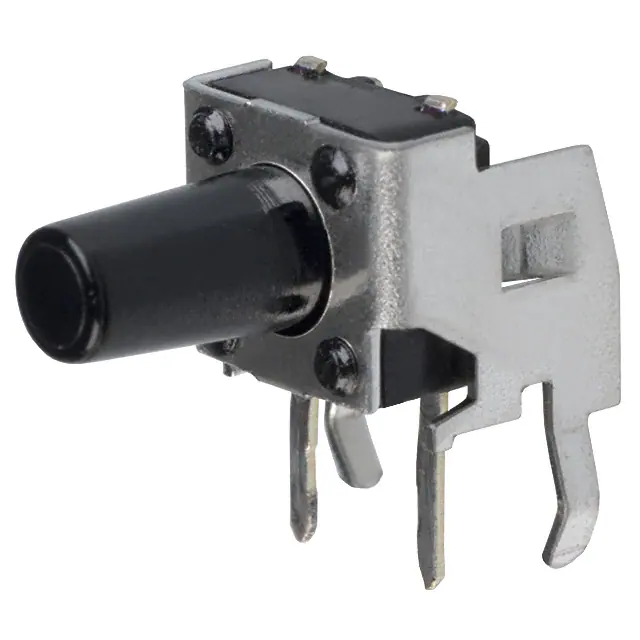

EVQ-PF208KSWITCH TACTILE SPST-NO 0.02A 15V |
0 |
|
Datasheet |
EVQPF | Bulk | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Through Hole, Right Angle | - | 8.35mm | Side Actuated | PC Pin | 7.50mm x 7.10mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
|
EVQ-PF303MSWITCH TACTILE SPST-NO 0.02A 15V |
0 |
|
Datasheet |
EVQPF | Bulk | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Through Hole, Right Angle | - | 3.15mm | Side Actuated | PC Pin | 7.50mm x 7.10mm | Non-Illuminated | - | - | 260gf | - | - | -20°C ~ 70°C |
|
|
EVQ-PF304RSWITCH TACTILE SPST-NO 0.02A 15V |
0 |
|
Datasheet |
EVQPF | Bulk | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Through Hole, Right Angle | - | 3.85mm | Side Actuated | PC Pin | 7.50mm x 7.10mm | Non-Illuminated | - | - | 260gf | - | - | -20°C ~ 70°C |
|

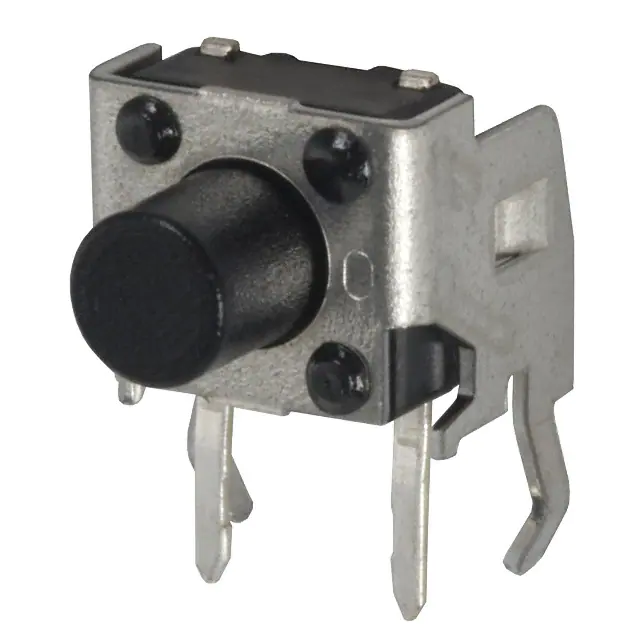

EVQ-PF306KSWITCH TACTILE SPST-NO 0.02A 15V |
0 |
|
Datasheet |
EVQPF | Bulk | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Through Hole, Right Angle | - | 5.85mm | Side Actuated | PC Pin | 7.50mm x 7.10mm | Non-Illuminated | - | - | 260gf | - | - | -20°C ~ 70°C |
|
|
EVQ-PF308KSWITCH TACTILE SPST-NO 0.02A 15V |
0 |
|
Datasheet |
EVQPF | Bulk | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Through Hole, Right Angle | - | 8.35mm | Side Actuated | PC Pin | 7.50mm x 7.10mm | Non-Illuminated | - | - | 260gf | - | - | -20°C ~ 70°C |
|
EVQ-22704MSWITCH TACTILE SPST-NO 0.02A 15V |
0 |
|
Datasheet |
EVQ2 | Cut Tape (CT) | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -20°C ~ 70°C |
|
EVQ-22705RSWITCH TACTILE SPST-NO 0.02A 15V |
0 |
|
Datasheet |
EVQ2 | Cut Tape (CT) | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Through Hole | 5.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -20°C ~ 70°C |
|
EVQ-22707KSWITCH TACTILE SPST-NO 0.02A 15V |
0 |
|
Datasheet |
EVQ2 | Cut Tape (CT) | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Through Hole | 7.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -20°C ~ 70°C |
