Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B3W-9002-B2CSWITCH TACTILE SPST-NO 0.05A 24V |
10 |
|
Datasheet |
B3W-9 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 10.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | LED, Blue | 3.7 VDC | 230gf | - | Sealed - Fully | -25°C ~ 70°C |
|
B3W-9012-B2BSWITCH TACTILE SPST-NO 0.05A 24V |
0 |
|
Datasheet |
B3W-9 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 10.20mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Illuminated | LED, Blue | 3.7 VDC | 230gf | - | Sealed - Fully | -25°C ~ 70°C |
|
JB15KP-5BSWITCH TACTILE SPST-NO 0.05A 24V |
2 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 11.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | - | - | 176gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|

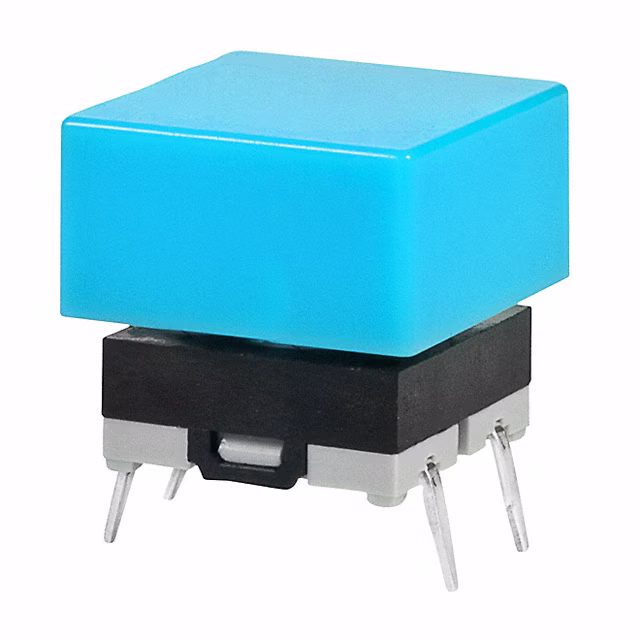

JB15HKP-2GSWITCH TACT SPST-NO 0.125A 24V |
22 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | 0.125A @ 24VDC | Square Button | Through Hole | 11.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | - | - | 265gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|
|
JB15LPE-ESWITCH TACTILE SPST-NO 0.05A 24V |
22 |
|
Datasheet |
JB | Box | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 11.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | LED, Yellow | 2 VDC | 176gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|
TL6275BA2PQTYSWITCH TACTILE SPST-NO 0.05A 12V |
0 |
|
Datasheet |
TL6275 | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Square Button | Through Hole | 16.20mm | - | Top Actuated | PC Pin | 8.00mm x 8.00mm | Illuminated | LED, Yellow | - | 350gf | - | - | -25°C ~ 70°C |
|
TL6275BA2PQRGSWITCH TACTILE SPST-NO 0.05A 12V |
0 |
|
Datasheet |
TL6275 | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Through Hole | 11.15mm | - | Top Actuated | PC Pin | 8.00mm x 8.00mm | Illuminated | LED, Green | - | 350gf | - | - | -25°C ~ 70°C |
|
JF15RP2HFSWITCH TACTILE SPST-NO 0.05A 24V |
9 |
|
Datasheet |
JF | Box | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Round Button | Through Hole | 5.08mm | - | Top Actuated | PC Pin | 22.80mm x 17.70mm | Illuminated | LED, Green | 2 VDC | 300gf | - | Process Sealed | -25°C ~ 70°C |
|
|
JF15RP1HESWITCH TACTILE SPST-NO 0.05A 24V |
22 |
|
Datasheet |
JF | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 5.08mm | - | Top Actuated | PC Pin | 22.80mm x 17.70mm | Illuminated | LED, Yellow | 1.9 VDC | 300gf | - | Process Sealed | -25°C ~ 70°C |
|
B3W-9010-RB2NSWITCH TACTILE SPST-NO 0.05A 24V |
2 |
|
Datasheet |
B3W-9 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 10.20mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Illuminated | LED, Blue/Red | 1.8, 3.7 VDC | 160gf | - | Sealed - Fully | -25°C ~ 70°C |
|
|
JB15HAP-5BSWITCH TACT SPST-NO 0.125A 24V |
21 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | 0.125A @ 24VDC | Square Button | Through Hole | 14.70mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | - | - | 265gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|
|
JF15RP3FESWITCH TACTILE SPST-NO 0.05A 24V |
22 |
|
Datasheet |
JF | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 6.78mm | - | Top Actuated | PC Pin | 22.80mm x 17.70mm | Illuminated | LED, Yellow | 1.9 VDC | 200gf | - | Process Sealed | -25°C ~ 70°C |
|
B3W-9012-B2NSWITCH TACTILE SPST-NO 0.05A 24V |
4 |
|
Datasheet |
B3W-9 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 10.20mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Illuminated | LED, Blue | 3.7 VDC | 230gf | - | Sealed - Fully | -25°C ~ 70°C |
|
B3W-9010-HG2NSWITCH TACTILE SPST-NO 0.05A 24V |
8 |
|
Datasheet |
B3W-9 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 10.20mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Illuminated | LED, Green | 3.7 VDC | 160gf | - | Sealed - Fully | -25°C ~ 70°C |
|

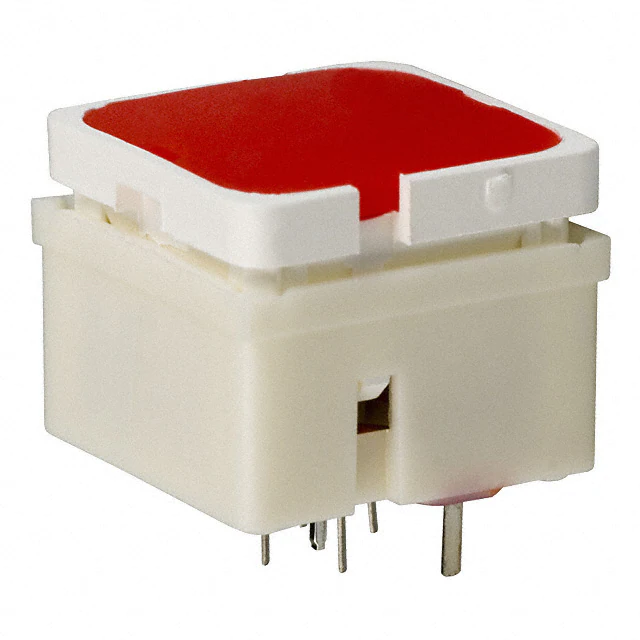

3.14.200.731/0000SWITCH TACTILE SPST-NO 0.1A 35V |
0 |
|
Datasheet |
RF15H | Tube | Active | SPST-NO | Off-Mom | 0.1A @ 35VAC/DC | Square Button | Through Hole | 12.50mm | - | Top Actuated | PC Pin | 15.00mm x 15.00mm | Illuminated | LED, Red | - | 296gf | - | - | -25°C ~ 70°C |
|
3.14.002.632/0000SWITCH TACTILE SPST-NO 0.1A 35V |
0 |
|
Datasheet |
RF19H | Box | Active | SPST-NO | Off-Mom | 0.1A @ 35VAC/DC | Square Button | Through Hole | 12.50mm | - | Top Actuated | PC Pin | 19.05mm x 19.05mm | Illuminated | LED, Green | - | 204 ~ 306gf | - | - | -25°C ~ 70°C |
|
|
TL3305CF100QGTACT, 50MA, SPST-NO, SURFACE MOU |
0 |
|
Datasheet |
TL3305 | Tape & Reel (TR) | Active | SPST-NO | On-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 7.00mm | - | Top Actuated | Gull Wing | 4.50mm x 4.50mm | Non-Illuminated | - | - | 100gf | - | - | -20°C ~ 70°C |
|
|
TSS 61 YSWITCH TACT 4.3MM YELLOW |
0 |
|
Datasheet |
TSS | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 4.30mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 520gf | - | - | -40°C ~ 85°C |
|
|
SKHHPNA010SWITCH TACTILE SPST-NO 0.05A 12V |
61 |
|
Datasheet |
SKHH | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 9.50mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 100gf | - | - | -40°C ~ 90°C |
|
|
SKHHPPA010SWITCH TACTILE SPST-NO 0.05A 12V |
27 |
|
Datasheet |
SKHH | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 9.50mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 90°C |
