Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B3W-9000-B1CSWITCH TACTILE SPST-NO 0.05A 24V |
0 |
|
Datasheet |
B3W-9 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 10.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | LED, Blue | 3.7 VDC | 160gf | - | Sealed - Fully | -25°C ~ 70°C |
|

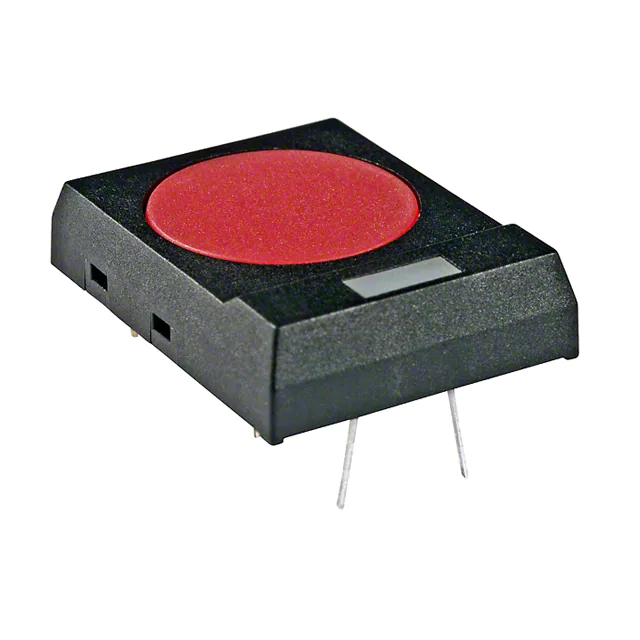

JF15RP2CCSWITCH TACTILE SPST-NO 0.05A 24V |
25 |
|
Datasheet |
JF | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Round Button | Through Hole | 5.08mm | - | Top Actuated | PC Pin | 22.80mm x 17.70mm | Illuminated | LED, Red | 2 VDC | 300gf | - | Process Sealed | -25°C ~ 70°C |
|

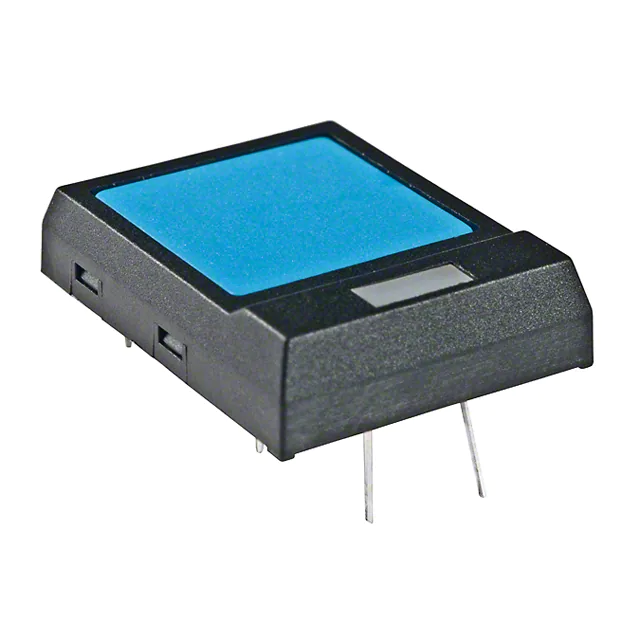

JF15RP1GCSWITCH TACTILE SPST-NO 0.05A 24V |
2 |
|
Datasheet |
JF | Box | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 5.08mm | - | Top Actuated | PC Pin | 22.80mm x 17.70mm | Illuminated | LED, Red | 2 VDC | 300gf | - | Process Sealed | -25°C ~ 70°C |
|
JF15RP1DCSWITCH TACTILE SPST-NO 0.05A 24V |
2 |
|
Datasheet |
JF | Box | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 5.08mm | - | Top Actuated | PC Pin | 22.80mm x 17.70mm | Illuminated | LED, Red | 2 VDC | 300gf | - | Process Sealed | -25°C ~ 70°C |
|
JF15RP3GESWITCH TACTILE SPST-NO 0.05A 24V |
23 |
|
Datasheet |
JF | Box | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 6.78mm | - | Top Actuated | PC Pin | 22.80mm x 17.70mm | Illuminated | LED, Yellow | 1.9 VDC | 200gf | - | Process Sealed | -25°C ~ 70°C |
|

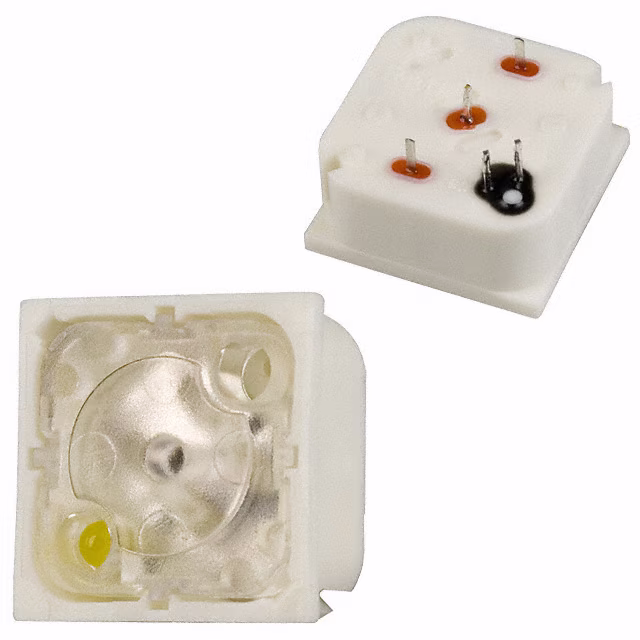

3.14.001.033/0000SWITCH TACTILE SPST-NO 0.1A 42V |
13 |
|
Datasheet |
RF19 | Tube | Active | SPST-NO | Off-Mom | 0.1A @ 42VAC/DC | Square Button | Through Hole | 9.70mm | - | Top Actuated | PC Pin | 19.05mm x 19.05mm | Illuminated | LED, Yellow | - | 204 ~ 306gf | - | - | -25°C ~ 70°C |
|

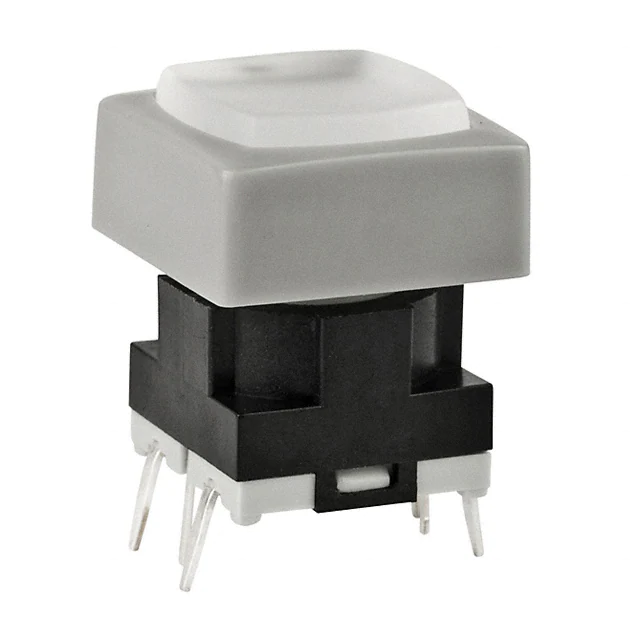

JB15HBPF-BHSWITCH TACT SPST-NO 0.125A 24V |
18 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | 0.125A @ 24VDC | Square Button | Through Hole | 14.70mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | LED, Green | 2.1 VDC | 265gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|
3.14.002.026/0000SWITCH TACTILE SPST-NO 0.25A 35V |
0 |
|
Datasheet |
RF19 | Tube | Active | SPST-NO | Off-Mom | 0.25A @ 35VAC/DC | Square Button | Through Hole | 9.70mm | - | Top Actuated | PC Pin | 19.05mm x 19.05mm | Illuminated | LED, Green | - | 296gf | - | - | -25°C ~ 70°C |
|
3.14.002.684/0000SWITCH TACTILE SPST-NO 0.1A 35V |
0 |
|
Datasheet |
RF19H | Box | Active | SPST-NO | Off-Mom | 0.1A @ 35VAC/DC | Square Button | Through Hole | 12.50mm | - | Top Actuated | PC Pin | 19.05mm x 19.05mm | Illuminated | LED, White | - | 204 ~ 306gf | - | - | -25°C ~ 70°C |
|
CS11028.5F160SWITCH TACTILE SPST-NO 0.05A 50V |
0 |
|
Datasheet |
CS1102 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 50VDC | Standard | Surface Mount | 8.50mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
MJTP1141ASWITCH TACTILE SPST-NO 0.05A 12V |
0 |
|
Datasheet |
MJTP | Cut Tape (CT) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 5.00mm | - | Top Actuated | PC Pin | 6.10mm x 6.10mm | Non-Illuminated | - | - | 160gf | - | Tactile Feedback | -20°C ~ 70°C |
|
TS15-1212-50-BK-260-SCR-DSWITCH TACTILE SPST-NO 0.05A 12V |
0 |
|
Datasheet |
TS15 | Bag | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 5.00mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 260gf | - | - | -30°C ~ 80°C |
|
EVQ-P9H02MSWITCH TACTILE SPST-NO 0.02A 15V |
0 |
|
Datasheet |
EVQP9 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.02A @ 15VDC | Rectangular Button | Surface Mount | 2.10mm | - | Top Actuated | J Lead | 4.70mm x 3.50mm | Non-Illuminated | - | - | 500gf | - | Grounding Pin | -40°C ~ 85°C |
|
TL6105DF160QPSWITCH TACTILE SPST-NO 0.05A 50V |
0 |
|
Datasheet |
TL6105 | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 50VDC | Standard | Through Hole | 10.00mm | - | Top Actuated | PC Pin | 7.20mm x 7.20mm | Non-Illuminated | - | - | 160gf | - | Grounding Pin, Sealed - Fully | -40°C ~ 85°C |
|

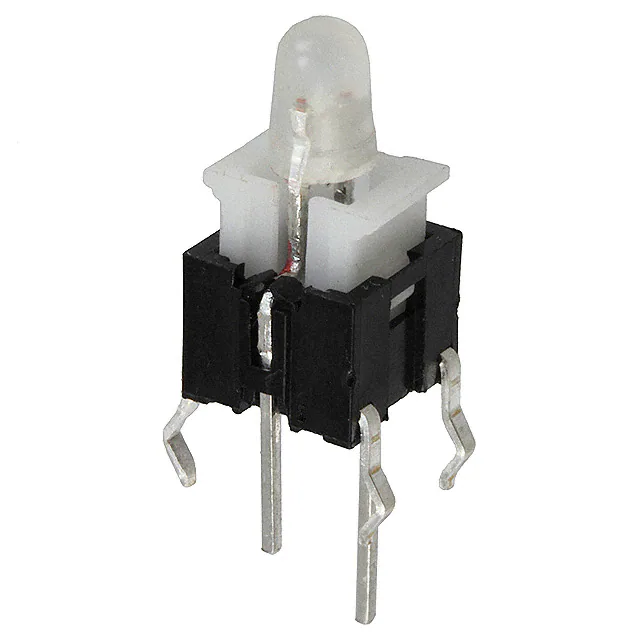

TL1240BICOLORGREENYELLOWSWITCH TACTILE SPST-NO 0.05A 12V |
9 |
|
Datasheet |
TL1240 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | - | Through Hole | 7.20mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Illuminated | LED, Green/Yellow | 2.2, 2.1 VDC | 160gf | - | - | -20°C ~ 70°C |
|
TL1260GQNOCAPSWITCH TACTILE SPST-NO 0.05A 12V |
25 |
|
Datasheet |
TL1260 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Through Hole, Right Angle | - | - | Side Actuated | PC Pin | 7.00mm x 6.80mm | Illuminated | LED, Green | 2.3 VDC | 160gf | - | - | -20°C ~ 70°C |
|
ADTSMW65NVTRSWITCH TACTILE SPST-NO 0.05A 12V |
0 |
|
- |
ADTS | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 3.50mm | - | Top Actuated | Gull Wing | 6.30mm x 6.20mm | Non-Illuminated | - | - | 180gf | - | Washable | -25°C ~ 70°C |
|
TL6215VF200GNNSWITCH TACTILE SPST-NO 0.05A 12V |
4 |
|
Datasheet |
TL6215 | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Through Hole | 5.35mm | - | Top Actuated | PC Pin | 7.70mm x 6.37mm | Illuminated | LED, Green | 2.1 VDC | 200gf | IP67 - Dust Tight, Waterproof | - | -20°C ~ 70°C |
|
TL1105KF250RSWITCH TACTILE SPST-NO 0.05A 50V |
25 |
|
Datasheet |
TL1105 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 50VDC | Standard | Through Hole | 13.50mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 250gf | - | - | -20°C ~ 70°C |
|
B3W-9002-G1GSWITCH TACTILE SPST-NO 0.05A 24V |
0 |
|
Datasheet |
B3W-9 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 10.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | LED, Green | 2.1 VDC | 230gf | - | Sealed - Fully | -25°C ~ 70°C |
Tactile Switches Electronic Components
Explore Tactile Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
