Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TS 21 NSWITCH TACT 4.3MM BROWN |
416 |
|
Datasheet |
TS | Bag | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 160gf | - | - | -25°C ~ 70°C |
|
|
TS 24 NSWITCH TACT 7.3MM BROWN |
489 |
|
Datasheet |
TS | Bag | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Through Hole | 7.30mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
|
TS 24 RSWITCH TACT 7.3MM RED |
500 |
|
Datasheet |
TS | Bag | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Through Hole | 7.30mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 260gf | - | - | -40°C ~ 85°C |
|
|
KSC4TE41J LFSSWITCH TACT SPST-NO 0.003A 24V |
871 |
|
Datasheet |
KSC4 TE | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.003A @ 24VDC | Standard | Surface Mount | 5.20mm | - | Top Actuated | J Lead | 6.30mm x 6.20mm | Non-Illuminated | - | - | 408gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 90°C |
|
|
KSC4TE31J LFSSWITCH TACT SPST-NO 0.003A 24V |
886 |
|
Datasheet |
KSC4 TE | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.003A @ 24VDC | Standard | Surface Mount | 5.20mm | - | Top Actuated | J Lead | 6.30mm x 6.20mm | Non-Illuminated | - | - | 286gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 90°C |
|
|
B3F-1000-SSWITCH TACTILE SPST-NO 0.05A 24V |
232 |
|
Datasheet |
B3F | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | - | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 100gf | - | - | -25°C ~ 70°C |
|
|
TSE 66 NSWITCH TACT 3.1MM BROWN |
745 |
|
Datasheet |
TSE | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 3.10mm | - | Top Actuated | PC Pin | 6.30mm x 6.20mm | Non-Illuminated | - | - | 160gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
SKPSAAE010SWITCH TACTILE SPST-NO 0.05A 16V |
275 |
|
Datasheet |
SKPS | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 16VDC | Standard | Surface Mount | 5.00mm | - | Top Actuated | J Lead | 6.00mm x 6.60mm | Non-Illuminated | - | - | 367gf | - | - | -40°C ~ 90°C |
|
B3F-1002SSWITCH TACTILE SPST-NO 0.05A 24V |
128 |
|
Datasheet |
B3F | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 150gf | - | - | -25°C ~ 70°C |
|
|
SKHWALA010SWITCH TACTILE SPST-NO 0.05A 12V |
995 |
|
Datasheet |
SKHW | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 90°C |
|
|
TSSE 67 RSWITCH TACT 5.2MM RED |
900 |
|
Datasheet |
TSS | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 32VDC | Standard | Surface Mount | 3.60mm | - | Top Actuated | Gull Wing | 6.30mm x 6.20mm | Non-Illuminated | - | - | 260gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
TS 637 RASWITCH TACT 50MA 12V |
484 |
|
Datasheet |
TS | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Through Hole, Right Angle | - | 3.75mm | Side Actuated | PC Pin | 7.40mm x 5.82mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
|
1.14.005.006/0000SWITCH TACTILE SPST-NO 0.1A 35V |
100 |
|
Datasheet |
MICON 5 | Tube | Active | SPST-NO | Off-Mom | 0.1A @ 35VAC/DC | Standard | Through Hole | 3.85mm | - | Top Actuated | PC Pin | 6.40mm x 5.10mm | Non-Illuminated | - | - | 612gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 125°C |
|
|
1.14.005.106/0000SWITCH TACTILE SPST-NO 0.1A 35V |
75 |
|
Datasheet |
MICON 5 | Tube | Active | SPST-NO | Off-Mom | 0.1A @ 35VAC/DC | Standard | Through Hole | 3.85mm | - | Top Actuated | PC Pin | 6.40mm x 5.10mm | Non-Illuminated | - | - | 408gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 125°C |
|
|
1.14.005.116/0000SWITCH TACTILE SPST-NO 0.1A 35V |
81 |
|
Datasheet |
MICON 5 | Tube | Active | SPST-NO | Off-Mom | 0.1A @ 35VAC/DC | Standard | Through Hole | 3.85mm | - | Top Actuated | PC Pin | 6.40mm x 5.10mm | Non-Illuminated | - | - | 816gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 125°C |
|
|
JB15KP-2A/1SWITCH TACTILE SPST-NO 0.05A 24V |
80 |
|
Datasheet |
JB | Box | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 11.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | - | - | 176gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|
|
JB15KP-2FSWITCH TACTILE SPST-NO 0.05A 24V |
5 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 11.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | - | - | 176gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|
|
JB15KP-4BHSWITCH TACTILE SPST-NO 0.05A 24V |
100 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 11.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | - | - | 176gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|
|
JB15KP-4FFSWITCH TACTILE SPST-NO 0.05A 24V |
79 |
|
Datasheet |
JB | Box | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 11.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | - | - | 176gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|

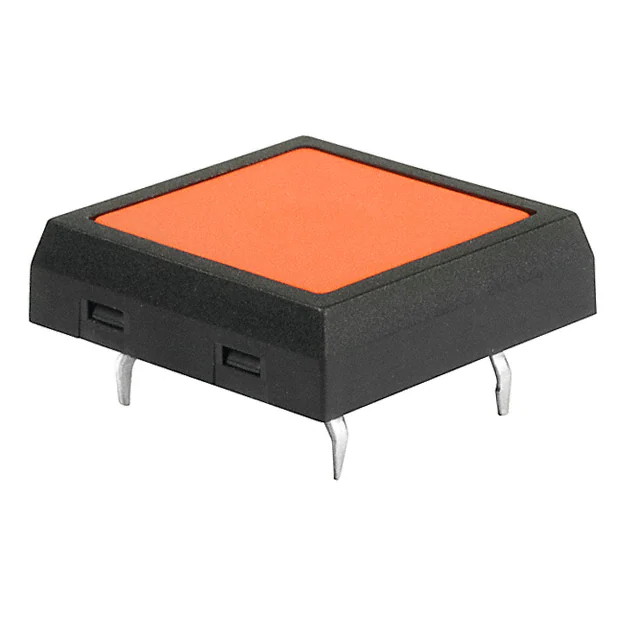

JF15SP1DSWITCH TACTILE SPST-NO 0.05A 24V |
39 |
|
Datasheet |
JF | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 5.08mm | - | Top Actuated | PC Pin | 17.70mm x 17.70mm | Non-Illuminated | - | - | 300gf | - | Process Sealed | -25°C ~ 85°C |
Tactile Switches Electronic Components
Explore Tactile Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
