Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JF15RP3HESWITCH TACTILE SPST-NO 0.05A 24V |
37 |
|
Datasheet |
JF | Box | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 6.78mm | - | Top Actuated | PC Pin | 22.80mm x 17.70mm | Illuminated | LED, Yellow | 1.9 VDC | 200gf | - | Process Sealed | -25°C ~ 70°C |
|
JF15RP3CFSWITCH TACTILE SPST-NO 0.05A 24V |
30 |
|
Datasheet |
JF | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 6.78mm | - | Top Actuated | PC Pin | 22.80mm x 17.70mm | Illuminated | LED, Green | 2 VDC | 200gf | - | Process Sealed | -25°C ~ 70°C |
|
JB15HLPE-JESWITCH TACT SPST-NO 0.125A 24V |
22 |
|
Datasheet |
JB | Box | Active | SPST-NO | Off-Mom | 0.125A @ 24VDC | Square Button | Through Hole | 11.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | LED, Yellow | 2 VDC | 265gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|
JB15HBPF-BFSWITCH TACT SPST-NO 0.125A 24V |
36 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | 0.125A @ 24VDC | Square Button | Through Hole | 14.70mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | LED, Green | 2.1 VDC | 265gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|

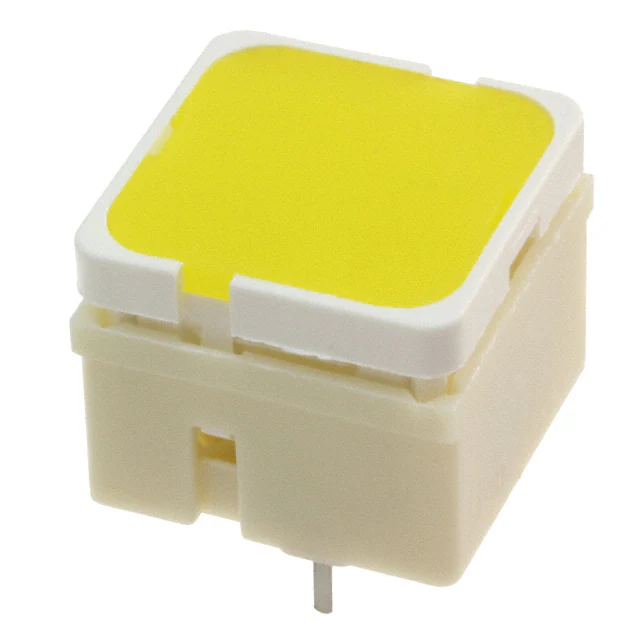

3.14.200.733/0000SWITCH TACTILE SPST-NO 0.1A 35V |
24 |
|
Datasheet |
RF15H | Tube | Active | SPST-NO | Off-Mom | 0.1A @ 35VAC/DC | Square Button | Through Hole | 12.50mm | - | Top Actuated | PC Pin | 15.00mm x 15.00mm | Illuminated | LED, Yellow | - | 296gf | - | - | -25°C ~ 70°C |
|
|
YME IP 01 ASTEEL KEYBOARD |
10 |
|
Datasheet |
YME | Bulk | Active | - | - | 0.02A @ 12VDC | Standard | Panel Mount | 8.00mm | - | Top Actuated | Connector | 30.00mm x 30.00mm | Non-Illuminated | - | - | 408gf | IP65 - Dust Tight, Water Resistant | - | -25°C ~ 85°C |
|
|
YME IP 01 BSTEEL KEYBOARD |
10 |
|
Datasheet |
YME | Bulk | Active | - | - | 0.02A @ 12VDC | Standard | Panel Mount | 8.00mm | - | Top Actuated | Connector | 30.00mm x 30.00mm | Illuminated | - | - | 408gf | IP65 - Dust Tight, Water Resistant | - | -25°C ~ 85°C |
|
JL15SKSDDP2SWITCH TACTILE SPST-NO 0.05A 24V |
24 |
|
Datasheet |
JL | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 7.85mm | - | Top Actuated | PC Pin | 22.00mm x 22.00mm | Illuminated | LED, Amber | 4 VDC | 300gf | - | - | -25°C ~ 50°C |
|
|
TS 61 NSWITCH TACT 4.3MM BROWN |
1,000 |
|
Datasheet |
TS | Bag | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 6.20mm x 6.20mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
|
TS 61 KSWITCH TACT 4.3MM BLACK |
1,000 |
|
Datasheet |
TS | Bag | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 6.20mm x 6.20mm | Non-Illuminated | - | - | 100gf | - | - | -40°C ~ 85°C |
|
|
TS 61 N-RASWITCH TACT 3.15MM BROWN |
500 |
|
Datasheet |
TS | Bag | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | - | 3.50mm | Top Actuated | PC Pin | 7.40mm x 6.55mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
|
TS 62 K-RASWITCH TACT 3.85MM BLACK |
590 |
|
Datasheet |
TS | Bag | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | - | 3.85mm | Top Actuated | PC Pin | 7.40mm x 6.55mm | Non-Illuminated | - | - | 100gf | - | - | -40°C ~ 85°C |
|
|
TS 644 NSWITCH TACT 7.3MM BROWN |
1,000 |
|
Datasheet |
TS | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Through Hole | 7.30mm | - | Top Actuated | PC Pin | 6.20mm x 6.20mm | Non-Illuminated | - | - | 160gf | - | - | -25°C ~ 70°C |
|
|
TS 644 RSWITCH TACT 7.3MM RED |
968 |
|
Datasheet |
TS | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Through Hole | 7.30mm | - | Top Actuated | PC Pin | 6.20mm x 6.20mm | Non-Illuminated | - | - | 260gf | - | - | -25°C ~ 70°C |
|
|
TS 66 NSWITCH TACT 13MM BROWN |
1,000 |
|
Datasheet |
TS | Bag | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 13.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
|
TS 65 RSWITCH TACT 9.5MM RED |
1,000 |
|
Datasheet |
TS | Bag | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 9.50mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 250gf | - | - | -40°C ~ 85°C |
|
|
TS 65 N-RASWITCH TACT 8.35MM BROWN |
499 |
|
Datasheet |
TS | Bag | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole, Right Angle | - | 8.35mm | Side Actuated | PC Pin | 7.40mm x 6.55mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
|
TS 66 RSWITCH TACT 13MM RED |
1,000 |
|
Datasheet |
TS | Bag | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 13.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 250gf | - | - | -40°C ~ 85°C |
|
|
TS 66 K-RASWITCH TACT 11.85MM BLACK |
499 |
|
Datasheet |
TS | Bag | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole, Right Angle | - | 11.85mm | Side Actuated | PC Pin | 7.40mm x 6.55mm | Non-Illuminated | - | - | 100gf | - | - | -40°C ~ 85°C |
|
|
TS 65 Y-RASWITCH TACT 8.35MM YELLOW |
504 |
|
Datasheet |
TS | Bag | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole, Right Angle | - | 8.35mm | Side Actuated | PC Pin | 7.40mm x 6.55mm | Non-Illuminated | - | - | 520gf | - | - | -40°C ~ 85°C |
