Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JB15KP-1CSWITCH TACTILE SPST-NO 0.05A 24V |
85 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 11.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | - | - | 176gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|
|
JB15KP-1BSWITCH TACTILE SPST-NO 0.05A 24V |
79 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 11.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | - | - | 176gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|
B3W-9000-G1GSWITCH TACTILE SPST-NO 0.05A 24V |
51 |
|
Datasheet |
B3W-9 | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 10.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | LED, Green | 2.1 VDC | 160gf | - | Sealed - Fully | -25°C ~ 70°C |
|
1241.1082.81SWITCH TACT SPST-NO 0.125A 48V |
95 |
|
Datasheet |
MTG Green | Bulk | Active | SPST-NO | Off-Mom | 0.125A @ 48VDC | Round Button | Through Hole | 19.75mm | - | Top Actuated | PC Pin | 12.65mm x 12.65mm | Non-Illuminated | - | - | 250gf | IP40 | Tactile Feedback | -25°C ~ 85°C |
|
JB15KP-2CSWITCH TACTILE SPST-NO 0.05A 24V |
47 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 11.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | - | - | 176gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|
TL1265GQRGRNSWITCH TACTILE SPST-NO 0.05A 12V |
43 |
|
Datasheet |
TL1265 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Through Hole | 8.50mm | - | Top Actuated | PC Pin | 7.00mm x 6.80mm | Illuminated | LED, Green | 2.3 VDC | 160gf | - | Green Cap | -20°C ~ 70°C |
|
|
JB15KP-4CCSWITCH TACTILE SPST-NO 0.05A 24V |
19 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 11.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | - | - | 176gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|
B3W-9010-R1NSWITCH TACTILE SPST-NO 0.05A 24V |
69 |
|
Datasheet |
B3W-9 | Box | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 10.20mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Illuminated | LED, Red | 1.8 VDC | 160gf | - | Sealed - Fully | -25°C ~ 70°C |
|
|
JF15SP2DSWITCH TACTILE SPST-NO 0.05A 24V |
100 |
|
Datasheet |
JF | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Round Button | Through Hole | 5.08mm | - | Top Actuated | PC Pin | 17.70mm x 17.70mm | Non-Illuminated | - | - | 300gf | - | Process Sealed | -25°C ~ 85°C |
|

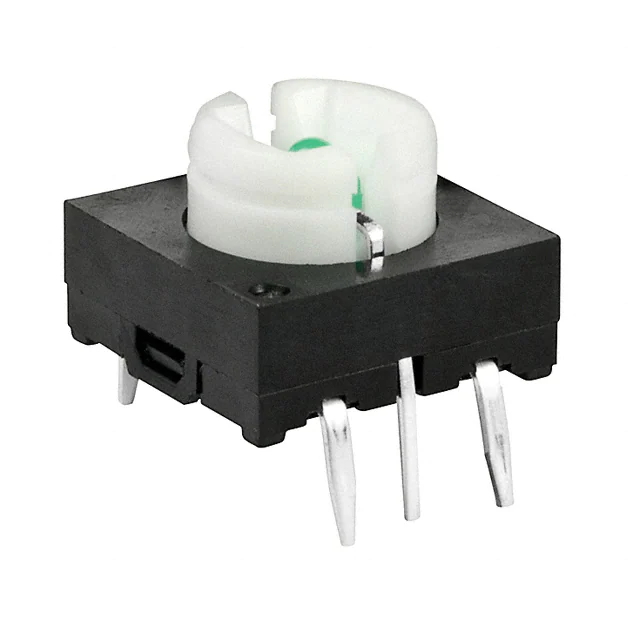

JB15LPFSWITCH TACTILE SPST-NO 0.05A 24V |
90 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole | - | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | LED, Green | 2.1 VDC | 176gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|
B3W-9010-G1GSWITCH TACTILE SPST-NO 0.05A 24V |
83 |
|
Datasheet |
B3W-9 | Box | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 10.20mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Illuminated | LED, Green | 2.1 VDC | 160gf | - | Sealed - Fully | -25°C ~ 70°C |
|
FSMIJ63AW04SWITCH TACTILE SPST-NO 0.05A 12V |
28 |
|
Datasheet |
FSMIJ | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Through Hole | - | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Illuminated | LED, White | - | 260gf | - | Tactile/Audible Feedback | -25°C ~ 70°C |
|

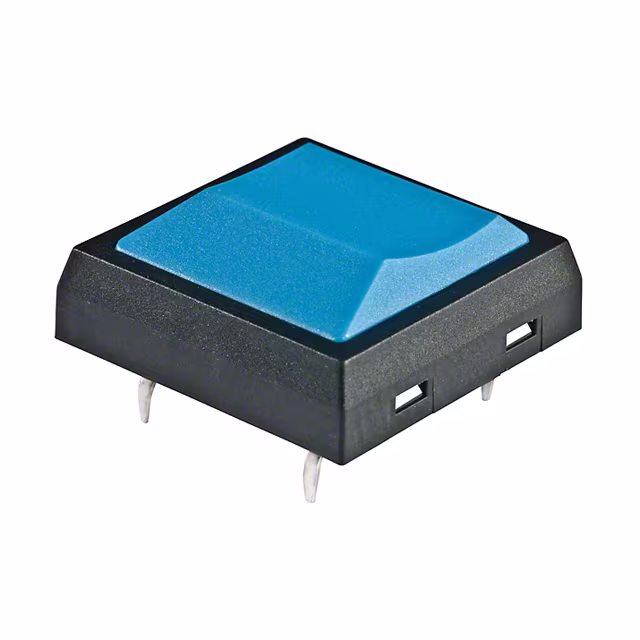

JF15SP3GSWITCH TACTILE SPST-NO 0.05A 24V |
41 |
|
Datasheet |
JF | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 6.78mm | - | Top Actuated | PC Pin | 17.70mm x 17.70mm | Non-Illuminated | - | - | 196gf | - | Process Sealed | -25°C ~ 85°C |
|

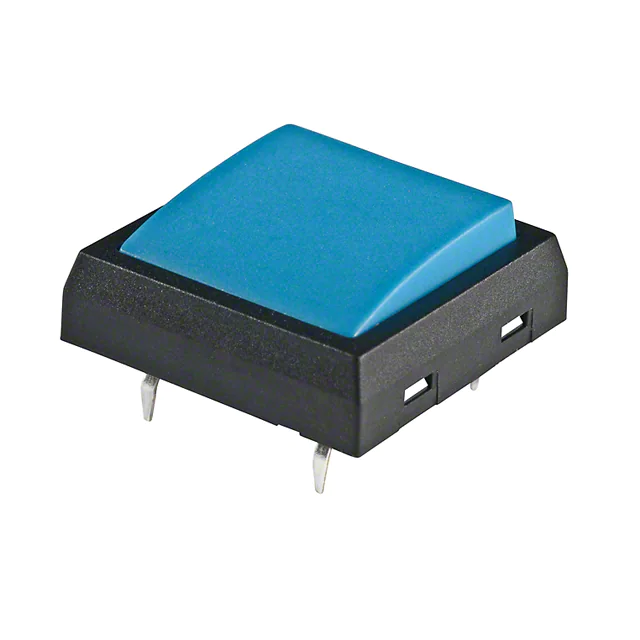

JF15SP4GSWITCH TACTILE SPST-NO 0.05A 24V |
46 |
|
Datasheet |
JF | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 6.98mm | - | Top Actuated | PC Pin | 17.70mm x 17.70mm | Non-Illuminated | - | - | 200gf | - | Process Sealed | -25°C ~ 85°C |
|
|
JB15HAP-2FSWITCH TACT SPST-NO 0.125A 24V |
20 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | 0.125A @ 24VDC | Square Button | Through Hole | 14.70mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | - | - | 265gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|
|
JB15HAP-2GSWITCH TACT SPST-NO 0.125A 24V |
81 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | 0.125A @ 24VDC | Square Button | Through Hole | 14.70mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | - | - | 265gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|
|
JB15HAP-2CSWITCH TACT SPST-NO 0.125A 24V |
49 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | 0.125A @ 24VDC | Square Button | Through Hole | 14.70mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | - | - | 265gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|
JB15HAP-2ASWITCH TACT SPST-NO 0.125A 24V |
26 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | 0.125A @ 24VDC | Square Button | Through Hole | 14.70mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | - | - | 265gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|

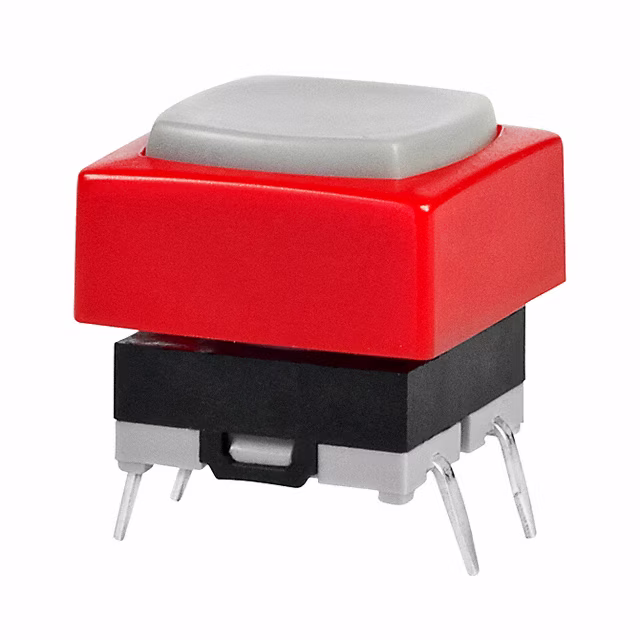

JB15HKP-4HCSWITCH TACT SPST-NO 0.125A 24V |
22 |
|
Datasheet |
JB | Box | Active | SPST-NO | Off-Mom | 0.125A @ 24VDC | Square Button | Through Hole | 11.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | - | - | 265gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|
|
JB15HAP-4CCSWITCH TACT SPST-NO 0.125A 24V |
4 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | 0.125A @ 24VDC | Square Button | Through Hole | 14.70mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | - | - | 265gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
Tactile Switches Electronic Components
Explore Tactile Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
