Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5176SWITCH TACT SPST-NO 0.012A 24V |
831 |
|
Datasheet |
- | Bulk | Active | SPST-NO | Off-Mom | 0.012A @ 24VDC | Snap Dome | Surface Mount | 0.80mm | - | Top Actuated | SMD (SMT) Tab | 9.90mm x 9.90mm | Non-Illuminated | - | - | 420gf | - | Flex Membrane | -40°C ~ 105°C |
|
ADTSM63SVTRSWITCH TACTILE SPST-NO 0.05A 12V |
1,014 |
|
Datasheet |
ADTS | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 7.00mm | - | Top Actuated | Gull Wing | 6.20mm x 6.20mm | Non-Illuminated | - | - | 320gf | - | Tactile Feedback | -25°C ~ 70°C |
|
|
ADTSM66KVSWITCH TACTILE SPST-NO 0.05A 12V |
621 |
|
Datasheet |
ADTS | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 13.00mm | - | Top Actuated | Gull Wing | 6.20mm x 6.20mm | Non-Illuminated | - | - | 100gf | - | Tactile Feedback | -25°C ~ 70°C |
|

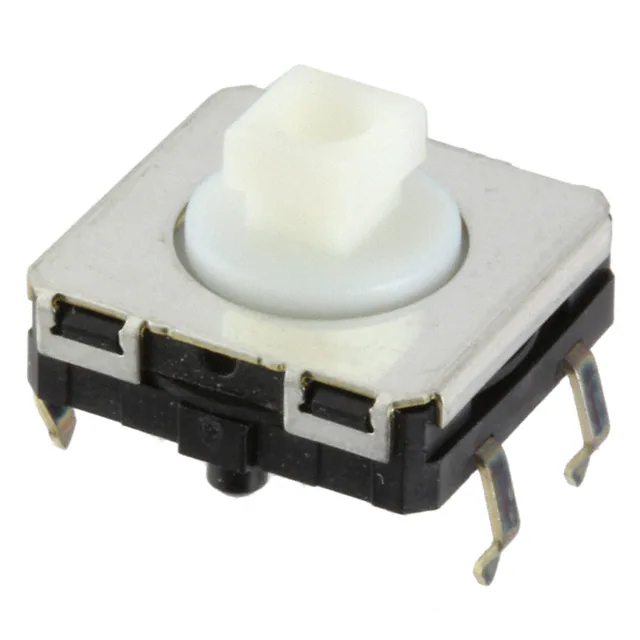

B3W-4050SSWITCH TACTILE SPST-NO 0.05A 24V |
42 |
|
Datasheet |
B3W | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole | 7.30mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 200gf | IP67 - Dust Tight, Waterproof | - | -25°C ~ 70°C |
|
EVQ-P2V02MSWITCH TACTILE SPST-NO 0.02A 15V |
458 |
|
Datasheet |
EVQP2 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.02A @ 15VDC | Rectangular Button | Surface Mount | 2.10mm | - | Top Actuated | J Lead | 4.70mm x 3.50mm | Non-Illuminated | - | - | 350gf | - | Grounding Pin | -40°C ~ 85°C |
|
|
MJTP1138DTRSWITCH TACTILE SPST-NO 0.05A 12V |
217 |
|
Datasheet |
MJTP | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 13.00mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | Tactile Feedback | -20°C ~ 70°C |
|

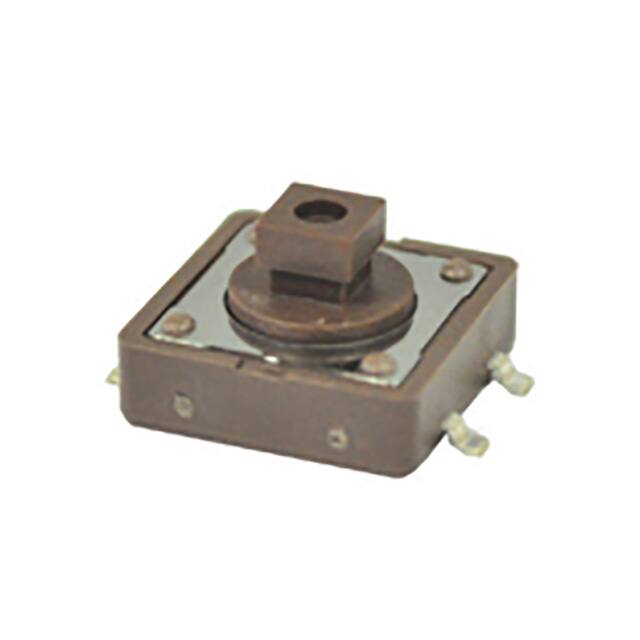

TL3300AF160QSSDOMESWITCH TACTILE SPST-NO 0.05A 12V |
1,684 |
|
Datasheet |
TL3300 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Surface Mount | 7.30mm | - | Top Actuated | Gull Wing | 12.00mm x 12.00mm | Non-Illuminated | - | - | 160gf | - | Stainless Steel Contact Dome | -25°C ~ 70°C |
|
B3F-5150SWITCH TACTILE SPST-NO 0.05A 24V |
504 |
|
Datasheet |
B3F | Bag | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole | 7.30mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 130gf | - | Grounding Pin | -25°C ~ 70°C |
|
B3F-4100SWITCH TACTILE SPST-NO 0.05A 24V |
862 |
|
Datasheet |
B3F | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 130gf | - | Grounding Pin | -25°C ~ 70°C |
|
TL6150AF350QGSWITCH TACTILE SPST-NO 0.05A 12V |
777 |
|
Datasheet |
TL6150 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 3.50mm | - | Top Actuated | Gull Wing | 6.20mm x 6.20mm | Non-Illuminated | - | - | 350gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
TL6150BF160QGSWITCH TACTILE SPST-NO 0.05A 12V |
506 |
|
Datasheet |
TL6150 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 5.20mm | - | Top Actuated | Gull Wing | 6.20mm x 6.20mm | Non-Illuminated | - | - | 160gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
ILS TC180 30SWITCH TACTILE SPST-NO 0.1A 30V |
323 |
|
Datasheet |
ILS | Bulk | Active | SPST-NO | Off-Mom | 0.1A @ 30VDC | Plunger for Cap | Through Hole | 7.00mm | - | Top Actuated | PC Pin | 7.20mm x 6.80mm | Illuminated | LED, Green/Yellow | 2.3 VDC | 180gf | - | - | -40°C ~ 85°C |
|
430466085726SWITCH TACTILE SPST-NO 0.05A 12V |
36 |
|
Datasheet |
WS-TATV | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 8.50mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 260gf | - | - | -40°C ~ 85°C |
|
TSM9W-5.2-260-TRSWITCH TACTILE SPST-NO 0.05A 12V |
1,714 |
|
Datasheet |
TSM9W | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 5.20mm | - | Top Actuated | Gull Wing | 6.30mm x 6.20mm | Non-Illuminated | - | - | 260gf | - | Washable | -20°C ~ 70°C |
|
B3W-1102SWITCH TACTILE SPST-NO 0.05A 24V |
962 |
|
Datasheet |
B3W | Bag | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 6.60mm x 6.00mm | Non-Illuminated | - | - | 230gf | IP67 - Dust Tight, Waterproof | - | -25°C ~ 70°C |
|
B3W-1002SSWITCH TACTILE SPST-NO 0.05A 24V |
99 |
|
Datasheet |
B3W | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 6.60mm x 6.00mm | Non-Illuminated | - | - | 230gf | IP67 - Dust Tight, Waterproof | - | -25°C ~ 70°C |
|
TS15-1212-125-BK-260-SCR-DSWITCH TACTILE SPST-NO 0.05A 12V |
848 |
|
Datasheet |
TS15 | Bag | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 12.50mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 260gf | - | - | -30°C ~ 80°C |
|
7914G-1-024ESWITCH TACTILE SPST-NO 0.1A 16V |
422 |
|
Datasheet |
7914 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.1A @ 16VAC/DC | Flush | Surface Mount | 2.62mm | - | Top Actuated | Gull Wing | 5.00mm x 5.00mm | Non-Illuminated | - | - | 300gf | IP67 - Dust Tight, Waterproof | - | -55°C ~ 125°C |
|
B3W-1152SWITCH TACTILE SPST-NO 0.05A 24V |
114 |
|
Datasheet |
B3W | Bag | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole | 7.30mm | - | Top Actuated | PC Pin | 6.60mm x 6.00mm | Non-Illuminated | - | - | 230gf | IP67 - Dust Tight, Waterproof | - | -25°C ~ 70°C |
|
TL1100SF260QSWITCH TACTILE SPST-NO 0.05A 12V |
137 |
|
Datasheet |
TL1100 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | - | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 260gf | - | Tactile Feedback | -20°C ~ 70°C |
