Speakers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Technology | Type | Frequency Range | Frequency - Self Resonant | Impedance | Efficiency - dBA | Efficiency - Testing | Efficiency - Type | Power - Rated | Power - Max | Port Location | Shape | Material - Cone | Material - Magnet | Ingress Protection | Ratings | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SM500808-1SPEAKER 8OHM 1.5W TOP PORT 105DB |
0 |
|
Datasheet |
- | Tray | Active | Magnetic | General Purpose | 800 Hz ~ 7 kHz | 800Hz | 8 Ohms | 105.00 | 100mm | Sound Pressure Level (SPL) | 1.5 W | 3 W | Top | Round, Square Frame | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Solder Eyelet(s) | 1.988" L x 1.988" W (50.50mm x 50.50mm) |
|
SP-1813S-1Speaker |
0 |
|
Datasheet |
- | Bulk | Active | Magnetic | General Purpose | 700 Hz ~ 20 kHz | 700Hz | 8 Ohms | 91.00 | 800mW/100mm | Sound Pressure Level (SPL) | 800 mW | 1 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | - | - | Solder Pads | 0.709" L x 0.512" W (18.00mm x 13.00mm) |
|
SM150506-1SPEAKER 6OHM 700MW TOP PORT 92DB |
0 |
|
Datasheet |
- | Tray | Obsolete | Magnetic | General Purpose | 500 Hz ~ 20 kHz | 500Hz | 6 Ohms | 92.00 | 100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|
GA0876SPEAKER 8OHM 1W TOP PORT 90DB |
0 |
|
Datasheet |
GA | Box | Active | Magnetic | General Purpose | 200 Hz ~ 14 kHz | 200Hz | 8 Ohms | 90.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 3 W | Top | Round, Square Frame | Paper | Alnico (AlNiCo) | - | - | Solder Eyelet(s) | 3.425" L x 3.425" W (87.00mm x 87.00mm) |
|
2809K 28 WPC, 8 OHM |
0 |
|
- |
- | Retail Package | Active | - | General Purpose | 300 Hz ~ 20 kHz | 700Hz | 8 Ohms | 75.00 | 1W/1M | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Round | - | - | IP65 - Dust Tight, Water Resistant | - | Solder Eyelet(s) | 1.102" Dia (28.00mm) |
|
2909K 28 WP 8 OHM |
0 |
|
Datasheet |
- | Retail Package | Active | - | General Purpose | 300 Hz ~ 20 kHz | 700Hz | 8 Ohms | 76.00 | 1W/1M | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Round | - | - | IP65 - Dust Tight, Water Resistant | - | None | 1.063" Dia (27.00mm) |
|
|
2910K 28 WP 50 OHM |
0 |
|
Datasheet |
- | Retail Package | Active | - | General Purpose | 300 Hz ~ 20 kHz | 600Hz | 50 Ohms | 76.00 | 1W/1M | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Solder Pads | 1.102" Dia (28.00mm) |
|
|
COM1601SPEAKER 4OHM 3W TOP PORT |
0 |
|
Datasheet |
- | Bulk | Obsolete | Magnetic | General Purpose | - | - | 4 Ohms | - | - | - | 3 W | - | Top | Round, Square Frame | - | - | - | - | Wire Leads | 1.575" L x 1.575" W (40.00mm x 40.00mm) |
|
|
SMS-1508-2SPEAKER 8OHM 300MW TOP PORT 87DB |
0 |
|
- |
SMS | Tape & Reel (TR) | Obsolete | Magnetic | General Purpose | 850 Hz ~ 20 kHz | 850Hz | 8 Ohms | 87.00 | 300mW/100mm | Sound Pressure Level (SPL) | 300 mW | 500 mW | Top | Square | - | - | - | - | Solder Pads | 0.591" L x 0.591" W (15.00mm x 15.00mm) |
|
GA0776MSPEAKER 8OHM 1W TOP PORT 90DB |
0 |
|
Datasheet |
GA | Bag | Active | Magnetic | General Purpose | 320 Hz ~ 25 kHz | 320Hz | 8 Ohms | 90.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Round, Square Frame | Polyester, Polyethylene Terephthalate (PET) | Alnico (AlNiCo) | - | - | Solder Eyelet(s) | 3.032" L x 3.032" W (77.00mm x 77.00mm) |
|
SM160508-2SPEAKER 8OHM 700MW TOP PORT 80DB |
0 |
|
Datasheet |
- | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 20 kHz | 500Hz | 8 Ohms | 80.00 | 100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Solder Pads | 0.630" L x 0.354" W (16.00mm x 9.00mm) |
|

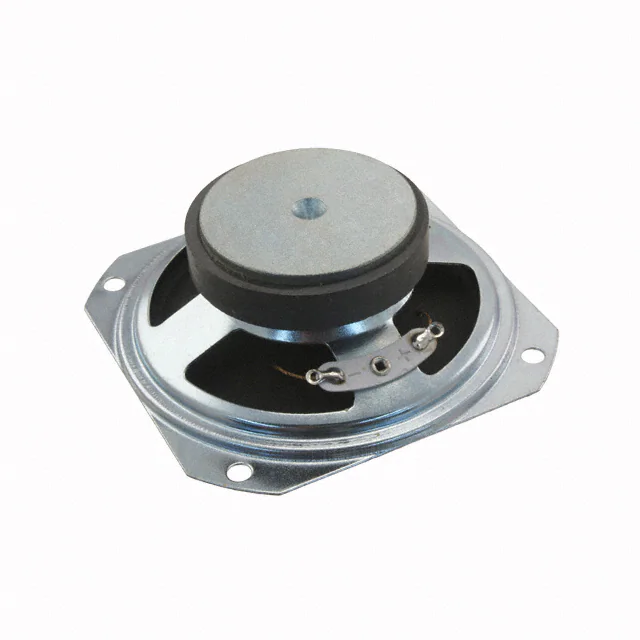

AS07708PS-2-WR-RSPEAKER 8OHM 4W TOP PORT 90DB |
0 |
|
- |
AS | Bulk | Obsolete | Magnetic | General Purpose | 250 Hz ~ 10 kHz | 250Hz | 8 Ohms | 90.00 | 1W/500mm | Sound Pressure Level (SPL) | 4 W | 8 W | Top | Round, Square Frame | Paper, Coated | Ferrite | Water Resistant | - | Solder Eyelet(s) | 3.032" L x 3.032" W (77.00mm x 77.00mm) |
|
2810K 28 WPC, 50 OHM |
0 |
|
Datasheet |
- | Retail Package | Active | - | General Purpose | 300 Hz ~ 20 kHz | 800Hz | 50 Ohms | 75.00 | 1W/1M | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Solder Pads | 1.102" Dia (28.00mm) |
|
SP400208-1SPEAKER 8OHM 5W TOP PORT 87DB |
0 |
|
Datasheet |
- | Tray | Active | Magnetic | General Purpose | 230 Hz ~ 20 kHz | 230Hz | 8 Ohms | 87.00 | 100mm | Sound Pressure Level (SPL) | 5 W | 6 W | Top | Round, Square Frame | - | - | - | - | Solder Eyelet(s) | 1.575" L x 1.575" W (40.00mm x 40.00mm) |
|
SC400508-1SPEAKER 8OHM 2W TOP PORT 86DB |
0 |
|
Datasheet |
- | Tray | Active | Magnetic | General Purpose | 200 Hz ~ 20 kHz | 600Hz | 8 Ohms | 86.00 | 100mm | Sound Pressure Level (SPL) | 2 W | 2.5 W | Top | Rectangular | Cloth | - | - | - | Solder Pads | 1.575" L x 0.787" W (40.00mm x 20.00mm) |
|
|
GA0876MSPEAKER 8OHM 1W TOP PORT 85DB |
0 |
|
Datasheet |
GA | Box | Active | Magnetic | General Purpose | 260 Hz ~ 22 kHz | 260Hz | 8 Ohms | 85.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 3 W | Top | Round, Square Frame | Polyester, Polyethylene Terephthalate (PET) | Alnico (AlNiCo) | - | - | Solder Eyelet(s) | 3.425" L x 3.425" W (87.00mm x 87.00mm) |
|
|
2806K 28 WPC BL, 8 OHM |
0 |
|
- |
- | Retail Package | Active | Magnetic | General Purpose | 300 Hz ~ 20 kHz | 700Hz | 8 Ohms | 76.00 | 1W/1M | Sound Pressure Level (SPL) | 1 W | - | Top | Round | - | - | IP65 - Dust Tight, Water Resistant | - | Solder Eyelet(s) | 1.102" Dia (28.00mm) |
|
WD11903Y8HSPEAKER 8OHM 500MW TOP PT 86.5DB |
19 |
|
Datasheet |
- | Tray | Active | Magnetic | Low Profile | 450 Hz ~ 8 kHz | 700Hz | 8 Ohms | 86.50 | 1W/1M | Sensitivity | 500 mW | 1 W | Top | Round | Polyarylate (PAR) | Nd-Fe-B | Water Resistant | - | Spring Type | 1.102" Dia (28.00mm) |
|
|
2816K 16, 50 OHM |
0 |
|
Datasheet |
- | Retail Package | Active | - | General Purpose | 700 Hz ~ 20 kHz | 1.005kHz | 50 Ohms | 71.00 | 1W/1M | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | - | - | - | - | Wire Leads | 0.630" Dia (16.00mm) |
|
|
2815K 16, 8 OHM |
0 |
|
Datasheet |
- | Retail Package | Active | - | General Purpose | 700 Hz ~ 20 kHz | 1.1kHz | 8 Ohms | 71.00 | 1W/1M | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | - | - | - | - | Wire Leads | 0.512" Dia (13.00mm) |
Speakers Electronic Components
Explore Speakers electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
