Speakers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Technology | Type | Frequency Range | Frequency - Self Resonant | Impedance | Efficiency - dBA | Efficiency - Testing | Efficiency - Type | Power - Rated | Power - Max | Port Location | Shape | Material - Cone | Material - Magnet | Ingress Protection | Ratings | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMS-15118E-SPSPEAKER 8OHM 800MW TOP PT 90.5DB |
0 |
|
Datasheet |
CMS | Tray | Active | Magnetic | Low Profile | 440 Hz ~ 10 kHz | 550Hz | 8 Ohms | 90.50 | 800mW/100mm | Sound Pressure Level (SPL) | 800 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|
CLS0401MPSPEAKER 8OHM 200MW TOP PORT 80DB |
0 |
|
- |
CLS | Bulk | Obsolete | Magnetic | Low Profile | 600 Hz ~ 8 kHz | 600Hz | 8 Ohms | 80.00 | 200mW/500mm | Sound Pressure Level (SPL) | 200 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | PC Pins | 1.575" Dia (40.00mm) |
|
SCM-2415L4.5-8N1RSPEAKER 8OHM 1W 88DB |
20 |
|
Datasheet |
- | Tray | Active | - | - | 750 Hz ~ 20 kHz | 750Hz | 8 Ohms | 88.00 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 1.2 W | - | Oval | Polyethylene Terephthalate (PET) | - | - | - | Solder Pads | 0.945" L x 0.591" W (24.00mm x 15.00mm) |
|
PSR-13N08A-JQSPEAKER 8OHM 250MW TOP PORT 75DB |
6 |
|
Datasheet |
PSR | Bulk | Obsolete | Magnetic | General Purpose | 1.8 kHz ~ 7 kHz | 1800Hz | 8 Ohms | 75.00 | 1W/1M | Sound Pressure Level (SPL) | 250 mW | 300 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Ferrite | - | - | Solder Pads | 0.512" Dia (13.00mm) |
|
SP570445-4SPEAKR 45OHM 300MW TOP PORT 94DB |
0 |
|
Datasheet |
- | Tray | Active | Magnetic | General Purpose | 450 Hz ~ 5 kHz | 450Hz | 45 Ohms | 94.00 | 100mm | Sound Pressure Level (SPL) | 300 mW | 500 mW | Top | Round | Paper | - | - | - | Solder Eyelet(s) | 2.244" Dia (57.00mm) |
|
RSP-1300.000-1255-NS112 x 5 x 3mm Speaker |
0 |
|
Datasheet |
- | Tray | Discontinued at Digi-Key | Magnetic | General Purpose | 1.3 kHz ~ 5 kHz | 1.3kHz | 8 Ohms | 88.00 | 100mm | Sound Pressure Level (SPL) | 300 mW | 500 mW | Top | Rectangular | Metal | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 0.472" L x 0.217" W (12.00mm x 5.50mm) |
|
|
SP-1508SSPEAKER; 8 OHM; 86DB; 0.6W/01.0W |
0 |
|
Datasheet |
- | Bulk | Active | Magnetic | General Purpose | 850 Hz ~ 20 kHz | 850Hz | 6.6 Ohms | 86.00 | 600mW/100mm | Sound Pressure Level (SPL) | 600 mW | 1 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | IP50 | - | Solder Pads | 0.591" L x 0.315" W (15.00mm x 8.00mm) |
|
|
SM450408-2SPEAKER 8OHM 2W TOP PORT 90DB |
0 |
|
Datasheet |
- | Tray | Active | Magnetic | General Purpose | 450 Hz ~ 10 kHz | 450Hz | 8 Ohms | 90.00 | 100mm | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Solder Pads | 1.772" Dia (45.00mm) |
|
GA0506SPEAKER 8OHM 250MW TOP PORT 88DB |
0 |
|
Datasheet |
GA | Bag | Active | Magnetic | General Purpose | 430 Hz ~ 4 kHz | 430Hz | 8 Ohms | 88.00 | 250mW/500mm | Sound Pressure Level (SPL) | 250 mW | 500 mW | Top | Round, Square Frame | Paper | Alnico (AlNiCo) | - | - | Solder Eyelet(s) | 1.969" L x 1.969" W (50.00mm x 50.00mm) |
|
GA0571SPEAKER 8OHM 250MW TOP PORT 88DB |
0 |
|
Datasheet |
GA | Bag | Active | Magnetic | General Purpose | 400 Hz ~ 4 kHz | 400Hz | 8 Ohms | 88.00 | 1W/500mm | Sound Pressure Level (SPL) | 250 mW | 500 mW | Top | Round | Paper | Alnico (AlNiCo) | - | - | Solder Eyelet(s) | 2.244" Dia (57.00mm) |
|
GA0381MSPEAKER 8OHM 200MW TOP PORT 79DB |
0 |
|
Datasheet |
GA | Bag | Active | Magnetic | General Purpose | 800 Hz ~ 9 kHz | 800Hz | 8 Ohms | 79.00 | 200mW/500mm | Sound Pressure Level (SPL) | 200 mW | 400 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Alnico (AlNiCo) | - | - | Solder Eyelet(s) | 1.496" Dia (38.00mm) |
|
CS40-01P50-04-1XSPEAKER 8OHM 1W TOP PORT 98DB |
0 |
|
Datasheet |
- | Obsolete | Magnetic | General Purpose | 500 Hz ~ 20 kHz | 500Hz | 8 Ohms | 98.00 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 1.2 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 1.575" L x 0.512" W (40.00mm x 13.00mm) | |
|
CDS-16098ASPEAKER 8OHM 700MW TOP PORT 86DB |
0 |
|
Datasheet |
CDS | Tray | Obsolete | Magnetic | General Purpose | 400 Hz ~ 20 kHz | 500Hz | 8 Ohms | 86.00 | 500mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Spring Type | 0.630" L x 0.354" W (16.00mm x 9.00mm) |
|
PSR-23N08S-JQSPEAKER 8OHM 250MW TOP PORT 86DB |
0 |
|
Datasheet |
PSR | Bulk | Obsolete | Magnetic | General Purpose | 1 kHz ~ 5 kHz | 1000Hz | 8 Ohms | 86.00 | 1W/1M | Sound Pressure Level (SPL) | 250 mW | 300 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Ferrite | - | - | Solder Pads | 0.906" Dia (23.00mm) |
|
CLS0402MA-1SPEAKER 8OHM 500MW TOP PORT 90DB |
0 |
|
Datasheet |
CLS | Tray | Active | Magnetic | Low Profile | 530 Hz ~ 6 kHz | 530Hz | 8 Ohms | 90.00 | 500mW/500mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 1.575" Dia (40.00mm) |
|
SM150508-2SPEAKER 8OHM 700MW TOP PORT 89DB |
0 |
|
Datasheet |
- | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 20 kHz | 500Hz | 8 Ohms | 89.00 | 100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|
SM150508-1SPEAKER 8OHM 700MW TOP PORT 89DB |
0 |
|
Datasheet |
- | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 20 kHz | 500Hz | 8 Ohms | 89.00 | 100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|
GF0571MSPEAKER 8OHM 250MW TOP PORT 86DB |
0 |
|
Datasheet |
GF | Tray | Active | Magnetic | General Purpose | 480 Hz ~ 14 kHz | 480Hz | 8 Ohms | 86.00 | 250mW/500mm | Sound Pressure Level (SPL) | 250 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Ferrite | - | - | Solder Eyelet(s) | 2.244" Dia (57.00mm) |
|
CLS0381M-L152SPEAKER 8OHM 200MW TOP PORT 80DB |
0 |
|
Datasheet |
CLS | Tray | Active | Magnetic | Low Profile | 800 Hz ~ 3.4 kHz | 800Hz | 8 Ohms | 80.00 | 200mW/500mm | Sound Pressure Level (SPL) | 200 mW | 400 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 1.496" Dia (38.00mm) |
|

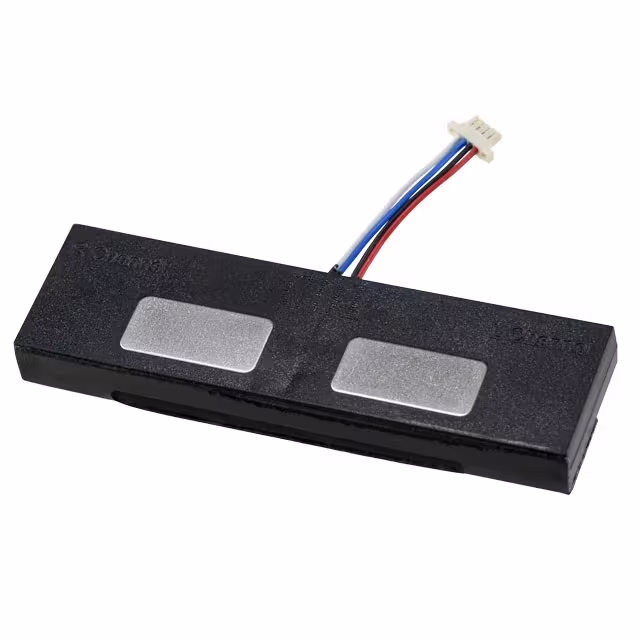

CES-57175-16L020SPEAKER 6OHM 1W TOP PORT 89DB |
0 |
|
Datasheet |
CES | Tray | Obsolete | Magnetic | General Purpose | 850 Hz ~ 20 kHz | 850Hz | 6 Ohms | 89.00 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | - | - | Wire Leads | 2.264" L x 0.669" W (57.50mm x 17.00mm) |
Speakers Electronic Components
Explore Speakers electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
