Speakers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Technology | Type | Frequency Range | Frequency - Self Resonant | Impedance | Efficiency - dBA | Efficiency - Testing | Efficiency - Type | Power - Rated | Power - Max | Port Location | Shape | Material - Cone | Material - Magnet | Ingress Protection | Ratings | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

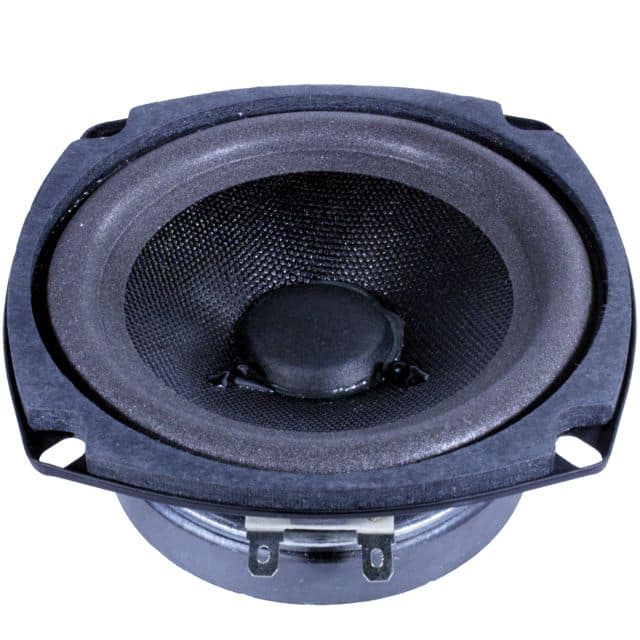

BLS114-2-32H51SPEAKER 32OHM 10W 88DB |
70 |
|
Datasheet |
BLS | Box | Active | Magnetic | General Purpose | 100 Hz ~ 13 kHz | 100Hz | 32 Ohms | 88.00 | 1W/1M | Sound Pressure Level (SPL) | 10 W | 20 W | - | Round | Polyethylenimine (PEI) | Ferrite | - | - | - | 4.488" Dia (114.00mm) |
|
TS68S36DN4FSPEAKER 4OHM 10W TOP PORT 84DB |
68 |
|
Datasheet |
- | Tray | Active | - | General Purpose | 100 Hz ~ 20 kHz | 100Hz | 4 Ohms | 84.00 | 1W/1M | Sensitivity | 10 W | 15 W | Top | Round | Paper, Rubber | N42 | - | - | Terminal Block | 2.689" Dia (68.30mm) |
|
UT-P2018SPEAKER TOP PORT RECT MEMS |
86 |
|
Datasheet |
Ganymede | Tray | Obsolete | Piezo | General Purpose | 20 Hz ~ 20 kHz | - | - | - | - | Sound Pressure Level (SPL) | - | - | Top | Rectangular | - | - | - | - | Solder Pads | 0.264" L x 0.185" W (6.70mm x 4.70mm) |
|
BFC-4448-24-4-006SPEAKER 4OHM 3W TOP PORT 87DB |
56 |
|
Datasheet |
- | Box | Obsolete | Magnetic | General Purpose | 10 Hz ~ 20 kHz | 160Hz | 4 Ohms | 87.00 | 500mm | Sound Pressure Level (SPL) | 3 W | 6 W | Top | Oval, Rectangular Frame | - | Nd-Fe-B | - | - | Quick Connect | - |
|
COM-18379SPEAKER 8OHM 15W TOP PORT 83DB |
6 |
|
Datasheet |
- | Bulk | Discontinued at Digi-Key | Magnetic | General Purpose | 103 Hz ~ 15 kHz | 103Hz | 8 Ohms | 83.00 | 1M | Sensitivity | 15 W | 20 W | Top | Square | Polypropylene (PP) | Ferrite | - | - | Solder Eyelet(s) | 3.000" L x 3.000" W (76.20mm x 76.20mm) |
|
CS134-15D07-55-1SPEAKER 4OHM 15W TOP PORT 88DB |
32 |
|
Datasheet |
- | Bulk | Active | Magnetic | General Purpose | 120 Hz ~ 13 kHz | 150Hz | 4 Ohms | 88.00 | 1W/1M | Sound Pressure Level (SPL) | 15 W | 30 W | Top | Round, Square Frame | Paper | Nd-Fe-B | - | - | Solder Tabs | 5.315" L x 5.315" W (135.00mm x 135.00mm) |
|

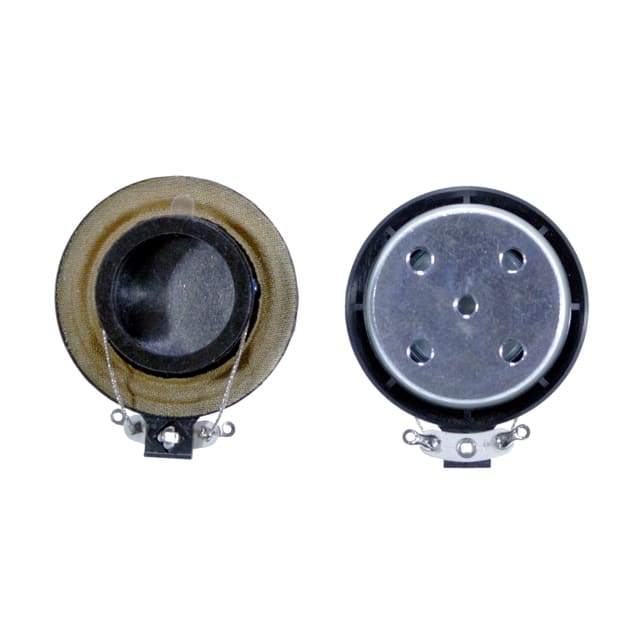

BTD44-12-03H20.1SPEAKER 3OHM 10W TOP PORT |
45 |
|
Datasheet |
BTD | Box | Active | Magnetic | General Purpose | 0 Hz ~ 20 kHz | 250Hz | 3 Ohms | - | - | - | 10 W | 20 W | Top | Round | - | - | - | - | Solder Pads | 1.732" Dia (44.00mm) |
|
|
D0906004FP128AKRLoudspeaker 9x6 inches 4 Ohms 6W |
23 |
|
Datasheet |
- | Bulk | Active | Magnetic | General Purpose | 100 Hz ~ 7 kHz | 100Hz | 4 Ohms | 90.00 | 1W/1M | Sound Pressure Level (SPL) | 6 W | 10 W | Top | Oval, Rectangular Frame | - | Ferrite | - | - | Solder Eyelet(s) | 9.567" L x 6.476" W (243.00mm x 164.50mm) |
|
1053SPEAKER WS 13 E 8 OHM |
32 |
|
Datasheet |
- | Retail Package | Active | Magnetic | General Purpose | 83 Hz ~ 12 kHz | 83Hz | 8 Ohms | 86.00 | 1W/1M | Sound Pressure Level (SPL) | 40 W | 60 W | Top | Round, Square Frame | Paper | - | - | - | Solder Eyelet(s) | 4.134" Dia x 5.157" L (105.00mm x 131.00mm) |
|
|
SPK-PZ94-P94mm Piezo Loudspeaker, Paper Co |
42 |
|
Datasheet |
- | Bulk | Active | Piezo | Full Range | 500 Hz ~ 20 kHz | - | - | 82.00 | 1W/1M | Sound Pressure Level (SPL) | - | 50 W | - | Round | Paper | Piezo Ceramic | - | - | Fast-On Terminals | 3.701" Dia (94.00mm) |
|
BPH0904T181MW100 HFSPEAKER PIEZO HAPTIC ELEMENT |
16 |
|
- |
- | Tray | Active | Piezo | - | - | 38kHz | - | - | - | - | - | - | - | - | - | - | - | - | Wire Leads | - |
|
|
CS72-00P17-08-1PLANAR 32OHM .04W 114DB |
13 |
|
Datasheet |
- | Tray | Active | Magnetic | - | 50 Hz ~ 50 kHz | 170Hz | 12 Ohms | 98.00 | 1mW | Sound Pressure Level (SPL) | 50 mW | 100 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) + Polyurethane (PU) | Nd-Fe-B | - | - | Solder Pads | 2.854" Dia (72.50mm) |
|
|
CS53-00P24-07-1PLANAR 30OHM .01W 107DB |
15 |
|
Datasheet |
- | Box | Active | Magnetic | - | 20 Hz ~ 20 kHz | 240Hz | 32 Ohms | 114.00 | 1mW | Sound Pressure Level (SPL) | 20 mW | 40 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) + Polyurethane (PU) | Nd-Fe-B | - | - | Solder Pads | 2.087" Dia (53.00mm) |
|
|
HD-360-ProTREBLAB HD-360 Pro Outdoor Speak |
12 |
|
Datasheet |
- | Retail Package | Active | Bluetooth | Bluetooth Speaker | - | - | - | - | - | - | - | - | - | Round | - | - | - | - | - | - |
|
UY-R3020SPEAKER TOP PORT RECTANGULAR |
4 |
|
Datasheet |
- | Box | Obsolete | Piezo | General Purpose | 20 Hz ~ 20 kHz | - | - | - | - | Sound Pressure Level (SPL) | - | - | Top | Rectangular | - | - | - | - | Flex Contacts | 2.807" L x 0.472" W (71.30mm x 12.00mm) |
|
|
TS121042Loudspeaker 33 Ohms |
50 |
|
Datasheet |
- | Tray | Active | Magnetic | General Purpose | 50 Hz ~ 2 kHz | 100Hz | 33 Ohms | 121.00 | - | Sound Pressure Level (SPL) | 20 mW | 50 mW | Top | Round | Polyethylene Terephthalate (PET) | Nd-Fe-B Cr3T | IPX5 | IEC 60268-5 | Solder Pads | 1.575" L x 0.248" W (40.00mm x 6.30mm) |
|
CR1813L025UN8WPGDA2SPEAKER 8OHM 700MW TOP PORT 75DB |
100 |
|
Datasheet |
- | Tray | Active | Magnetic | General Purpose | 800 Hz ~ 20 kHz | 800Hz | 8 Ohms | 75.00 | 1W/1m | Sensitivity | 700 mW | 1 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | IPX6 | - | Spring Contacts | 0.709" L x 0.512" W (18.00mm x 13.00mm) |
|
CR1813L025UN8DASPEAKER 8OHM 700MW TOP PORT 75DB |
100 |
|
Datasheet |
- | Tray | Active | Magnetic | General Purpose | 800 Hz ~ 20 kHz | 800Hz | 8 Ohms | 75.00 | 1W/1m | Sensitivity | 700 mW | 1 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | IPX6 | - | Spring Contacts | 0.709" L x 0.512" W (18.00mm x 13.00mm) |
|
CR1813L025YN6WPGDASPEAKER 6OHM 700MW TOP PT 74.5DB |
100 |
|
Datasheet |
- | Tray | Active | Magnetic | General Purpose | 800 Hz ~ 20 kHz | 800Hz | 6 Ohms | 74.50 | 1W/1m | Sensitivity | 700 mW | 1 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | IPX6 | - | Spring Contacts | 0.709" L x 0.512" W (18.00mm x 13.00mm) |
|
|
CR4030C071BN4Dynamic Loudspeaker 40x30x7.1mm |
100 |
|
Datasheet |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
