Speakers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Technology | Type | Frequency Range | Frequency - Self Resonant | Impedance | Efficiency - dBA | Efficiency - Testing | Efficiency - Type | Power - Rated | Power - Max | Port Location | Shape | Material - Cone | Material - Magnet | Ingress Protection | Ratings | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ED-23147-000SPEAKER 87OHM TOP PORT 102.5DB |
99 |
|
Datasheet |
ED | Bulk | Active | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 4.4 kHz | - | 87 Ohms | 102.50 | - | Sound Pressure Level (SPL) | - | - | Top | Rectangular | - | - | - | - | Solder Pads | 0.248" L x 0.169" W (6.30mm x 4.29mm) |
|

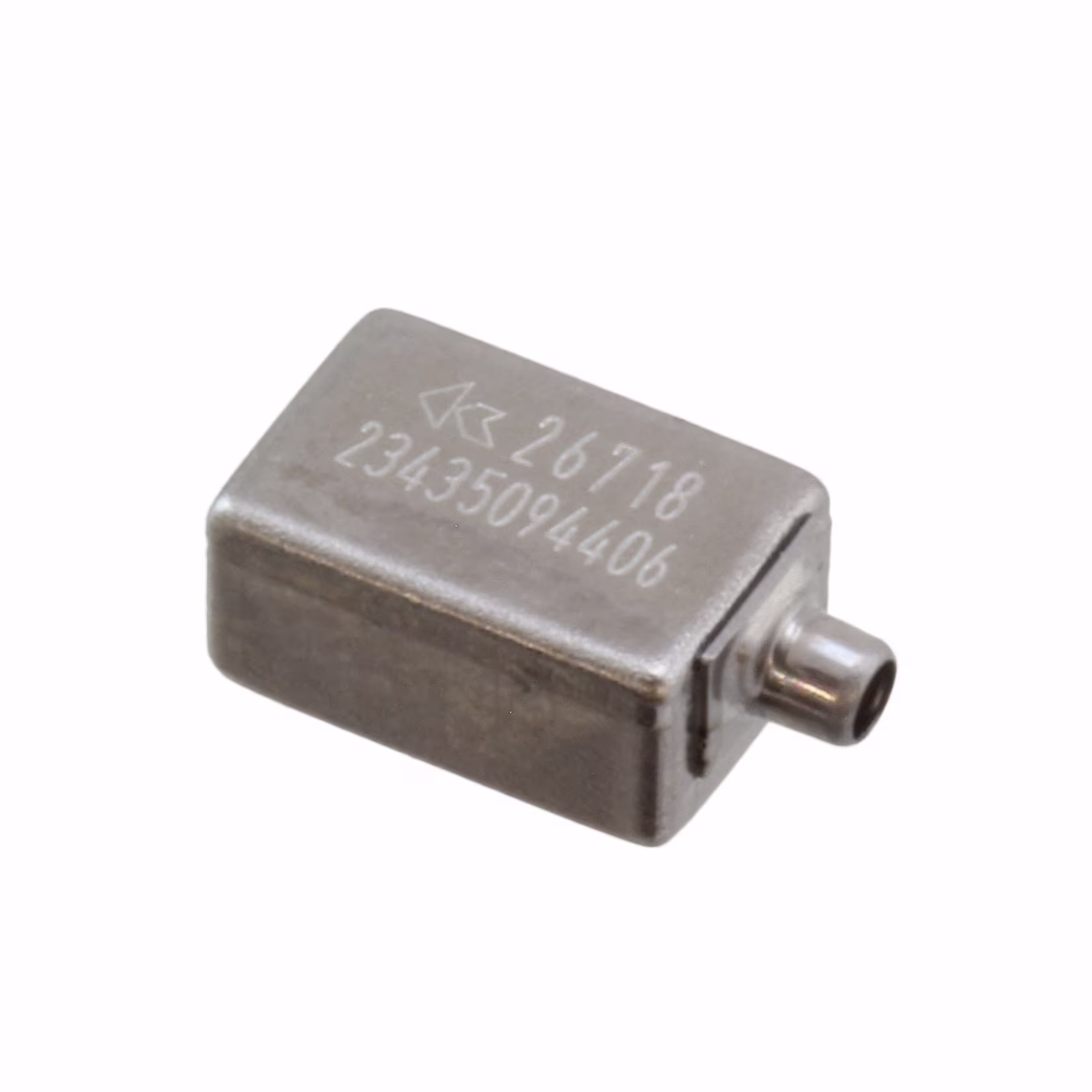

ED-26718-000SPEAKER SIDE PORT RECTANGULAR |
90 |
|
- |
ED | Tray | Active | Magnetic | Receiver, Balanced Armature | 20 Hz ~ 30 kHz | - | - | - | - | - | - | - | Side | Rectangular | - | - | - | - | Solder Pads | - |
|

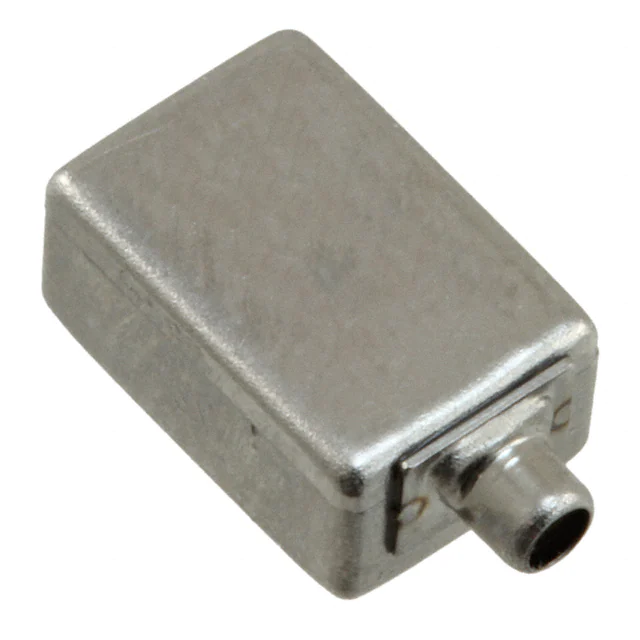

ED-27288-000SPEAKER 100OHM SIDE PORT 104DB |
83 |
|
Datasheet |
ED | Tray | Active | Magnetic | Receiver, Balanced Armature | 20 Hz ~ 30 kHz | - | 100 Ohms | 104.00 | - | - | - | - | Side | Rectangular | - | - | - | - | Solder Pads | - |
|

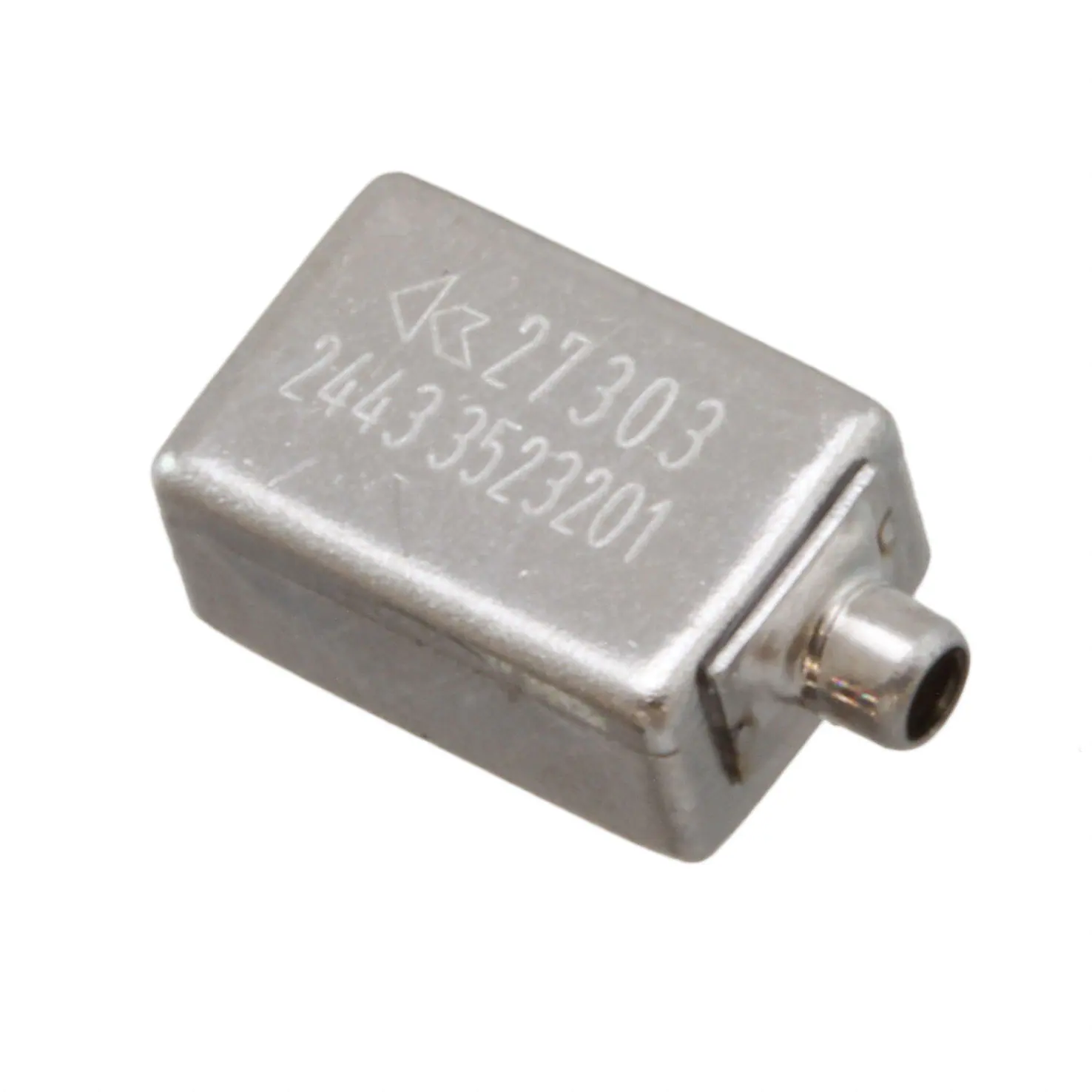

ED-27303-000SPEAKER SIDE PORT RECTANGULAR |
74 |
|
Datasheet |
ED | Tray | Active | Magnetic | Receiver, Balanced Armature | 20 Hz ~ 30 kHz | - | - | - | - | - | - | - | Side | Rectangular | - | - | - | - | Solder Pads | 0.248" L x 0.169" W (6.30mm x 4.29mm) |
|
WBFK-30000-000SPEAKER 124OHM TOP PORT 95DB |
98 |
|
Datasheet |
WBFK | Tray | Active | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 6.8 kHz | - | 124 Ohms | 95.00 | - | Sound Pressure Level (SPL) | - | - | Top | Rectangular | - | - | - | - | Solder Pads | 0.197" L x 0.108" W (5.00mm x 2.73mm) |
|
PL 7 RV - 8 OHMSPEAKER 8OHM 10W 88DB |
52 |
|
Datasheet |
- | Bulk | Active | - | - | 400 Hz ~ 5 kHz | 550Hz | 8 Ohms | 88.00 | 1W/1M | Sound Pressure Level (SPL) | 10 W | 20 W | User Defined | Round | - | - | - | - | Wire Leads | 2.992" Dia (76.00mm) |
|
|
PL 7 RV - 4 OHM (NCS S 3000-N)SPEAKER 4OHM 10W 88DB |
21 |
|
Datasheet |
- | Bulk | Active | - | - | 400 Hz ~ 5 kHz | 550Hz | 4 Ohms | 88.00 | 1W/1M | Sound Pressure Level (SPL) | 10 W | 20 W | User Defined | Round | - | - | - | - | Wire Leads | 2.992" Dia (76.00mm) |
|
|
PL 7 RV 8 OHM (NVS S 3000-N)PL 7 RV 8 OHM (NVS S 3000-N) |
18 |
|
Datasheet |
PL 7 RV | Bulk | Active | - | General Purpose | 400 Hz ~ 5 kHz | 550Hz | 8 Ohms | 88.00 | 1W/1M | Sound Pressure Level (SPL) | 10 W | 20 W | Top | Round | - | - | IPX4 | - | Wire Leads | 2.992" Dia (76.00mm) |
|
BK-21610-000SPEAKER 145OHM TOP PORT 125.5DB |
58 |
|
Datasheet |
BK | Tray | Active | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 4 kHz | - | 145 Ohms | 125.50 | - | Sensitivity | - | - | Top | Rectangular | - | - | - | - | Solder Pads | 0.310" L x 0.220" W (7.87mm x 5.59mm) |
|

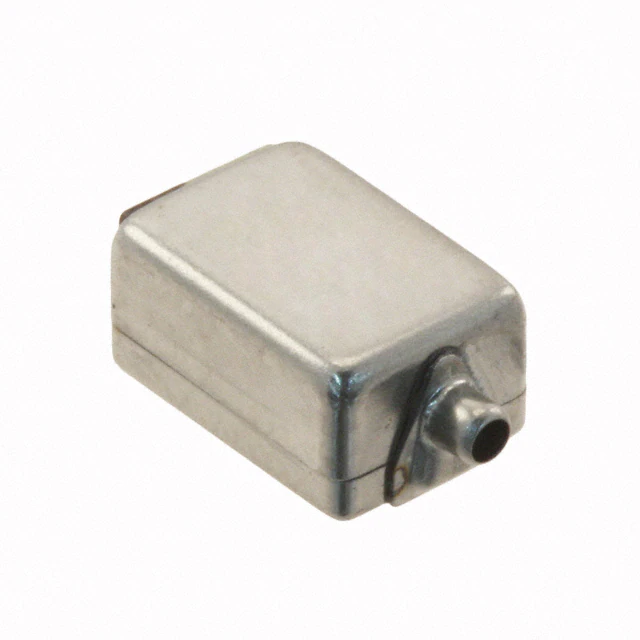

BK-26824-000SPEAKER 29OHM SIDE PORT 112DB |
68 |
|
- |
BK | Bulk | Active | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 5.6 kHz | - | 29 Ohms | 112.00 | - | - | - | - | Side | Rectangular | - | - | - | - | Solder Pads | 0.310" L x 0.220" W (7.87mm x 5.59mm) |
|
|
PL 5 RV - 4 OHMSPEAKER 4OHM 10W 79DB |
40 |
|
Datasheet |
- | Bulk | Active | - | - | 460 Hz ~ 20 kHz | 620Hz | 4 Ohms | 79.00 | 1W/1M | Sound Pressure Level (SPL) | 10 W | 20 W | User Defined | Round | - | - | - | - | Wire Leads | 2.130" Dia (54.10mm) |
|
|
PL 8 RV - 4 OHMSPEAKER 4OHM 10W 84DB |
33 |
|
Datasheet |
- | Bulk | Active | - | - | 140 Hz ~ 19 kHz | - | 4 Ohms | 84.00 | 1W/1M | Sound Pressure Level (SPL) | 10 W | 20 W | User Defined | Round | - | - | - | - | Wire Leads | 3.394" Dia (86.20mm) |
|
|
FK-26768-000SPEAKER 1.03 KOHM TOP PORT 98DB |
100 |
|
Datasheet |
FK | Bulk | Active | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 6.9 kHz | - | 1.03 kOhms | 98.00 | - | Sensitivity | - | - | Top | Rectangular | - | - | - | - | Solder Pads | 0.197" L x 0.108" W (5.00mm x 2.73mm) |
|
|
W 150 X - 4 OHMSPEAKER 4OHM 60W 6.5IN |
12 |
|
Datasheet |
- | Box | Active | - | General Purpose | 32 Hz ~ 1.4 kHz | 50Hz | 4 Ohms | 80.00 | 1W/1M | Sound Pressure Level (SPL) | 50 W | - | Top | Round | - | - | - | - | Solder Eyelet(s) | 5.283" Dia (134.20mm) |
|
SR-31843-000SPEAKER 46OHM TOP PORT 105DB |
10 |
|
Datasheet |
SR | Tray | Active | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 8.9 kHz | - | 46 Ohms | 105.00 | - | Sound Pressure Level (SPL) | - | - | Top | Round | - | - | - | - | Solder Pads | 0.252" Dia (6.40mm) |
|
|
R 10 S TR 100 VR 10 S TR 100 V |
13 |
|
Datasheet |
R 10 S-TR | Bulk | Active | - | General Purpose | 100 Hz ~ 13 kHz | - | - | 90.00 | 1W/1M | Sound Pressure Level (SPL) | 3 W | 6 W | Top | Round, Square Frame | - | - | - | - | Wire Leads | 4.016" L x 4.016" W (102.00mm x 102.00mm) |
|
|
R 10 SC - 100 VR 10 SC - 100 V |
13 |
|
Datasheet |
R 10 SC | Bulk | Active | - | General Purpose | 100 Hz ~ 13 kHz | - | - | 90.00 | 1W/1M | Sound Pressure Level (SPL) | 3 W | 6 W | Top | Round, Square Frame | Rubber | - | IP65/IP67 - Dust Tight, Waterproof | - | Wire Leads | 4.016" L x 4.016" W (102.00mm x 102.00mm) |
|
|
RAU-34832-B148RECEIVER |
48 |
|
Datasheet |
RAU | Bulk | Active | Magnetic | Receiver | - | - | 14 Ohms | - | - | - | - | - | Top | Rectangular | - | - | - | - | Solder Pads | - |
|
|
RDI-34006-000RECEIVER |
29 |
|
Datasheet |
RDI | Bulk | Active | Magnetic | Receiver | - | - | 25 Ohms | - | - | - | - | - | Top | Rectangular | - | - | - | - | Solder Pads | - |
|
|
RLQ-34240-000RECEIVER |
94 |
|
Datasheet |
RLQ | Bulk | Active | Magnetic | Receiver | - | - | 57 Ohms | - | - | - | - | - | Top | Rectangular | - | - | - | - | Solder Pads | - |
Speakers Electronic Components
Explore Speakers electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
