Speakers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Technology | Type | Frequency Range | Frequency - Self Resonant | Impedance | Efficiency - dBA | Efficiency - Testing | Efficiency - Type | Power - Rated | Power - Max | Port Location | Shape | Material - Cone | Material - Magnet | Ingress Protection | Ratings | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PSR-28N08A-JQSPEAKER 8OHM 250MW TOP PORT 89DB |
9,163 |
|
Datasheet |
PSR | Bulk | Active | Magnetic | General Purpose | 700 Hz ~ 8 kHz | 700Hz | 8 Ohms | 89.00 | 1W/1M | Sound Pressure Level (SPL) | 250 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Ferrite | - | - | Solder Pads | 1.102" Dia (28.00mm) |
|
SP-1504SPEAKER 8OHM 800MW TOP PORT 93DB |
232 |
|
Datasheet |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 300 Hz ~ 8 kHz | 1000Hz | 8 Ohms | 93.00 | 100mW/100mm | Sound Pressure Level (SPL) | 800 mW | 800 mW | Top | Round | Polyethylene Naphthalate (PEN) | Nd-Fe-B-N38 | - | - | Wire Leads | 0.591" Dia (15.00mm) |
|
CDM-20008SPEAKER 8OHM 300MW TOP PORT 92DB |
3,898 |
|
Datasheet |
CDM | Tray | Active | Magnetic | General Purpose | 448 Hz ~ 7 kHz | 560Hz | 8 Ohms | 92.00 | 300mW/100mm | Sound Pressure Level (SPL) | 300 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.787" Dia (20.00mm) |
|
CMS-15113-076S-67SPEAKER 6OHM 700MW TOP PORT 92DB |
2,506 |
|
Datasheet |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 600Hz | 6 Ohms | 92.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|
SP-1609SSPEAKER 8OHM 700MW TOP PORT 92DB |
3,001 |
|
Datasheet |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 200 Hz ~ 5 kHz | 850Hz | 8 Ohms | 92.00 | 100mW | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | - | Nd-Fe-B | - | - | Spring Type | 0.630" L x 0.354" W (16.00mm x 9.00mm) |
|
AS02008MR-RSPEAKER 8OHM 500MW TOP PORT 86DB |
2,400 |
|
Datasheet |
AS | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 4 kHz | 500Hz | 8 Ohms | 86.00 | 100mW/100mm | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.787" Dia (20.00mm) |
|
E-12041808SPEAKER 8OHM 2W TOP PORT 87DB |
13,923 |
|
Datasheet |
- | Tray | Active | Magnetic | Exciter | 400 Hz ~ 20 kHz | 400Hz | 8 Ohms | 87.00 | 1W/100mm | Sound Pressure Level (SPL) | 2 W | 2.5 W | Top | Round | - | - | - | - | Solder Eyelet(s) | 0.728" Dia (18.50mm) |
|
AS02008MR-5-RSPEAKER 8OHM 500MW TOP PORT 86DB |
971 |
|
Datasheet |
AS | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 4 kHz | 500Hz | 8 Ohms | 86.00 | 100mW/100mm | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.787" Dia (20.00mm) |
|
AR027150MR-2-RSPEAKER 150OHM 15MW TOP PT 118DB |
1,007 |
|
Datasheet |
- | Tray | Active | Magnetic | Receiver | 20 Hz ~ 10 kHz | 150Hz | 150 Ohms | 118.00 | 1mW | Sound Pressure Level (SPL) | 15 mW | 30 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 1.055" Dia (26.80mm) |
|
AS01808AO-3-RSPEAKER 8OHM 1W TOP PORT 94DB |
9,847 |
|
Datasheet |
Slim Line Micro | Tray | Active | Magnetic | General Purpose | 420 Hz ~ 14 kHz | 420Hz | 8 Ohms | 94.00 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 1.2 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.709" L x 0.512" W (18.00mm x 13.00mm) |
|
AS03008MR-RSPEAKER 8OHM 500MW TOP PORT 82DB |
9,489 |
|
Datasheet |
AS | Tray | Active | Magnetic | General Purpose | 650 Hz ~ 15 kHz | 650Hz | 8 Ohms | 82.00 | 1W/500mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 1.181" Dia (30.00mm) |
|
AST-03208MR-RSPEAKER 8OHM 100MW TOP PORT 82DB |
1,663 |
|
Datasheet |
AST | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 20 kHz | 1500Hz | 8 Ohms | 82.00 | 100mW/500mm | Sound Pressure Level (SPL) | 100 mW | 200 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | PC Pins | 1.256" Dia (31.90mm) |
|
AS01508MR-6-RSPEAKER 8OHM 1.2W TOP PORT 88DB |
15,063 |
|
Datasheet |
AS | Tray | Active | Magnetic | General Purpose | 900 Hz ~ 20 kHz | 900Hz | 8 Ohms | 88.00 | 100mW/100mm | Sound Pressure Level (SPL) | 1.2 W | 1.8 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.591" Dia (15.00mm) |
|
CVS-1508SPEAKER 8OHM 300MW TOP PORT 73DB |
6,100 |
|
Datasheet |
CVS | Tray | Active | Magnetic | General Purpose | 1.36 kHz ~ 20 kHz | 1700Hz | 8 Ohms | 73.00 | 1W/1M | Sound Pressure Level (SPL) | 300 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | Washable | PC Pins | 0.591" Dia (15.00mm) |
|
AST-02308MR-RSPEAKER 8OHM 100MW TOP PORT 75DB |
6,321 |
|
Datasheet |
AST | Tray | Active | Magnetic | General Purpose | 600 Hz ~ 20 kHz | 1500Hz | 8 Ohms | 75.00 | 100mW/500mm | Sound Pressure Level (SPL) | 100 mW | 200 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | PC Pins | 0.906" Dia (23.00mm) |
|
CVS-1708SPEAKER 8OHM 200MW TOP PORT 74DB |
1,538 |
|
Datasheet |
CVS | Tray | Active | Magnetic | General Purpose | 1.2 kHz ~ 20 kHz | 1500Hz | 8 Ohms | 74.00 | 1W/1M | Sound Pressure Level (SPL) | 200 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | Washable | PC Pins | 0.669" Dia (17.00mm) |
|
AS02708CO-WR-RSPEAKER 8OHM 1W TOP PORT 80DB |
53,420 |
|
Datasheet |
AS | Tray | Active | Magnetic | General Purpose | 250 Hz ~ 20 kHz | 750Hz | 8 Ohms | 80.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 3 W | Top | Oval, Rectangular Frame | Cloth | Nd-Fe-B | Water Resistant | - | Solder Eyelet(s) | 1.063" L x 0.787" W (27.00mm x 20.00mm) |
|

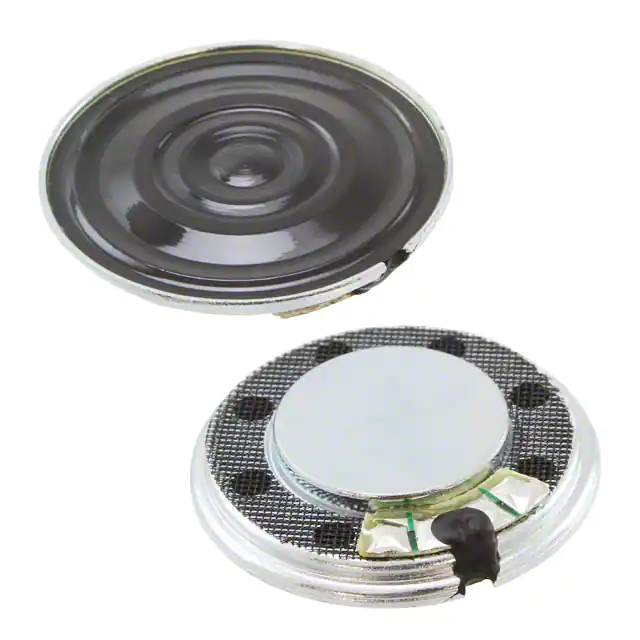

AS02808MR-2-RSPEAKER 8OHM 500MW TOP PORT 85DB |
1,402 |
|
Datasheet |
AS | Tray | Active | Magnetic | General Purpose | 600 Hz ~ 20 kHz | 600Hz | 8 Ohms | 85.00 | 500mW/500mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 1.102" Dia (28.00mm) |
|

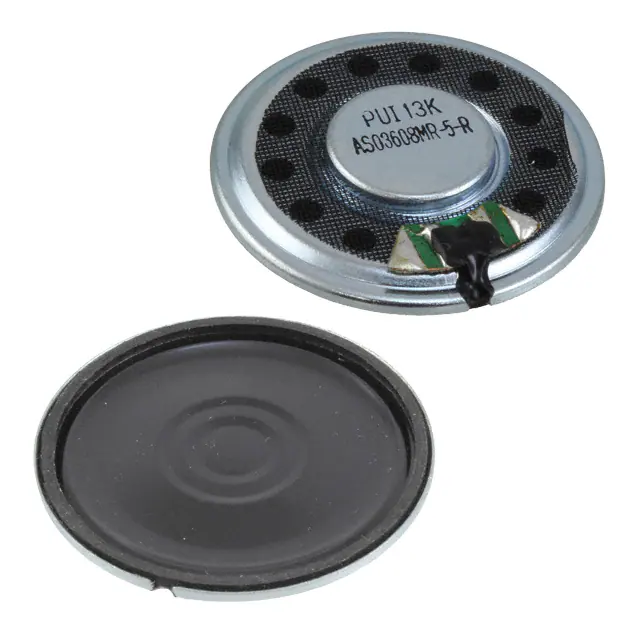

AS03608MR-5-RSPEAKER 8OHM 500MW TOP PORT 91DB |
1,017 |
|
Datasheet |
AS | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 4.5 kHz | 500Hz | 8 Ohms | 91.00 | 100mW/100mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | N38 | - | - | Solder Pads | 1.417" Dia (36.00mm) |
|
AST-03008MR-RSPEAKER 8OHM 150MW TOP PORT 72DB |
2,115 |
|
Datasheet |
AST | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 20 kHz | 1400Hz | 8 Ohms | 72.00 | 100mW/500mm | Sound Pressure Level (SPL) | 150 mW | 200 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | PC Pins | 1.175" Dia (29.85mm) |
Speakers Electronic Components
Explore Speakers electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
