Signal Relays, Up to 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

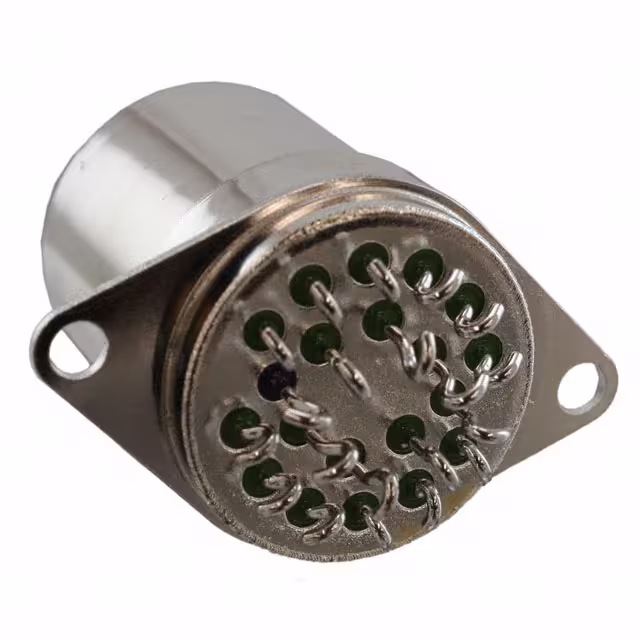

RD6CAH2600RELAY GEN PURPOSE 6PDT 2A 26.5V |
0 |
|
Datasheet |
RD, CII | Bulk | Active | Chassis Mount | 26.5VDC | 6PDT (6 Form C) | 2 A | 28VDC - Nom | - | 133 mA | Non Latching | - | Solder Hook | - | - | 13 VDC | 2.3 VDC | 15 ms | 15 ms | -65°C ~ 125°C | - | General Purpose | Military | MIL-R-5757/1 |
|
2-1617057-2RELAY GENERAL PURPOSE |
9 |
|
Datasheet |
5407 | Bulk | Active | - | - | - | - | - | - | - | Non Latching | - | - | - | - | - | - | - | - | - | - | General Purpose | - | - |
|
|
G6S 6170HRELAY TELECOM DPDT 2A 3V |
34 |
|
Datasheet |
G6S | Box | Active | Through Hole | 3VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | - | 33.3 mA | Latching, Single Coil | - | PC Pin | - | - | 2.25 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|
|
1SNA645521R2000-ABBGOBRIC0100 24VDC |
8 |
|
- |
* | Retail Package | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1SNA645521R2000OBRIC0100 24VDC |
8 |
|
- |
* | Retail Package | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1617121-7RELAY GEN PURPOSE DPDT 1A 26.5V |
16 |
|
Datasheet |
MAC | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | - | 17 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
1617126-3RELAY GEN PURPOSE DPDT 1A 18V |
19 |
|
Datasheet |
MAWD | Bulk | Active | Through Hole | 18VDC | DPDT (2 Form C) | 1 A | 28VDC - Nom | - | 20.5 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 7 VDC | 0.63 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
1617029-6RELAY GEN PURPOSE DPDT 2A 12V |
9 |
|
Datasheet |
HFW | Bulk | Active | Chassis Mount | 12VDC | DPDT (2 Form C) | 2 A | 115VAC, 28VDC - Max | - | 75 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 6.4 VDC | 0.7 VDC | 4 ms | 4 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
1617148-3RELAY GEN PURPOSE DPDT 1A 26.5V |
13 |
|
Datasheet |
MGAPD | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 28VDC - Nom | - | 17 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
1-1617146-2RELAY GEN PURPOSE DPDT 1A 26.5V |
6 |
|
Datasheet |
MGACD | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 28VDC - Nom | - | 17 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
1617029-5RELAY GEN PURPOSE DPDT 2A 12V |
14 |
|
Datasheet |
HFW | Bulk | Active | Chassis Mount | 12VDC | DPDT (2 Form C) | 2 A | 115VAC, 28VDC - Max | - | 75 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 6.4 VDC | 0.7 VDC | 4 ms | 4 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
1617121-3RELAY GEN PURPOSE DPDT 1A 12V |
12 |
|
Datasheet |
MAC | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 28VDC - Nom | - | 30.8 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 7 VDC | 0.63 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
1-1617121-6RELAY GENERAL PURPOSE DPDT 1A 5V |
15 |
|
Datasheet |
MA, CII | Box | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 28VDC - Nom | - | 100 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 2.7 VDC | 0.22 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | - | General Purpose | Military | MIL-R-39016/9 |
|
|
1617121-6RELAY GEN PURPOSE DPDT 1A 18V |
15 |
|
Datasheet |
MAC | Bulk | Active | Through Hole | 18VDC | DPDT (2 Form C) | 1 A | 28VDC - Nom | - | 20.5 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 10.5 VDC | 0.91 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
1-1617109-5RELAY GENERAL PURPOSE DPDT 1A 6V |
15 |
|
Datasheet |
- | Box | Active | Through Hole | 6VDC | DPDT (2 Form C) | 1 A | 28VDC - Nom | - | 61.2 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 4.2 VDC | - | 4 ms | 3 ms | -55°C ~ 85°C | - | General Purpose | - | - |
|
|
1617152-2RELAY GEN PURPOSE DPDT 1A 12V |
19 |
|
Datasheet |
MGSPD | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | - | 15 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 7 VDC | 0.64 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
1-1617120-4RELAY GENERAL PURPOSE SPDT 1A 5V |
16 |
|
Datasheet |
1MSD, CII | Box | Active | Through Hole | 5VDC | SPDT (1 Form C) | 1 A | 115VAC, 28VDC - Max | - | 50 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 2.6 VDC | 0.23 VDC | 4 ms | 2 ms | -65°C ~ 125°C | - | General Purpose | Military | MIL-R-39016/25 |
|
|
1-1617120-3RELAY GENERAL PURPOSE SPDT 1A 5V |
5 |
|
Datasheet |
1MSD, CII | Box | Active | Through Hole | 5VDC | SPDT (1 Form C) | 1 A | 28VDC - Nom | - | 40 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 2.8 VDC | 0.23 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | - | General Purpose | Military | MIL-R-39016/25 |
|
|
1-1617119-7RELAY GEN PURPOSE SPDT 1A 26.5V |
13 |
|
Datasheet |
1MA, CII | Box | Active | Through Hole | 26.5VDC | SPDT (1 Form C) | 1 A | 115VAC, 28VDC - Max | - | 13.3 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | Military | MIL-R-39016/23 |
|
|
1617130-2RELAY GEN PURPOSE DPDT 1A 12V |
24 |
|
Datasheet |
MSPD | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 28VDC - Nom | - | 14.1 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 7 VDC | 0.64 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
