Signal Relays, Up to 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1617542-8RELAY GEN PURPOSE DPDT 1A 26.5V |
0 |
|
Datasheet |
MAC | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 17 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 15.2 VDC | 1.8 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
4-1617572-0RELAY GENERAL PURPOSE DPDT 1A 6V |
0 |
|
Datasheet |
MGS, CII | Bulk | Active | Through Hole | 6VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 48 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 4 VDC | 0.9 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
JMAWDD-26XPRELAY GEN PURPOSE DPDT 1A 26.5V |
0 |
|
Datasheet |
MADD, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 18.5 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 15.2 VDC | 1.8 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/20 |
|
|
5-1393812-1RELAY GEN PURPOSE 4PDT 2A 24V |
0 |
|
Datasheet |
V23054, AXICOM | Bulk | Obsolete | Socketable | 24VDC | 4PDT (4 Form C) | 2 A | 125VAC, 150VDC - Max | 250VA, 300W | 38.1 mA | Non Latching | - | Plug In | - | - | 10.5 VDC | - | 16 ms | 2 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
2-1617031-8RELAY GEN PURPOSE DPDT 2A 26.5V |
0 |
|
Datasheet |
HFW, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 2 A | 115VAC, 28VDC - Max | 230VA, 56W | 37.9 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
1-1617560-1RELAY GEN PURPOSE DPDT 2A 22V |
0 |
|
Datasheet |
HMS, CII | Bulk | Active | Chassis Mount | 22VDC | DPDT (2 Form C) | 2 A | - | - | 31.4 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | - | - | 6 ms | 5 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
HFW1201K135General Purpose Relays HFW1201K1 |
23 |
|
- |
* | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1617033-6RELAY GENERAL PURPOSE DPDT 2A |
0 |
|
Datasheet |
HFW, CII | Bulk | Active | Through Hole | - | DPDT (2 Form C) | 2 A | - | - | - | Non Latching | - | PC Pin | Sealed - Hermetically | - | - | - | 4 ms | - | -65°C ~ 125°C | - | General Purpose | - | - |
|
|
1617033-3RELAY GENERAL PURPOSE DPDT 2A |
0 |
|
Datasheet |
HFW, CII | Bulk | Active | Through Hole | - | DPDT (2 Form C) | 2 A | - | - | - | - | - | PC Pin | Sealed - Hermetically | - | - | - | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | - | - |
|
|
1617169-2RELAY GEN PURPOSE DPDT 1A 18V |
0 |
|
Datasheet |
MS, CII | Bulk | Active | Through Hole | 18VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 11.3 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 11.3 VDC | 1.5 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
2-1617038-7RELAY GEN PURPOSE DPDT 2A 26.5V |
0 |
|
Datasheet |
HMB, CII | Bulk | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | - | - | 37.9 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 15 VDC | 1.5 VDC | 5 ms | 5 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
HMB1201G01LRELAY GEN PURPOSE DPDT 2A 12V |
0 |
|
Datasheet |
HMB, CII | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 2 A | - | - | 75 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 7.2 VDC | 0.7 VDC | 5 ms | 5 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
1617792-6RELAY GENERAL PURPOSE DPDT 1A 5V |
0 |
|
Datasheet |
- | Bulk | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | - | - | - | Non Latching | - | PC Pin | Sealed - Hermetically | - | 2.7 VDC | 0.22 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | - | General Purpose | - | - |
|
|
J1MSWT-5XPRELAY GENERAL PURPOSE SPDT 1A 5V |
0 |
|
Datasheet |
1MS, CII | Bulk | Active | Through Hole | 5VDC | SPDT (1 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 79.4 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 3 VDC | 0.24 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
3SBC5131K5RELAY GEN PURPOSE DPDT 2A 26.5V |
2 |
|
- |
3SBC, CII | Tray | Discontinued at Digi-Key | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | 115VAC, 28VDC - Max | 230VA, 56W | 19.6 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | - | - | 4 ms | 6 ms | -65°C ~ 125°C | - | General Purpose | - | - |
|
|
1-1617020-6RELAY GEN PURPOSE DPDT 2A |
0 |
|
Datasheet |
FW, CII | Bulk | Discontinued at Digi-Key | Through Hole | 48VDC | DPDT (2 Form C) | 2 A | - | - | 19.2 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 25 VDC | 2.5 VDC | 6 ms | 3 ms | -65°C ~ 125°C | - | General Purpose | - | - |
|
|
1-1393807-6RELAY GEN PURPOSE DPDT 2A 110V |
0 |
|
Datasheet |
V23154, AXICOM | Bulk | Active | Socketable | 110VDC | DPDT (2 Form C) | 2 A | 125VAC, 150VDC - Max | 250VA, 300W | 7.3 mA | Non Latching | - | Plug In | - | - | 49 VDC | - | 7.5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
HMB1201G01MRELAY GEN PURPOSE DPDT 2A 12V |
0 |
|
Datasheet |
HMB, CII | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 2 A | - | - | 75 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 7.2 VDC | 0.7 VDC | 5 ms | 5 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
HMS1230S003RELAY GEN PURPOSE DPDT 2A 12V |
0 |
|
Datasheet |
HMS, CII | Bulk | Active | Chassis Mount | 12VDC | DPDT (2 Form C) | 2 A | - | - | 38.4 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 5.6 VDC | 0.6 VDC | 6 ms | 5 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|

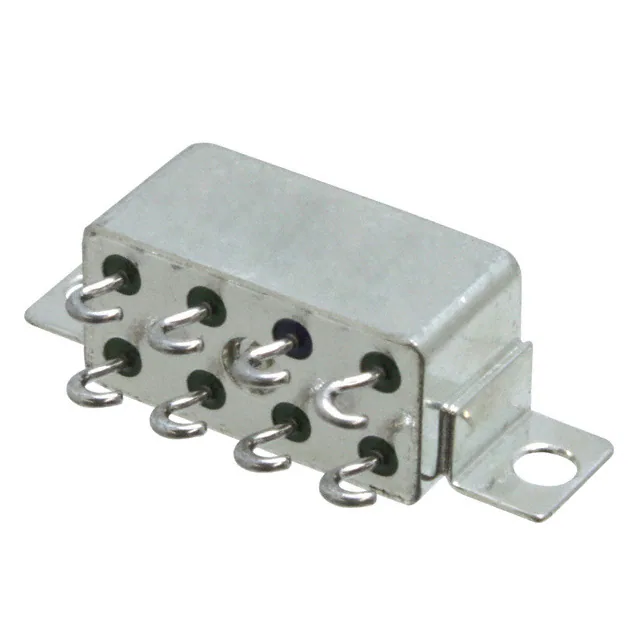

HMS1131S04PRELAY GEN PURPOSE DPDT 2A 26.5V |
0 |
|
Datasheet |
HMS, CII | Bulk | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | - | 25.7 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 11.4 VDC | 1.1 VDC | 6 ms | 5 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | General Purpose | Military | MIL-R-39016/44 |
