Signal Relays, Up to 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MGSCD-12RELAY GEN PURPOSE DPDT 1A 12V |
0 |
|
Datasheet |
MGS, CII | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 15 mA | Non Latching | - | PC Pin | - | - | 7 VDC | 0.64 VDC | 4 ms | 2 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|

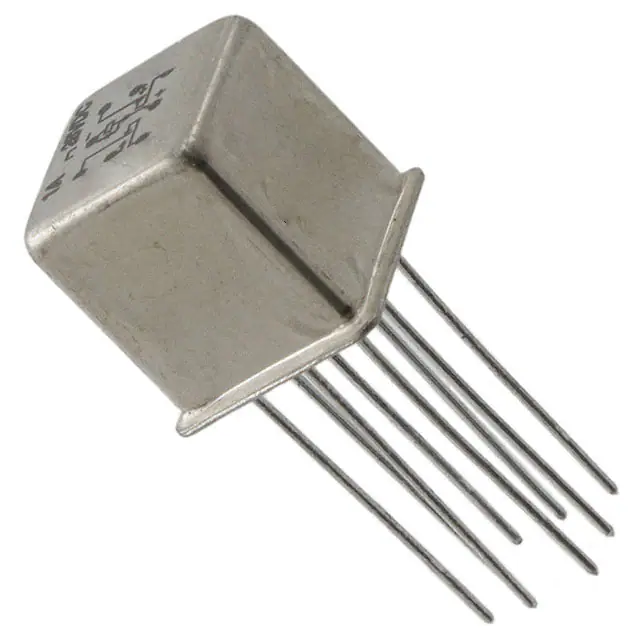

JMGSCDD-26PWRELAY GEN PURPOSE DPDT 1A 26.5V |
0 |
|
Datasheet |
MGSDD, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 9 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 15.2 VDC | 1.7 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/43 |
|

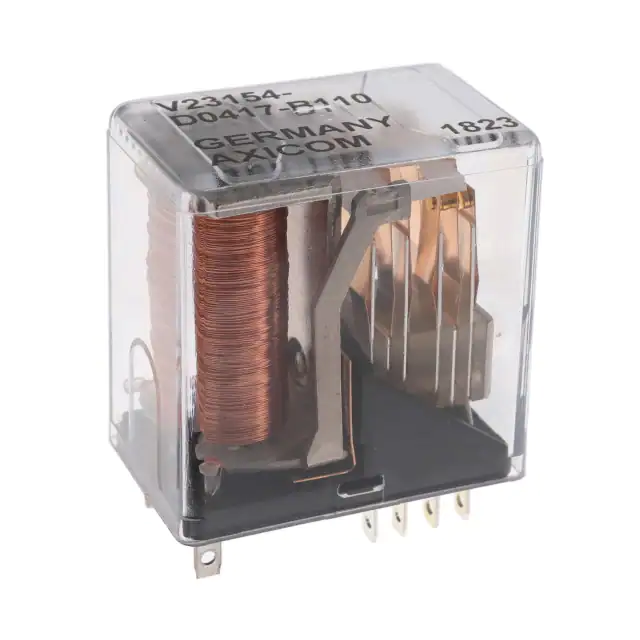

2-1393807-6RELAY GEN PURPOSE 4PDT 2A |
10 |
|
Datasheet |
V23154, AXICOM | Bulk | Obsolete | Socketable | - | 4PDT (4 Form C) | 2 A | 125VAC - Max | 250VA | - | Non Latching | - | PC Pin | - | - | - | - | 7.5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag) | General Purpose | - | - |
|

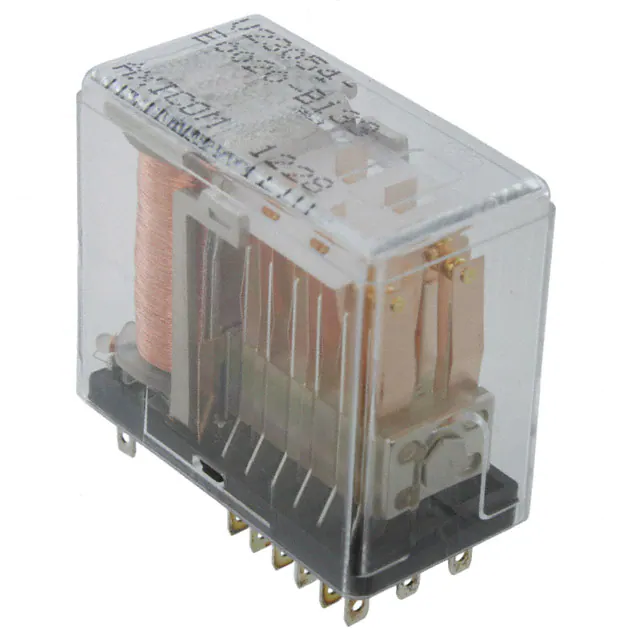

3-1393813-6RELAY GEN PURPOSE 6PDT 2A 24V |
9 |
|
Datasheet |
V23054, AXICOM | Bulk | Obsolete | Socketable | 24VDC | 6PDT (6 Form C) | 2 A | 125VAC, 150VDC - Max | 250VA, 300W | 38.1 mA | Non Latching | - | Plug In | - | - | 13 VDC | - | 16 ms | 2 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
JMAWD-26XLRELAY GEN PURPOSE DPDT 1A 26.5V |
0 |
|
Datasheet |
MAD, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 17 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/15 |
|
|
3-1617118-4RELAY GENERAL PURPOSE SPDT 1A 5V |
0 |
|
Datasheet |
1MA, CII | Bulk | Active | Through Hole | 5VDC | SPDT (1 Form C) | 1 A | 115VAC, 28VDC - Max | - | 100 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 3.5 VDC | 0.23 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
KCP-5-2500RELAY GENERAL PURPOSE SPDT 2A |
0 |
|
Datasheet |
KCP | Bulk | Obsolete | Socketable | - | SPDT (1 Form C) | 2 A | 120VAC - Max | 240VA | - | - | - | Plug In, 8 Pin (Octal) | - | - | - | - | 20 ms | 10 ms | -35°C ~ 85°C | Silver (Ag) | General Purpose | - | - |
|
|
1617167-3RELAY GEN PURPOSE DPDT 1A 18V |
0 |
|
Datasheet |
MS, CII | Bulk | Active | Through Hole | 18VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 11.3 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 11.3 VDC | 1.5 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
6-1617039-1RELAY GEN PURPOSE DPDT 2A |
0 |
|
Datasheet |
HMS, CII | Bulk | Active | Through Hole | - | DPDT (2 Form C) | 2 A | - | - | - | Non Latching | - | PC Pin | - | - | - | - | 6 ms | 5 ms | -65°C ~ 125°C | - | General Purpose | - | - |
|
|
JMSCT-26XLRELAY GEN PURPOSE DPDT 1A 26.5V |
0 |
|
Datasheet |
MST, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 9.5 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-28776/3 |
|
|
JMSCD-18XPSRELAY GEN PURPOSE DPDT 1A 18V |
0 |
|
Datasheet |
MSD, CII | Bulk | Active | Through Hole | 18VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 11.3 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 9.8 VDC | 0.92 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/16 |
|
1393806-6RELAY GENERAL PURPOSE DPDT 2A |
0 |
|
Datasheet |
V23154, AXICOM | Bulk | Obsolete | Socketable | - | DPDT (2 Form C) | 2 A | 125VAC, 150VDC - Max | 250VA, 300W | - | - | - | Plug In | - | - | - | - | 7.5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag) | General Purpose | - | - |
|
|
2-1617031-6RELAY GEN PURPOSE DPDT 2A 26.5V |
0 |
|
- |
HFW, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | - | 37.9 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
HFW1201K48General Purpose Relays HFW1201K4 |
12 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1617162-5RELAY GEN PURPOSE SPDT 1A 26.5V |
0 |
|
Datasheet |
1MA, CII | Bulk | Active | Through Hole | 26.5VDC | SPDT (1 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 13.3 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 15.4 VDC | 1.37 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
JMAP-12XLRELAY GEN PURPOSE DPDT 1A 12V |
0 |
|
Datasheet |
MA, CII | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 30.8 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 7 VDC | 0.63 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
JMAWD-5XMRELAY GENERAL PURPOSE DPDT 1A 5V |
0 |
|
Datasheet |
MAD, CII | Bulk | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 100 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 2.7 VDC | 0.22 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/15 |
|
JMACD-12XMRELAY GEN PURPOSE DPDT 1A 12V |
0 |
|
Datasheet |
MAD, CII | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 30.8 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 7 VDC | 0.63 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/15 |
|
7-1393806-3RELAY GEN PURPOSE DPDT 2A 15V |
0 |
|
Datasheet |
V23154, AXICOM | Bulk | Obsolete | Socketable | 15VDC | DPDT (2 Form C) | 2 A | 125VAC, 150VDC - Max | 250VA, 300W | 46.1 mA | Non Latching | - | Plug In | - | - | 9.1 VDC | - | 7.5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
6-1617542-0RELAY GEN PURPOSE DPDT 1A 12V |
0 |
|
Datasheet |
MGA, CII | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 30.8 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 7 VDC | 0.63 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
