Rotary Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of Positions | Index Stops | Number of Decks | Number of Poles per Deck | Circuit per Deck | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
75BP36-01-1-02NSWITCH ROTARY 2POS 200MA 115V |
3 |
|
Datasheet |
75 | Bulk | Active | 2 | Fixed | 1 | 1 | SPDT | Non-Shorting (BBM) | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 36° | Silver Cadmium Oxide (AgCdO) | Gold | Panel Mount, Through Hole | PC Pin | - | 12.70mm |
|
MRAN112-CBSWITCH ROTARY |
2 |
|
Datasheet |
MR | Bulk | Active | 2 ~ 12 | Adjustable | 1 | 1 | SP12T | Non-Shorting (BBM) | 250mA (AC) | 125 V | - | Knob | 15.80mm | 30° | Copper | Silver | Panel Mount, Through Hole | PC Pin | Process Sealed | 17.00mm |
|
|
MRAN206-BASWITCH ROTARY |
5 |
|
Datasheet |
MR | Bulk | Active | 2 ~ 6 | Adjustable | 1 | 2 | DP6T | Non-Shorting (BBM) | 250mA (AC) | 125 V | - | Knob | 14.30mm | 30° | Copper | Silver | Panel Mount, Through Hole | PC Pin | Process Sealed | 17.00mm |
|

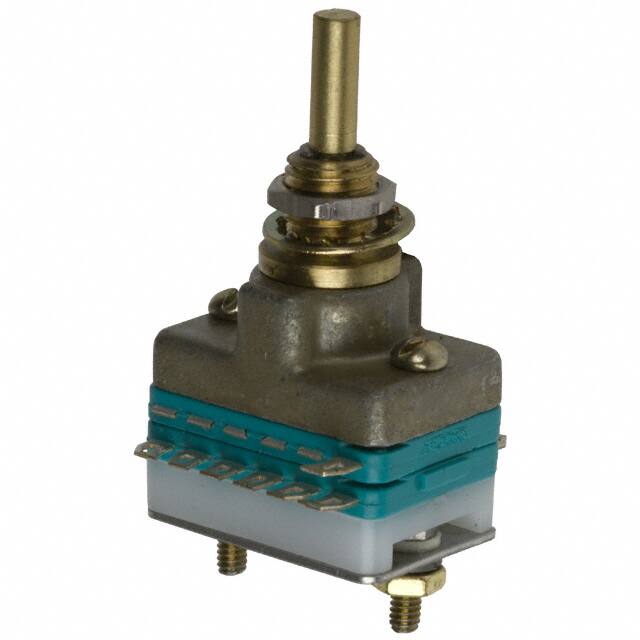

C1D0206N-ASWITCH ROTARY 2-6POS 100MA 125V |
5 |
|
Datasheet |
C1 | Bulk | Active | 2 ~ 6 | Adjustable | 1 | 2 | DP6T | Non-Shorting (BBM) | 100mA (AC), 250mA (DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 9.52mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 20.60mm |
|
|
MRAN403-BASWITCH ROTARY |
0 |
|
Datasheet |
MR | Bulk | Active | 2 ~ 3 | Adjustable | 1 | 4 | 4P3T | Non-Shorting (BBM) | 250mA (AC) | 125 V | - | Knob | 14.30mm | 30° | Copper | Silver | Panel Mount, Through Hole | PC Pin | Process Sealed | 17.00mm |
|
|
DS-121-RT1ROTARY SWITCH DS-121-RT1 |
0 |
|
- |
DS | Bulk | Active | 2 | Fixed | 1 | 2 | DPDT | Not Specified | 5A (DC) | - | 32 V | Knob | - | 22.5° | Copper | Silver | Panel Mount | Connector | - | - |
|
|
DS-211-GN2ROTARY SWITCH DS-211-GN2 |
0 |
|
- |
DS | Bulk | Active | 2 | Fixed | 1 | 1 | SPDT | Not Specified | 5A (DC) | - | 32 V | Knob | - | - | Copper | Silver | Panel Mount, Through Hole | Connector | - | - |
|
|
75600-04-BXSWITCH ROTARY 6POS 15A 16V |
1 |
|
Datasheet |
- | Bulk | Active | 6 | Fixed | - | - | - | Not Specified | 15A (DC) | - | 16 V | Knob | - | - | - | - | Panel Mount | Wire Leads | - | 46.79mm |
|
|
C7D0323SSWITCH ROTARY 23POS 500MA 125V |
0 |
|
Datasheet |
C7 | Bulk | Active | 23 | Fixed | 3 | 1 | SP23T | Shorting (MBB) | 500mA (AC), 1A (DC) | 125 V | 28 V | Flatted (6.35mm Dia) | 14.29mm | 15° | Brass | Silver | Panel Mount | Solder Lug | - | 44.38mm |
|
|
111-11ESWITCH ROTARY 11POS 15A 125V |
0 |
|
Datasheet |
111 | Bulk | Active | 11 | Fixed | 1 | 1 | SP11T | Non-Shorting (BBM) | 15A (AC/DC) | 125 V | 20 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 28.70mm |
|
|
212-3T2ESWITCH ROTARY 3POS 20A 150V |
0 |
|
Datasheet |
212 | Bulk | Active | 3 | Fixed | 2 | 1 | SP3T | Non-Shorting (BBM) | 20A (AC/DC) | 150 V | 20 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 106.40mm |
|
|
608-8ESWITCH ROTARY 8POS 100A 300V |
0 |
|
Datasheet |
608 | Bulk | Active | 8 | Fixed | 1 | 1 | SP8T | Non-Shorting (BBM) | 100A (AC/DC) | 300 V | 20 V | Flatted (9.53mm Dia) | 52.39mm | 40° | Silver Alloy | - | Panel Mount | Solder Lug | - | 84.10mm |
|
|
KC1901A-POS9SWITCH ROTARY 9POS 350MA 125V |
0 |
|
Datasheet |
KC | Bulk | Active | 9 | Fixed | 1 | 1 | SP9T | Not Specified | 350mA (AC) | 125 V | - | Flatted (6.35mm Dia) | - | 30° | Copper Alloy | - | Panel Mount, Through Hole | PC Pin | - | - |
|
|
42P2069-1SWITCH ROTARY 4POS |
0 |
|
- |
42 | Bulk | Discontinued at Digi-Key | 4 | Fixed | 12 | 2 | DP4T | Shorting (MBB) | - | - | - | - | - | 36° | - | - | - | - | - | - |
|
|
COM-13253SWITCH ROTARY 10POS 300MA 125V |
0 |
|
- |
- | Bulk | Active | 10 | Fixed | 1 | 1 | SP10T | Shorting (MBB) | 300mA (AC) | 125 V | - | Flatted (6.35mm Dia) | 16.00mm | 60° | - | - | Panel Mount, Through Hole | PC Pin | - | 17.00mm |
|
H10107RR01QSWITCH ROTARY 2POS 12A 125V |
0 |
|
Datasheet |
H | Tray | Active | 2 | Fixed | 1 | 1 | SPST | Non-Shorting (BBM) | 12A (AC), 1A (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 7.29mm | 45° | Copper | Silver | Panel Mount | Solder Lug | - | 14.61mm |
|
|
KC24A10.001NPSSWITCH ROTARY 4POS 350MA 125V |
0 |
|
Datasheet |
KC | Bulk | Active | 4 | Fixed | 1 | 2 | DP4T | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Flatted (6.35mm Dia) | 10.00mm | 30° | Copper Alloy | Silver | Panel Mount, Through Hole | PC Pin | - | 14.20mm |
|
|
KC22D0.001NLSSWITCH ROTARY 2POS 350MA 125V |
0 |
|
Datasheet |
KC | Bulk | Active | 2 | Fixed | 1 | 2 | DPDT | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Screwdriver Slot | Flush | 30° | Copper Alloy | Silver | Panel Mount | Solder Lug | - | 20.70mm |
|
|
H10107RR05QSWITCH ROTARY 2POS 12A 125V |
0 |
|
Datasheet |
H | Bulk | Active | 2 | Fixed | 1 | 1 | SPST | Non-Shorting (BBM) | 12A (AC), 1A (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 7.29mm | 45° | Copper | Silver | Panel Mount | Quick Connect - 0.110" (2.8mm) | - | 15.25mm |
|
|
9341700022SWITCH ROTARY 6POS 130MA 150V |
0 |
|
Datasheet |
417 | Bulk | Active | 6 | Continuous | 1 | 2 | DP6T | Non-Shorting (BBM) | 130mA (AC/DC) | 150 V | 150 V | Screwdriver Slot | Flush | 30° | Copper Alloy | Silver | Through Hole | PC Pin | - | - |
