Rotary Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of Positions | Index Stops | Number of Decks | Number of Poles per Deck | Circuit per Deck | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
44HS30-04-1-12NSWITCH ROTARY 12POS 1A 115V |
0 |
|
- |
44 | Bulk | Active | 12 | Continuous | 4 | 1 | SP12T | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | Shaft and Panel Sealed | 52.40mm |
|

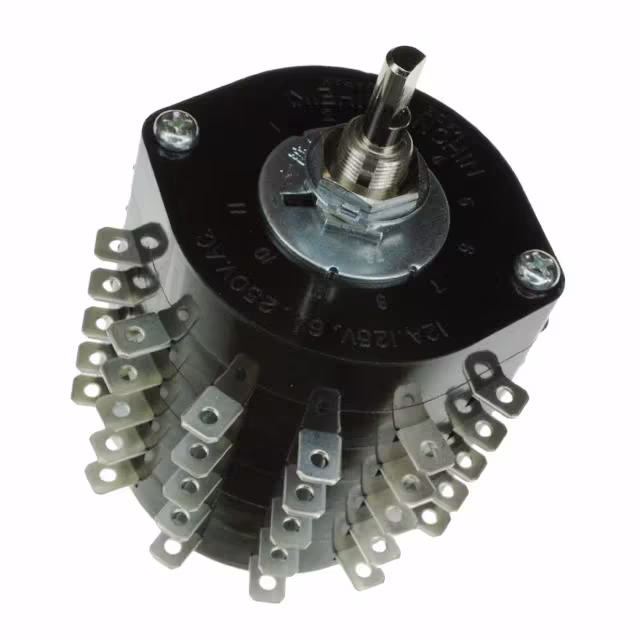

HS16-5SNSWITCH ROTARY 2-11POS 12A 125V |
0 |
|
Datasheet |
HS | Box | Obsolete | 2 ~ 11 | Adjustable | 5 | 1 | SP11T | Shorting (MBB) | 12A (AC) | 125 V | - | Flatted (6mm Dia) | 15.00mm | 30° | Phosphor Bronze | - | Panel Mount | Solder Lug | - | 71.50mm |
|
|
44M30-04-2-06NSWITCH ROTARY 6POS 1A 115V |
0 |
|
Datasheet |
44 | Bulk | Active | 6 | Fixed | 4 | 2 | DP6T | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 52.40mm |
|
|
53M15-01-1-16NSWITCH ROTARY 16POS 250MA 115V |
0 |
|
Datasheet |
53 | Bulk | Active | 16 | Fixed | 1 | 1 | SP16T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 11.10mm | 15° | Silver Alloy | Gold | Panel Mount | Solder Lug | - | 23.27mm |
|
M10H E V3+243+504+G2SWITCH ROTARY 4POS 20A 600V |
13 |
|
Datasheet |
M10H | Box | Active | 4 | - | - | - | - | - | 20A (AC/DC) | 600 V | - | Knob | - | - | - | - | Panel Mount | Screw Terminal | - | - |
|
|
44HGS30-01B04NSWITCH ROTARY 4POS 1A 115V |
0 |
|
- |
44 | Bulk | Active | 4 | Fixed | - | 1 | SP4T | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | Shaft and Panel Sealed | - |
|
|
09MS30-01-1-08NSWITCH ROTARY 8POS 250MA 115V |
0 |
|
Datasheet |
09 | Bulk | Active | 8 | Fixed | 1 | 1 | SP8T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Silver Alloy | Gold | Panel Mount | Solder Lug | Shaft and Panel Sealed | 24.38mm |
|
|
42M36-04-2-05NSWITCH ROTARY 5POS 1A 115V |
0 |
|
- |
42 | Bulk | Active | 5 | Fixed | 4 | 2 | DP5T | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 36° | Silver Alloy | - | Panel Mount | Solder Lug | - | 52.40mm |
|
M20 Z A2+003+G2SWITCH ROTARY 2POS 35A 600V |
23 |
|
Datasheet |
M20 | Box | Active | 2 | - | - | - | - | - | 35A | 600 V | - | Knob | - | - | - | - | Panel Mount | Screw Terminal | - | - |
|
|
44M30-03-1-05NSWITCH ROTARY 5POS 1A 115V |
0 |
|
Datasheet |
44 | Bulk | Active | 5 | Fixed | 3 | 1 | SP5T | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 43.61mm |
|
M10H E V1+504+G2SWITCH ROTARY 7POS 20A 600V |
2 |
|
Datasheet |
M10H | Box | Active | 7 | - | - | - | - | - | 20A (AC/DC) | 600 V | - | Knob | - | - | - | - | Panel Mount | Screw Terminal | - | - |
|
|
44A30-03-2-05NSWITCH ROTARY 5POS 1A 115V |
0 |
|
Datasheet |
44 | Bulk | Active | 5 | Fixed | 3 | 2 | DP5T | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 43.61mm |
|
|
54M30-01-1-10SSWITCH ROTARY 10POS 1A 115V |
0 |
|
- |
54 | Bulk | Active | 10 | Fixed | 1 | 1 | SP10T | Shorting (MBB) | 1A (AC/DC) | 115 V | 28 V | Concentric (3.17mm Dia, 6.35mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 24.74mm |
|
|
53M15-01-2-12SSWITCH ROTARY 12POS 250MA 115V |
0 |
|
Datasheet |
53 | Bulk | Active | 12 | Fixed | 1 | 2 | - | Shorting (MBB) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 11.10mm | 15° | Silver Alloy | Gold | Panel Mount | Solder Lug | - | 23.27mm |
|
|
44A45-03-1-08NSWITCH ROTARY 8POS 5A 115V |
0 |
|
Datasheet |
44 | Bulk | Active | 8 | Continuous | 3 | 1 | SP8T | Non-Shorting (BBM) | 5A (AC), 1A (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 45° | Silver Alloy | - | Panel Mount | Solder Lug | - | 43.61mm |
|
|
42P36-04-1-04NSWITCH ROTARY 4POS 1A 115V |
0 |
|
Datasheet |
42 | Bulk | Active | 4 | Fixed | 4 | 1 | SP4T | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 36° | Silver Alloy | - | Panel Mount, Through Hole, Right Angle | PC Pin | - | 52.40mm |
|
|
44M45-05-1-08NSWITCH ROTARY 8POS 5A 115V |
0 |
|
Datasheet |
44 | Bulk | Active | 8 | Continuous | 5 | 1 | SP8T | Non-Shorting (BBM) | 5A (AC), 1A (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 45° | Silver Alloy | - | Panel Mount | Solder Lug | - | 61.19mm |
|
|
44HS30-02-1-08NSWITCH ROTARY 8POS 1A 115V |
0 |
|
- |
44 | Bulk | Active | 8 | Fixed | 2 | 1 | SP8T | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | Shaft and Panel Sealed | 34.82mm |
|
|
42A36-05-1-04NSWITCH ROTARY 4POS 1A 115V |
0 |
|
Datasheet |
42 | Bulk | Active | 4 | Fixed | 5 | 1 | SP4T | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 36° | Silver Alloy | - | Panel Mount | Solder Lug | - | 61.19mm |
|
|
44M45-02-1-06NSWITCH ROTARY 6POS 5A 115V |
0 |
|
Datasheet |
44 | Bulk | Active | 6 | Fixed | 2 | 1 | SP6T | Non-Shorting (BBM) | 5A (AC), 1A (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 45° | Silver Alloy | - | Panel Mount | Solder Lug | - | 34.82mm |
