Rotary Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of Positions | Index Stops | Number of Decks | Number of Poles per Deck | Circuit per Deck | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
50KM90-01-2-02NSWITCH ROTARY 2POS 150MA 115V |
0 |
|
Datasheet |
50 | Bulk | Active | 2 | Fixed | 1 | 2 | DPDT | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 90° | - | Gold | Panel Mount | Solder Lug | - | 18.77mm |
|
|
71B30-06A12NSWITCH ROTARY 12POS 250MA 115V |
0 |
|
- |
71 | Bulk | Active | 12 | Continuous, Fixed | 6 | 1 | SP12T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 54.13mm |
|
|
71MBS30-02B09NSWITCH ROTARY 9POS 250MA 115V |
0 |
|
- |
71 | Bulk | Active | 9 | Fixed | 2 | 1 | SP9T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | Shaft and Panel Sealed | 27.87mm |
|
|
71MAS30-02B08NSWITCH ROTARY 8POS 250MA 115V |
0 |
|
- |
71 | Bulk | Active | 8 | Fixed | 2 | 1 | SP8T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | Shaft and Panel Sealed | 27.87mm |
|
|
24878-10NSWITCH ROTARY 10POS 1A 115V |
0 |
|
Datasheet |
24 | Bulk | Active | 10 | Continuous | 1 | 1 | SP10T | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 7.92mm | 36° | Phosphor Bronze | Silver | Panel Mount, Through Hole | PC Pin | - | 17.45mm |
|
|
71BS30-02-2-06NSWITCH ROTARY 6POS 250MA 115V |
0 |
|
Datasheet |
71 | Bulk | Active | 6 | Fixed | 2 | 2 | DP6T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | Shaft and Panel Sealed | 24.87mm |
|
|
51M30-01-3-04NSWITCH ROTARY 4POS 150MA 115V |
0 |
|
Datasheet |
51 | Bulk | Active | 4 | Fixed | 1 | 3 | 3P4T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 30° | - | Gold | Panel Mount | Solder Lug | - | 18.77mm |
|
|
71AF36-02-1-10N-CSWITCH ROTARY 10POS 250MA 115V |
0 |
|
Datasheet |
71 | Bulk | Active | 10 | Continuous | 2 | 1 | SP10T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 36° | Silver Alloy | - | Panel Mount, Through Hole, Right Angle | PC Pin | - | 24.87mm |
|
|
71BF36-02-1-06NSWITCH ROTARY 6POS 250MA 115V |
0 |
|
Datasheet |
71 | Bulk | Active | 6 | Fixed | 2 | 1 | SP6T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | 36° | Silver Alloy | - | Panel Mount, Through Hole, Right Angle | PC Pin | - | 24.87mm |
|
|
44A30-01-1-10NSWITCH ROTARY 10POS 1A 115V |
10 |
|
Datasheet |
44 | Bulk | Active | 10 | Fixed | 1 | 1 | SP10T | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 26.04mm |
|
|
19001-05ULSWITCH ROTARY 5POS 15A 120V |
0 |
|
Datasheet |
19 | Bulk | Active | 5 | Fixed | 1 | 1 | SP5T | Non-Shorting (BBM) | 15A (AC), 1A (DC) | 120 V | 120 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 24.13mm |
|
|
51CD30-01-2-AJNSWITCH ROTARY 2-6POS 150MA 115V |
0 |
|
Datasheet |
51 | Bulk | Active | 2 ~ 6 | Adjustable | 1 | 2 | DP6T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 30° | - | Gold | Panel Mount | Solder Lug | - | 18.77mm |
|

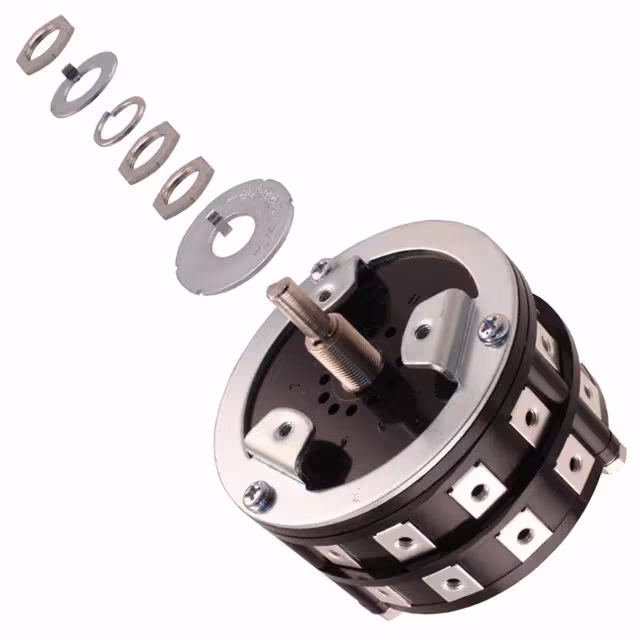

PS2NSWITCH ROTARY 2-11POS 30A 125V |
2 |
|
Datasheet |
PS | Box | Obsolete | 2 ~ 11 | Adjustable | 2 | 1 | SP11T | Non-Shorting (BBM) | 30A (AC) | 125 V | - | Flatted (6mm Dia) | 15.00mm | 30° | Silver Alloy | - | Panel Mount | Screw Terminal | - | 64.00mm |
|
|
50CD45-01-2-AJNSWITCH ROTARY 2-4POS 150MA 115V |
0 |
|
Datasheet |
50 | Bulk | Active | 2 ~ 4 | Adjustable | 1 | 2 | DP4T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 45° | - | Gold | Panel Mount | Solder Lug | - | 18.77mm |
|
|
71B30-03-1-09NSWITCH ROTARY 9POS 250MA 115V |
0 |
|
Datasheet |
71 | Bulk | Active | 9 | Fixed | 3 | 1 | SP9T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 30.40mm |
|
|
71BD30-06-2-AJNSWITCH ROTARY 2-6POS 250MA 115V |
0 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 6 | Adjustable | 6 | 2 | DP6T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 54.13mm |
|
|
51C30-01-4-03NSWITCH ROTARY 3POS 150MA 115V |
0 |
|
Datasheet |
51 | Bulk | Active | 3 | Fixed | 1 | 4 | 4P3T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 30° | - | Gold | Panel Mount | Solder Lug | - | 18.77mm |
|
|
50ML60-01-1-02NSWITCH ROTARY 2POS 150MA 115V |
25 |
|
Datasheet |
50 | Bulk | Active | 2 | Fixed | 1 | 1 | SPDT | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 60° | - | Gold | Panel Mount | Solder Lug | - | 18.77mm |
|
|
71C361108N-1108NSWITCH ROTARY 8POS 250MA 115V |
0 |
|
Datasheet |
71 | Bulk | Active | 8 | Fixed | 1 | 1 | SP8T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Concentric (3.17mm Dia, 6.35mm Dia) | 9.53mm | 36° | Silver Alloy | - | Panel Mount | Solder Lug | - | 35.94mm |
|
436037-1SWITCH ROTARY 12POS 125MA 115V |
0 |
|
Datasheet |
3100 | Bulk | Active | 12 | Continuous | 1 | - | BCD | Not Specified | 125mA (AC) | 115 V | - | Flatted (6.35mm Dia) | 14.88mm | 30° | Phosphor Bronze | Gold | Panel Mount, Through Hole | PC Pin | - | 13.34mm |
