Rotary Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of Positions | Index Stops | Number of Decks | Number of Poles per Deck | Circuit per Deck | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
412-10SWITCH ROTARY 10POS 50A 300V |
0 |
|
Datasheet |
412 | Bulk | Active | 10 | Fixed | 1 | 1 | SP10T | Non-Shorting (BBM) | 50A (AC/DC) | 300 V | 20 V | Flatted (6.35mm Dia) | 28.58mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 61.90mm |
|
|
412-3T2SWITCH ROTARY 3POS 50A 300V |
0 |
|
Datasheet |
412 | Bulk | Active | 3 | Fixed | 2 | 1 | SP3T | Non-Shorting (BBM) | 50A (AC/DC) | 300 V | 20 V | Flatted (6.35mm Dia) | 28.58mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 127.80mm |
|
|
608-3SWITCH ROTARY 3POS 100A 300V |
0 |
|
Datasheet |
608 | Bulk | Active | 3 | Fixed | 1 | 1 | SP3T | Non-Shorting (BBM) | 100A (AC/DC) | 300 V | 20 V | Flatted (9.53mm Dia) | 52.39mm | 40° | Silver Alloy | - | Panel Mount | Solder Lug | - | 84.10mm |
|
|
608-3T2SWITCH ROTARY 3POS 100A 300V |
0 |
|
Datasheet |
608 | Bulk | Active | 3 | Fixed | 2 | 1 | SP3T | Non-Shorting (BBM) | 100A (AC/DC) | 300 V | 20 V | Flatted (9.53mm Dia) | 52.39mm | 40° | Silver Alloy | - | Panel Mount | Solder Lug | - | 173.00mm |
|
|
608-3T3SWITCH ROTARY 3POS 100A 300V |
0 |
|
Datasheet |
608 | Bulk | Active | 3 | Fixed | 3 | 1 | SP3T | Non-Shorting (BBM) | 100A (AC/DC) | 300 V | 20 V | Flatted (9.53mm Dia) | 52.39mm | 40° | Silver Alloy | - | Panel Mount | Solder Lug | - | 261.90mm |
|
|
608-4T2SWITCH ROTARY 4POS 100A 300V |
0 |
|
Datasheet |
608 | Bulk | Active | 4 | Fixed | 2 | 1 | SP4T | Non-Shorting (BBM) | 100A (AC/DC) | 300 V | 20 V | Flatted (9.53mm Dia) | 52.39mm | 40° | Silver Alloy | - | Panel Mount | Solder Lug | - | 173.00mm |
|
|
608-5T3SWITCH ROTARY 5POS 100A 300V |
0 |
|
Datasheet |
608 | Bulk | Active | 5 | Fixed | 3 | 1 | SP5T | Non-Shorting (BBM) | 100A (AC/DC) | 300 V | 20 V | Flatted (9.53mm Dia) | 52.39mm | 40° | Silver Alloy | - | Panel Mount | Solder Lug | - | 261.90mm |
|
|
608-6T2SWITCH ROTARY 6POS 100A 300V |
0 |
|
Datasheet |
608 | Bulk | Active | 6 | Fixed | 2 | 1 | SP6T | Non-Shorting (BBM) | 100A (AC/DC) | 300 V | 20 V | Flatted (9.53mm Dia) | 52.39mm | 40° | Silver Alloy | - | Panel Mount | Solder Lug | - | 173.00mm |
|
|
608-8T3SWITCH ROTARY 8POS 100A 300V |
0 |
|
Datasheet |
608 | Bulk | Active | 8 | Fixed | 3 | 1 | SP8T | Non-Shorting (BBM) | 100A (AC/DC) | 300 V | 20 V | Flatted (9.53mm Dia) | 52.39mm | 40° | Silver Alloy | - | Panel Mount | Solder Lug | - | 261.90mm |
|
|
711-3-T2SWITCH ROTARY 3POS 7A 125V |
0 |
|
Datasheet |
711 | Bulk | Active | 3 | Fixed | 2 | 1 | SP3T | Non-Shorting (BBM) | 7A (AC/DC) | 125 V | 20 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Silver Alloy | - | Panel Mount | Solder, Quick Connect - 0.187" (4.7mm) | - | 45.20mm |
|
|
T508SWITCH ROTARY 8POS 3A 120V |
0 |
|
Datasheet |
T-50 | Bulk | Active | 8 | Fixed | 1 | 1 | SP8T | Non-Shorting (BBM) | 3A (AC/DC) | 120 V | 20 V | Flatted (6.35mm Dia) | 12.70mm | - | Silver Alloy | - | Panel Mount | Solder Lug | - | 34.93mm |
|
|
71A30-02-1-12S-CSWITCH ROTARY 12POS 250MA 115V |
0 |
|
Datasheet |
71 | Bulk | Active | 12 | Continuous | 2 | 1 | SP12T | Shorting (MBB) | 250mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 24.87mm |
|
|
HS16-2SWITCH ROTARY 2-11POS 12A 125V |
0 |
|
Datasheet |
HS | Bulk | Obsolete | 2 ~ 11 | Adjustable | 2 | 1 | SP11T | Non-Shorting (BBM) | 12A (AC) | 125 V | - | Knurled (6mm Dia) | 15.00mm | 30° | Phosphor Bronze | - | Panel Mount | Solder Lug | - | 41.50mm |
|
|
HS16-2SSWITCH ROTARY 2-11POS 12A 125V |
0 |
|
Datasheet |
HS | Bulk | Obsolete | 2 ~ 11 | Adjustable | 2 | 1 | SP11T | Shorting (MBB) | 12A (AC) | 125 V | - | Knurled (6mm Dia) | 15.00mm | 30° | Phosphor Bronze | - | Panel Mount | Solder Lug | - | 41.50mm |
|

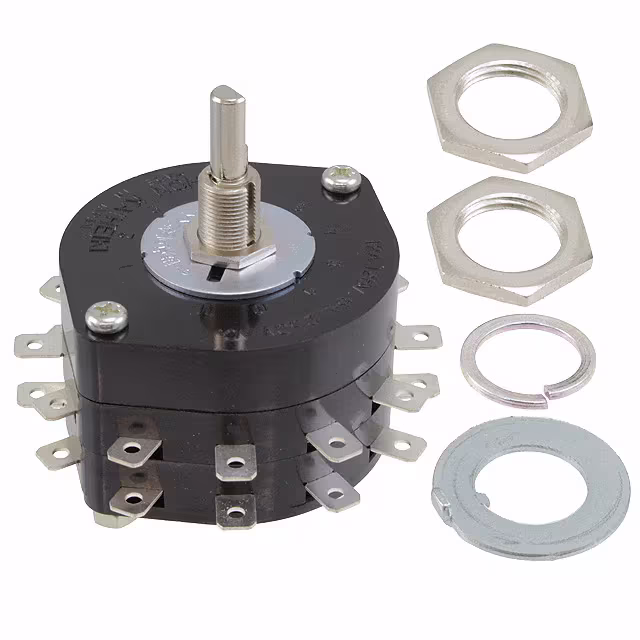

HS16-2SNSWITCH ROTARY 2-11POS 12A 125V |
0 |
|
Datasheet |
HS | Bulk | Obsolete | 2 ~ 11 | Adjustable | 2 | 1 | SP11T | Shorting (MBB) | 12A (AC) | 125 V | - | Flatted (6mm Dia) | 15.00mm | 30° | Phosphor Bronze | - | Panel Mount | Solder Lug | - | 41.50mm |
|
|
HS16-3SSWITCH ROTARY 2-11POS 12A 125V |
0 |
|
Datasheet |
HS | Bulk | Obsolete | 2 ~ 11 | Adjustable | 3 | 1 | SP11T | Shorting (MBB) | 12A (AC) | 125 V | - | Knurled (6mm Dia) | 15.00mm | 30° | Phosphor Bronze | - | Panel Mount | Solder Lug | - | 51.50mm |
|
|
HS16-4SWITCH ROTARY 2-11POS 12A 125V |
0 |
|
Datasheet |
HS | Bulk | Obsolete | 2 ~ 11 | Adjustable | 4 | 1 | SP11T | Non-Shorting (BBM) | 12A (AC) | 125 V | - | Knurled (6mm Dia) | 15.00mm | 30° | Phosphor Bronze | - | Panel Mount | Solder Lug | - | 61.50mm |
|

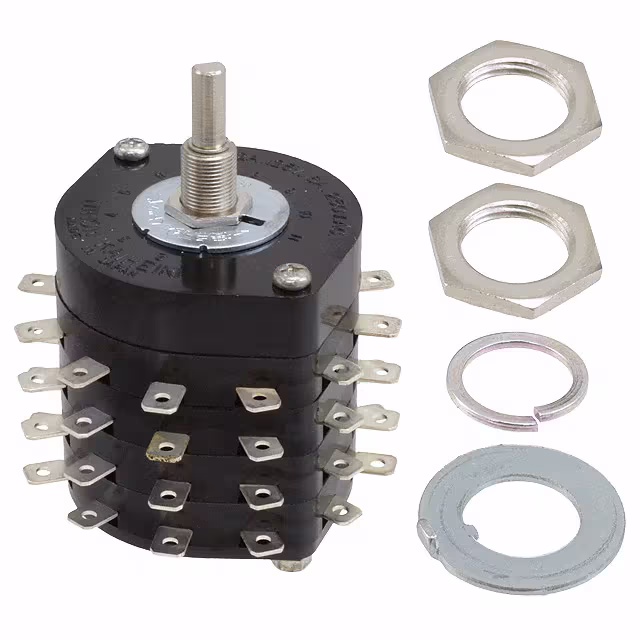

HS16-4SNSWITCH ROTARY 2-11POS 12A 125V |
0 |
|
Datasheet |
HS | Bulk | Obsolete | 2 ~ 11 | Adjustable | 4 | 1 | SP11T | Shorting (MBB) | 12A (AC) | 125 V | - | Flatted (6mm Dia) | 15.00mm | 30° | Phosphor Bronze | - | Panel Mount | Solder Lug | - | 61.50mm |
|
|
HS16-6SSWITCH ROTARY 2-11POS 12A 125V |
0 |
|
Datasheet |
HS | Bulk | Obsolete | 2 ~ 11 | Adjustable | 6 | 1 | SP11T | Shorting (MBB) | 12A (AC) | 125 V | - | Knurled (6mm Dia) | 15.00mm | 30° | Phosphor Bronze | - | Panel Mount | Solder Lug | - | 81.50mm |
|
|
MRA112-BGSWITCH ROTARY 2-12POS 250MA 125V |
0 |
|
Datasheet |
MR | Bulk | Obsolete | 2 ~ 12 | Adjustable | 1 | 1 | SP12T | Non-Shorting (BBM) | 250mA (AC) | 125 V | - | Knob | 14.30mm | 30° | Copper | Silver | Panel Mount, Through Hole | PC Pin | Process Sealed | 17.00mm |
