Rotary Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of Positions | Index Stops | Number of Decks | Number of Poles per Deck | Circuit per Deck | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
312-12SWITCH ROTARY 12POS 30A 300V |
4 |
|
Datasheet |
312 | Bulk | Active | 12 | Fixed | 1 | 1 | SP12T | Non-Shorting (BBM) | 30A (AC/DC) | 300 V | 20 V | Flatted (6.35mm Dia) | 28.58mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 57.20mm |
|
312-5ESWITCH ROTARY 5POS 30A 300V |
3 |
|
Datasheet |
312 | Bulk | Active | 5 | Fixed | 1 | 1 | SP5T | Non-Shorting (BBM) | 30A (AC/DC) | 300 V | 20 V | Flatted (6.35mm Dia) | 28.58mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 57.20mm |
|
|
312-8ESWITCH ROTARY 8POS 30A 300V |
4 |
|
Datasheet |
312 | Bulk | Active | 8 | Fixed | 1 | 1 | SP8T | Non-Shorting (BBM) | 30A (AC/DC) | 300 V | 20 V | Flatted (6.35mm Dia) | 28.58mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 57.20mm |
|
|
312-10ESWITCH ROTARY 10POS 30A 300V |
13 |
|
Datasheet |
312 | Bulk | Active | 10 | Fixed | 1 | 1 | SP10T | Non-Shorting (BBM) | 30A (AC/DC) | 300 V | 20 V | Flatted (6.35mm Dia) | 28.58mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 57.20mm |
|
|
412-12ESWITCH ROTARY 12POS 50A 300V |
3 |
|
Datasheet |
412 | Bulk | Active | 12 | Fixed | 1 | 1 | SP12T | Non-Shorting (BBM) | 50A (AC/DC) | 300 V | 20 V | Flatted (6.35mm Dia) | 28.58mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 61.90mm |
|

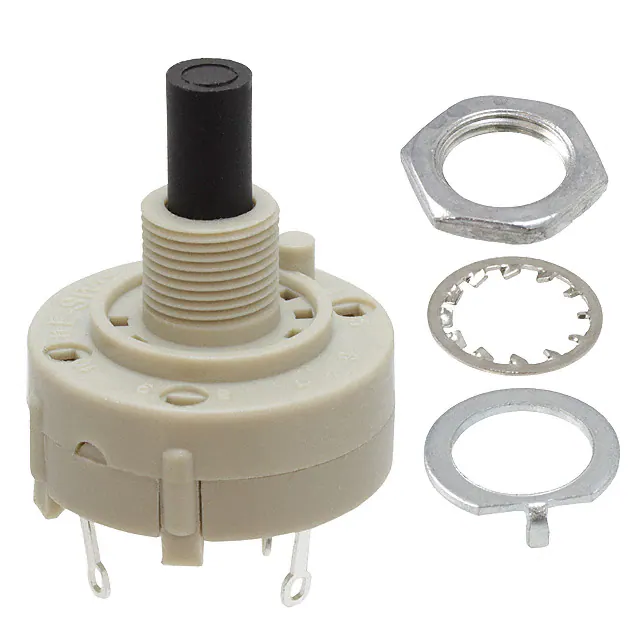

KC56B10.002NLSSWITCH ROTARY 3POS 350MA 125V |
68 |
|
Datasheet |
KC | Bulk | Obsolete | 3 | Fixed | 1 | 1 | SP3T | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Round (6mm Dia) | 10.00mm | 90° | Copper Alloy | Silver | Panel Mount | Solder Lug | - | 18.50mm |
|
KC14A30.001NPSSWITCH ROTARY 4POS 350MA 125V |
57 |
|
Datasheet |
KC | Bulk | Active | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Flatted (6.35mm Dia) | 30.00mm | 30° | Copper Alloy | Silver | Panel Mount, Through Hole | PC Pin | - | 14.20mm |
|
KC14A13.002NLSSWITCH ROTARY 4POS 350MA 125V |
43 |
|
Datasheet |
KC | Bulk | Obsolete | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Flatted (6.35mm Dia) | 13.00mm | 30° | Copper Alloy | Silver | Panel Mount | Solder Lug | - | 18.50mm |
|

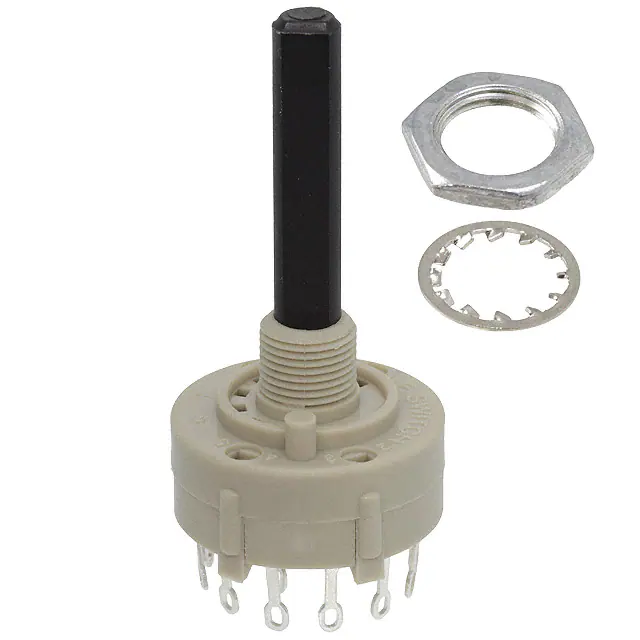

KC10A30.001NLSSWITCH ROTARY 12POS 350MA 125V |
27 |
|
Datasheet |
KC | Bulk | Active | 12 | Continuous | 1 | 1 | SP12T | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Flatted (6.35mm Dia) | 30.00mm | 30° | Copper Alloy | Silver | Panel Mount | Solder Lug | - | 18.50mm |
|
A205S1MNZQSWITCH ROTARY 5POS 2.5A 125V |
72 |
|
Datasheet |
A | Tray | Active | 5 | Fixed | 1 | 2 | DP5T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Screwdriver Slot | Flush | 30° | Silver (Ag) | Silver | Panel Mount | Solder Lug | - | 20.83mm |
|
KC56A13.001NPFSWITCH ROTARY 3POS 350MA 125V |
21 |
|
Datasheet |
KC | Bulk | Obsolete | 3 | Fixed | 1 | 1 | SP3T | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Flatted (6.35mm Dia) | 13.00mm | 90° | Copper Alloy | Gold | Panel Mount, Through Hole | PC Pin | - | 14.20mm |
|
A12542MNCQSWITCH ROTARY 8POS 2.5A 125V |
9 |
|
Datasheet |
A | Tray | Active | 8 | Fixed | 1 | 1 | SP8T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Round (6mm Dia) | 42.00mm | 45° | Silver (Ag) | Silver | Panel Mount, Through Hole | PC Pin | - | 14.48mm |
|
|
A30405RNMCBFSWITCH ROTARY 4POS 0.4VA 20V |
0 |
|
Datasheet |
A | Bulk | Active | 4 | Fixed | 1 | 3 | 3P4T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 20 V | 20 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Copper Alloy | Gold | Panel Mount, Through Hole | PC Pin | Modular Base | 14.48mm |
|

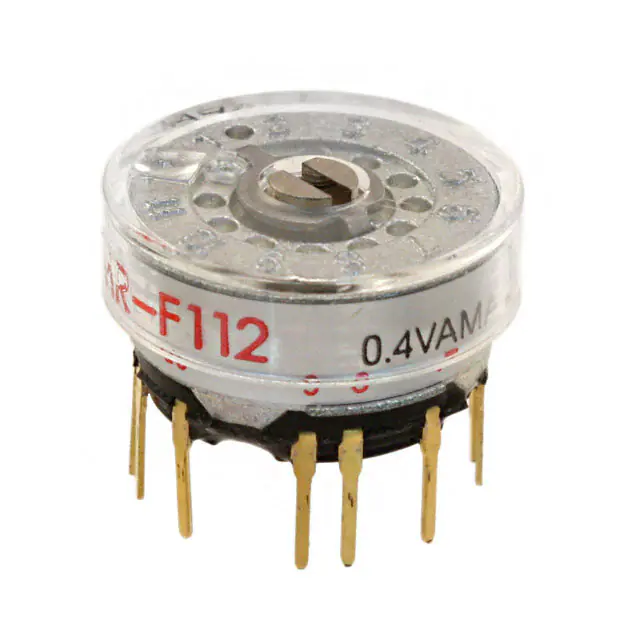

MRF112/328SWITCH ROTARY 2-12POS 0.4VA 28V |
0 |
|
Datasheet |
MR | Box | Obsolete | 2 ~ 12 | Adjustable | 1 | 1 | SP12T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Screwdriver Slot | Flush | 30° | Phosphor Bronze | Gold | Through Hole | PC Pin | Process Sealed | - |
|
|
56BDP36-01-1-AJNSWITCH ROTARY 2-10POS 200MA 115V |
0 |
|
Datasheet |
56 | Bulk | Active | 2 ~ 10 | Adjustable | 1 | 1 | SP10T | Non-Shorting (BBM) | 200mA (AC/DC) | 115 V | 30 V | Screwdriver Slot | 3.18mm | 36° | Brass | Silver | Panel Mount, Through Hole | PC Pin | - | 9.58mm |
|
A40315RNZQESWITCH ROTARY 3POS 2.5A 125V |
32 |
|
Datasheet |
A | Tray | Active | 3 | Fixed | 1 | 4 | 4P3T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 38.10mm | 30° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Epoxy Sealed Terminals | 20.83mm |
|
|
50PT45-01-2-04NSWITCH ROTARY 4POS 150MA 115V |
0 |
|
Datasheet |
50 | Bulk | Active | 4 | Fixed | 1 | 2 | DP4T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 45° | - | Gold | Panel Mount, Through Hole | PC Pin | Process Sealed | 14.63mm |
|
|
50A45-01-1-08NSWITCH ROTARY 8POS 150MA 115V |
0 |
|
Datasheet |
50 | Bulk | Active | 8 | Continuous | 1 | 1 | SP8T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 45° | - | Gold | Panel Mount | Solder Lug | - | 18.77mm |
|
|
51A30-01-1-06NSWITCH ROTARY 6POS 150MA 115V |
0 |
|
Datasheet |
51 | Bulk | Active | 6 | Fixed | 1 | 1 | SP6T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 30° | - | Gold | Panel Mount | Solder Lug | - | 18.77mm |
|
|
A30415RNZGSWITCH ROTARY 4POS 2.5A 125V |
0 |
|
Datasheet |
A | Bulk | Active | 4 | Fixed | 1 | 3 | 3P4T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 38.10mm | 30° | Silver (Ag) | Gold | Panel Mount | Solder Lug | - | 20.83mm |
