Rotary Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of Positions | Index Stops | Number of Decks | Number of Poles per Deck | Circuit per Deck | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
71ADF30-04-2-AJNSWITCH ROTARY 2-6POS 250MA 115V |
0 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 6 | Adjustable | 4 | 2 | DP6T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount, Through Hole, Right Angle | PC Pin | - | 35.94mm |
|
|
71BDF36-04-2-AJNSWITCH ROTARY 2-5POS 250MA 115V |
0 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 5 | Adjustable | 4 | 2 | DP5T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | 36° | Silver Alloy | - | Panel Mount, Through Hole, Right Angle | PC Pin | - | 35.94mm |
|
|
44A30-01-4-02NSWITCH ROTARY 2POS 1A 115V |
0 |
|
Datasheet |
44 | Bulk | Active | 2 | Fixed | 1 | 4 | 4PDT | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 26.04mm |
|
|
44UA30-01-4-02NSWITCH ROTARY 2POS 1A 125V |
0 |
|
Datasheet |
44 | Bulk | Active | 2 | Fixed | 1 | 4 | 4PDT | Non-Shorting (BBM) | 1A (AC) | 125 V | - | Flatted (6.35mm Dia) | 11.10mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 26.04mm |
|
|
24001-09NSWITCH ROTARY 9POS 1A 115V |
0 |
|
Datasheet |
24 | Bulk | Active | 9 | Fixed | 1 | 1 | SP9T | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 7.92mm | 36° | Phosphor Bronze | Silver | Panel Mount | Solder Lug | - | 14.68mm |
|
|
42A36-02-1-02NSWITCH ROTARY 2POS 1A 115V |
0 |
|
Datasheet |
42 | Bulk | Active | 2 | Fixed | 2 | 1 | SPDT | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 36° | Silver Alloy | - | Panel Mount | Solder Lug | - | 34.82mm |
|

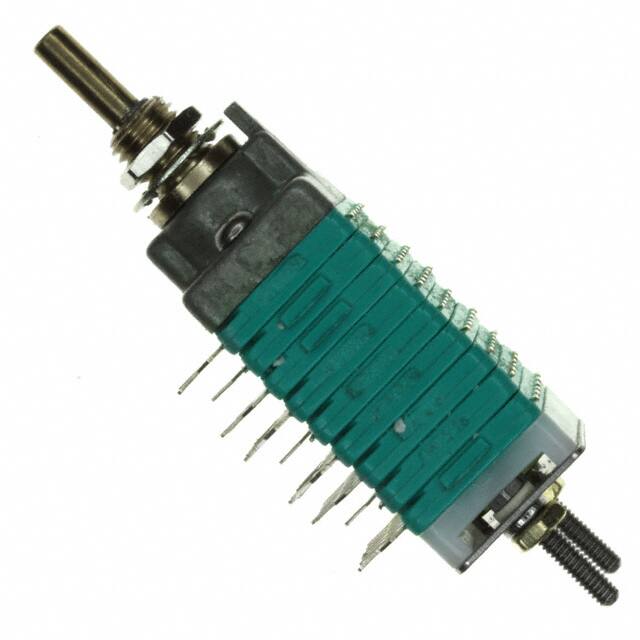

C1D0312S-VASWITCH ROTARY 2-12POS 100MA 125V |
0 |
|
Datasheet |
C1 | Bulk | Active | 2 ~ 12 | Adjustable | 3 | 1 | SP12T | Shorting (MBB) | 100mA (AC), 250mA (DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 9.52mm | 30° | Brass | Silver | Panel Mount, Through Hole, Right Angle | PC Pin | - | 30.76mm |
|
|
09A30-01-2-03SSWITCH ROTARY 3POS 250MA 115V |
0 |
|
Datasheet |
9 | Bulk | Active | 3 | Fixed | 1 | 2 | DPDT | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Silver Alloy | Gold | Panel Mount | Solder Lug | - | 24.38mm |
|
|
08A36-01-2-02NSWITCH ROTARY 2POS 250MA 115V |
0 |
|
Datasheet |
08 | Bulk | Active | 2 | Fixed | 1 | 2 | DPDT | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 36° | Silver Alloy | Gold | Panel Mount | Solder Lug | - | 24.38mm |
|
|
71AD30-06-1-AJNSWITCH ROTARY 2-12POS 250MA 115V |
0 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 12 | Adjustable | 6 | 1 | SP12T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 54.13mm |
|
|
71BD30-06-1-AJNSWITCH ROTARY 2-12POS 250MA 115V |
0 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 12 | Adjustable | 6 | 1 | SP12T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 54.13mm |
|
|
D2D0206SSWITCH ROTARY 2-6POS 250MA 115V |
0 |
|
Datasheet |
D2 | Bulk | Active | 2 ~ 6 | Adjustable | 1 | 2 | DP6T | Shorting (MBB) | 250mA (AC), 550mA (DC) | 115 V | 28 V | Round (6.35mm Dia) | 25.40mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 11.99mm |
|
|
71BF30-05-1-12N-CSWITCH ROTARY 12POS 250MA 115V |
0 |
|
Datasheet |
71 | Bulk | Active | 12 | Continuous | 5 | 1 | SP12T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount, Through Hole, Right Angle | PC Pin | - | 41.48mm |
|
|
71BF30-05-1-12N-FSWITCH ROTARY 12POS 250MA 115V |
0 |
|
Datasheet |
71 | Bulk | Active | 12 | Fixed | 5 | 1 | SP12T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount, Through Hole, Right Angle | PC Pin | - | 41.48mm |
|
|
443491-1-03NSWITCH ROTARY 3POS 1A 115V |
0 |
|
Datasheet |
44 | Bulk | Active | 3 | Fixed | 1 | 1 | SP3T | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 26.04mm |
|
|
443491-1-03SSWITCH ROTARY 3POS 1A 115V |
0 |
|
Datasheet |
44 | Bulk | Active | 3 | Fixed | 1 | 1 | SP3T | Shorting (MBB) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 26.04mm |
|
|
08P36-01-1-04NSWITCH ROTARY 4POS 250MA 115V |
0 |
|
Datasheet |
08 | Bulk | Active | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 36° | Silver Alloy | Gold | Panel Mount, Through Hole, Right Angle | PC Pin | - | 24.38mm |
|
|
44M30-01-1-06NSWITCH ROTARY 6POS 1A 115V |
0 |
|
Datasheet |
44 | Bulk | Active | 6 | Fixed | 1 | 1 | SP6T | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 26.04mm |
|
|
44M30-01-1-06SSWITCH ROTARY 6POS 1A 115V |
0 |
|
Datasheet |
44 | Bulk | Active | 6 | Fixed | 1 | 1 | SP6T | Shorting (MBB) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 26.04mm |
|
|
423481-1-03NSWITCH ROTARY 3POS 1A 115V |
0 |
|
Datasheet |
42 | Bulk | Active | 3 | Fixed | 1 | 1 | SP3T | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 36° | Silver Alloy | - | Panel Mount | Solder Lug | - | 26.04mm |
Rotary Switches Electronic Components
Explore Rotary Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
