Rotary Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of Positions | Index Stops | Number of Decks | Number of Poles per Deck | Circuit per Deck | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
77PT36-01-1-04SSWITCH ROTARY 4POS 50MA 115V |
0 |
|
Datasheet |
77 | Bulk | Active | 4 | Fixed | 1 | 1 | SP4T | Shorting (MBB) | 50mA (AC/DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 7.98mm | 36° | Silver Cadmium Oxide (AgCdO) | Gold | Panel Mount, Through Hole | PC Pin | - | 4.57mm |
|
|
77PT36-01-1-03SSWITCH ROTARY 3POS 50MA 115V |
0 |
|
Datasheet |
77 | Bulk | Active | 3 | Fixed | 1 | 1 | SP3T | Shorting (MBB) | 50mA (AC/DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 7.98mm | 36° | Silver Cadmium Oxide (AgCdO) | Gold | Panel Mount, Through Hole | PC Pin | - | 4.57mm |
|
|
77PT36-01B10SSWITCH ROTARY 10POS 50MA 115V |
0 |
|
Datasheet |
77 | Bulk | Active | 10 | Fixed | 1 | 1 | SP10T | Shorting (MBB) | 50mA (AC/DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 7.98mm | 36° | Silver Cadmium Oxide (AgCdO) | Gold | Panel Mount, Through Hole | PC Pin | - | 4.57mm |
|
|
77PT36-01-1-09SSWITCH ROTARY 9POS 50MA 115V |
0 |
|
Datasheet |
77 | Bulk | Active | 9 | Fixed | 1 | 1 | SP9T | Shorting (MBB) | 50mA (AC/DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 7.98mm | 36° | Silver Cadmium Oxide (AgCdO) | Gold | Panel Mount, Through Hole | PC Pin | - | 4.57mm |
|
|
24001-02NSWITCH ROTARY 2POS 1A 115V |
0 |
|
Datasheet |
24 | Bulk | Active | 2 | Fixed | 1 | 1 | SPDT | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 7.92mm | 36° | Phosphor Bronze | Silver | Panel Mount | Solder Lug | - | 14.68mm |
|
|
24001-02SSWITCH ROTARY 2POS 1A 115V |
0 |
|
Datasheet |
24 | Bulk | Active | 2 | Fixed | 1 | 1 | SPDT | Shorting (MBB) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 7.92mm | 36° | Phosphor Bronze | Silver | Panel Mount | Solder Lug | - | 14.68mm |
|
|
42A36-01-1-03NSWITCH ROTARY 3POS 1A 115V |
0 |
|
Datasheet |
42 | Bulk | Active | 3 | Fixed | 1 | 1 | SP3T | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 36° | Silver Alloy | - | Panel Mount | Solder Lug | - | 26.04mm |
|
|
42A36-01-1-03SSWITCH ROTARY 3POS 1A 115V |
0 |
|
Datasheet |
42 | Bulk | Active | 3 | Fixed | 1 | 1 | SP3T | Shorting (MBB) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 36° | Silver Alloy | - | Panel Mount | Solder Lug | - | 26.04mm |
|
|
71MB30-03-3-04NSWITCH ROTARY 4POS 250MA 115V |
0 |
|
- |
71 | Bulk | Active | 4 | Fixed | 3 | 3 | 3P4T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 30.40mm |
|
|
51KMBT30-01C06SSWITCH ROTARY 6POS 150MA 115V |
0 |
|
- |
51 | Bulk | Active | 6 | Fixed | 1 | 2 | DP6T | Shorting (MBB) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 9.53mm | 30° | - | Gold | Panel Mount | Solder Lug | Process Sealed | 18.77mm |
|
|
44A30-01-1-11NSWITCH ROTARY 11POS 1A 115V |
0 |
|
Datasheet |
44 | Bulk | Active | 11 | Fixed | 1 | 1 | SP11T | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 26.04mm |
|
|
71BS30-03-3-04NSWITCH ROTARY 4POS 250MA 115V |
0 |
|
Datasheet |
71 | Bulk | Active | 4 | Fixed | 3 | 3 | 3P4T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | Shaft and Panel Sealed | 30.40mm |
|
|
71BS30-03-3-02NSWITCH ROTARY 2POS 250MA 115V |
0 |
|
- |
71 | Bulk | Active | 2 | Fixed | 3 | 3 | 3PDT | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | Shaft and Panel Sealed | 30.40mm |
|
|
71BF30-04-1-12S-FSWITCH ROTARY 12POS 250MA 115V |
0 |
|
Datasheet |
71 | Bulk | Active | 12 | Fixed | 4 | 1 | SP12T | Shorting (MBB) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount, Through Hole, Right Angle | PC Pin | - | 35.94mm |
|

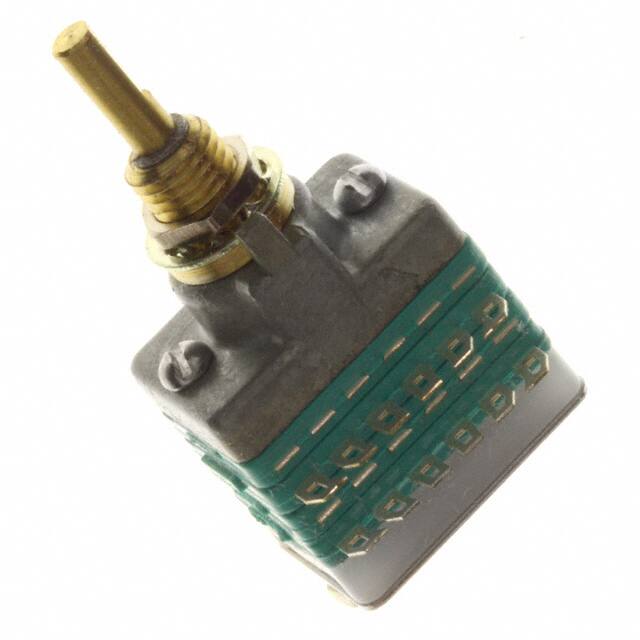

C1D0212N-ASWITCH ROTARY 2-12POS 100MA 125V |
0 |
|
Datasheet |
C1 | Bulk | Active | 2 ~ 12 | Adjustable | 2 | 1 | SP12T | Non-Shorting (BBM) | 100mA (AC), 250mA (DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 9.52mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 25.68mm |
|
|
71A30-03-4-03NSWITCH ROTARY 3POS 250MA 115V |
0 |
|
Datasheet |
71 | Bulk | Active | 3 | Fixed | 3 | 4 | 4P3T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 30.40mm |
|
|
71A30-03-4-03SSWITCH ROTARY 3POS 250MA 115V |
0 |
|
Datasheet |
71 | Bulk | Active | 3 | Fixed | 3 | 4 | 4P3T | Shorting (MBB) | 250mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 30.40mm |
|
|
71B30-03-4-02NSWITCH ROTARY 2POS 250MA 115V |
0 |
|
Datasheet |
71 | Bulk | Active | 2 | Fixed | 3 | 4 | 4PDT | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 30.40mm |
|
|
71B30-03-4-03NSWITCH ROTARY 3POS 250MA 115V |
0 |
|
Datasheet |
71 | Bulk | Active | 3 | Fixed | 3 | 4 | 4P3T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 30.40mm |
|
|
71B30-03-4-03SSWITCH ROTARY 3POS 250MA 115V |
0 |
|
Datasheet |
71 | Bulk | Active | 3 | Fixed | 3 | 4 | 4P3T | Shorting (MBB) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 30.40mm |
