Rotary Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of Positions | Index Stops | Number of Decks | Number of Poles per Deck | Circuit per Deck | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

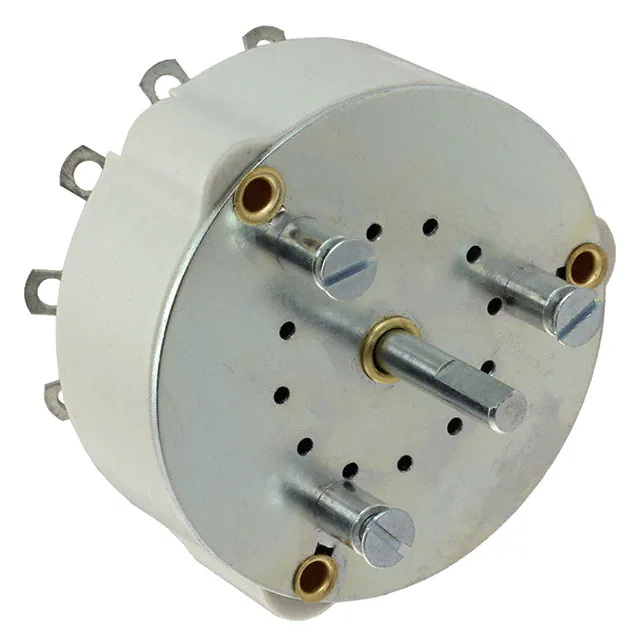

312-12ESWITCH ROTARY 12POS 30A 300V Ohmite |
15 |
|
Datasheet |
312 | Bulk | Active | 12 | Fixed | 1 | 1 | SP12T | Non-Shorting (BBM) | 30A (AC/DC) | 300 V | 20 V | Flatted (6.35mm Dia) | 28.58mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 57.20mm |
|
412-6ESWITCH ROTARY 6POS 50A 300V Ohmite |
5 |
|
Datasheet |
412 | Bulk | Active | 6 | Fixed | 1 | 1 | SP6T | Non-Shorting (BBM) | 50A (AC/DC) | 300 V | 20 V | Flatted (6.35mm Dia) | 28.58mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 61.90mm |
|

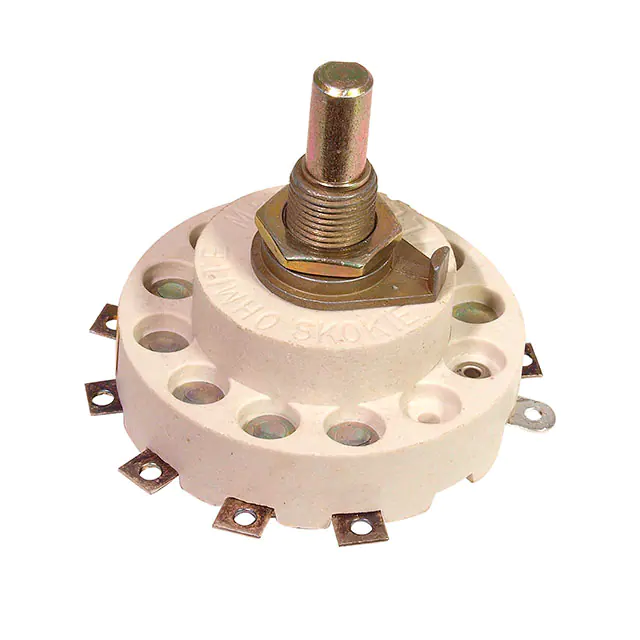

412-8ESWITCH ROTARY 8POS 50A 300V Ohmite |
7 |
|
Datasheet |
412 | Bulk | Active | 8 | Fixed | 1 | 1 | SP8T | Non-Shorting (BBM) | 50A (AC/DC) | 300 V | 20 V | Flatted (6.35mm Dia) | 28.58mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 61.90mm |
|
|
111-4ESWITCH ROTARY 4POS 15A 125V Ohmite |
6 |
|
Datasheet |
111 | Bulk | Active | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 15A (AC/DC) | 125 V | 20 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 28.70mm |
|
|
111-8ESWITCH ROTARY 8POS 15A 125V Ohmite |
5 |
|
Datasheet |
111 | Bulk | Active | 8 | Fixed | 1 | 1 | SP8T | Non-Shorting (BBM) | 15A (AC/DC) | 125 V | 20 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 28.70mm |
|
|
111-5ESWITCH ROTARY 5POS 15A 125V Ohmite |
10 |
|
Datasheet |
111 | Bulk | Active | 5 | Fixed | 1 | 1 | SP5T | Non-Shorting (BBM) | 15A (AC/DC) | 125 V | 20 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 28.70mm |
|
|
T507SESWITCH ROTARY 7POS 3A 120V Ohmite |
4 |
|
Datasheet |
T-50 | Bulk | Active | 7 | Fixed | 1 | 1 | SP7T | Shorting (MBB) | 3A (AC/DC) | 120 V | 20 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 34.93mm |
|
312-12SWITCH ROTARY 12POS 30A 300V Ohmite |
4 |
|
Datasheet |
312 | Bulk | Active | 12 | Fixed | 1 | 1 | SP12T | Non-Shorting (BBM) | 30A (AC/DC) | 300 V | 20 V | Flatted (6.35mm Dia) | 28.58mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 57.20mm |
|
|
312-5ESWITCH ROTARY 5POS 30A 300V Ohmite |
3 |
|
Datasheet |
312 | Bulk | Active | 5 | Fixed | 1 | 1 | SP5T | Non-Shorting (BBM) | 30A (AC/DC) | 300 V | 20 V | Flatted (6.35mm Dia) | 28.58mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 57.20mm |
|
|
312-8ESWITCH ROTARY 8POS 30A 300V Ohmite |
4 |
|
Datasheet |
312 | Bulk | Active | 8 | Fixed | 1 | 1 | SP8T | Non-Shorting (BBM) | 30A (AC/DC) | 300 V | 20 V | Flatted (6.35mm Dia) | 28.58mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 57.20mm |
